Product Description
Available now in Hangzhou, Zhejiang, this 2018 Komatsu PC56-7 mini excavator eliminates factory wait times and delivers fast deployment to your worksite. Powered by a reliable Komatsu S4D87E-1 engine producing 34.5kW at 2300rpm, this 5.3-ton machine combines Japanese engineering with immediate availability for contractors who can't afford delays.
Compact dimensions—5935mm length, 1960mm width—make transport straightforward while the 3810mm maximum digging depth and 6130mm reach handle demanding excavation tasks. Water-cooled 4-stroke direct injection motor and variable plunger hydraulic travel motors ensure consistent performance across urban construction, utility work, and landscaping projects.
- Working Weight: 5,300 kg
- Bucket Capacity: 0.055–0.22 m³
- Engine: Komatsu S4D87E-1, 34.5kW
- Max Digging Depth: 3,810 mm
- Fuel Tank: 120 L
- Location: Hangzhou, Zhejiang—ready for immediate inspection
Skip extended lead times. Inspect in Hangzhou and deploy this proven Komatsu excavator to your operation within days, not months.
| Specifications | Value |
|---|---|
| No. | 1017956 |
| Tonnage (tons) | 5 |
| Working weight (kg) | 5300 |
| Bucket capacity (m³) | 0.055-0.22 |
| Country of origin | Jining, Shandong Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

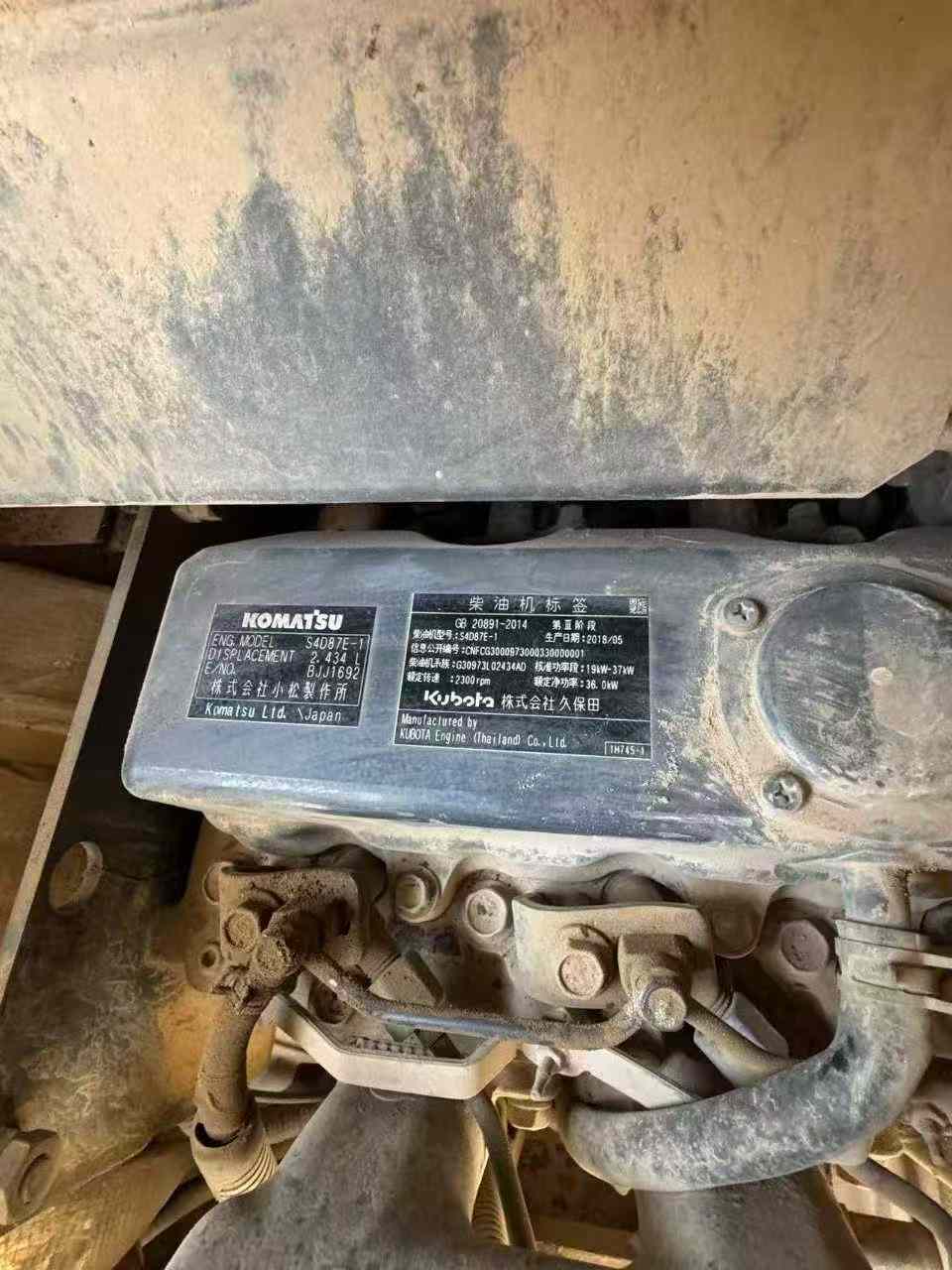

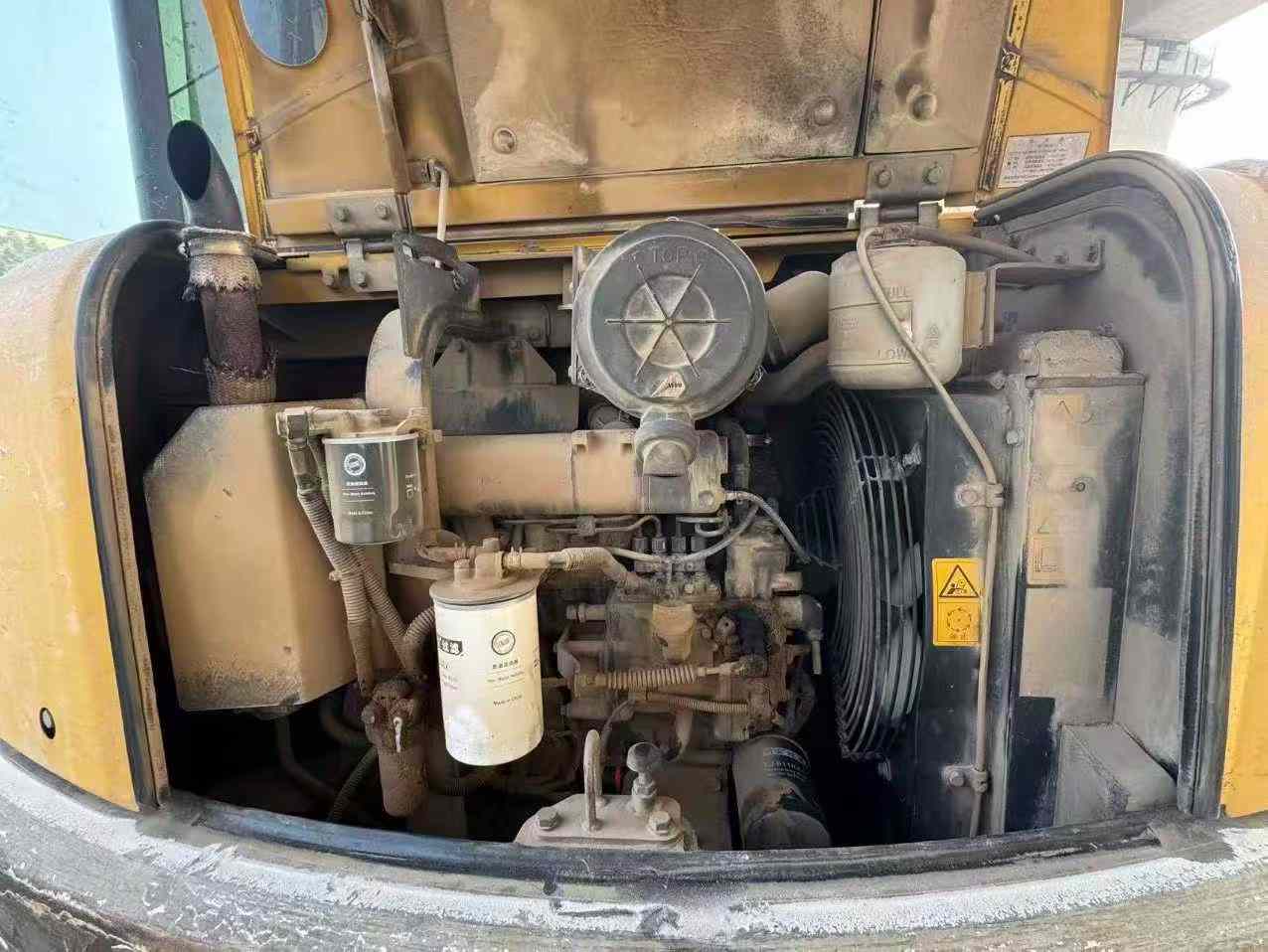

| Engine type | Komatsu S4D87E-1 |
| Rated power (kw/rpm) | 34.5/2300 |
| Cooling mode | water-cooling |
| Displacement (L) | 2.434 |
| Working form | 4-stroke, water-cooled in-line, direct injection motor, stroke :102.4mm, cylinder diameter :87mm. |
| Ground specific pressure (Kpa) | 30.7 |
| Rotation speed (rpm) | 9 |
| Travel speed (km/h) | 2.6/4.1 |
| Rotary hydraulic motor type | Fixed plunger type x 1 |

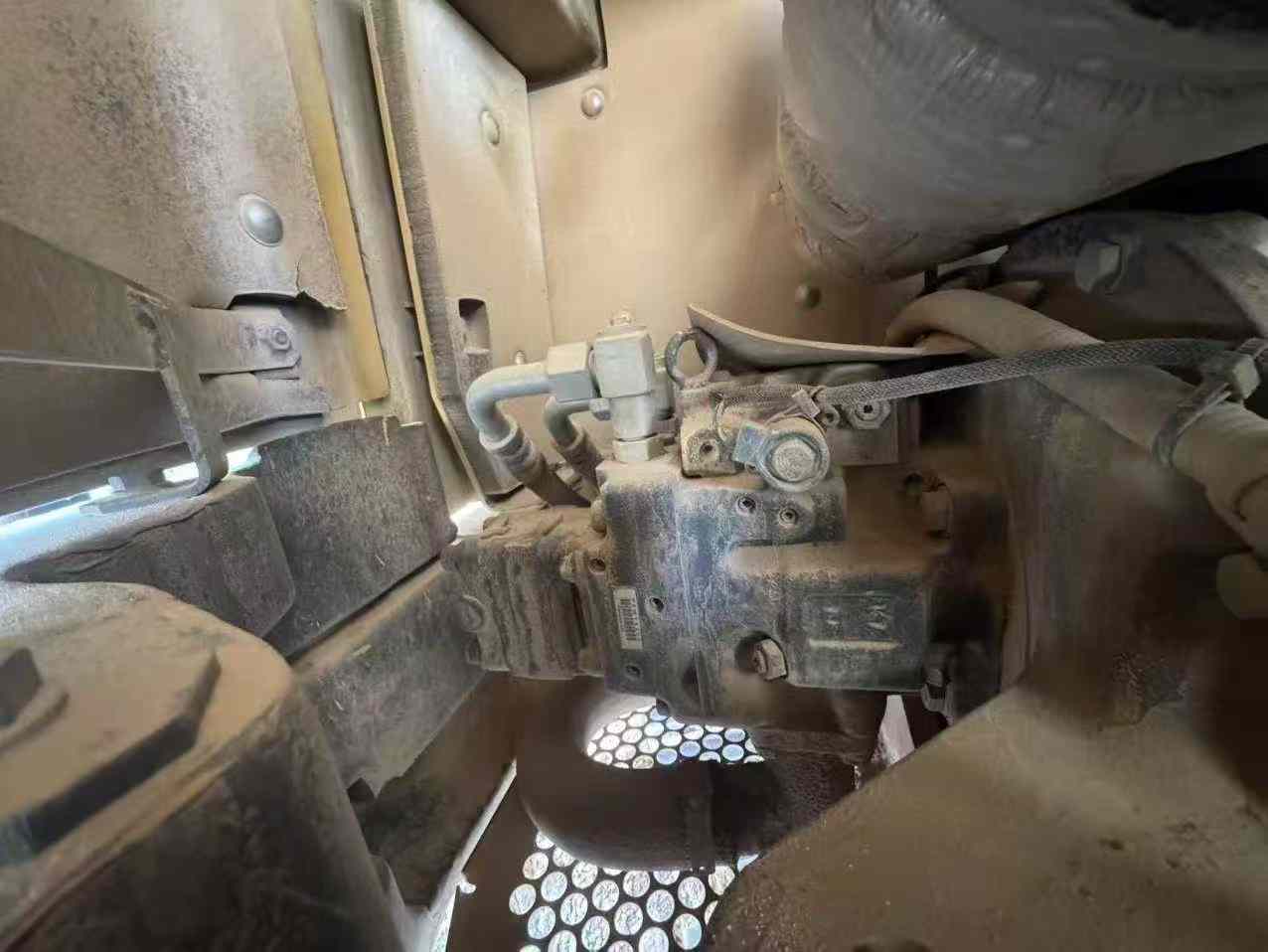

| Type of walking hydraulic motor | Variable plunger type x 2 |
| Traveling Hydraulic Circuit (Mpa) | 26.5 |
| Rotary Hydraulic Circuit (Mpa) | 19.6 |
| Hydraulic crushing pipeline is standard | no |
| Working Hydraulic Circuit (Mpa) | 26.5 |
| Bucket cylinders - Number × diameter × stroke (mm) | 75 x 580 x 50 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 85 * 709.5 * 55 |
| Boom cylinders - Number × diameter × stroke (mm) | 90 * 689.5 * 55 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 55 |
| Engine Oil changes (L) | 9.7 |
| Coolant (L) | 8 |
| Total transport length (mm) | 5935 |
| Total transport width (mm) | 1960 |
| Total transport height (mm) | 2550 |
| Full cab height (mm) | 2550 |
| Minimum ground clearance (mm) | 320 |
| Back end turning radius (mm) | 1650 |

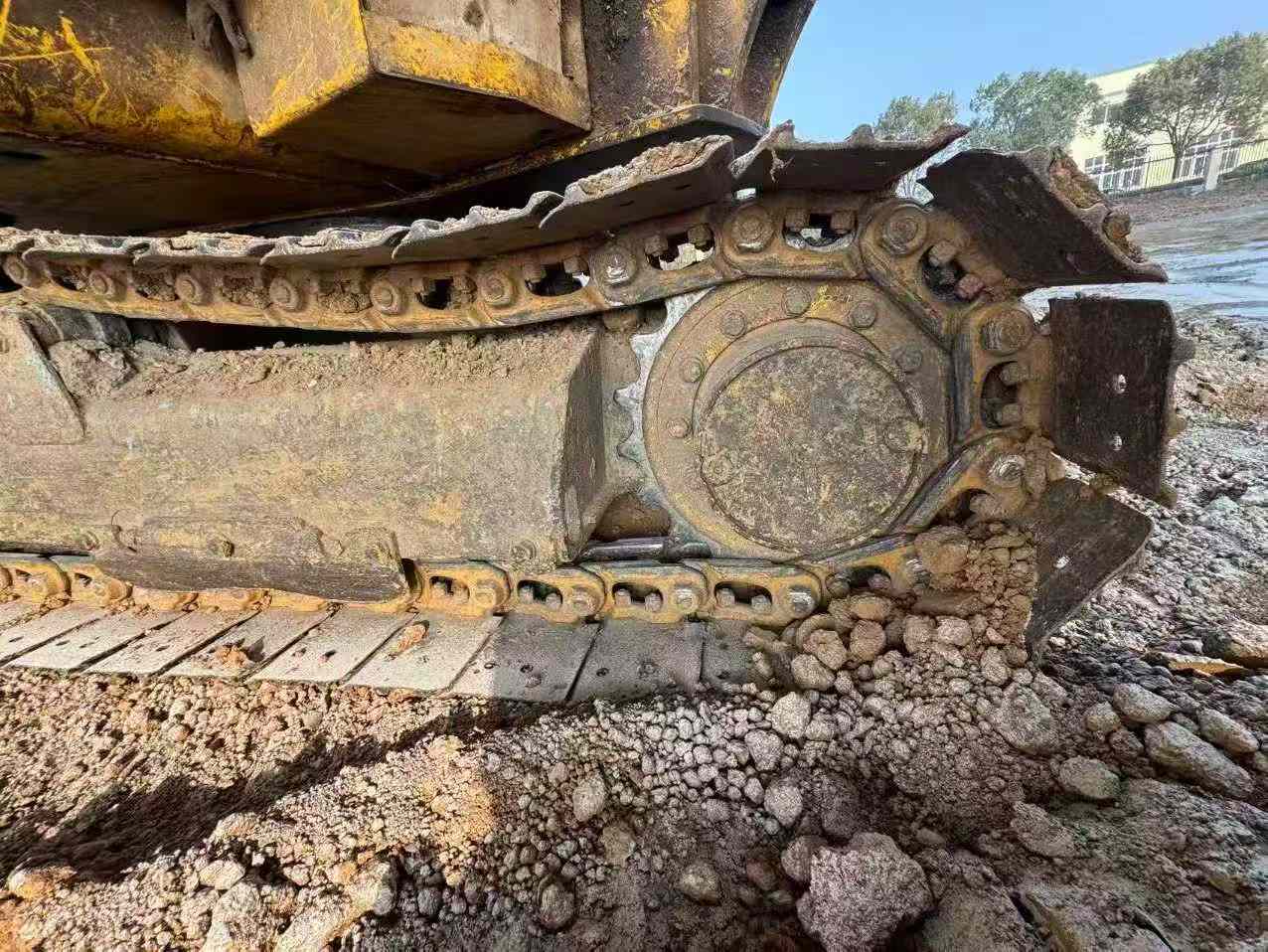

| Total track length (mm) | 2500 |
| Track gauge (mm) | 1560 |
| Track plate width (mm) | 400 |
| Total track width (mm) | 1960 |
| Track ground length (mm) | 1980 |
| Maximum digging radius (mm) | 6130 |
| Maximum digging depth (mm) | 3810 |
| Maximum excavation height (mm) | 5860 |
| Maximum unloading height (mm) | 4130 |
| Maximum vertical digging depth (mm) | 3060 |
| Bulldozer lift or depth (mm) | 355 |
| Maximum excavation radius of stop surface (mm) | 5980 |
