2019 Komatsu PC56-7

1/5

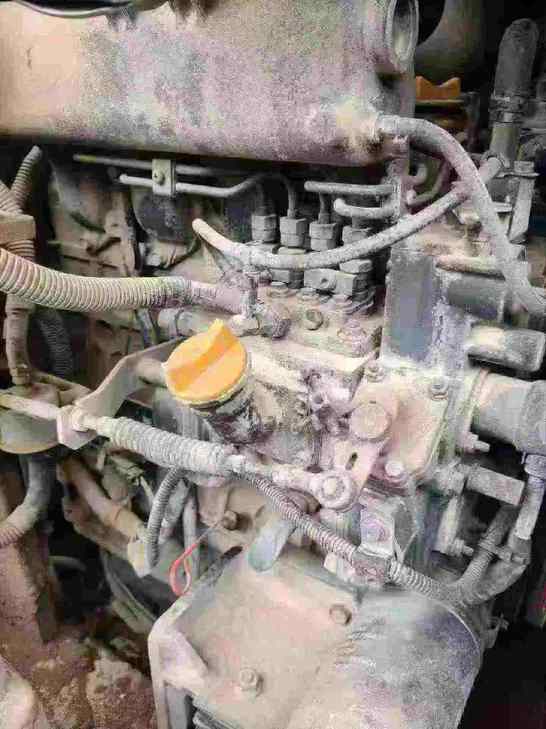

Buy Komatsu PC56-7 Used Excavator / 1
Buy Komatsu PC56-7 Used Excavator / 2
Buy Komatsu PC56-7 Used Excavator / 3
Buy Komatsu PC56-7 Used Excavator / 4
Buy Komatsu PC56-7 Used Excavator / 5

Product Description

This 2019 Komatsu PC56-7 mini excavator represents an excellent opportunity for contractors seeking reliable compact earthmoving equipment. As a first-owner machine with well-maintained operating history, this unit demonstrates the quality engineering Komatsu is known for in the compact excavator segment.

Currently located in Sichuan, China, this PC56-7 offers the versatility and performance required for urban construction, utility work, and landscaping applications. The 2019 model year ensures relatively low operating hours with modern features and operator comfort.

  • Year of Manufacture: 2019
  • Model: Komatsu PC56-7
  • Single owner equipment
  • Current location: Sichuan Province, China
  • Suitable for confined worksite applications

Contact FairTradeMachinery for current availability, detailed inspection reports, and international shipping arrangements to your project site.

SpecificationsValue
No.1089287
Tonnage (tons)5
Working weight (kg)5300
Bucket capacity (m³)0.055-0.22
Country of originJining, Shandong Province
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeKomatsu S4D87E-1
Rated power (kw/rpm)34.5/2300
Cooling modewater-cooling
Displacement (L)2.434
Working form4-stroke, water-cooled in-line, direct injection motor, stroke :102.4mm, cylinder diameter :87mm.
Ground specific pressure (Kpa)30.7
Rotation speed (rpm)9
Travel speed (km/h)2.6/4.1
Rotary hydraulic motor typeFixed plunger type x 1
Type of walking hydraulic motorVariable plunger type x 2
Traveling Hydraulic Circuit (Mpa)26.5
Rotary Hydraulic Circuit (Mpa)19.6
Hydraulic crushing pipeline is standardno
Working Hydraulic Circuit (Mpa)26.5
Bucket cylinders - Number × diameter × stroke (mm)75 x 580 x 50
Bucket rod cylinders - Number × diameter × stroke (mm)85 * 709.5 * 55
Boom cylinders - Number × diameter × stroke (mm)90 * 689.5 * 55
Fuel Tank (L)120
Hydraulic Tank (L)55
Engine Oil changes (L)9.7
Coolant (L)8
Total transport length (mm)5935
Total transport width (mm)1960
Total transport height (mm)2550
Full cab height (mm)2550
Minimum ground clearance (mm)320
Back end turning radius (mm)1650
Total track length (mm)2500
Track gauge (mm)1560
Track plate width (mm)400
Total track width (mm)1960
Track ground length (mm)1980
Maximum digging radius (mm)6130
Maximum digging depth (mm)3810
Maximum excavation height (mm)5860
Maximum unloading height (mm)4130
Maximum vertical digging depth (mm)3060
Bulldozer lift or depth (mm)355
Maximum excavation radius of stop surface (mm)5980
see more
