Product Description

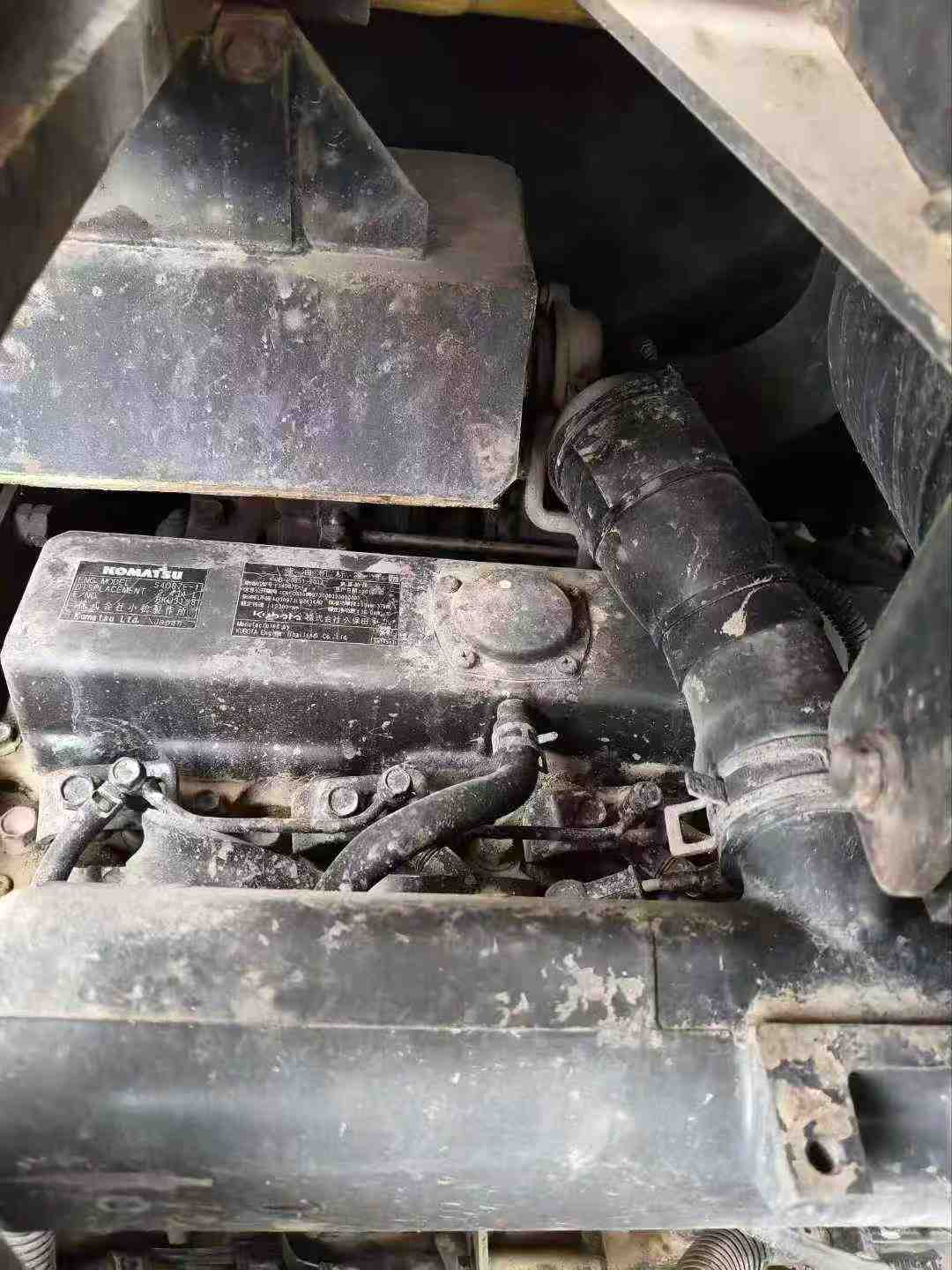

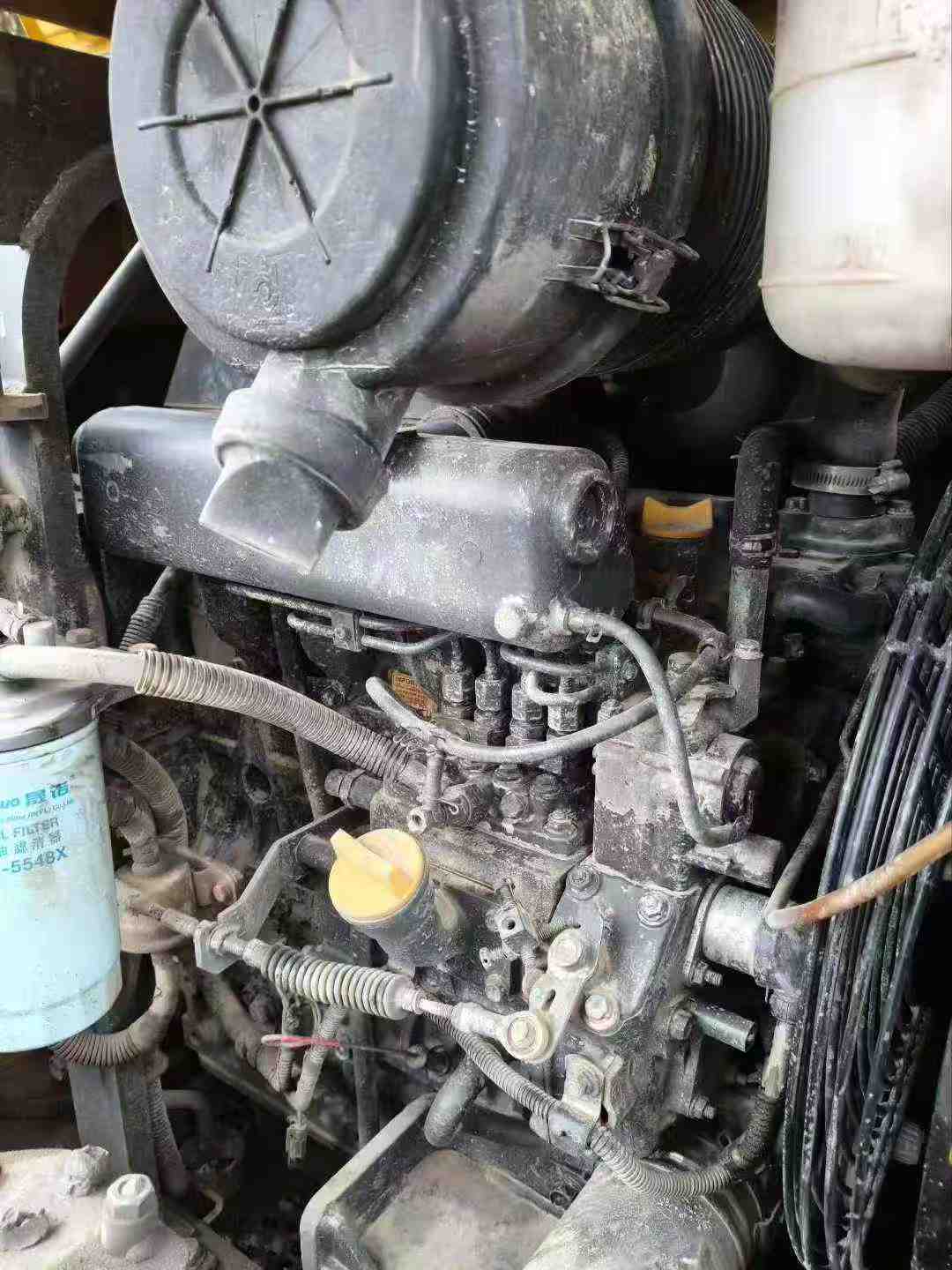

Built for precision in confined jobsites, this 2020 Komatsu PC58-8 mini excavator delivers 5.4-ton performance with exceptional operator control. Powered by a reliable S4D87E-1 water-cooled engine producing 36 kW at 2300 rpm, it combines responsive hydraulics with a compact 1960 mm transport width for versatile applications in urban construction and utility work.
Operators benefit from commanding visibility across a 6120 mm maximum digging radius and 3800 mm depth capability. The spacious cabin provides clear sightlines to the 725 mm bucket and surrounding work area, while intuitive pilot controls manage 26.5 MPa working pressure through a variable capacity piston pump. Smooth 9.0 rpm rotation speed and balanced 30.8 kPa ground pressure ensure stable positioning on sensitive surfaces.
- Working weight: 5400 kg with 0.23 m³ bucket capacity
- Digging force: 39 kN bucket / 23.9 kN arm for tough soil conditions
- Compact dimensions: 5935 mm length, 2550 mm height when transported
- Efficient fuel system: 120 L tank supports extended shifts
- Currently located in Luzhou, Sichuan – ready for international export
| Specifications | Value |
|---|---|
| No. | 1010864 |
| Tonnage (tons) | 5 |
| Working weight (kg) | 5400 |
| Bucket capacity (m³) | 0.23 |
| Boom length (mm) | 2900 |
| Rod length (mm) | 1640 |
| Bucket width (mm) | 725 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | S4D87E-1 |
| Rated power (kw/rpm) | 36/2300 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 87*102.4 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.434 |
| Ground specific pressure (Kpa) | 30.8 |
| Rotation speed (rpm) | 9.0 |
| Bucket digging force (kN) | 39 |
| Rod digging force (kN) | 23.9 |
| Maximum tractive force (kN) | 42 |
| Travel speed (km/h) | 4.1/2.6 |
| Maximum flow of main pump (l/min) | 146 |
| Traveling Hydraulic Circuit (Mpa) | 26.5 |
| Rotary Hydraulic Circuit (Mpa) | 19.6 |

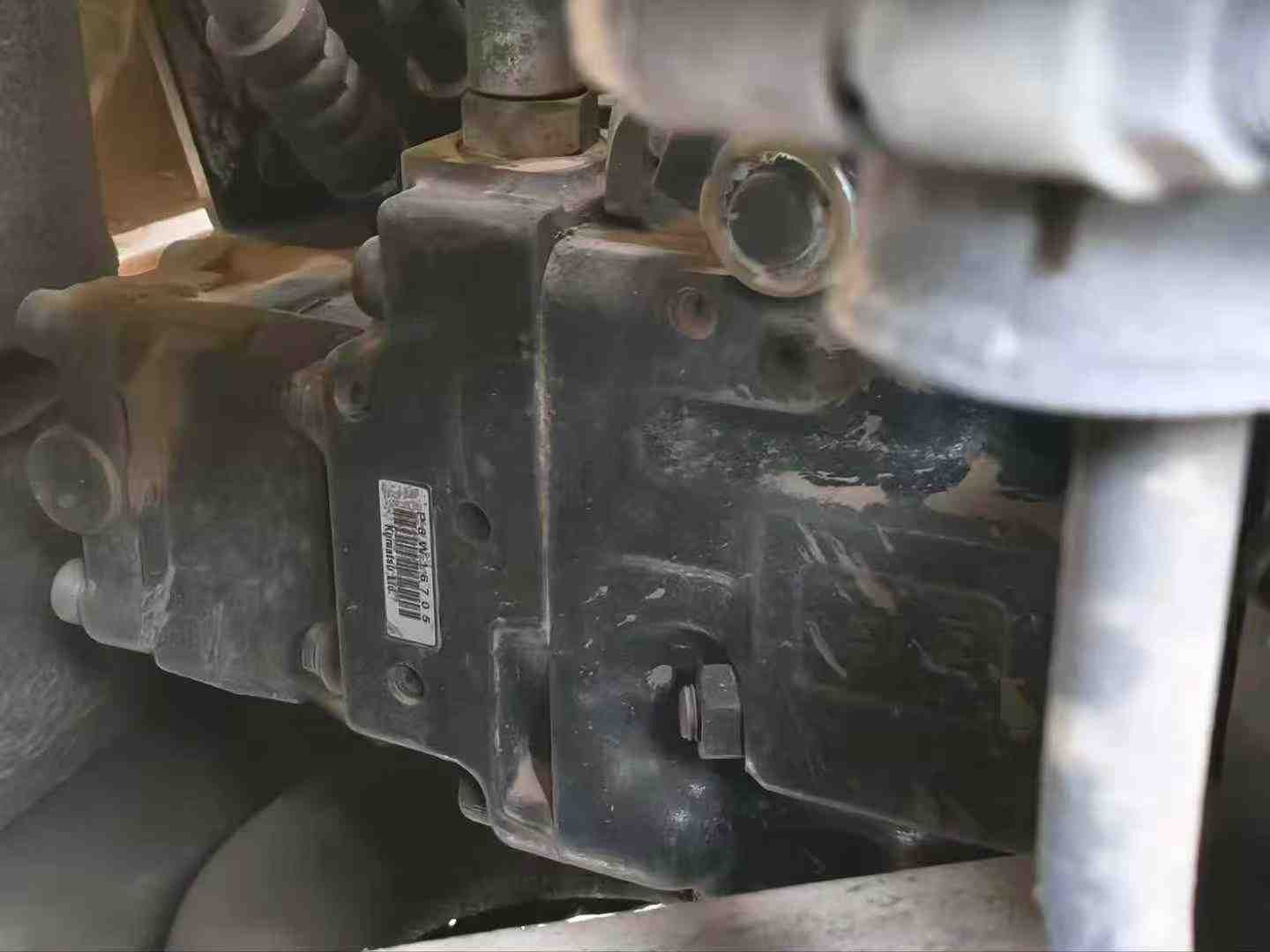

| Main pump type | Variable capacity piston pump |
| Working Hydraulic Circuit (Mpa) | 26.5 |
| Pilot Oil Circuit (MPa) | 3.7 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-75*580 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-85*709.5 |
| Boom cylinders - Number × diameter × stroke (mm) | 1-90*686 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 55 |
| Engine Oil changes (L) | 9.7 |
| Total transport length (mm) | 5935 |
| Total transport width (mm) | 1960 |
| Total transport height (mm) | 2550 |
| Minimum ground clearance (mm) | 320 |
| Back end turning radius (mm) | 1650 |
| Total track length (mm) | 2500 |
| Track gauge (mm) | 1560 |
| Track plate width (mm) | 400 |
| Track ground length (mm) | 1980 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 5 |
| Number of track plates (single side) (PCS) | 39 |
| Maximum digging radius (mm) | 6120 |
| Maximum digging depth (mm) | 3800 |
| Maximum excavation height (mm) | 5850 |
| Maximum unloading height (mm) | 4160 |
| Maximum vertical digging depth (mm) | 3020 |
| Bulldozer lift or depth (mm) | 430/330 |
| Dodging plate width × height (mm) | Height 355 |
| Maximum excavation radius of stop surface (mm) | 5950 |
