Product Description

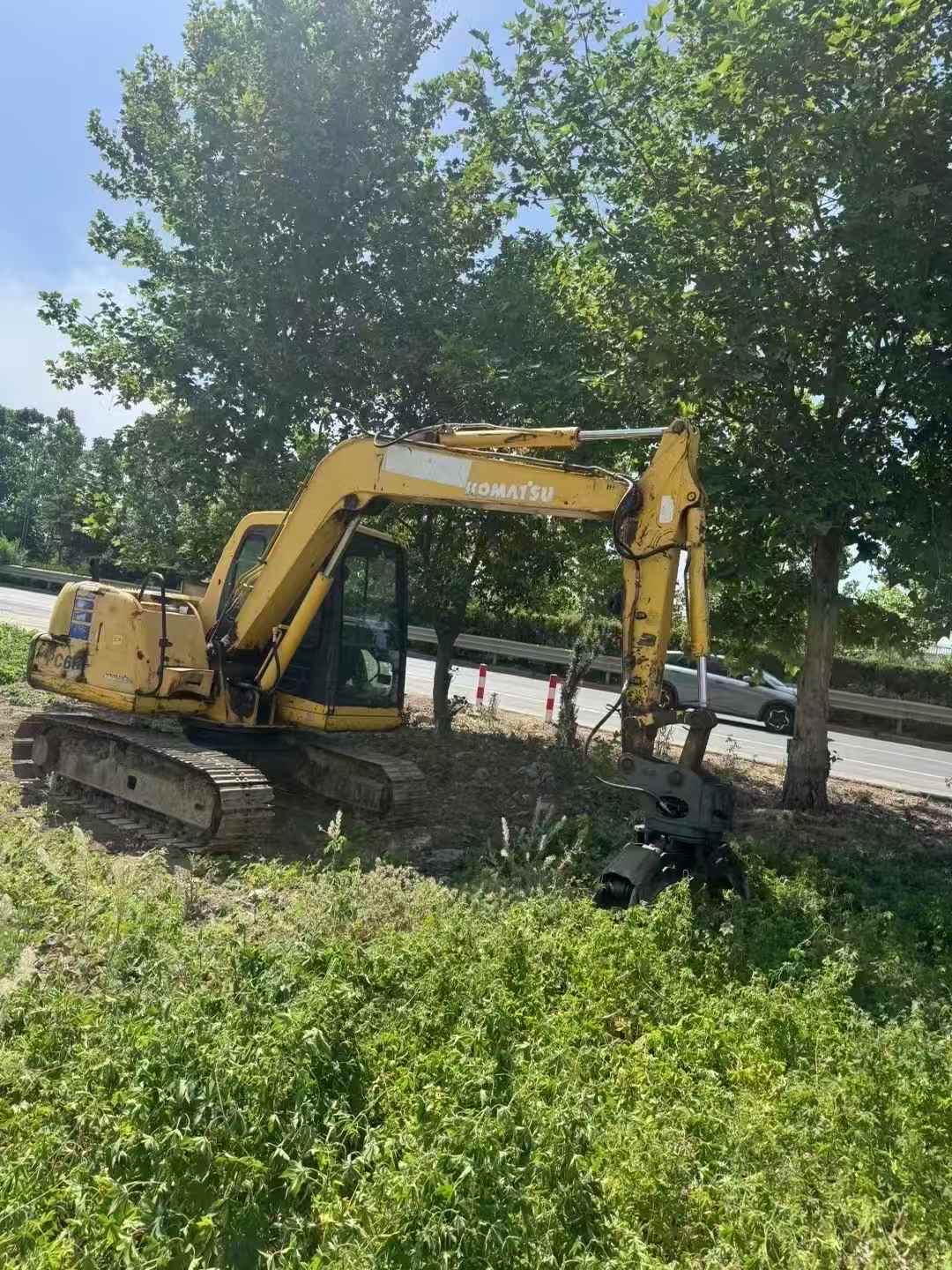

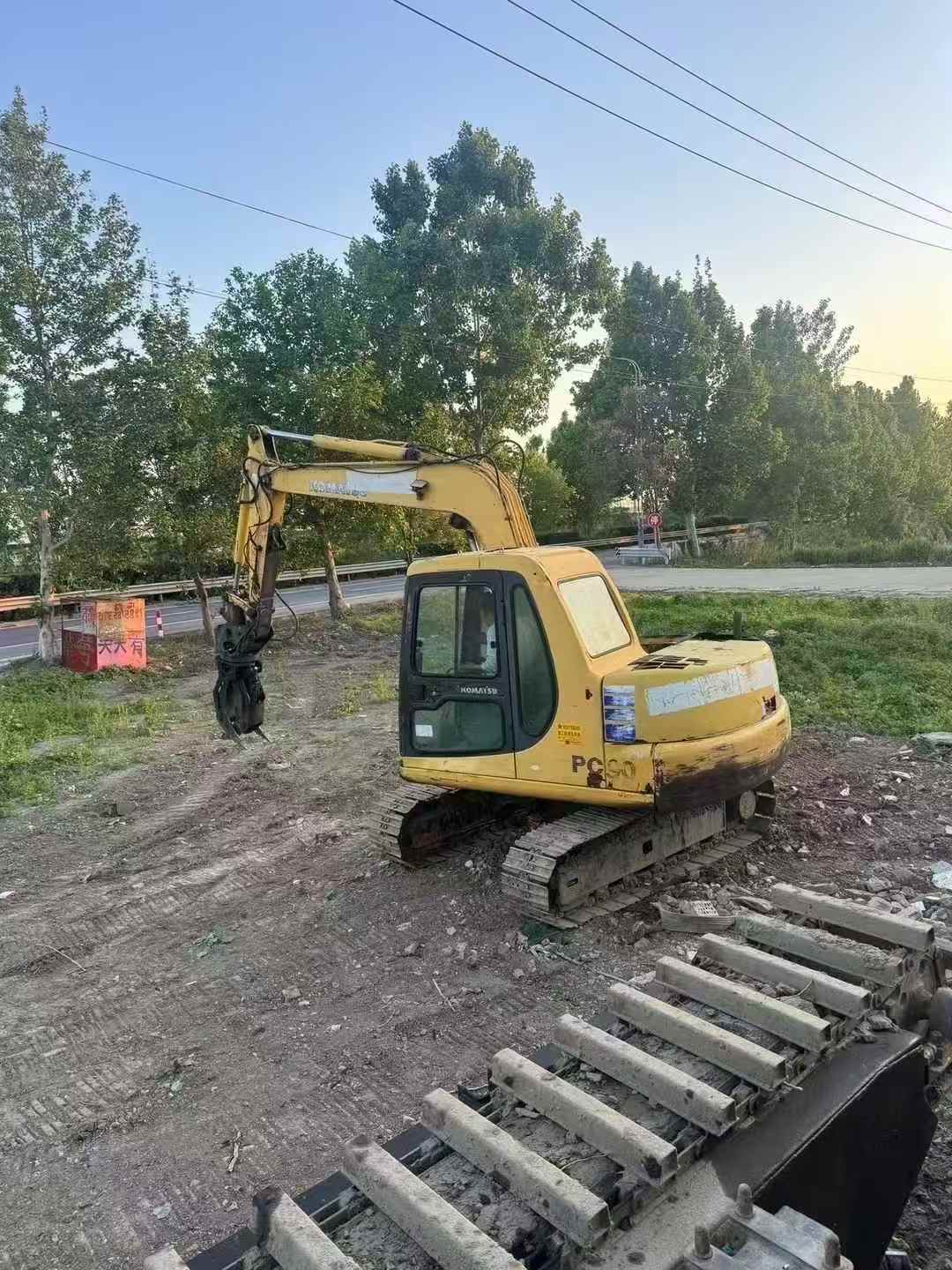

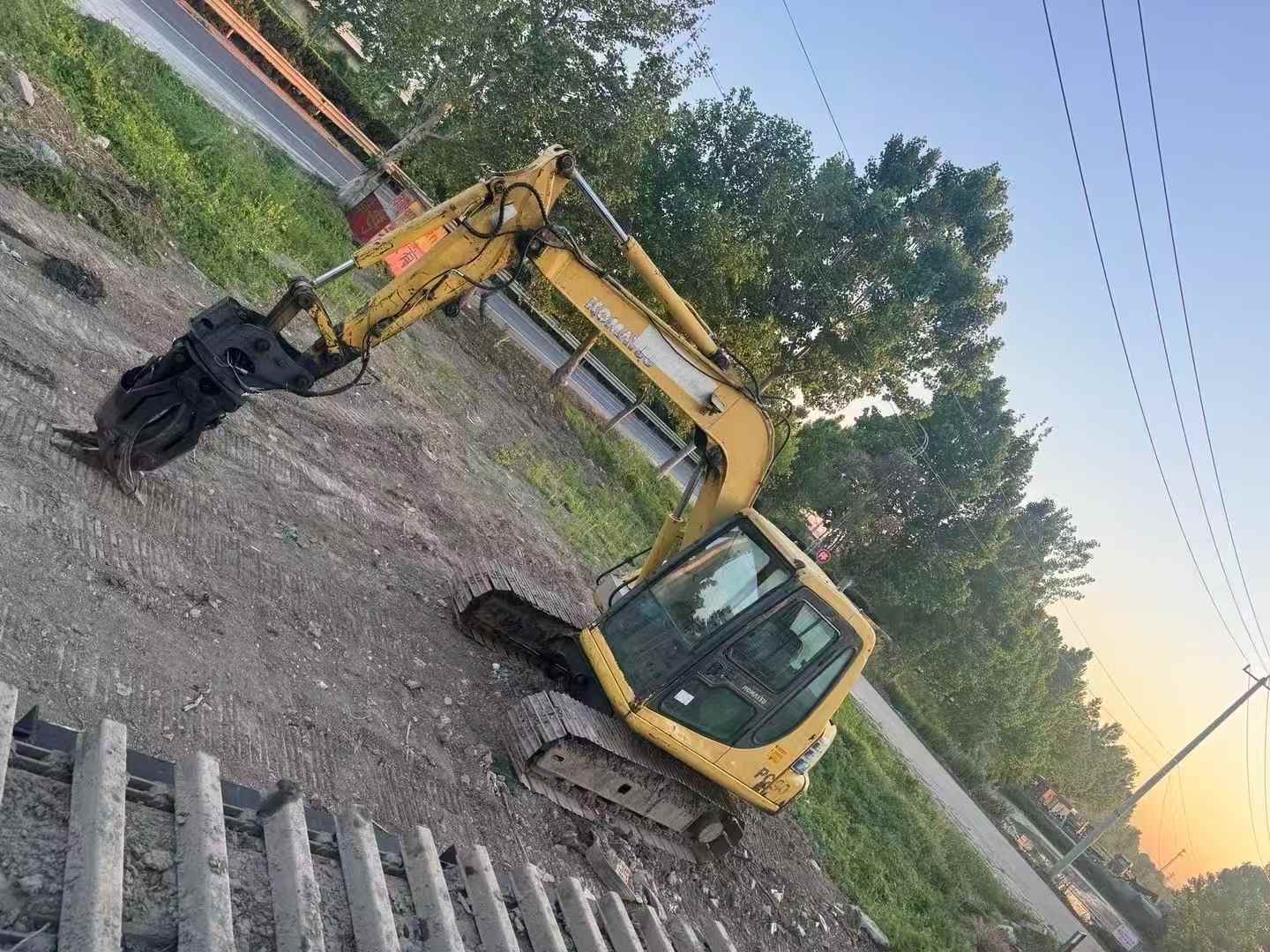

This 2010 Komatsu PC60-7 compact excavator represents the final production batch of this proven model series. Currently located in Jiangsu, China, the machine comes equipped with a standard bucket and hydraulic rotating grapple attachment, expanding its versatility for material handling and sorting applications.
The unit demonstrates solid operational performance with no slewing ring clearance issues, indicating proper maintenance of critical wear points. The PC60-7 is known for its reliable Komatsu SAA4D95LE engine and compact footprint, making it suitable for urban construction, utility work, and confined job sites.
- Year: 2010
- Model: Komatsu PC60-7
- Included: Bucket and hydraulic rotating grapple
- Condition: Operational, zero slewing ring play
- Location: Jiangsu Province, China
- Price: ¥33,800 CNY
Ideal for contractors seeking a compact excavator with proven Komatsu reliability and additional attachment capability.
| Specifications | Value |
|---|---|
| No. | 1074558 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 6300 |
| Bucket capacity (m³) | 0.28-0.37 |
| Boom length (mm) | 3710 |
| Rod length (mm) | 1650 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

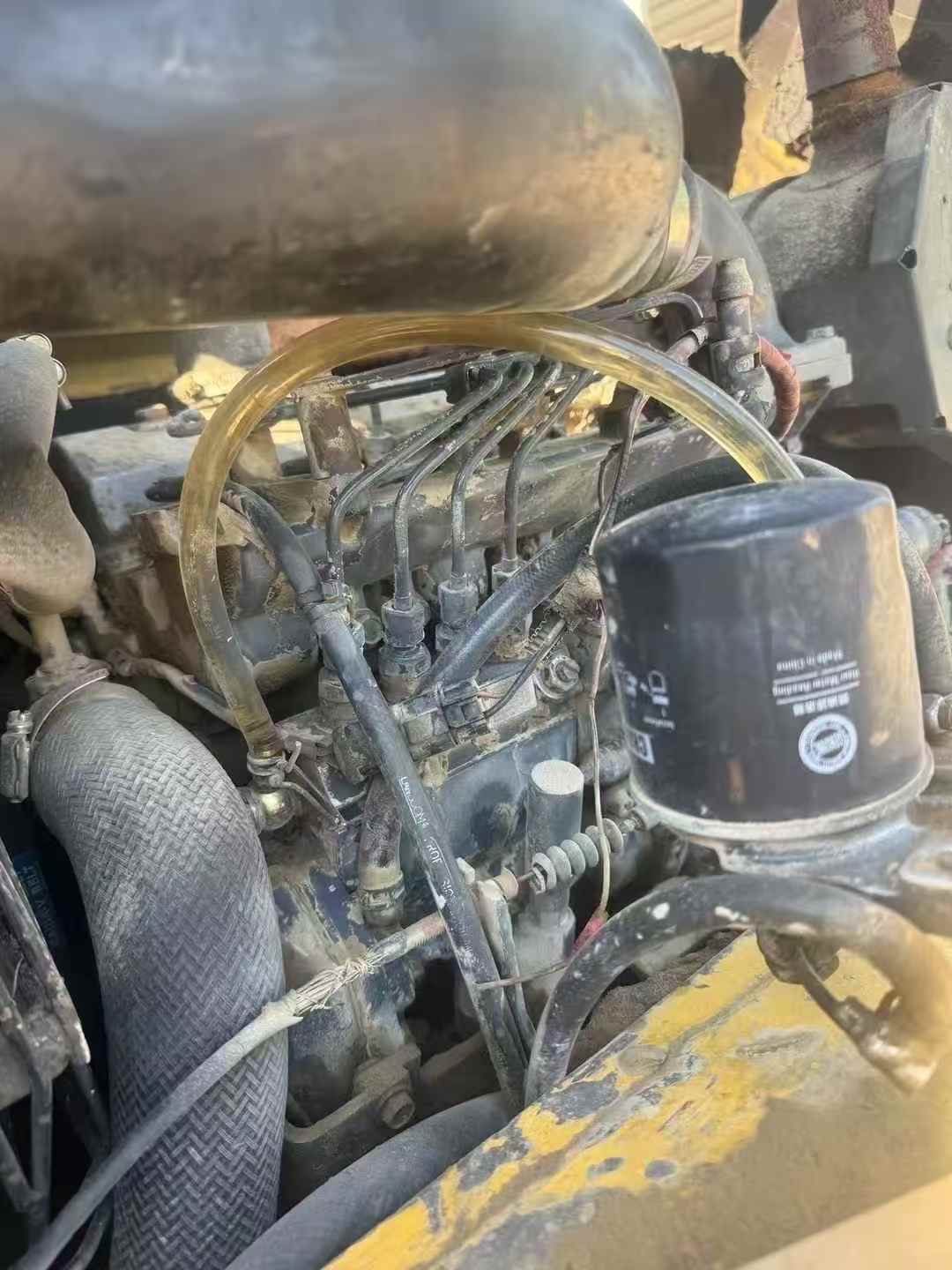

| Engine type | Komatsu 4D95LE |
| Rated power (kw/rpm) | 40/2100 |
| Displacement (L) | 3.26 |
| Working form | 4-stroke, water-cooled, direct injection engine; Cylinder diameter :95mm; Travel :115mm; Mechanical full speed regulation. |
| Ground specific pressure (Kpa) | 28.4 |
| Rotation speed (rpm) | 12 |
| Bucket digging force (kN) | 54.8kN |
| Rod digging force (kN) | 37.3kN |
| Maximum tractive force (kN) | 56.37KN |
| Travel speed (km/h) | 2.8-4.5 |
| Rotary hydraulic motor type | Axial plunger type ×1 |
| Type of walking hydraulic motor | Axial plunger type x 2 |
| Maximum flow of main pump (l/min) | 155L/min |
| Traveling Hydraulic Circuit (Mpa) | 24.5 |
| Rotary Hydraulic Circuit (Mpa) | 19.1 |
| Control Hydraulic Circuit (Mpa) | 2.9 |
| Hydraulic crushing pipeline is standard | no |
| Working Hydraulic Circuit (Mpa) | 24.5 |
| Bucket cylinders - Number × diameter × stroke (mm) | 90 x 710 x 60 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 100 x 865 x 60 |
| Boom cylinders - Number × diameter × stroke (mm) | 115 * 840 * 65 |
| Fuel Tank (L) | 130 |
| Hydraulic Tank (L) | 90 |
| Engine Oil changes (L) | 11 |
| Coolant (L) | 10.3 |
| Total transport length (mm) | 6080 |
| Total transport width (mm) | 2225 |
| Total transport height (mm) | 2590 |
| Full cab height (mm) | 2590 |
| Counterweight ground clearance (mm) | 750 |
| Minimum ground clearance (mm) | 350 |
| Back end turning radius (mm) | 1750 |

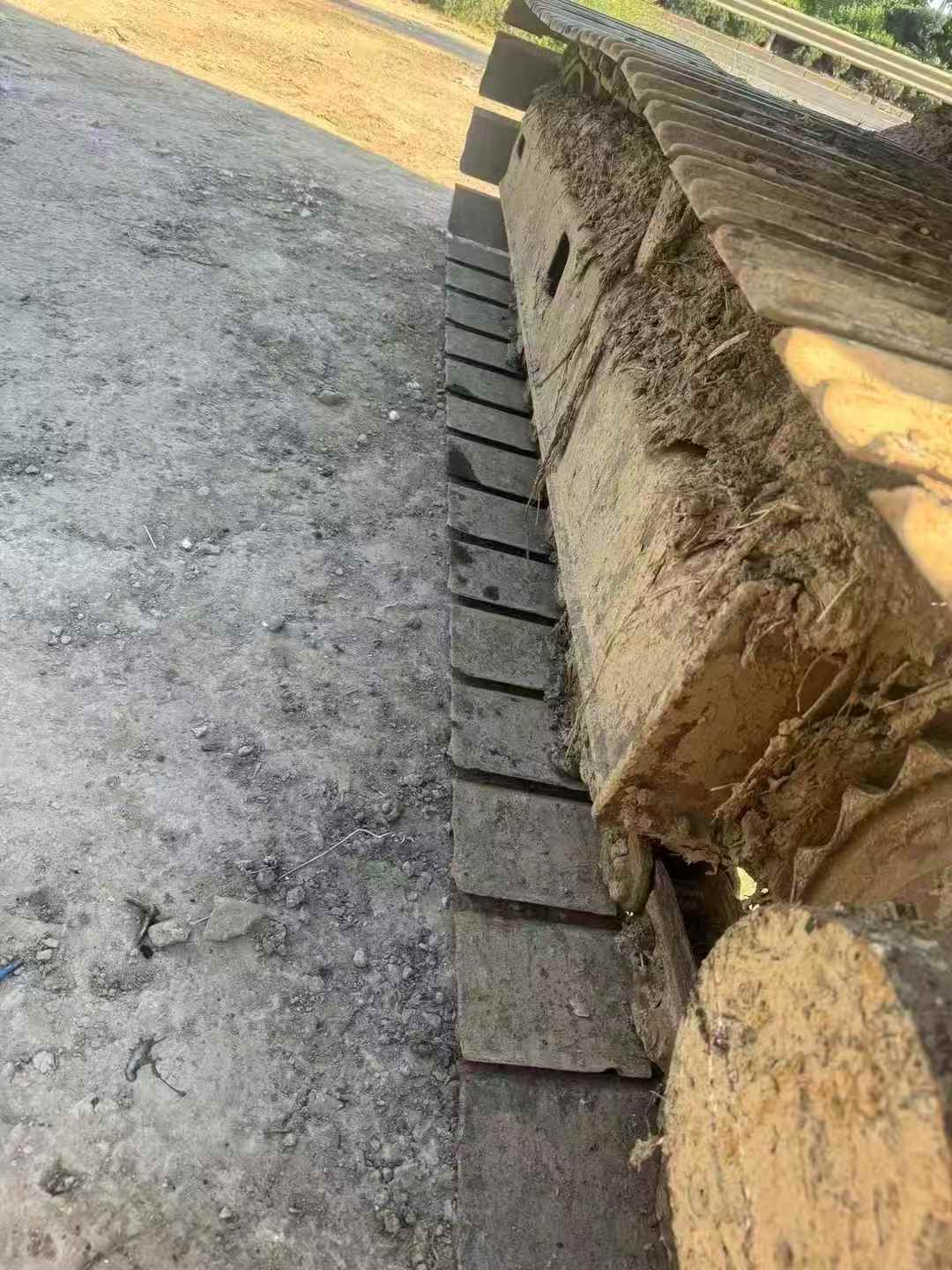

| Total track length (mm) | 2765 |
| Track gauge (mm) | 1700 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2150 |
| Track ground length (mm) | 2130 |
| Maximum digging radius (mm) | 6360 |
| Maximum digging depth (mm) | 4100 |
| Maximum excavation height (mm) | 7150 |
| Maximum unloading height (mm) | 5015 |
| Maximum vertical digging depth (mm) | 3505 |
| Bulldozer lift or depth (mm) | 270/410 |
| Maximum excavation radius of stop surface (mm) | 6220 |
| Maximum effective digging depth (mm) | 3755 |
