Product Description

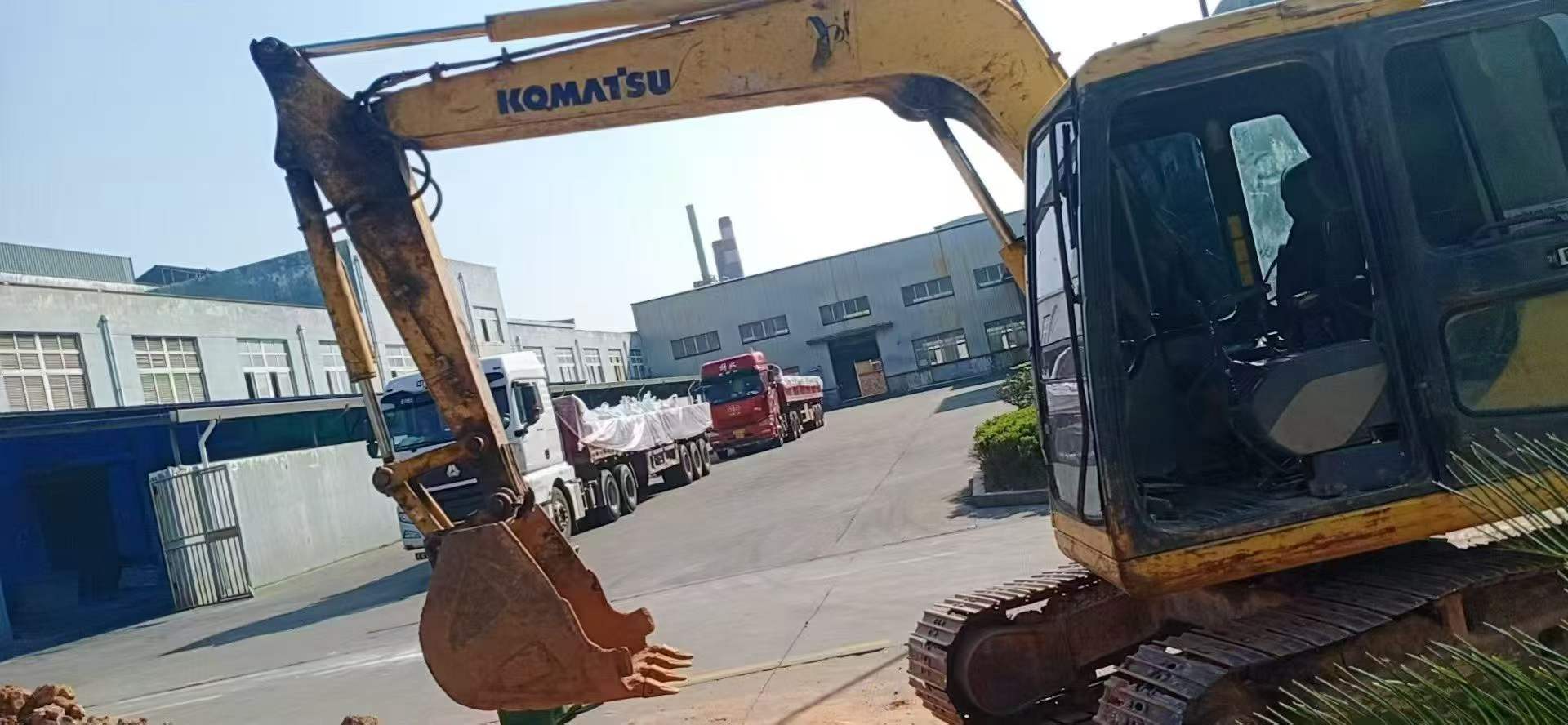

Built for precision and productivity, this 2020 Komatsu PC60-7 mini excavator is field-tested and ready to move dirt from day one. Powered by the proven Komatsu 4D95LE engine delivering 40 kW at 2,100 RPM, this 6-tonne machine handles digging, grading, trenching, and light demolition with consistent hydraulic force and reliable performance. Currently located in Jiangxi, China, and available for global export.
- Digging Performance: Maximum digging depth of 4,100 mm and bucket digging force of 54.8 kN for aggressive excavation in confined or open job sites
- Reach & Height: Maximum digging radius of 6,360 mm and maximum excavation height of 7,150 mm for versatile above- and below-grade work
- Bucket Capacity: 0.28–0.37 m³ backhoe bucket suited for grading, utility trenching, and material handling

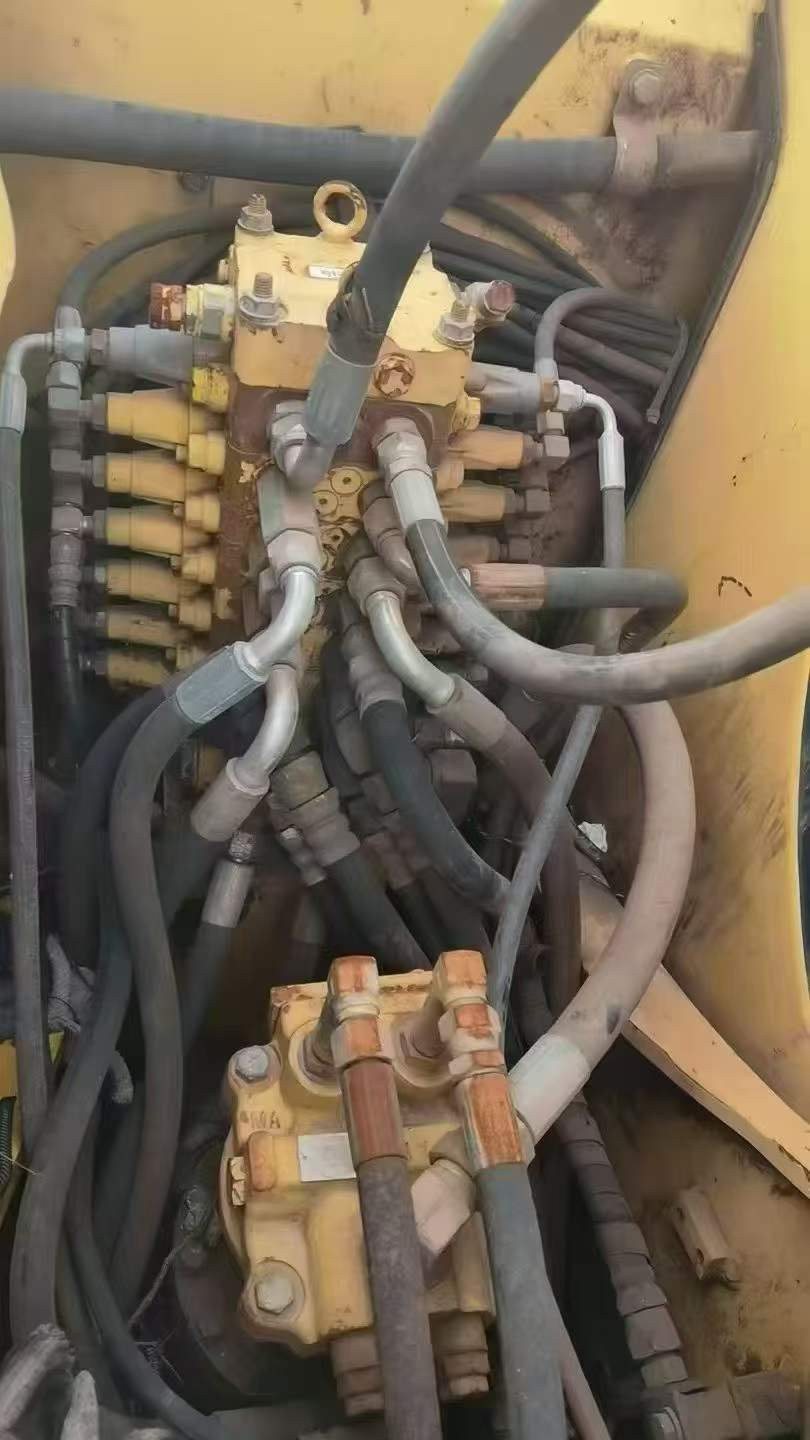

- Hydraulic System: Main pump output of 155 L/min with a working hydraulic circuit pressure of 24.5 MPa for responsive, high-force operation
- Travel Speed: 2.8–4.5 km/h with maximum tractive force of 56.37 kN for solid ground mobility

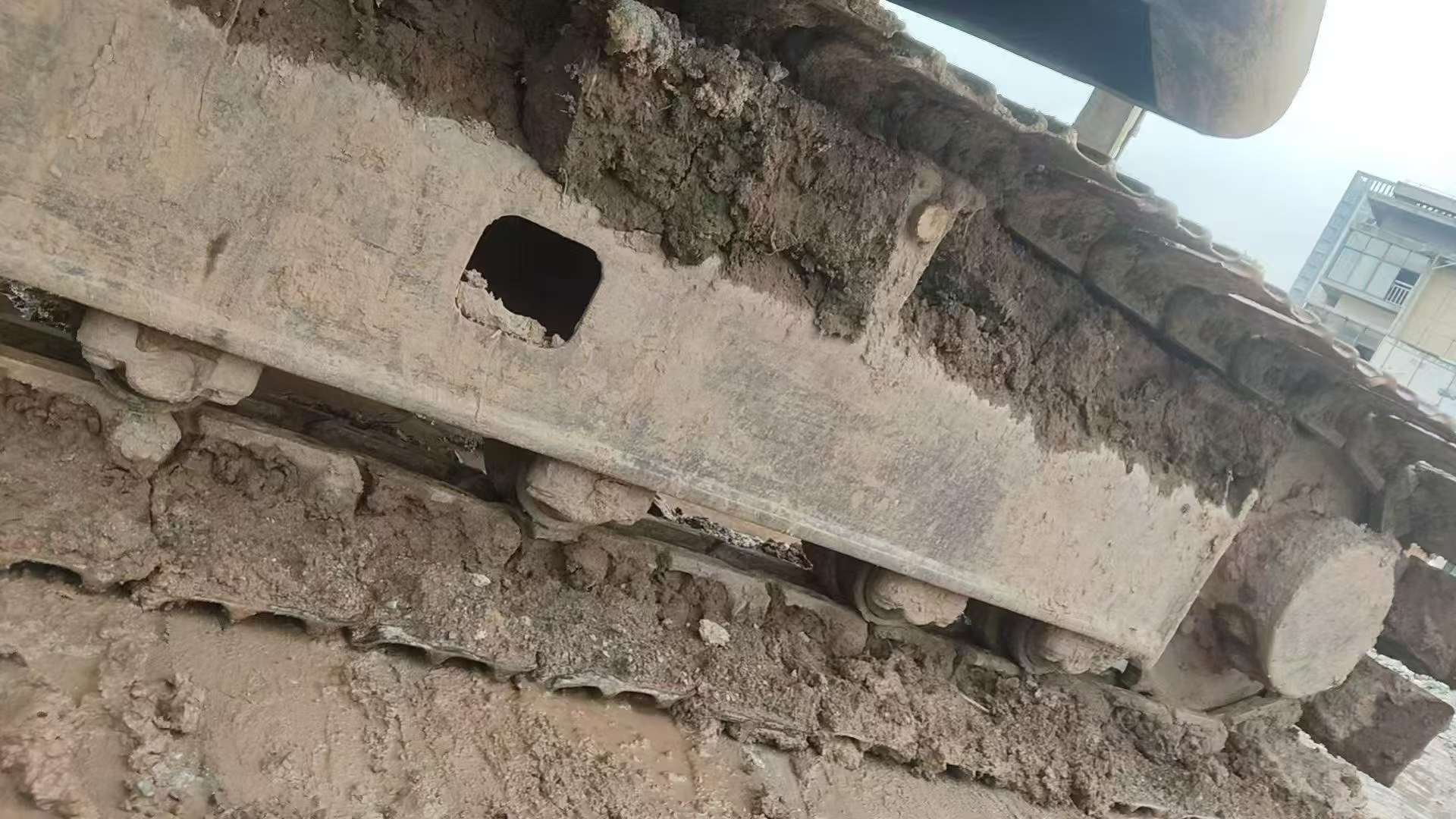

- Compact Footprint: 450 mm track plates and 28.4 kPa ground pressure — ideal for soft or sensitive terrain
- Origin: Japanese-engineered, joint venture/import manufactured — backed by Komatsu's global parts availability
At 6,300 kg working weight with a 130 L fuel tank and 90 L hydraulic reservoir, this PC60-7 is configured for full shifts without interruption. Inspected, sourced from China, and priced for fast movement — put it to work on your next project.
| Specifications | Value |
|---|---|
| No. | 1092628 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 6300 |
| Bucket capacity (m³) | 0.28-0.37 |
| Boom length (mm) | 3710 |
| Rod length (mm) | 1650 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

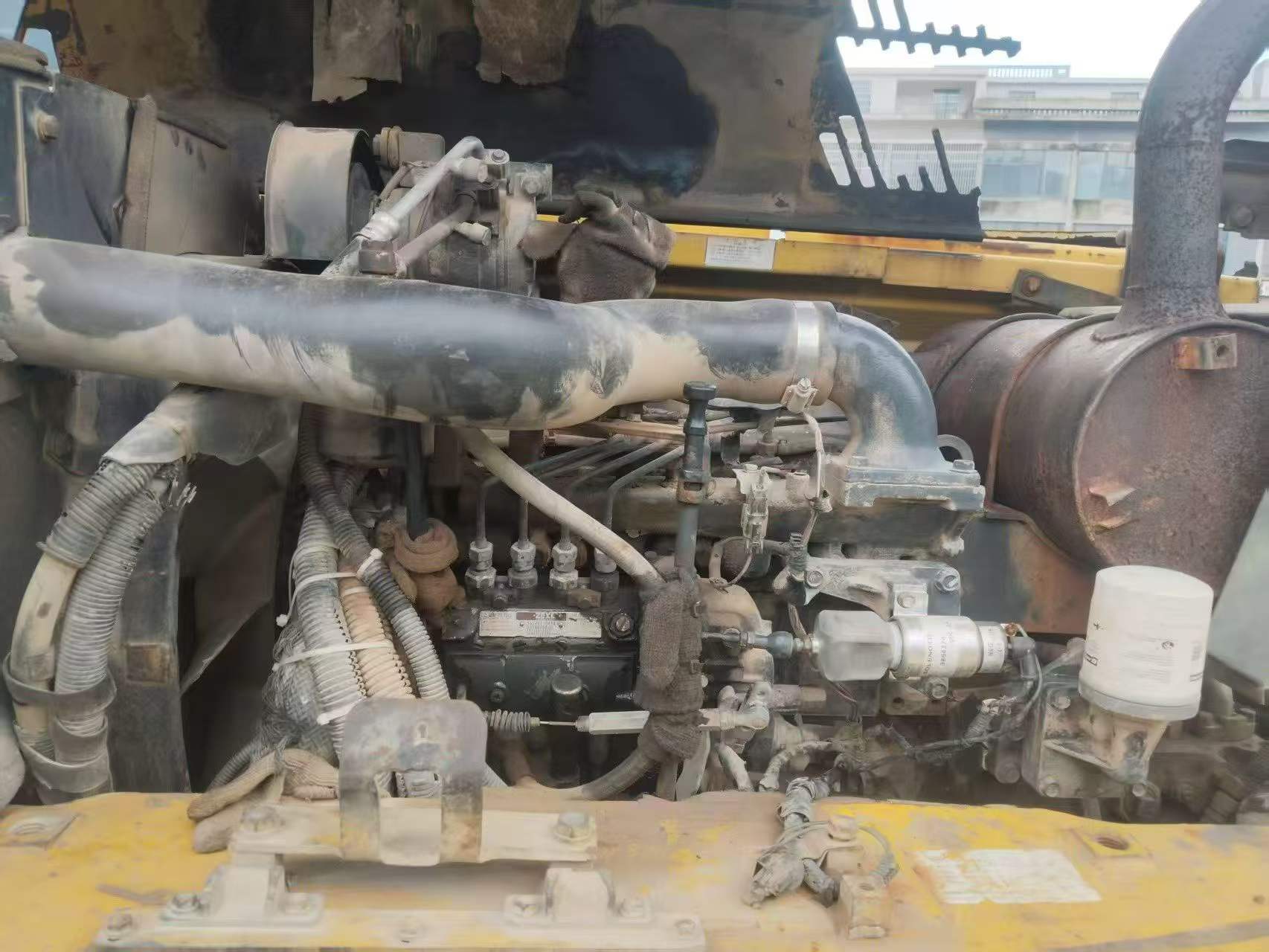

| Engine type | Komatsu 4D95LE |
| Rated power (kw/rpm) | 40/2100 |
| Displacement (L) | 3.26 |
| Working form | 4-stroke, water-cooled, direct injection engine; Cylinder diameter :95mm; Travel :115mm; Mechanical full speed regulation. |
| Ground specific pressure (Kpa) | 28.4 |
| Rotation speed (rpm) | 12 |
| Bucket digging force (kN) | 54.8kN |
| Rod digging force (kN) | 37.3kN |
| Maximum tractive force (kN) | 56.37KN |
| Travel speed (km/h) | 2.8-4.5 |
| Rotary hydraulic motor type | Axial plunger type ×1 |
| Type of walking hydraulic motor | Axial plunger type x 2 |
| Maximum flow of main pump (l/min) | 155L/min |
| Traveling Hydraulic Circuit (Mpa) | 24.5 |
| Rotary Hydraulic Circuit (Mpa) | 19.1 |
| Control Hydraulic Circuit (Mpa) | 2.9 |
| Hydraulic crushing pipeline is standard | no |
| Working Hydraulic Circuit (Mpa) | 24.5 |
| Bucket cylinders - Number × diameter × stroke (mm) | 90 x 710 x 60 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 100 x 865 x 60 |
| Boom cylinders - Number × diameter × stroke (mm) | 115 * 840 * 65 |
| Fuel Tank (L) | 130 |
| Hydraulic Tank (L) | 90 |
| Engine Oil changes (L) | 11 |
| Coolant (L) | 10.3 |
| Total transport length (mm) | 6080 |
| Total transport width (mm) | 2225 |
| Total transport height (mm) | 2590 |
| Full cab height (mm) | 2590 |
| Counterweight ground clearance (mm) | 750 |
| Minimum ground clearance (mm) | 350 |
| Back end turning radius (mm) | 1750 |
| Total track length (mm) | 2765 |
| Track gauge (mm) | 1700 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2150 |
| Track ground length (mm) | 2130 |
| Maximum digging radius (mm) | 6360 |
| Maximum digging depth (mm) | 4100 |
| Maximum excavation height (mm) | 7150 |
| Maximum unloading height (mm) | 5015 |
| Maximum vertical digging depth (mm) | 3505 |
| Bulldozer lift or depth (mm) | 270/410 |
| Maximum excavation radius of stop surface (mm) | 6220 |
| Maximum effective digging depth (mm) | 3755 |
