Product Description

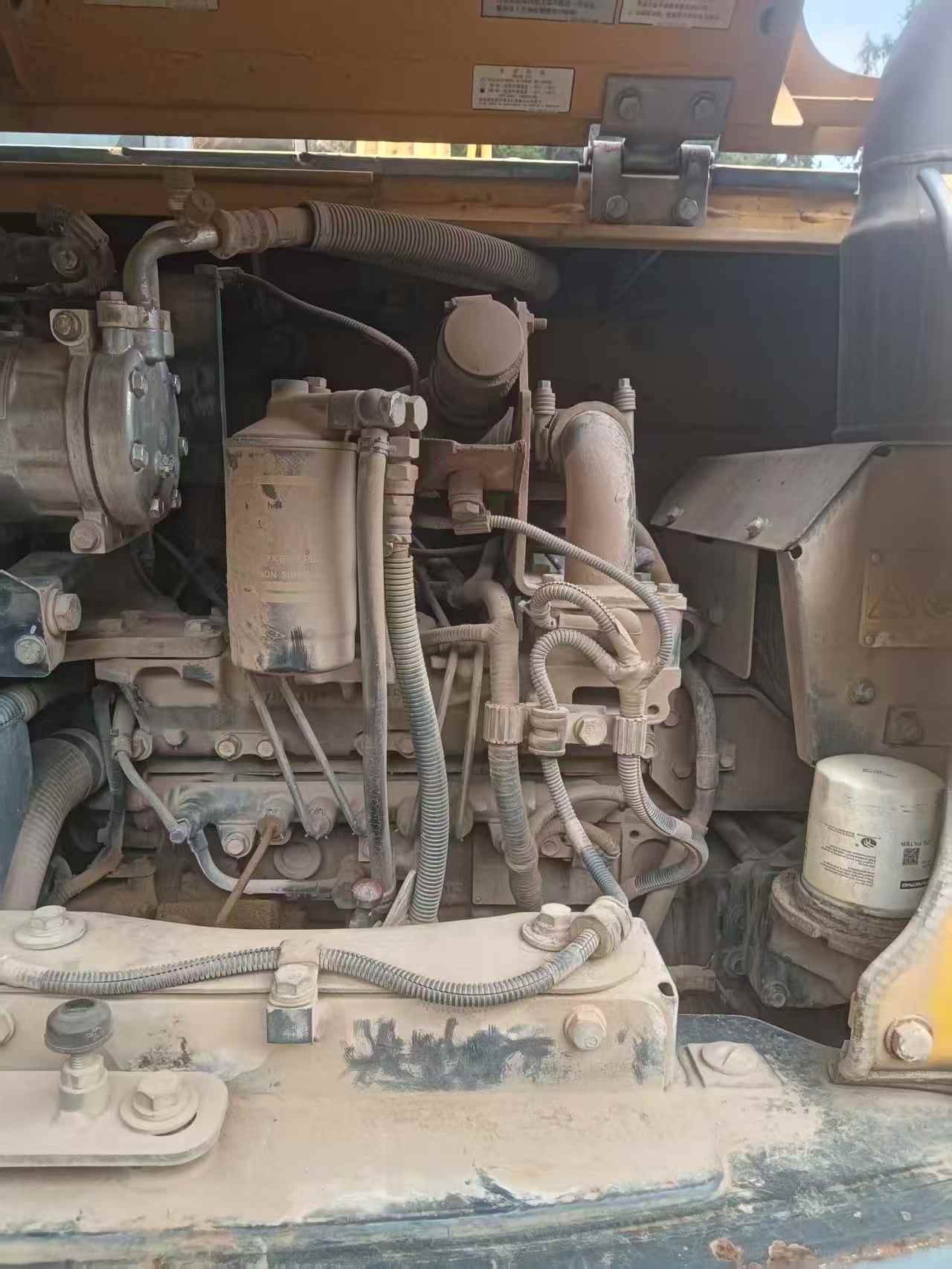

With a working weight of 6180 kg and a bucket capacity ranging from 0.25 to 0.37 m³, this 2019 Komatsu PC60-8 excavator is a reliable choice for any construction site. Originating from Jining, Shandong Province, this model is powered by a robust Komatsu SAA4D95LE-5 engine, delivering 40.7 kW at 1950 rpm. Its water-cooled, turbocharged design ensures efficient performance under various conditions.
- Highly regarded for its durability and low maintenance, Komatsu machinery retains strong resale value.
- Parts are readily available globally, ensuring minimal downtime and cost-effective repairs.

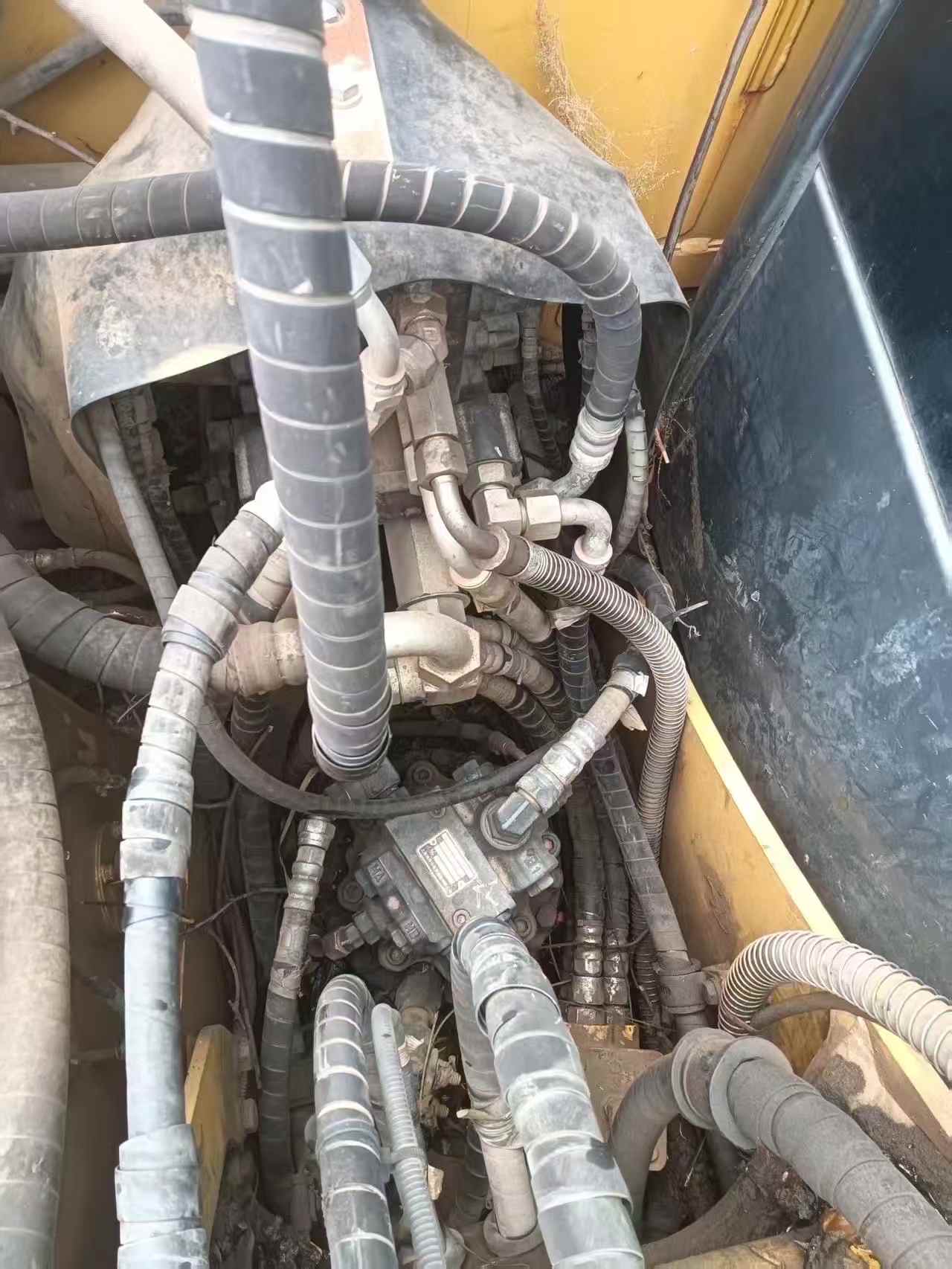

- Equipped with a variable piston pump, the hydraulic system operates efficiently, providing a maximum flow of 172 l/min.
- Compact dimensions and versatile capabilities make it ideal for both tight spaces and open sites, with a maximum digging depth of 3900 mm and a maximum digging radius of 6190 mm.
Choose the Komatsu PC60-8 for a dependable, long-lasting addition to your fleet, backed by a brand known for its reliability and support.
| Specifications | Value |
|---|---|
| No. | 1057025 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 6180 |
| Bucket capacity (m³) | 0.25~0.37 |
| Country of origin | Jining, Shandong Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Komatsu SAA4D95LE-5 |
| Rated power (kw/rpm) | 40.7/1950 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 95*115 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.26 |
| Working form | turbocharging |
| Ground specific pressure (Kpa) | 28.4 |
| Rotation speed (rpm) | 10 |
| Bucket digging force (kN) | 54.8 |
| Rod digging force (kN) | 39.8 |
| Maximum tractive force (kN) | 56.6 |
| Travel speed (km/h) | 2.8-4.5 |
| Maximum flow of main pump (l/min) | 172 |
| Traveling Hydraulic Circuit (Mpa) | 24.5 |
| Rotary Hydraulic Circuit (Mpa) | 21.1 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Variable piston pump |
| Working Hydraulic Circuit (Mpa) | 24.5 |
| Pilot Oil Circuit (MPa) | 2.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-90*710 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-100*865 |
| Boom cylinders - Number × diameter × stroke (mm) | 1-115*840 |
| Fuel Tank (L) | 130 |
| Hydraulic Tank (L) | 95 |
| Engine Oil changes (L) | 12.5 |
| Coolant (L) | 10 |
| Total transport length (mm) | 6035 |
| Total transport width (mm) | 2225 |
| Total transport height (mm) | 2620 |
| Counterweight ground clearance (mm) | 750 |
| Minimum ground clearance (mm) | 350 |
| Minimum turning radius of front working device (mm) | 1700 |
| Back end turning radius (mm) | 1750 |
| Total track length (mm) | 2765 |
| Track gauge (mm) | 1700 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2150 |
| Track ground length (mm) | 2130 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 5 |
| Number of track plates (single side) (PCS) | 38 |
| Maximum digging radius (mm) | 6190 |
| Maximum digging depth (mm) | 3900 |
| Maximum excavation height (mm) | 7030 |
| Maximum unloading height (mm) | 4925 |
| Maximum vertical digging depth (mm) | 3350 |
| Maximum excavation radius of stop surface (mm) | 6045 |
