Product Description

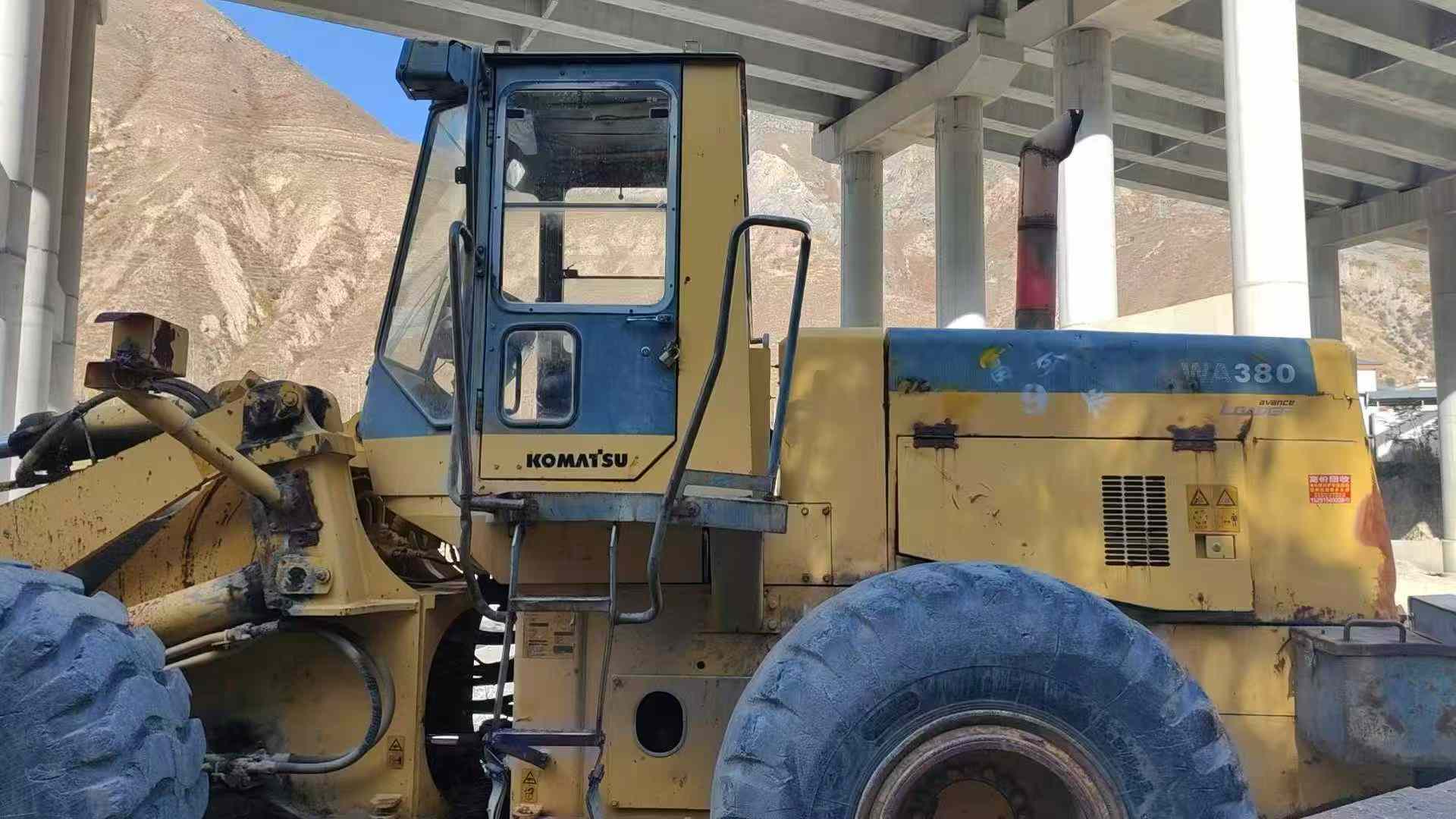

Proven performance meets global support with this 2016 Komatsu WA380-3 wheel loader, currently located in Shaoxing, Zhejiang. Powered by a robust 146kW engine with 8.27L displacement, this machine delivers 5,000kg rated load capacity and 168kN digging force for demanding material handling operations. Komatsu's reputation for engineering excellence translates directly into lower ownership costs—parts availability remains exceptional worldwide, and resale values consistently outperform competitors in the used equipment market.
- 3m³ bucket capacity with 2,900mm unloading height at 45° angle
- 16,360kg operating weight balances stability with maneuverability
- Four-speed transmission: 7.7 to 35.0 km/h range for versatile applications
- 5,475mm turning radius and 3,200mm wheelbase optimize jobsite efficiency
- 285L fuel tank supports extended operating shifts
- Comprehensive global dealer network ensures parts and service accessibility
Komatsu's established aftermarket infrastructure means reduced downtime and predictable maintenance costs. Built to maintain value retention, this WA380-3 represents a calculated investment for contractors requiring dependable loading performan
| Specifications | Value |
|---|---|
| No. | 1015714 |
| Engine type | |
| Rated power (kw/rpm) | 146/2200 |
| Working form | |
| Exhaust volume (L) | 8.27 |
| Bucket capacity (m³) | 3 |
| Rated load (tons) | |
| Rated load (kg) | 5000 |
| Digging force (lifting force) (kN) | 168 |
| Machine operating weight (kg) | 16360 |
| Unloading height - Unloading Angle 45°(mm) | 2900 |
| Unloading distance - Unloading Angle 45°(mm) | 1170 |
| Maximum tractive force (kN) | 147 |
| Maximum climbing ability (°) | |
| Fuel Tank (L) | 285 |
| Engine Oil (L) | 19 |
| Wheelbase (mm) | 3200 |
| Minimum ground clearance (mm) | 455 |
| Machine length (mm) | 7965 |
| Machine width (mm) | 2780 |
| Machine height (mm) | 3380 |
| Steering Angle | |
| Minimum turning radius of outer wheel center line | 5475 |
| Speed 1 gear (km/h) | 7.7/8.0 |
| Speed 2 (km/h) | 12.3/12.8 |
| Speed 3 (km/h) | 21.4/22.6 |
| Speed 4 (km/h) | 34.0/35.0 |
