Product Description

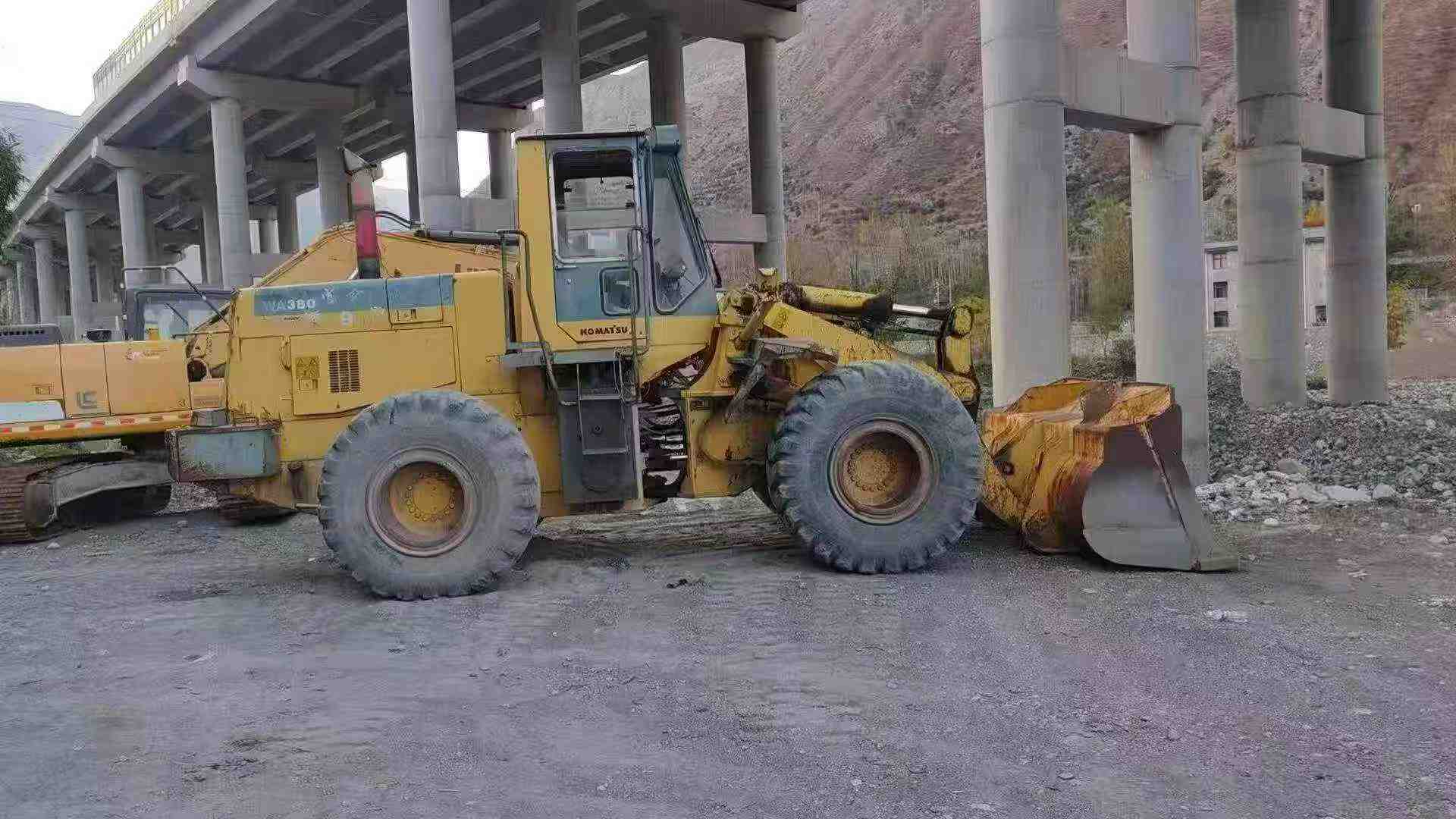

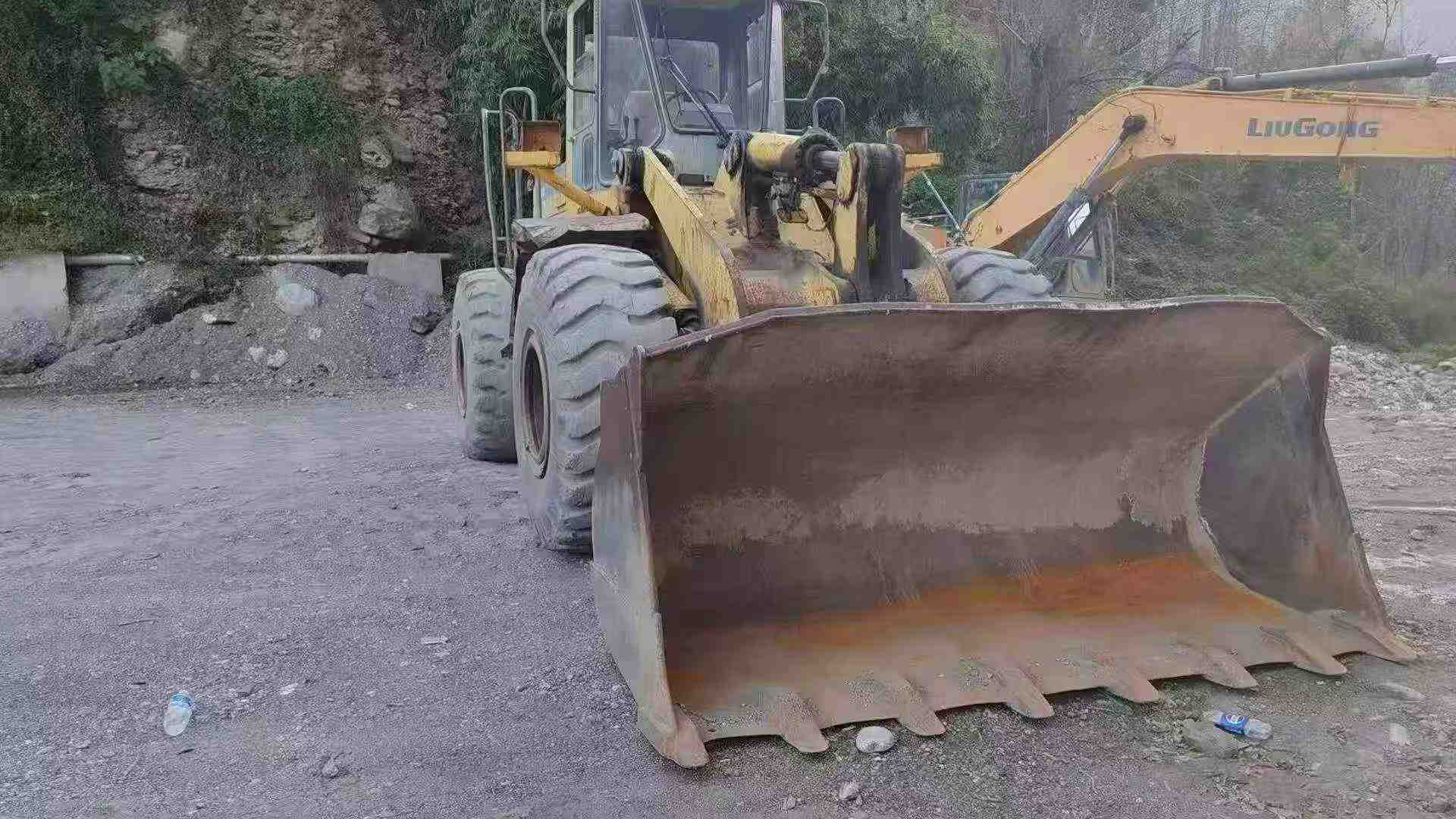

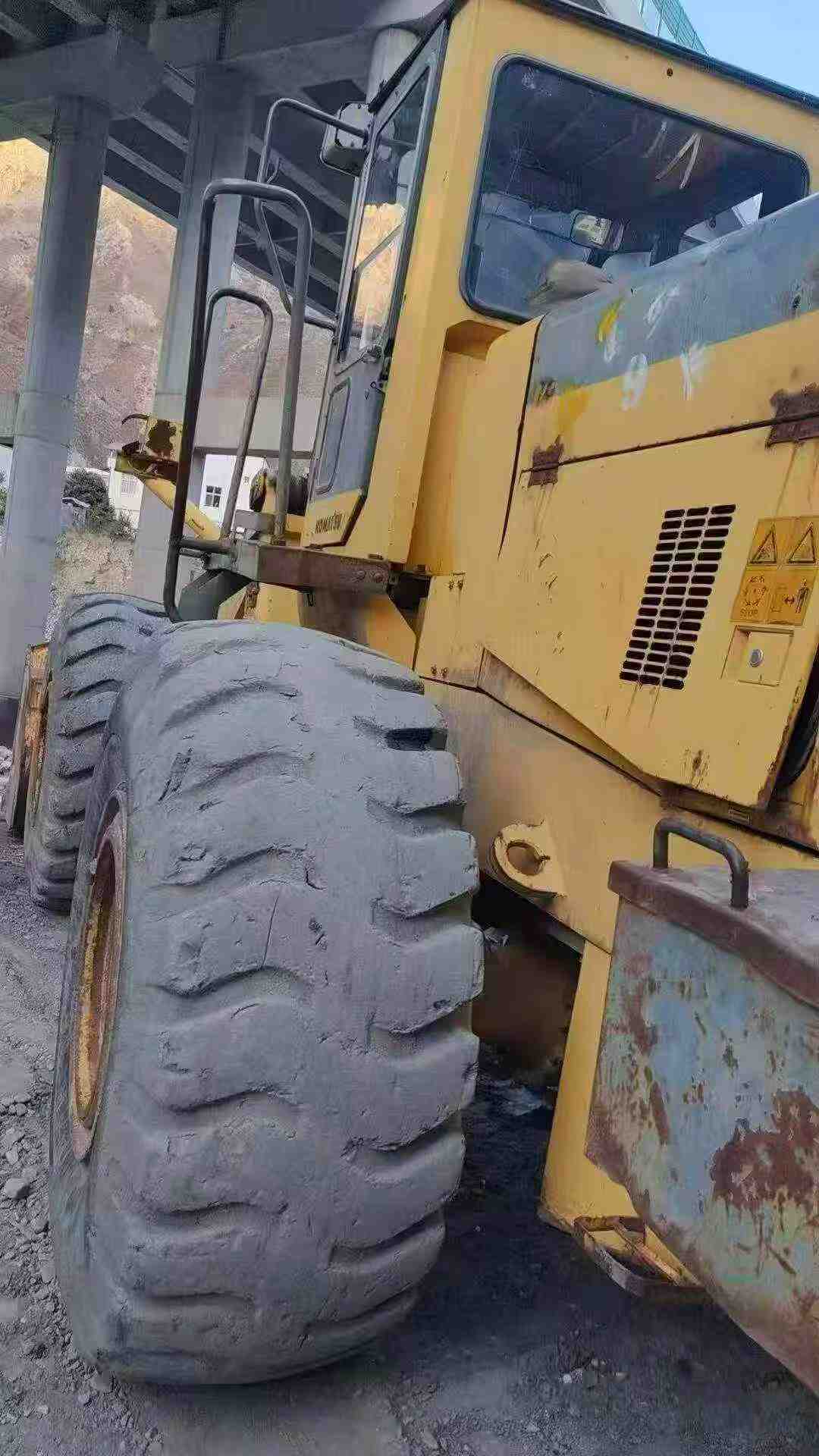

This 2020 Komatsu WA380-3 wheel loader is currently available in Sichuan, China. The WA380-3 is a proven mid-size loader designed for quarry, aggregate, and general construction applications. With its robust build quality and reliable powertrain, this machine offers excellent productivity in material handling operations.
Key features include:
- Komatsu's proven hydraulic system for smooth operation

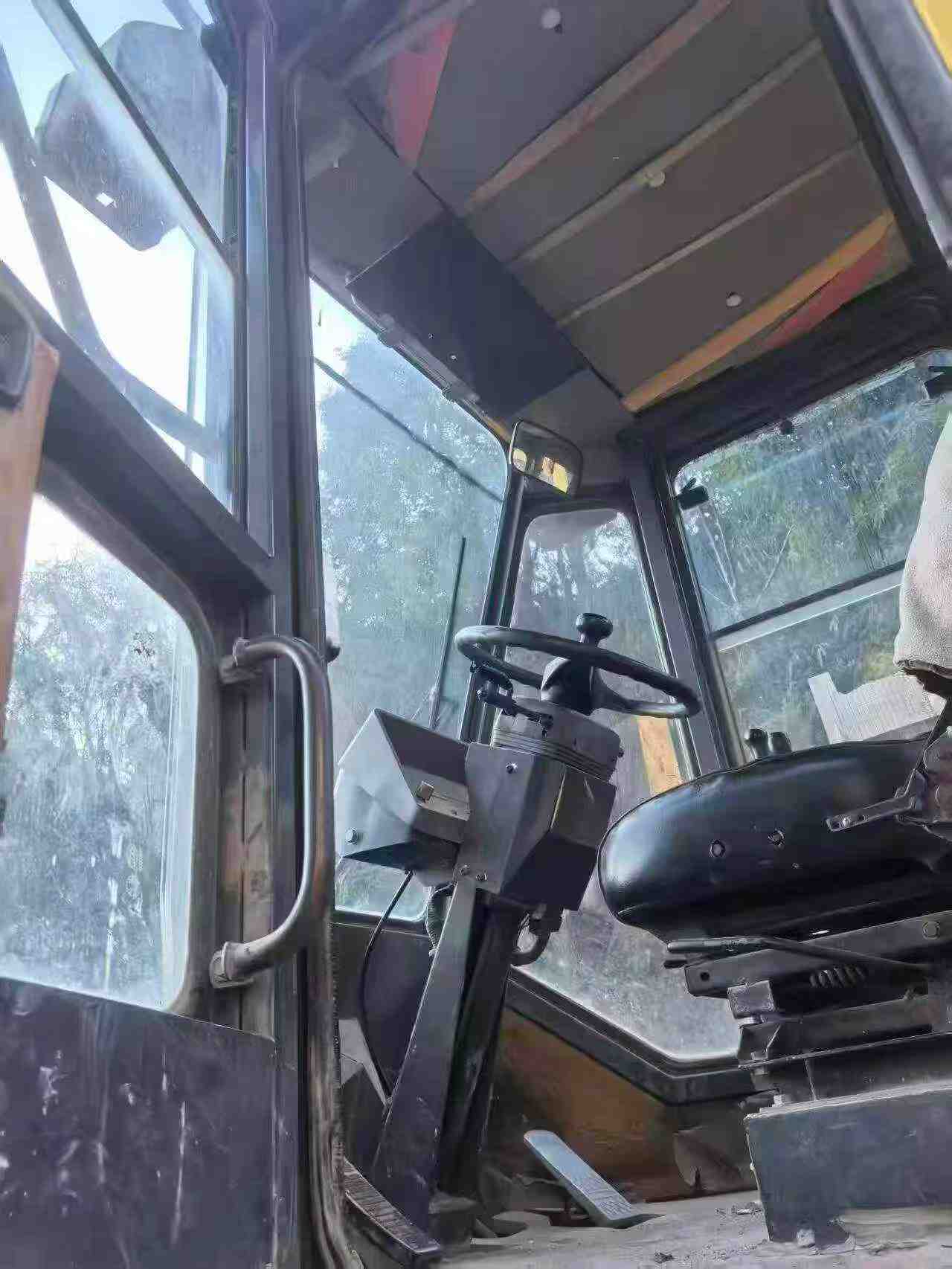

- Spacious operator cab with good visibility
- Durable construction suitable for demanding worksite conditions
- Efficient fuel consumption for its class
- Well-maintained unit with competitive pricing
This loader represents solid value for contractors and operators seeking dependable equipment at an accessible price point. Inspection and detailed service records available upon request.
| Specifications | Value |
|---|---|
| No. | 1139240 |
| Engine type | |
| Rated power (kw/rpm) | 146/2200 |
| Working form | |
| Exhaust volume (L) | 8.27 |
| Bucket capacity (m³) | 3 |
| Rated load (tons) | |
| Rated load (kg) | 5000 |
| Digging force (lifting force) (kN) | 168 |
| Machine operating weight (kg) | 16360 |
| Unloading height - Unloading Angle 45°(mm) | 2900 |
| Unloading distance - Unloading Angle 45°(mm) | 1170 |
| Maximum tractive force (kN) | 147 |
| Maximum climbing ability (°) | |
| Fuel Tank (L) | 285 |
| Engine Oil (L) | 19 |
| Wheelbase (mm) | 3200 |
| Minimum ground clearance (mm) | 455 |
| Machine length (mm) | 7965 |
| Machine width (mm) | 2780 |
| Machine height (mm) | 3380 |
| Steering Angle | |
| Minimum turning radius of outer wheel center line | 5475 |
| Speed 1 gear (km/h) | 7.7/8.0 |
| Speed 2 (km/h) | 12.3/12.8 |
| Speed 3 (km/h) | 21.4/22.6 |
| Speed 4 (km/h) | 34.0/35.0 |
