Product Description

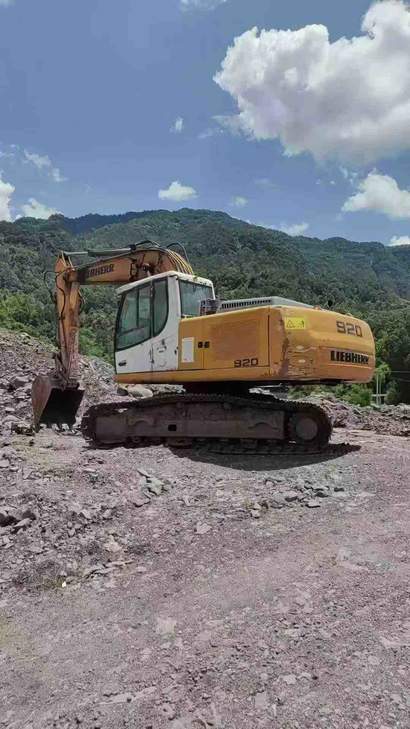

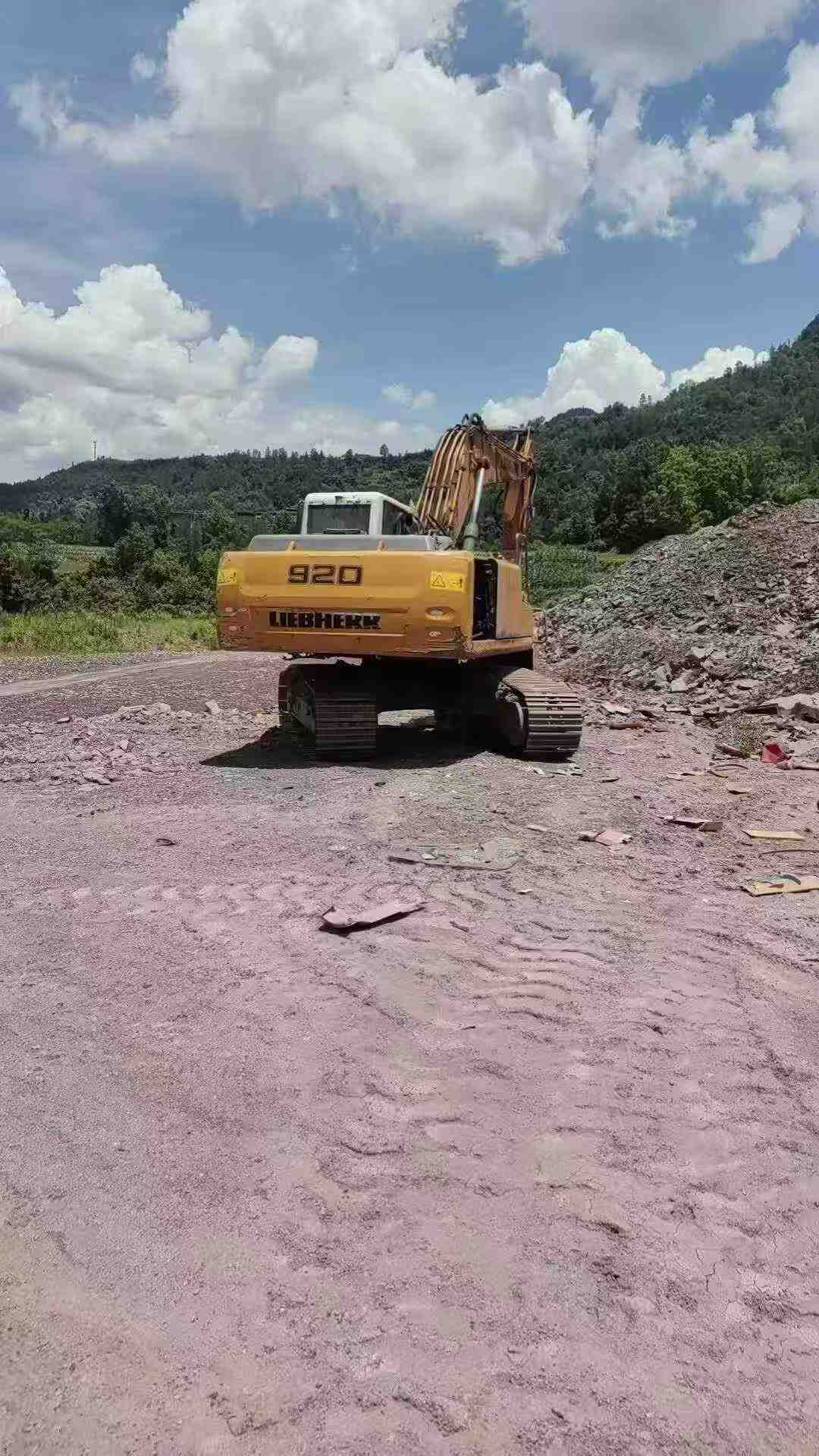

Discover the reliability and efficiency of the 2019 Liebherr 920, now available in Sichuan, China. This used heavy machine has been maintained to ensure optimal performance, making it a cost-effective solution for your industrial needs. Ideal for construction, mining, and material handling, the Liebherr 920 is known for its robust design and durability, ensuring longevity and minimal downtime.
- Year: 2019
- Brand: Liebherr
- Model: 920
- Location: Sichuan, China
- Price: 88,000 CNY
| Specifications | Value |
|---|---|
| No. | 1108473 |
| Tonnage (tons) | 9 |
| Working weight (kg) | 11300 |
| Bucket capacity (m³) | 0.15-0.44 |
| Boom length (mm) | 2100 |
| Rod length (mm) | 1850 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Deutz TCD2012 L04 |
| Rated power (kw/rpm) | 65/1800 |
| Total displacement (L) | 4 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 101 x 126 |
| Forward speed (Km/h) | 0-20.0 |
| Rotation speed (rpm) | 10 |
| Bucket digging force (kN) | 76.3 |
| Rod digging force (kN) | 44.8 |
| Minimum turning radius (m) | 6.26 (front wheel Drive) /4.57 (four wheel drive) |
| Rotary hydraulic motor type | Liebherr swashplate variable variable hydraulic motor |
| Type of walking hydraulic motor | Liebherr swash plate hydraulic motor |
| Maximum flow of main pump (l/min) | 194 |
| Main pump type | Liebherr swashplate variable pump |
| Fuel Tank (L) | 210 |
| Hydraulic Tank (L) | 100 |
| Hydraulic System (L) | 210 |
| Total transport length (mm) | 8300 |
| Total transport width (mm) | 2550 |
| Total transport height (mm) | 3110 |
| Full cab height (mm) | 3110 |
| Counterweight ground clearance (mm) | 1170 |
| Wheelbase (mm) | 2400 |
| Total tire outside width (mm) | 2525 |
| Minimum ground clearance (mm) | 320 |
| Back end turning radius (mm) | 1600 |
| Maximum excavation radius (mm) | 8150 |
| Maximum digging depth (mm) | 3900 |
| Maximum excavation height (mm) | 8600 |
| Maximum unloading height (mm) | 6150 |
| Dodging plate width × height (mm) | 2550 x 620 |
