Product Description

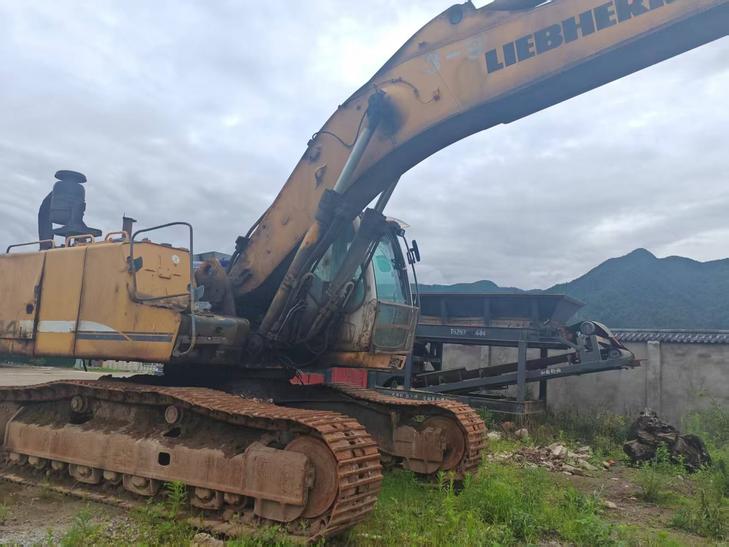

This 2020 Liebherr 944 hydraulic excavator represents a reliable solution for heavy-duty earthmoving and mining operations. Currently located in Sichuan, China, this machine comes from Liebherr's proven 900 series, known for robust construction and operational efficiency in demanding environments.
Key features include:
- Liebherr-engineered hydraulic system for precise control and productivity
- Heavy-duty undercarriage designed for extended service life
- Spacious operator cabin with ergonomic controls
- Suitable for large-scale excavation, mining, and quarry applications
- Well-maintained unit from 2020 model year
This excavator is ideal for contractors and operators seeking dependable performance in high-production environments. Available for inspection in Sichuan, China. Contact us for detailed specifications, service records, and shipping arrangements to your location.
| Specifications | Value |
|---|---|
| No. | 1111543 |
| Tonnage (tons) | 9 |
| Working weight (kg) | 11300 |
| Bucket capacity (m³) | 0.15-0.44 |
| Boom length (mm) | 2100 |
| Rod length (mm) | 1850 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Deutz TCD2012 L04 |
| Rated power (kw/rpm) | 65/1800 |
| Total displacement (L) | 4 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 101 x 126 |
| Forward speed (Km/h) | 0-20.0 |
| Rotation speed (rpm) | 10 |
| Bucket digging force (kN) | 76.3 |
| Rod digging force (kN) | 44.8 |
| Minimum turning radius (m) | 6.26 (front wheel Drive) /4.57 (four wheel drive) |
| Rotary hydraulic motor type | Liebherr swashplate variable variable hydraulic motor |
| Type of walking hydraulic motor | Liebherr swash plate hydraulic motor |
| Maximum flow of main pump (l/min) | 194 |
| Main pump type | Liebherr swashplate variable pump |
| Fuel Tank (L) | 210 |
| Hydraulic Tank (L) | 100 |
| Hydraulic System (L) | 210 |
| Total transport length (mm) | 8300 |
| Total transport width (mm) | 2550 |
| Total transport height (mm) | 3110 |
| Full cab height (mm) | 3110 |
| Counterweight ground clearance (mm) | 1170 |
| Wheelbase (mm) | 2400 |
| Total tire outside width (mm) | 2525 |
| Minimum ground clearance (mm) | 320 |
| Back end turning radius (mm) | 1600 |
| Maximum excavation radius (mm) | 8150 |
| Maximum digging depth (mm) | 3900 |
| Maximum excavation height (mm) | 8600 |
| Maximum unloading height (mm) | 6150 |
| Dodging plate width × height (mm) | 2550 x 620 |
