Product Description

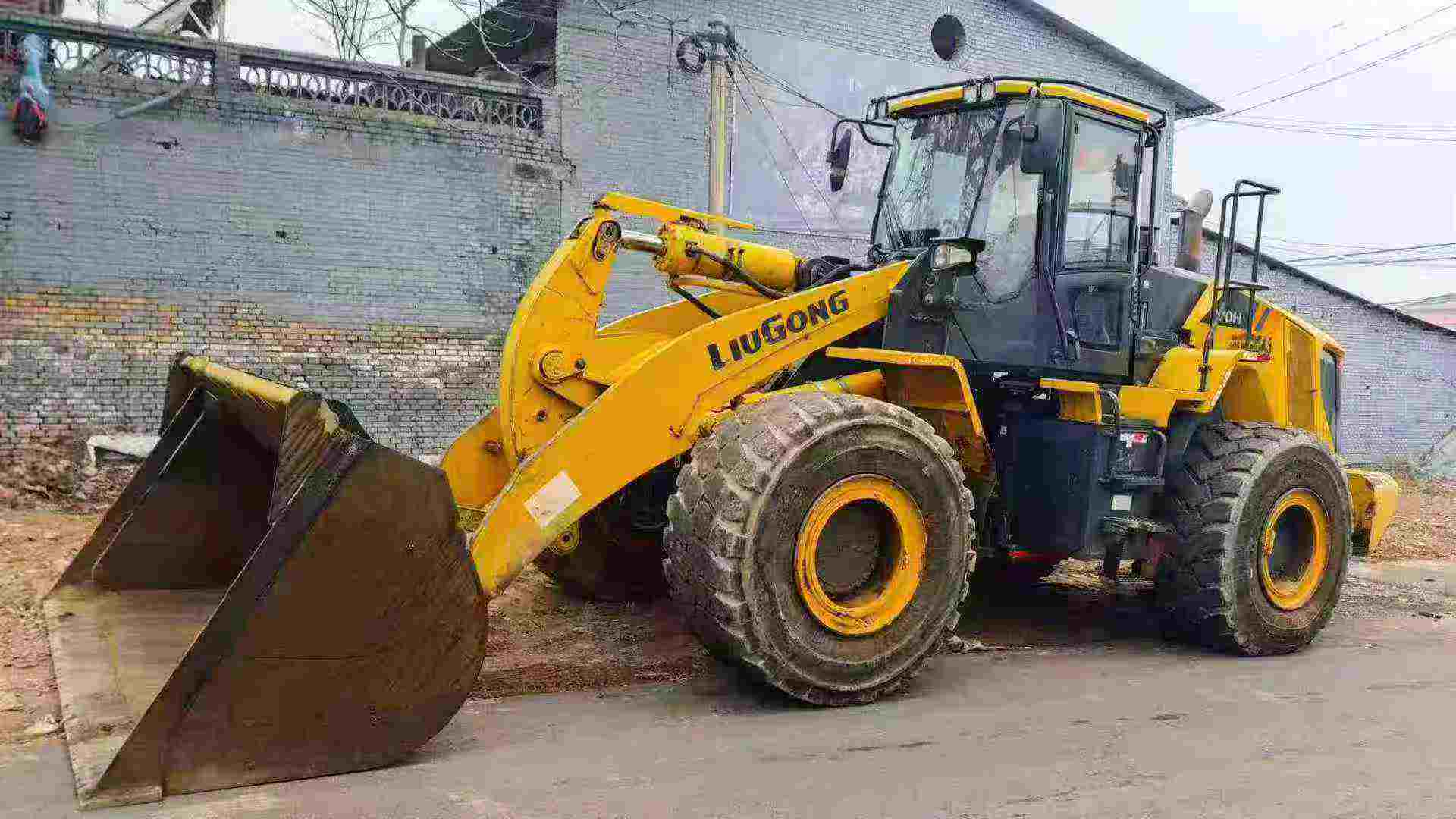

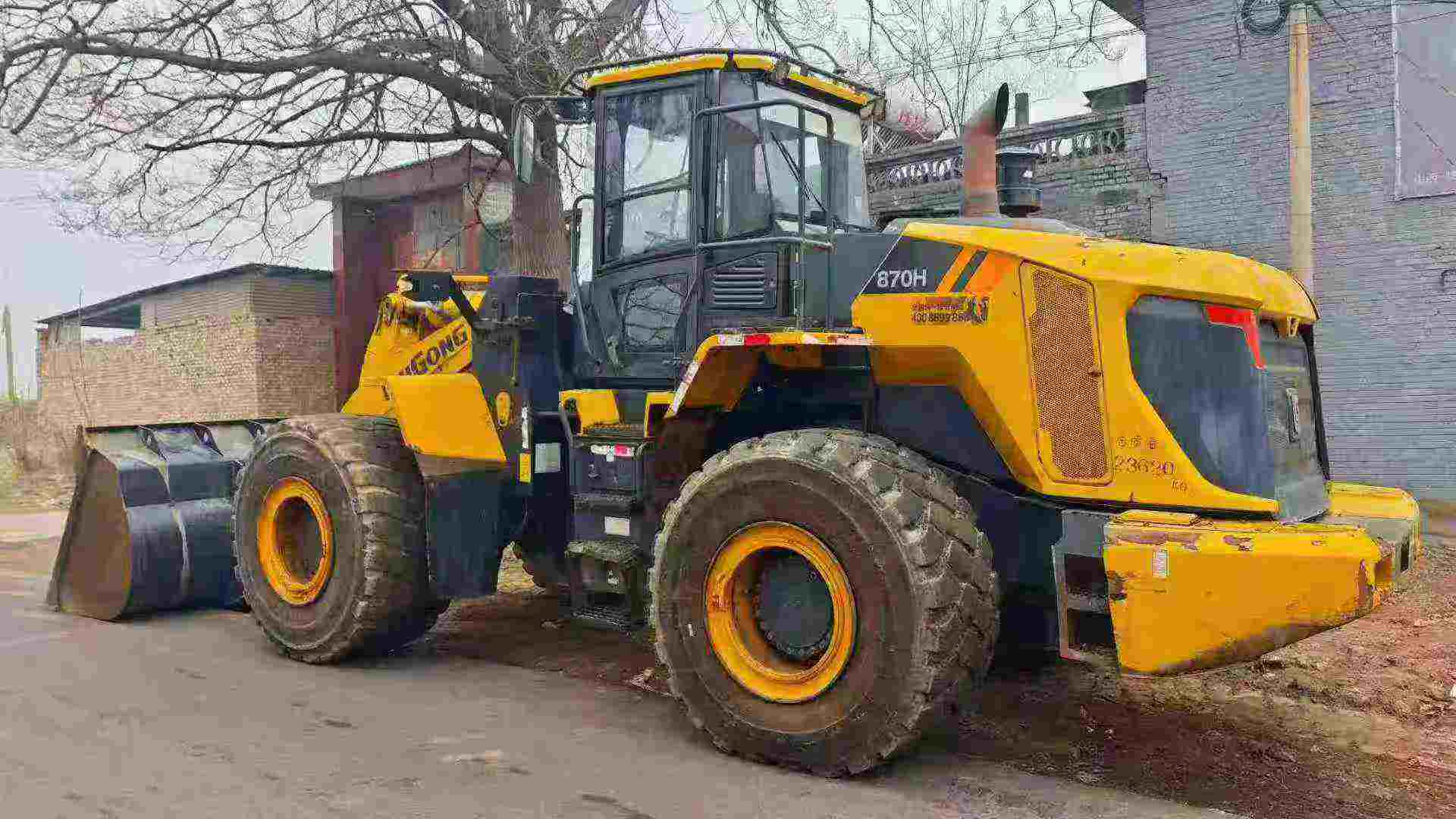

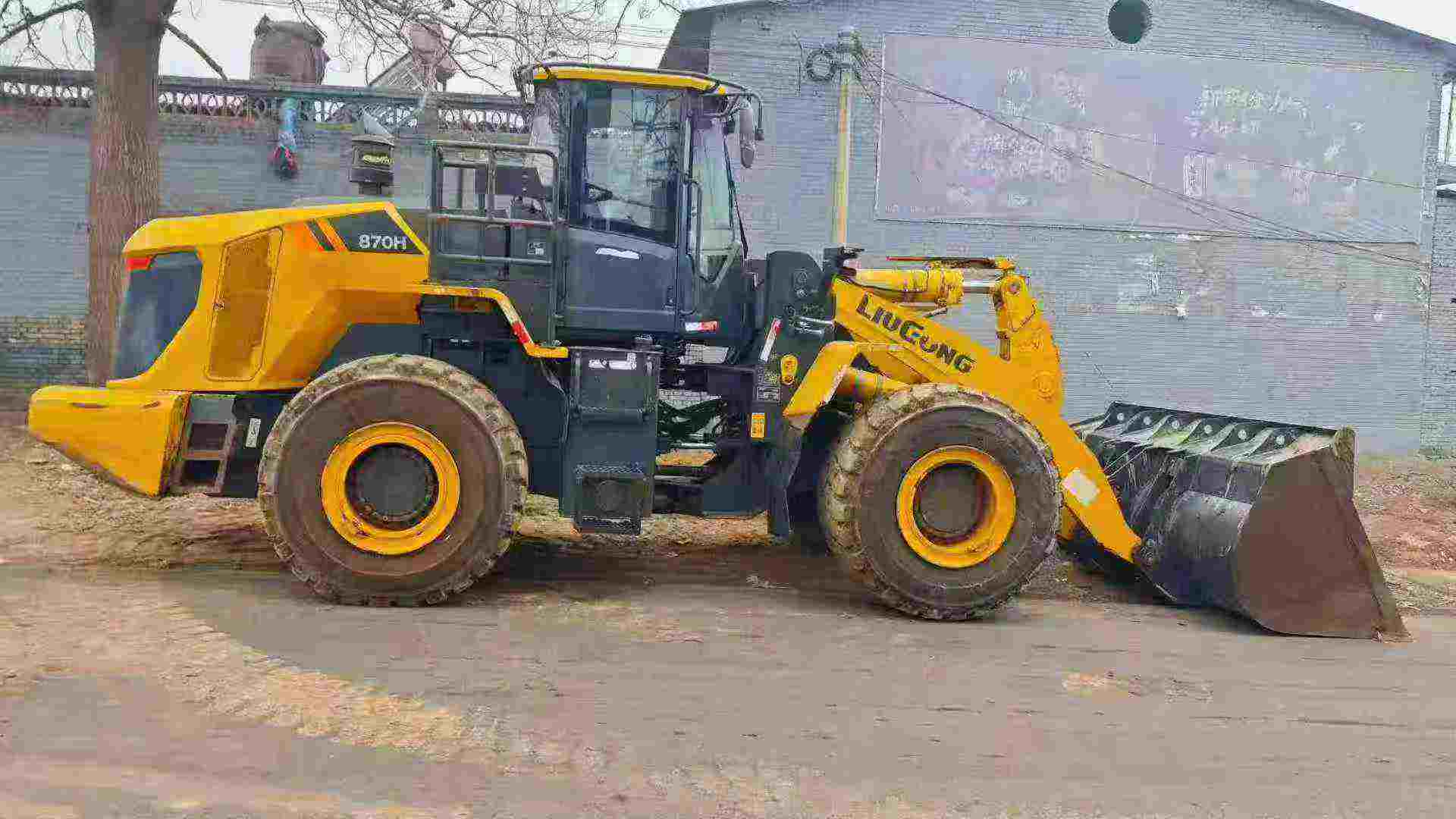

Built for demanding earthmoving operations, this 2020 CLG870H wheel loader combines robust power with refined operator control. Powered by a 180 kW engine with 9.3L displacement, it delivers 200 kN of digging force and handles a 7,000 kg rated load with authority. Operating weight of 21,500 kg ensures stability across uneven terrain, while the 27° climbing ability and 192 kN maximum tractive force tackle challenging gradients with confidence.

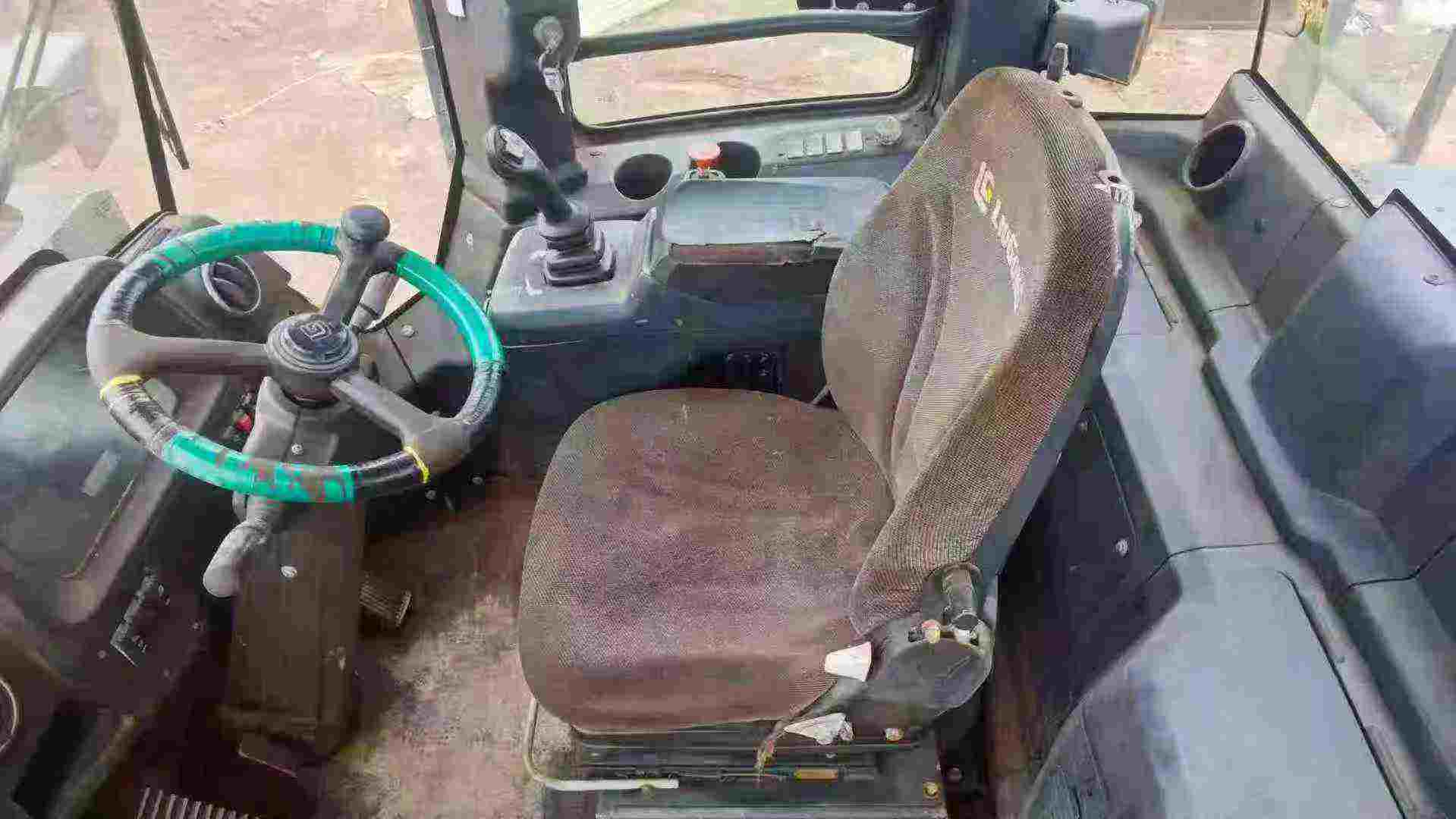

Operator efficiency comes standard. The spacious cabin provides commanding visibility across the 3,220 mm width, with intuitive controls positioned for reduced fatigue during extended shifts. Fast cycle times—5.7s lift, 1.3s unload, 10s total cycle—maximize productivity without compromising precision. A 38° steering angle and 12° transaxle swing deliver maneuverability in confined loading zones.

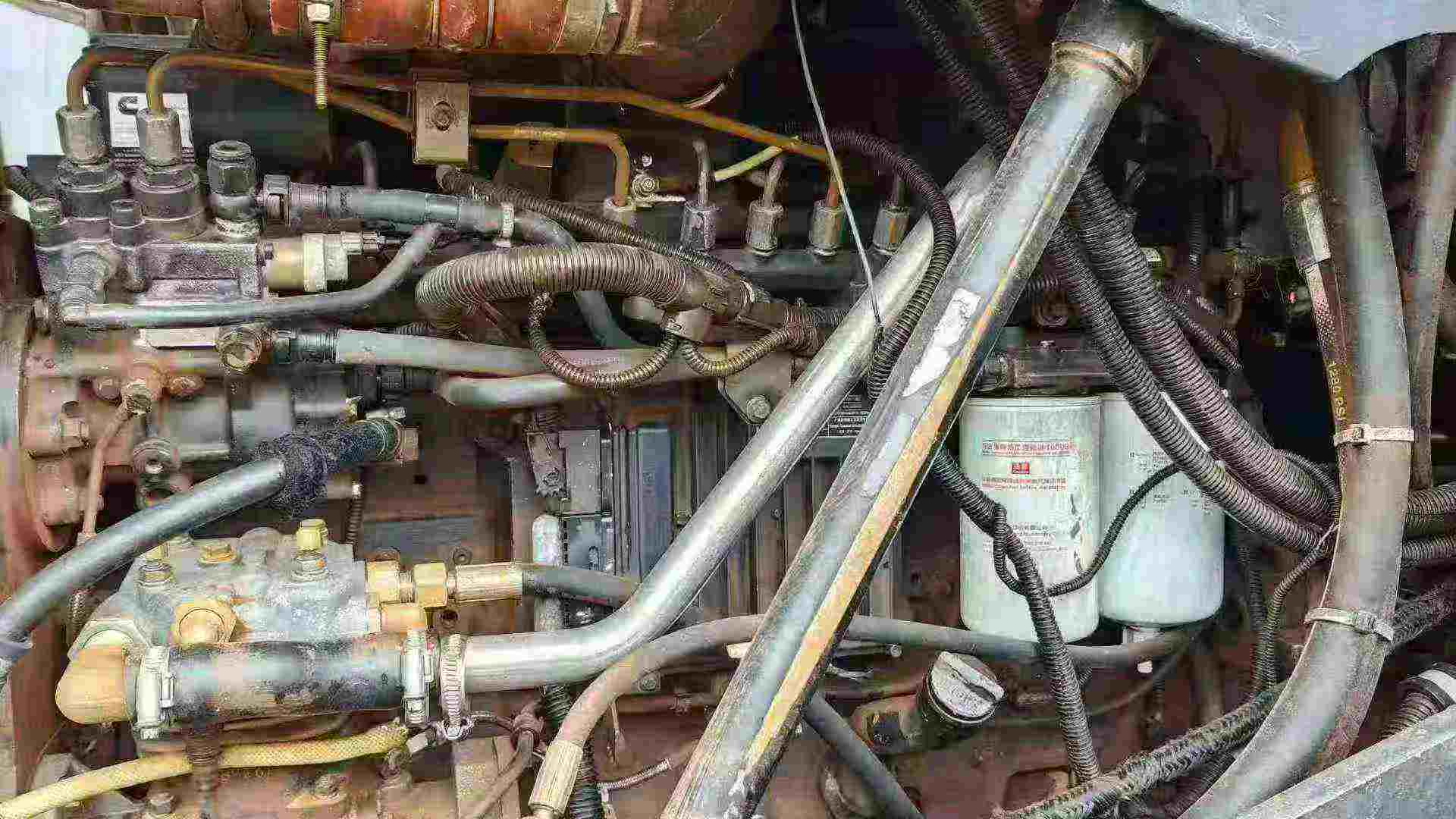

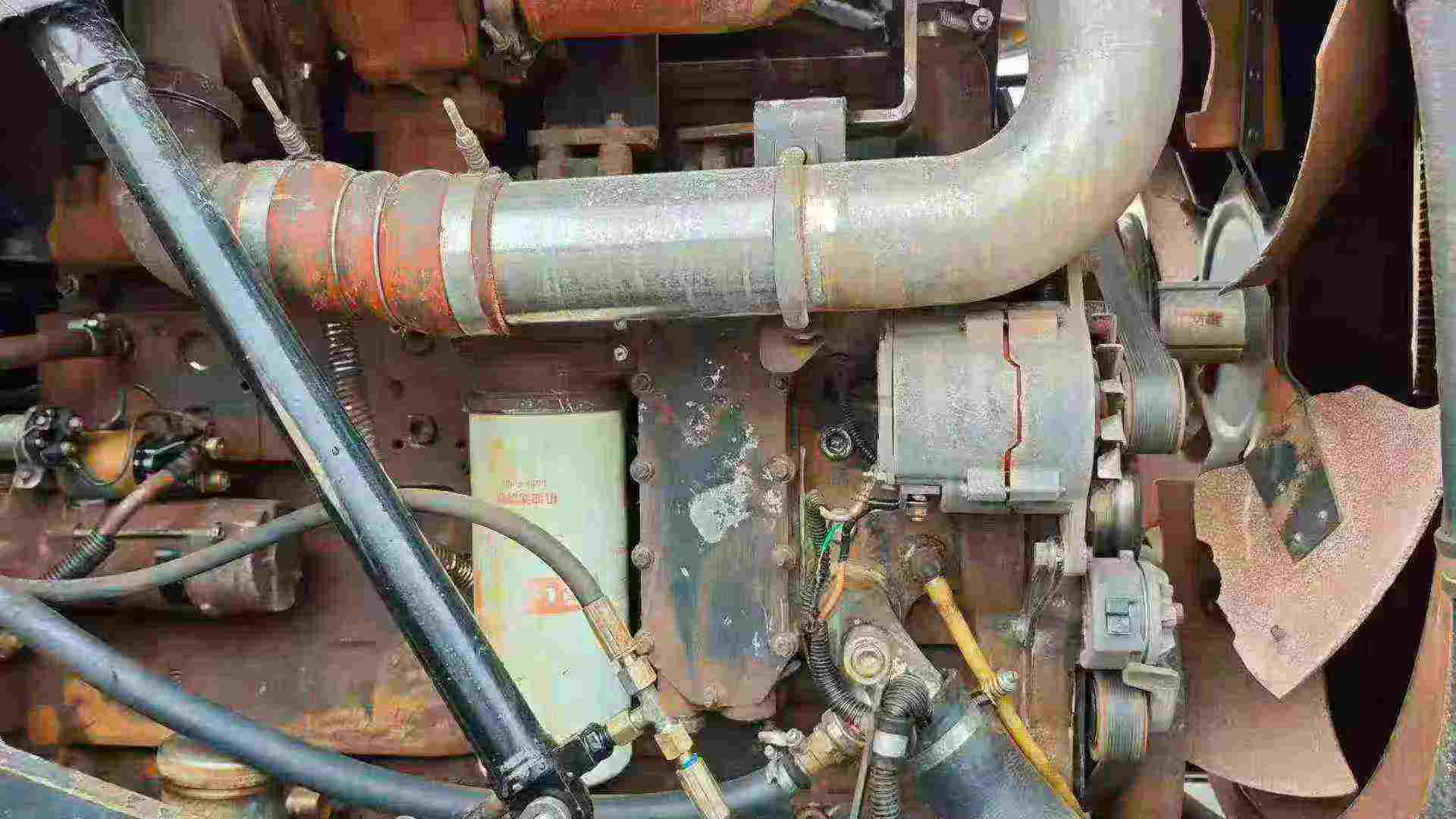

- Engine: 180 kW / 9.3L displacement
- Capacity: 7,000 kg rated load, 200 kN digging force
- Dimensions: 8,773 × 3,220 × 3,467 mm (L×W×H)
- Performance: 3,000 mm max unloading height, 27° climbing ability
- Location: Baoding, Hebei, China
| Specifications | Value |
|---|---|
| No. | 1023879 |
| Engine type | |
| Rated power (kw/rpm) | 180 |
| Exhaust volume (L) | 9.3 |
| Bucket capacity (m³) | |
| Rated load (tons) | |
| Rated load (kg) | 7000 |
| Digging force (lifting force) (kN) | 200 |
| Machine operating weight (kg) | 21500 |
| Max - Unloading height (mm) | 3000 |
| Unloading distance (mm) | 1346 |
| Maximum tractive force (kN) | 192 |
| Maximum climbing ability (°) | 27 |
| Fuel Tank (L) | 330 |
| Coolant (L) | 52 |
| Hydraulic System (L) | 280 |
| Engine Oil (L) | 22 |
| Wheelbase (mm) | 3450 |
| Wheel base (mm) | 2280 |
| Machine length (mm) | 8773 |
| Machine width (mm) | 3220 |
| Machine height (mm) | 3467 |
| Transaxle swing Angle (°) | 12 |
| Steering Angle | 38 ° |
| Lift (s) | 5.7 |
| Unloading (s) | 1.3 |
| Lower empty bucket (s) | 3 |
| Ternary sum (s) | 10 |
