Product Description

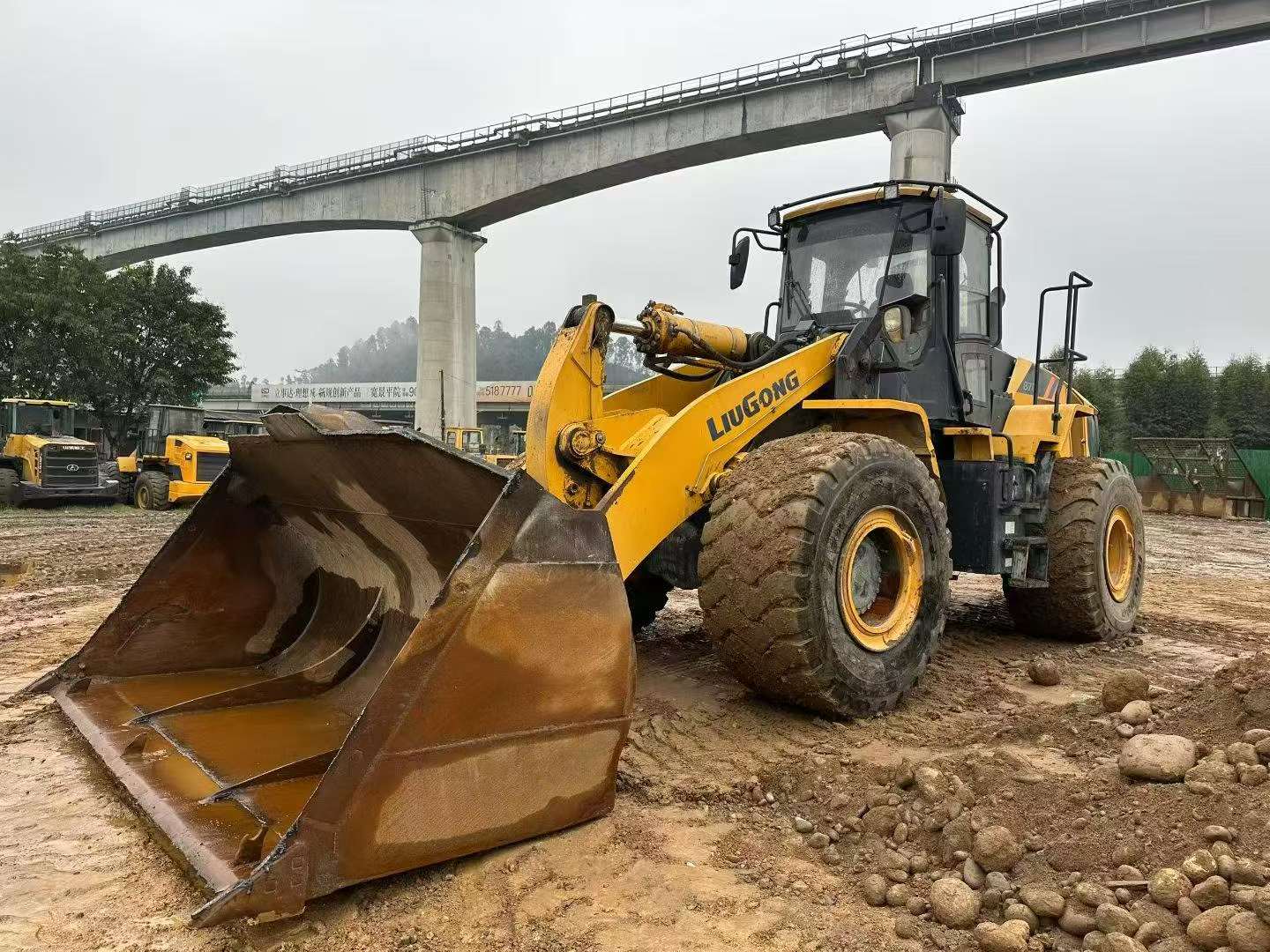

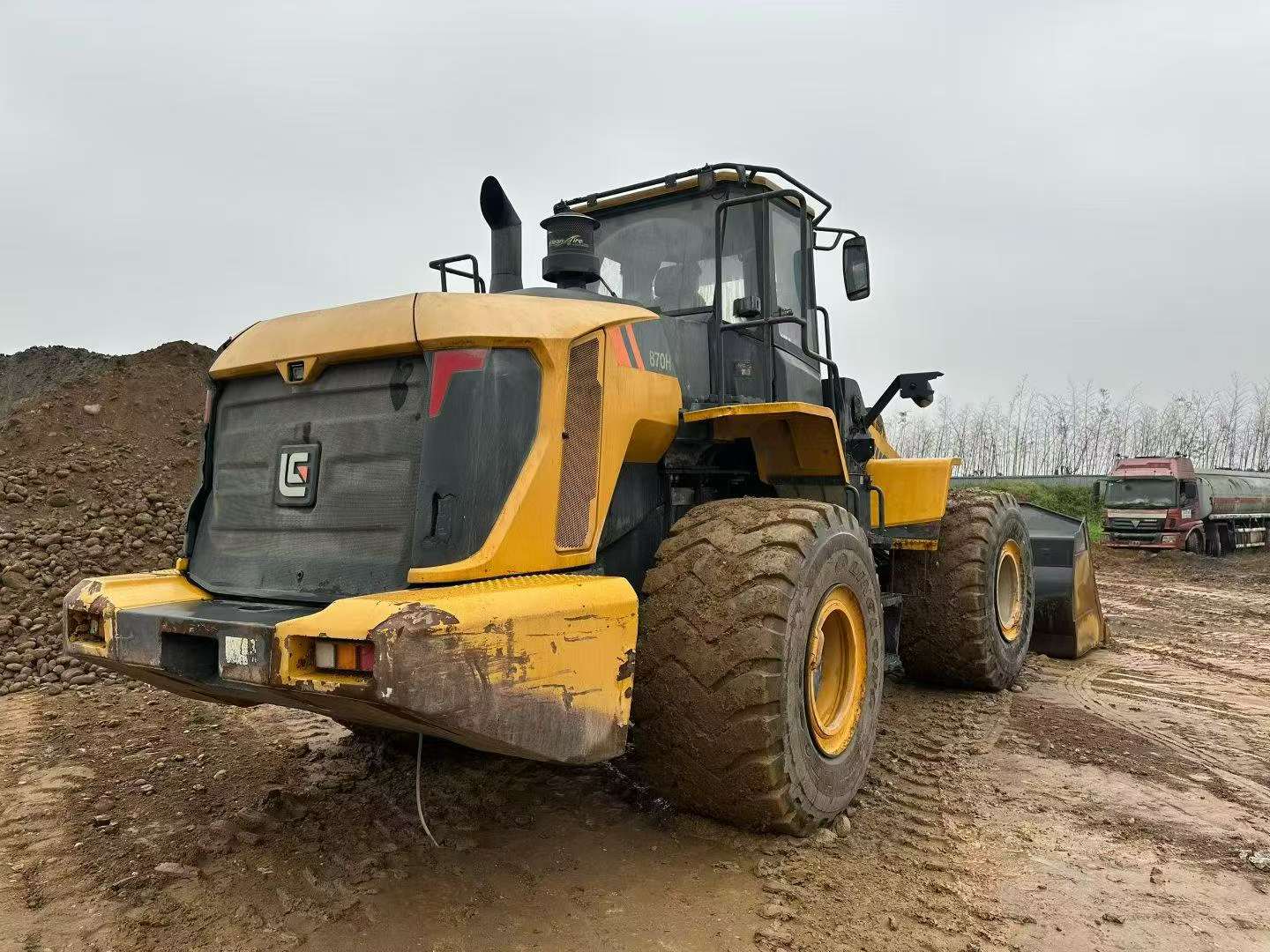

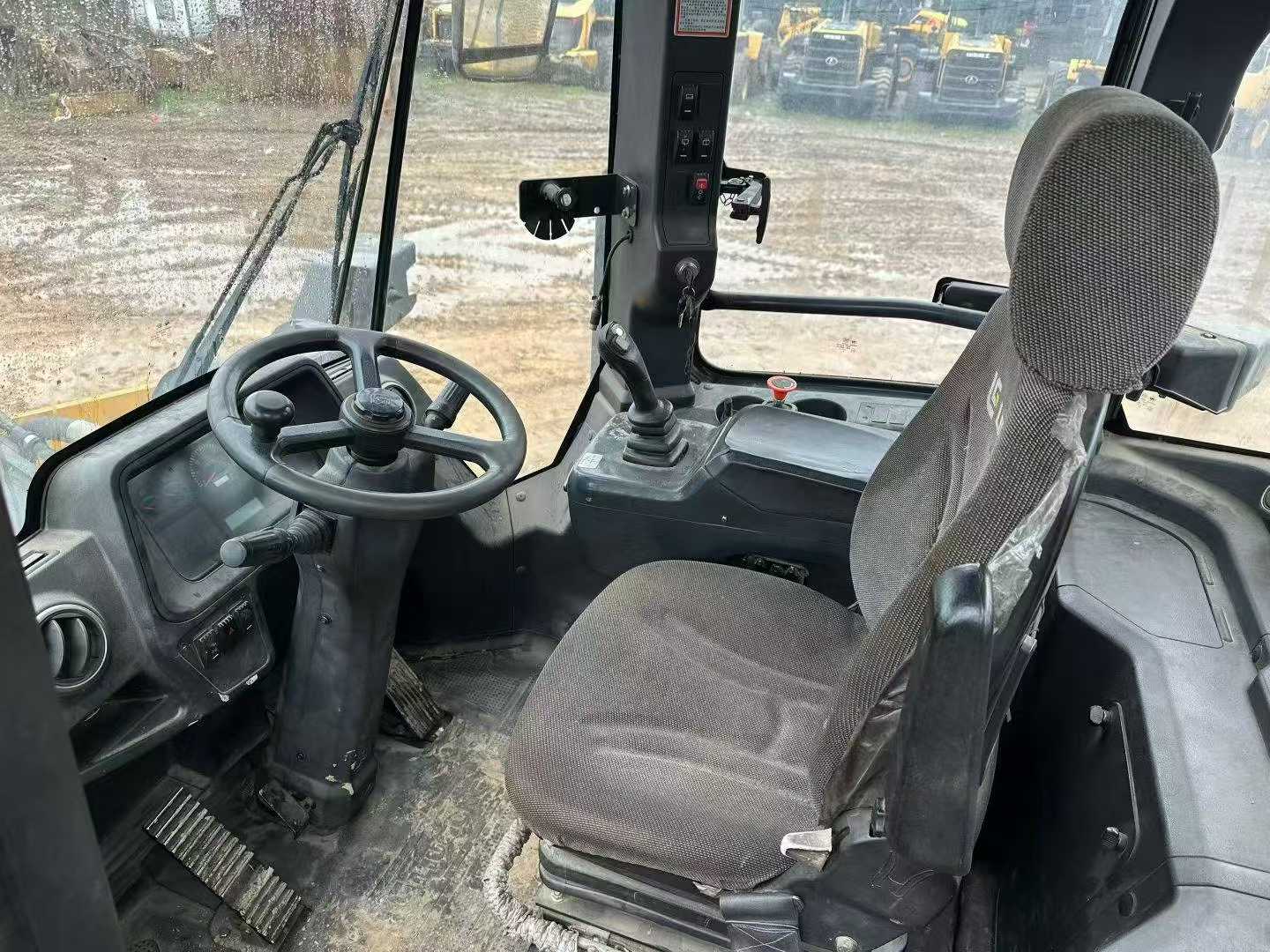

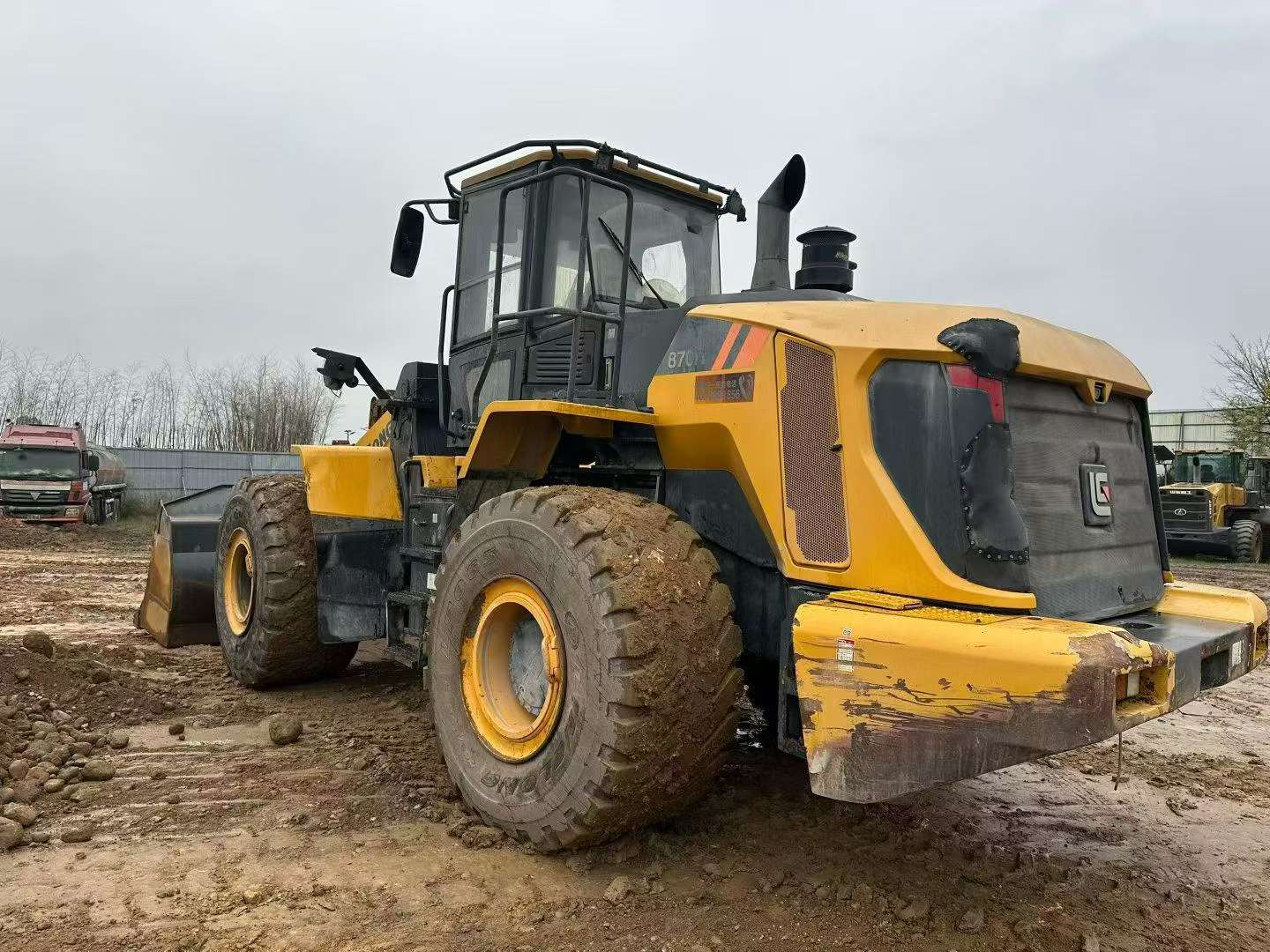

Built for high-volume earthmoving operations, this 2021 LiuGong CLG870H wheel loader delivers 180 kW of rated power and a 7-ton rated load capacity across demanding jobsites. Operators benefit from exceptional visibility through the spacious cabin, designed to monitor bucket positioning and ground conditions with minimal blind spots. The 3,450 mm wheelbase and 21,500 kg operating weight provide a stable platform during heavy loading cycles, while the 27-degree maximum climbing ability ensures confident performance on varied terrain.
Handling characteristics stand out with a 38-degree steering angle and 12-degree transaxle swing, enabling precise maneuvering in confined spaces. Hydraulic response times support efficient workflows—5.7-second lift, 1.3-second unloading, and a 10-second ternary cycle keep productivity high. The 200 kN digging force tackles compacted materials effectively, backed by a 192 kN maximum tractive force for reliable traction in loose or muddy conditions.
- Rated Power: 180 kW | Rated Load: 7,000 kg
- Operating Weight: 21,500 kg | Max Unloading Height: 3,000 mm
- Fuel Capacity: 330 L | Hydraulic System: 280 L
- Location: Baoding, Hebei
| Specifications | Value |
|---|---|
| No. | 1037187 |
| Engine type | |
| Rated power (kw/rpm) | 180 |
| Exhaust volume (L) | 9.3 |
| Bucket capacity (m³) | |
| Rated load (tons) | |
| Rated load (kg) | 7000 |
| Digging force (lifting force) (kN) | 200 |
| Machine operating weight (kg) | 21500 |
| Max - Unloading height (mm) | 3000 |
| Unloading distance (mm) | 1346 |
| Maximum tractive force (kN) | 192 |
| Maximum climbing ability (°) | 27 |
| Fuel Tank (L) | 330 |
| Coolant (L) | 52 |
| Hydraulic System (L) | 280 |
| Engine Oil (L) | 22 |
| Wheelbase (mm) | 3450 |
| Wheel base (mm) | 2280 |
| Machine length (mm) | 8773 |
| Machine width (mm) | 3220 |
| Machine height (mm) | 3467 |
| Transaxle swing Angle (°) | 12 |
| Steering Angle | 38 ° |
| Lift (s) | 5.7 |
| Unloading (s) | 1.3 |
| Lower empty bucket (s) | 3 |
| Ternary sum (s) | 10 |
