Product Description

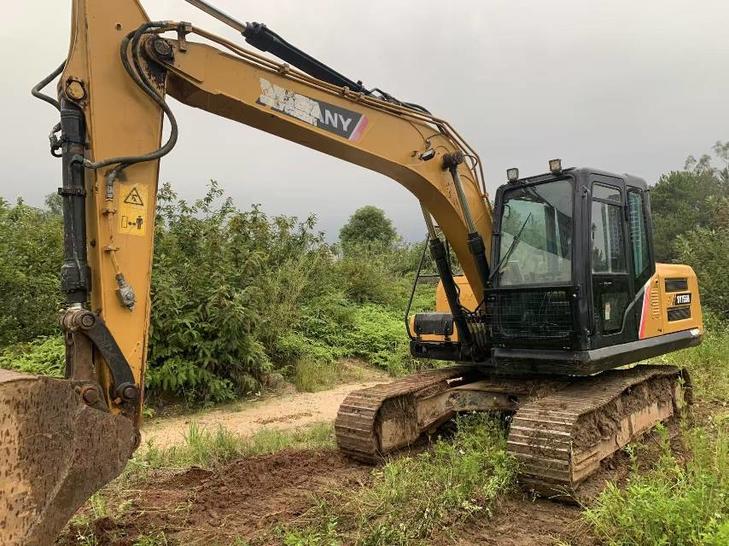

This 2021 Sany SY155C-9 excavator represents a well-maintained mid-size machine ideal for construction and earthmoving operations. Located in Guangdong, China, this unit features original factory undercarriage components with intact paintwork, indicating careful operation and minimal wear. The machine's core systems—engine, hydraulic pump, and main control valve—remain unmodified from factory specifications, ensuring reliable performance and straightforward maintenance.
Key highlights include:
- 2021 model year with low operational hours
- Original undercarriage assembly in excellent condition
- Unmodified major components for consistent performance
- Operating weight class suitable for medium-duty applications
- Ready for immediate deployment
This excavator is positioned for buyers seeking proven Sany engineering without the premium of new equipment. All major systems have been maintained to manufacturer standards and require no immediate service intervention.
| Specifications | Value |
|---|---|
| No. | 1136301 |
| Tonnage (tons) | 15 |
| Working weight (kg) | 14100 |
| Bucket capacity (m³) | 0.50~0.65 |
| Country of origin | Shanghai |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | ISUZU 4BG1 |
| Rated power (kw/rpm) | 72.7/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | four-cylinder |
| Working form | Four-cylinder four-stroke turbocharged direct injection engine |
| Ground specific pressure (Kpa) | 43 |
| Rotation speed (rpm) | 12 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 92.7 |
| Rod digging force (kN) | 66.13 |
| Travel speed (km/h) | 5.5/3.5 |
| Total transport length (mm) | 7870 |
| Total transport width (mm) | 2570 |
| Total transport height (mm) | 2880 |
| Full cab height (mm) | 2740 |
| Minimum ground clearance (mm) | 425 |
| Minimum turning radius of front working device (mm) | 2490 |
| Back end turning radius (mm) | 2210 |
| Onboard width (mm) | 2490 |
| Total track length (mm) | 3665 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Track ground length (mm) | 2930 |
| Maximum height at minimum turning radius (mm) | 6495 |
| Maximum digging radius (mm) | 8330 |
| Maximum digging depth (mm) | 5500 |
| Maximum excavation height (mm) | 8610 |
| Maximum unloading height (mm) | 6115 |
| Maximum vertical digging depth (mm) | 5085 |
