2017 Sany 215C-9

1/13
Buy Sany 215C-9 Used Excavator / 1

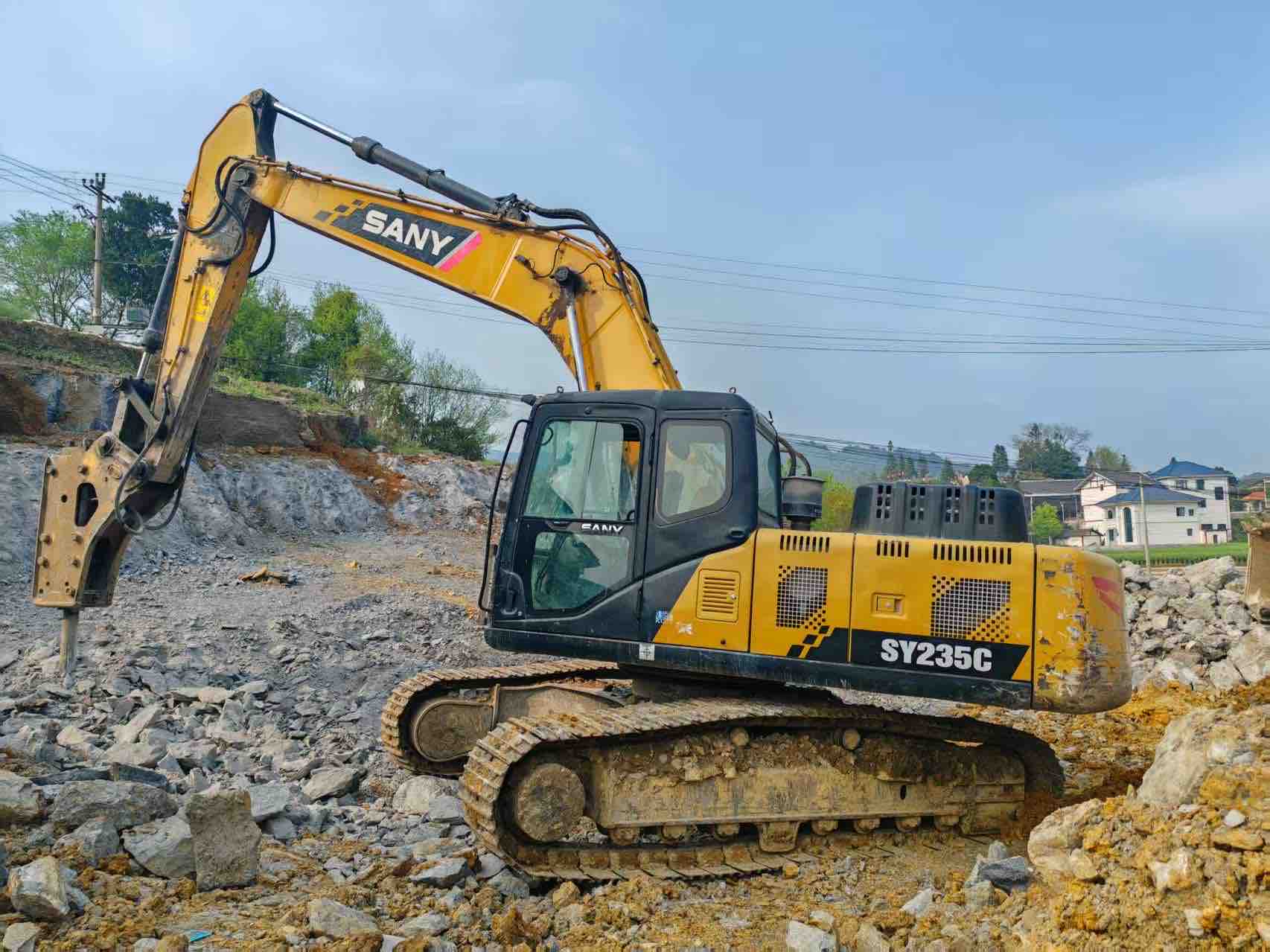

Buy Sany 215C-9 Used Excavator / 2

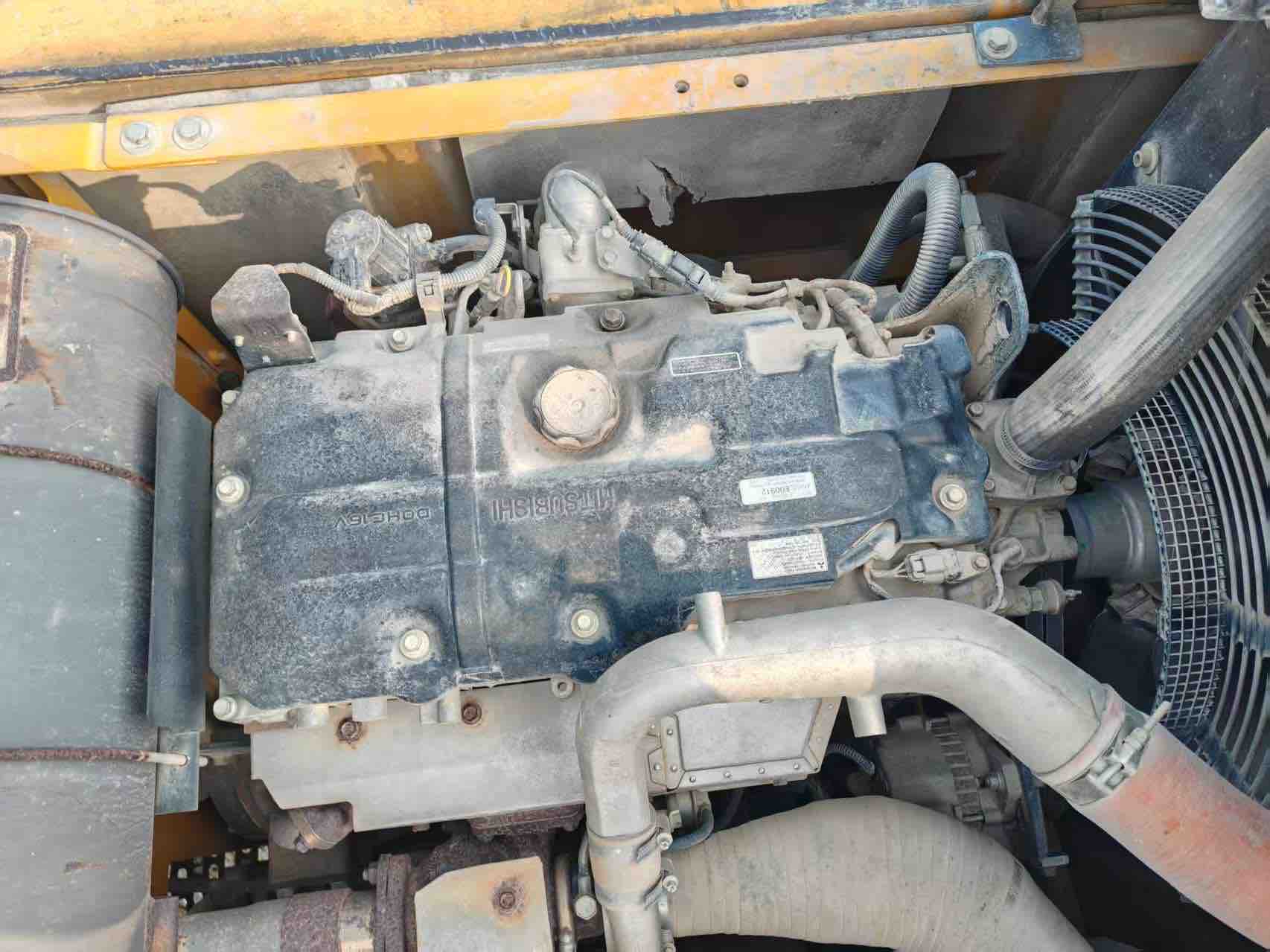

Buy Sany 215C-9 Used Excavator / 3

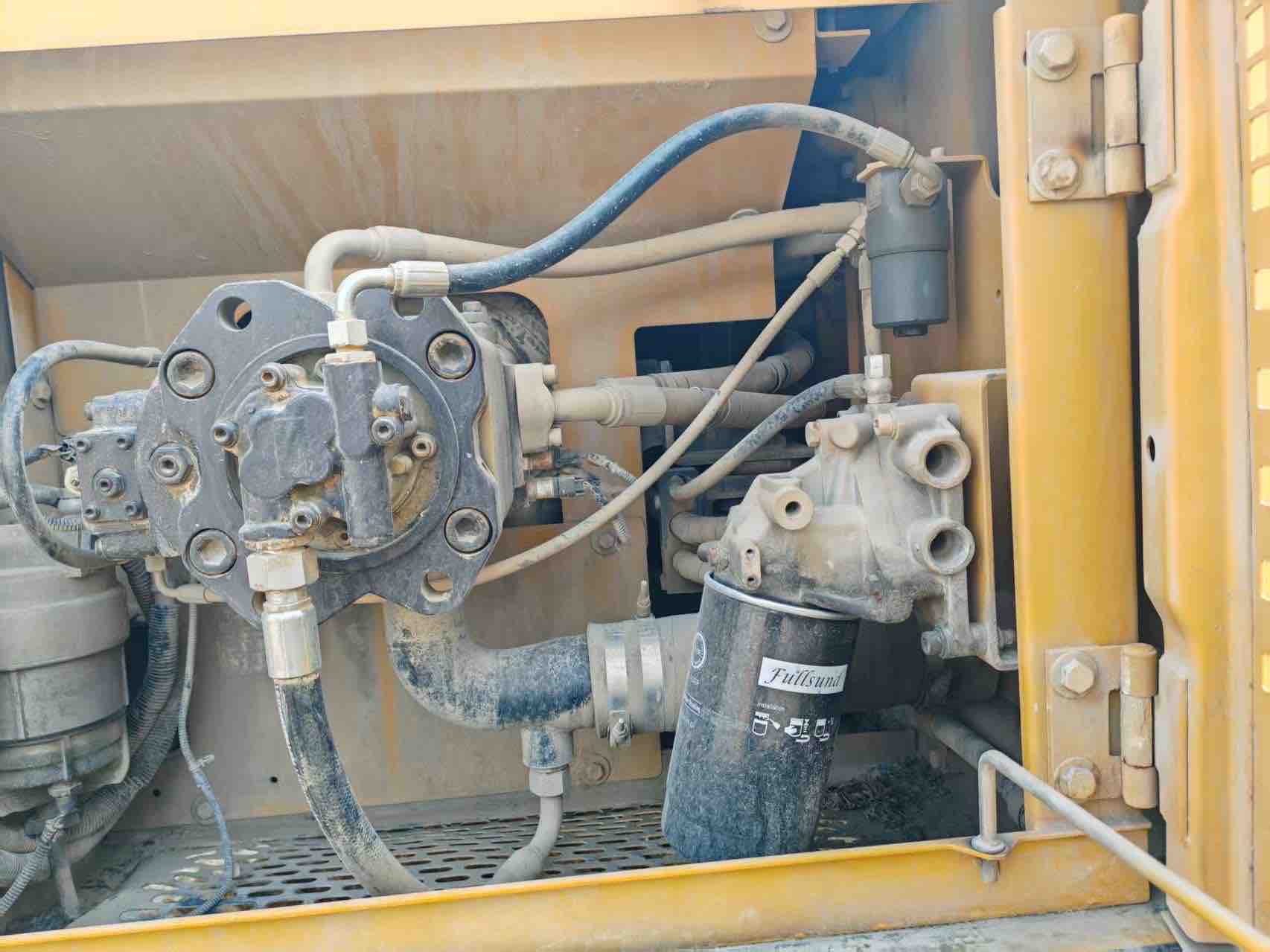

Buy Sany 215C-9 Used Excavator / 4

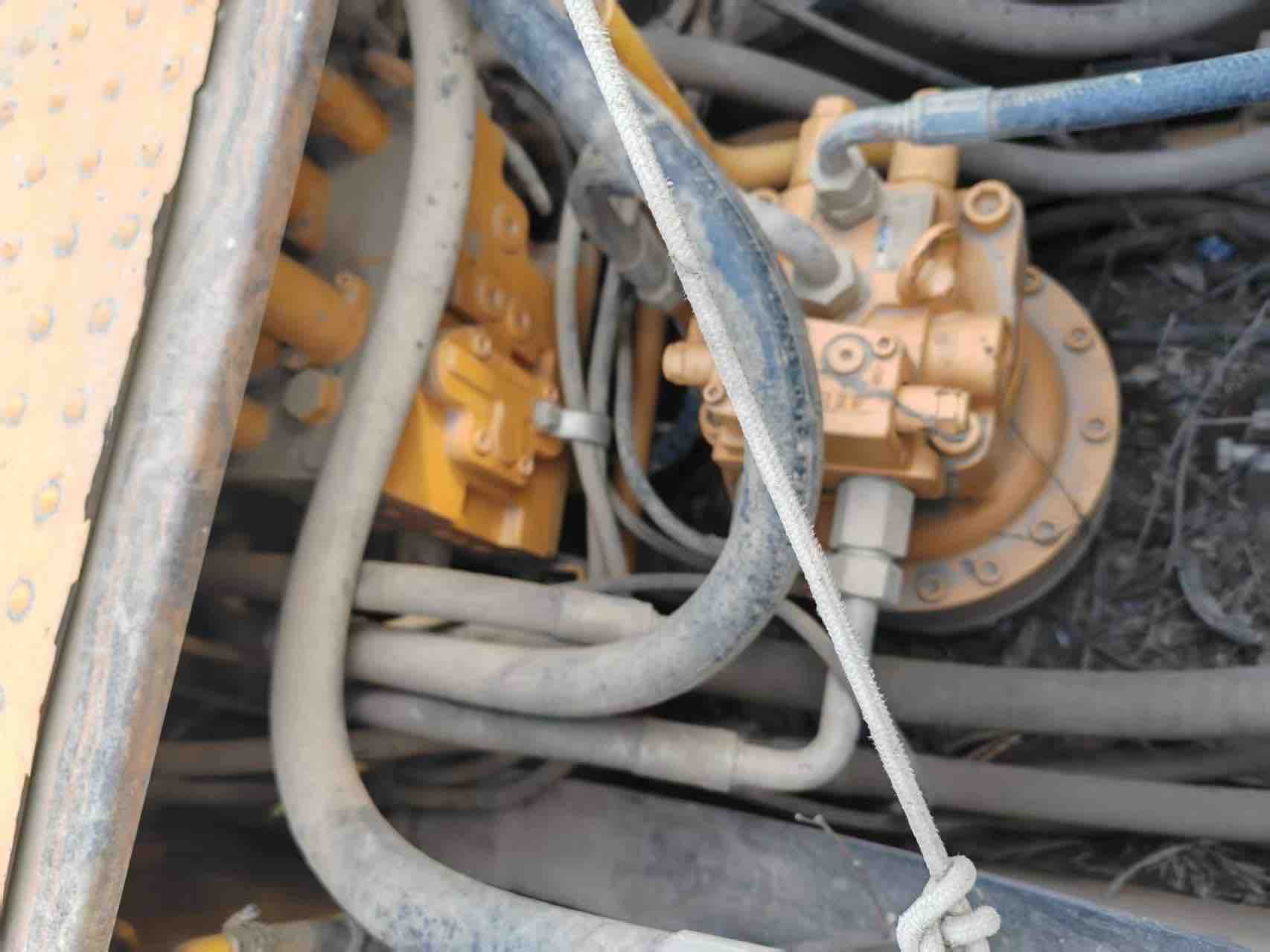

Buy Sany 215C-9 Used Excavator / 5

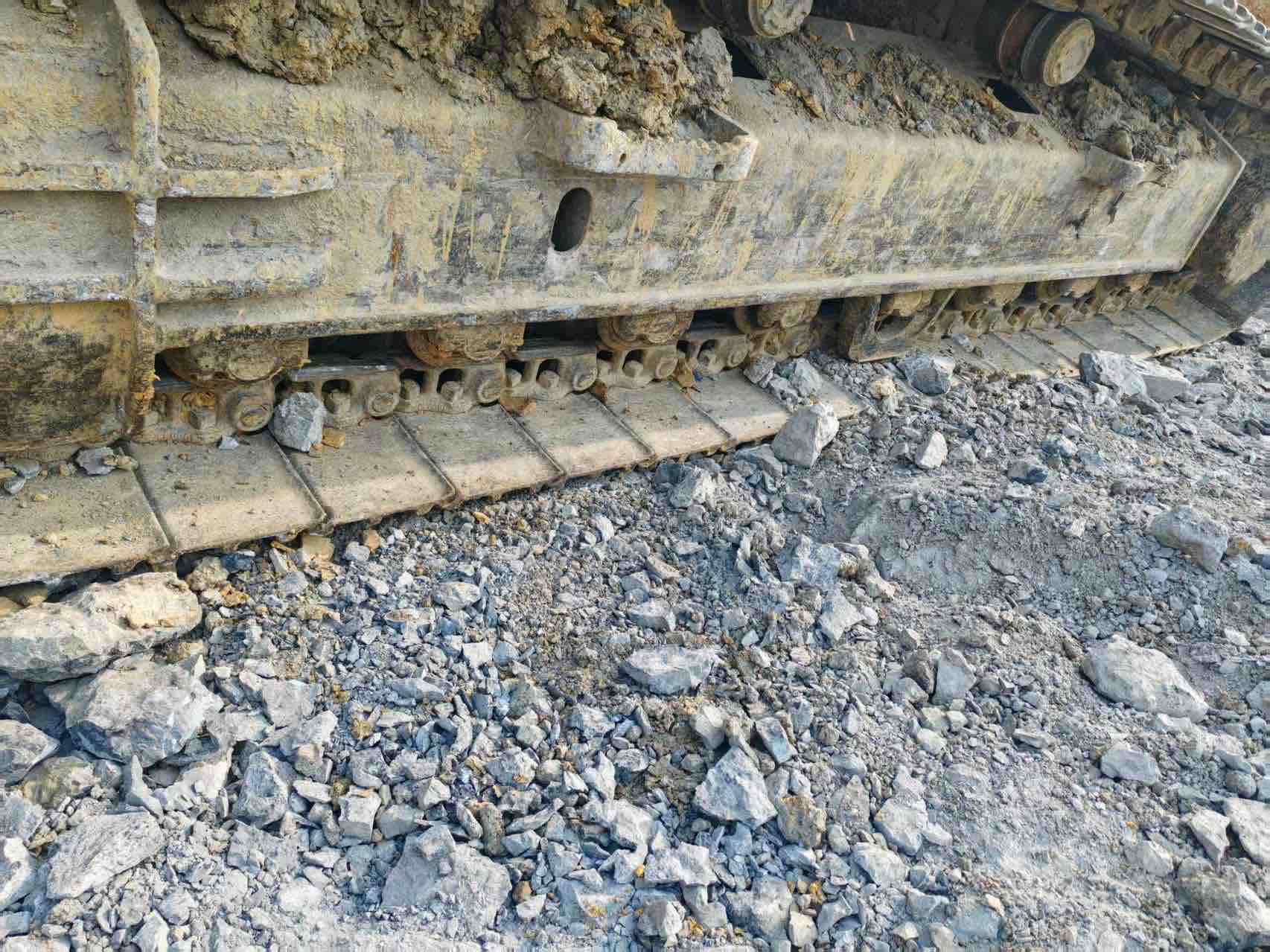

Buy Sany 215C-9 Used Excavator / 6

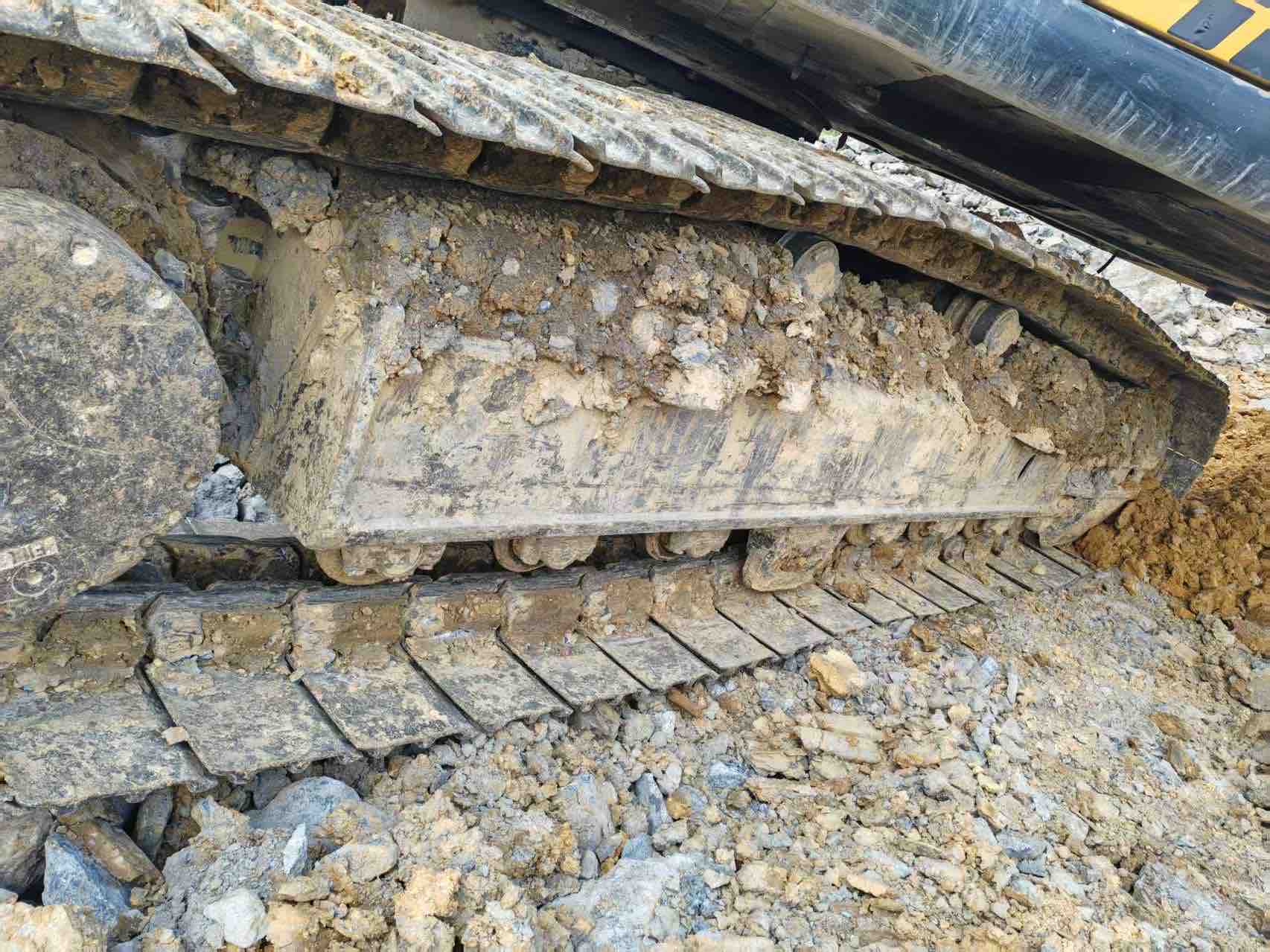

Buy Sany 215C-9 Used Excavator / 7

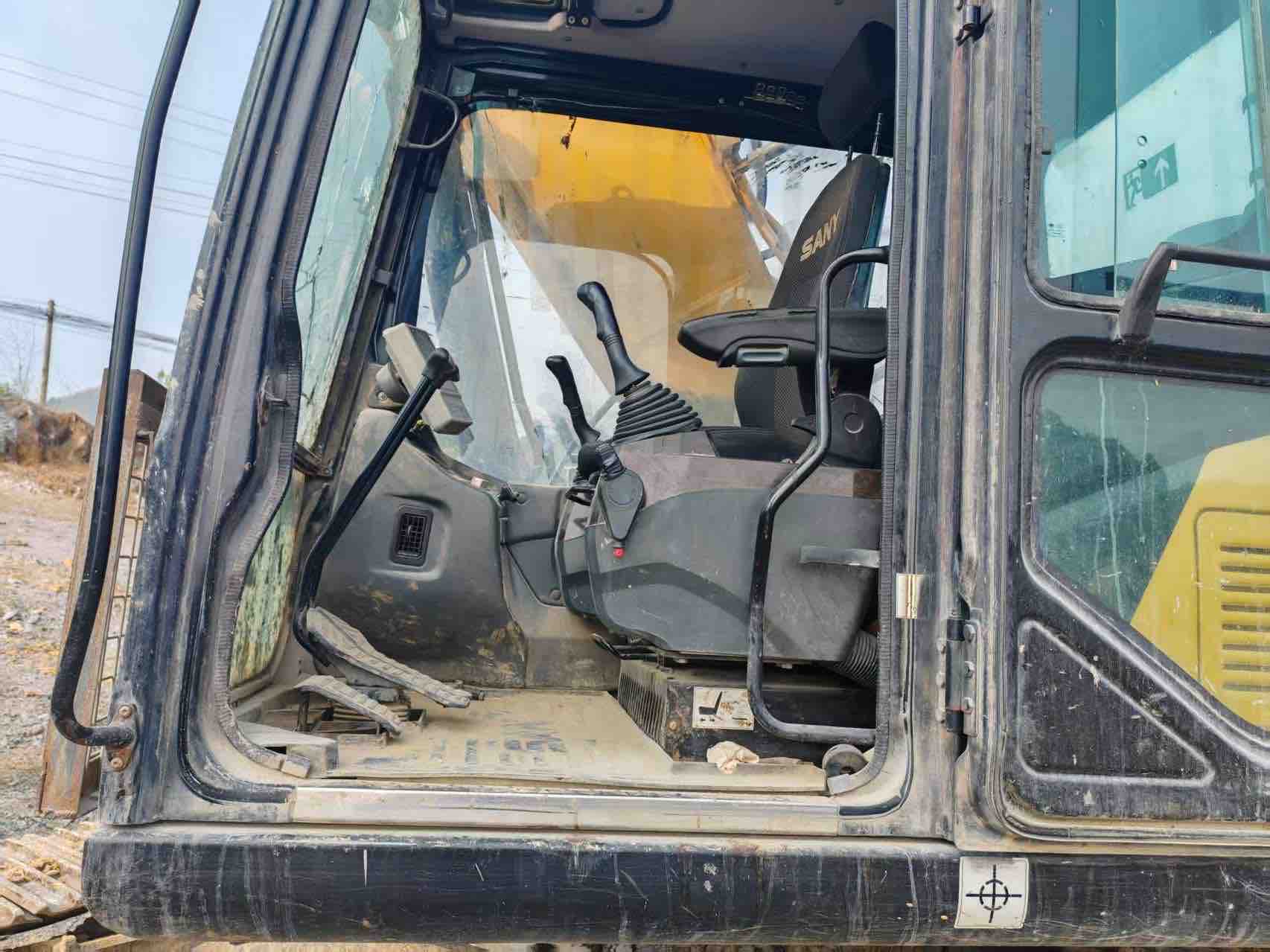

Buy Sany 215C-9 Used Excavator / 8

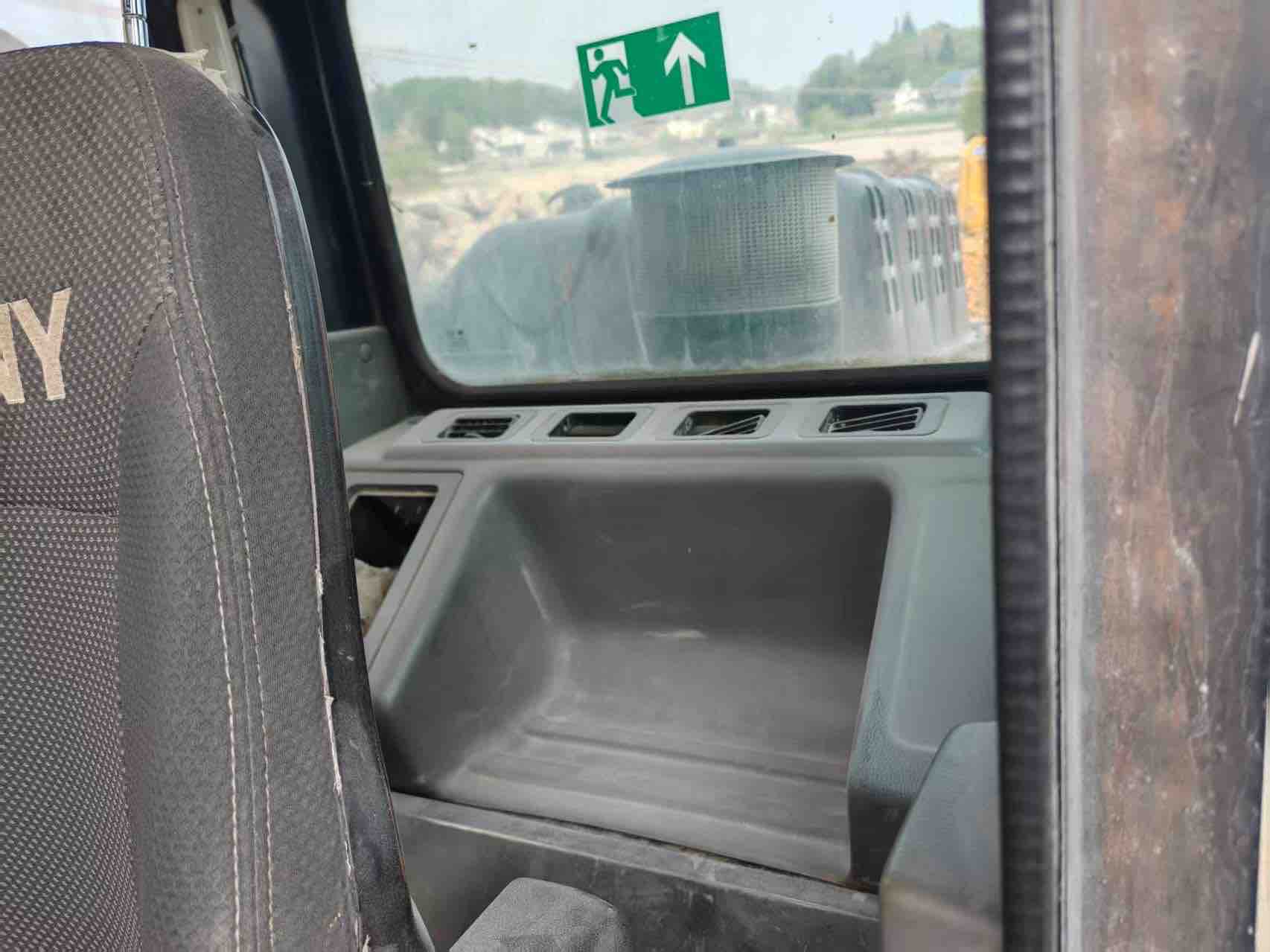

Buy Sany 215C-9 Used Excavator / 9

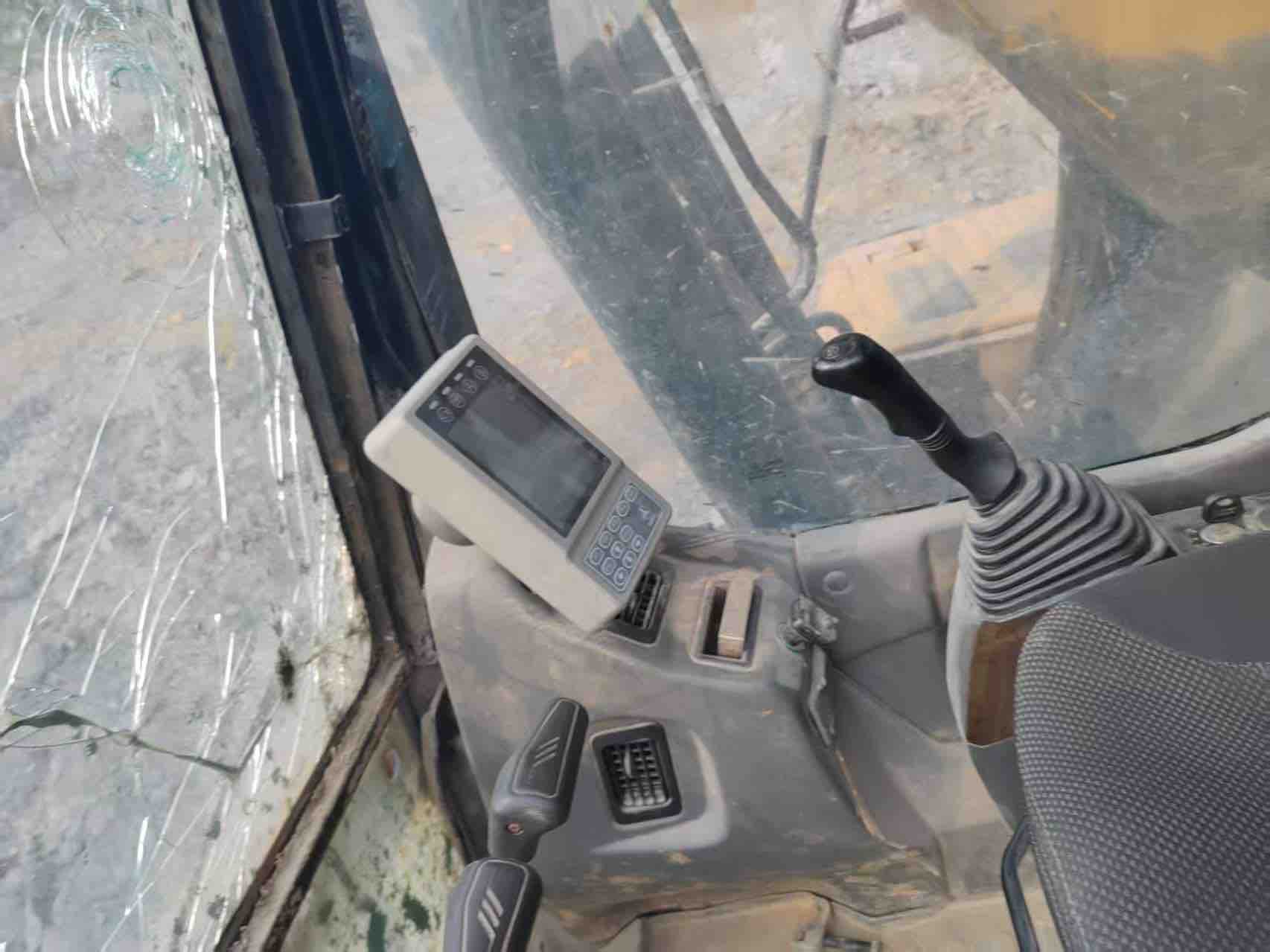

Buy Sany 215C-9 Used Excavator / 10

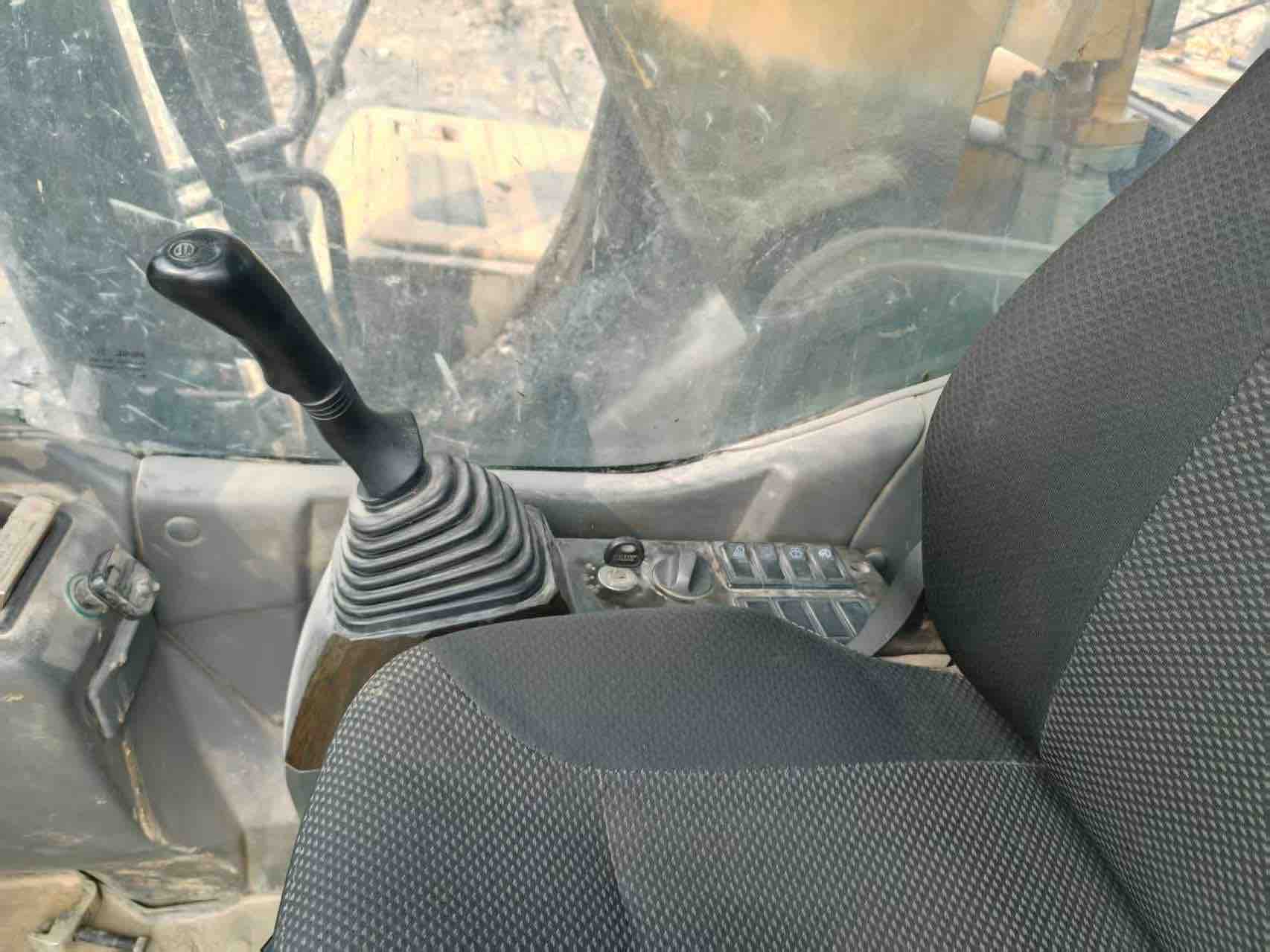

Buy Sany 215C-9 Used Excavator / 11

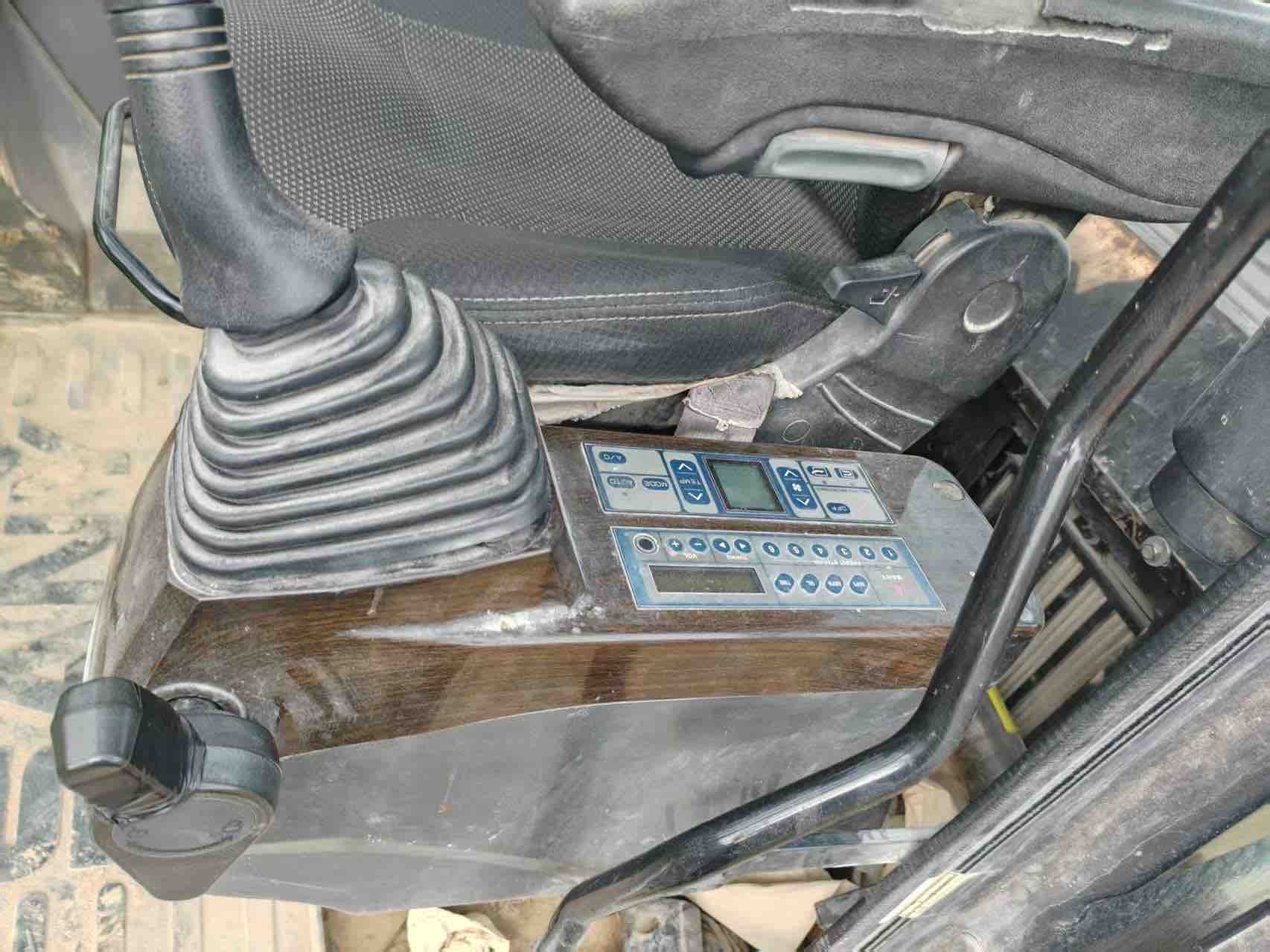

Buy Sany 215C-9 Used Excavator / 12

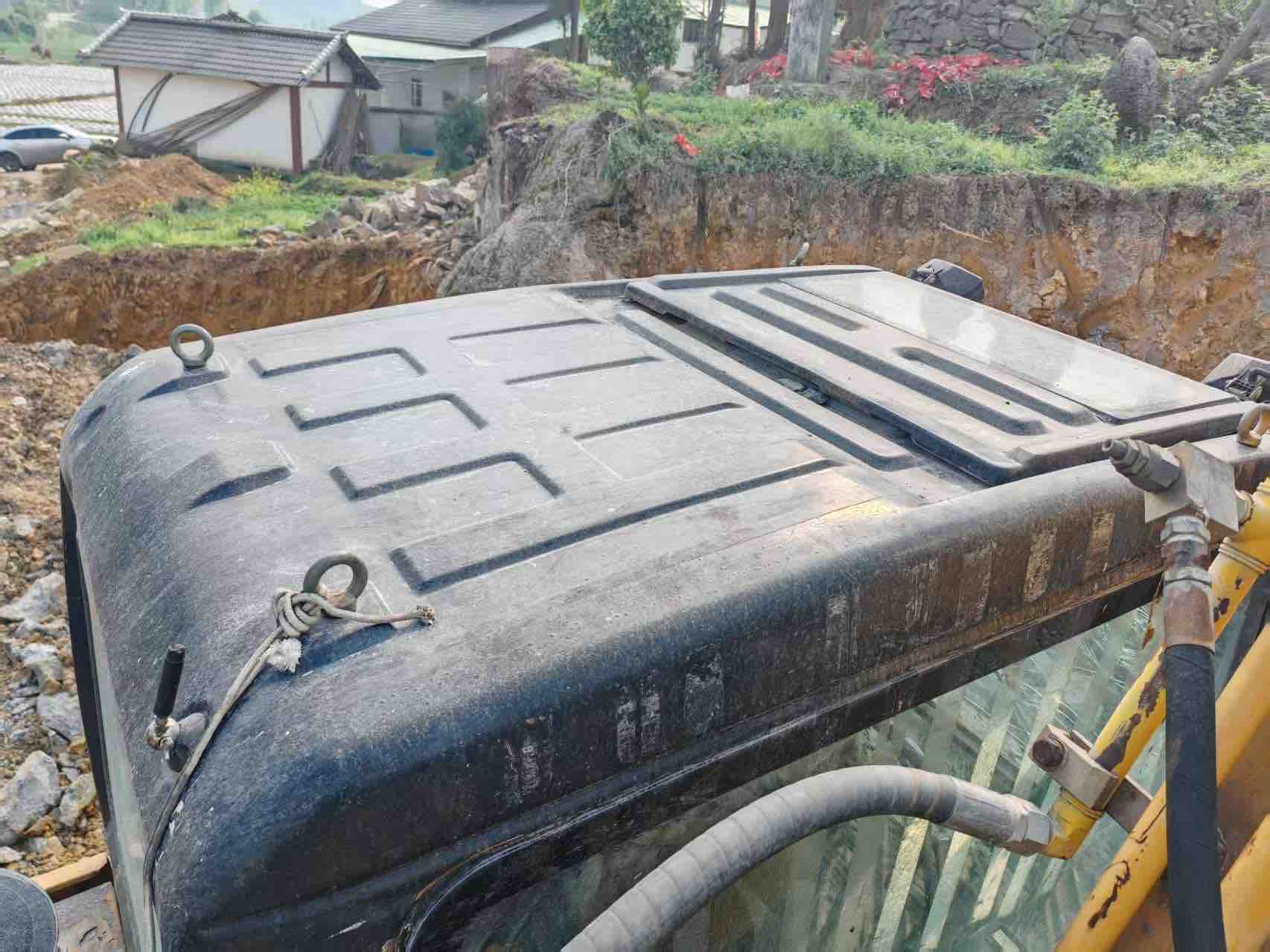

Buy Sany 215C-9 Used Excavator / 13

Product Description

Discover the 2017 Sany 215C-9, a robust and reliable excavator currently available in Guizhou, China. This machine is equipped with full Kawasaki components, ensuring top-notch performance and durability. Known for its impeccable condition, this excavator features a leak-free major assembly, guaranteeing minimal maintenance and downtime. Its fuel-efficient design not only reduces operating costs but also enhances its resale value. Ideal for demanding construction and excavation projects, the Sany 215C-9 is a trusted choice for businesses looking for a combination of efficiency and reliability.

  • Year: 2017
  • Brand: Sany
  • Model: 215C-9
  • Location: Guizhou, China
  • Contact: 13708545118
SpecificationsValue
No.1051700
Tonnage (tons)21
Working weight (kg)21800
Bucket capacity (m³)0.93 (0.8~1.2)
Country of originShanghai
powerTraditional power
manufacturerMade in China
bucketbackhoe
Rated power (kw/rpm)114/2050
Cooling modewater-cooling
Ground specific pressure (Kpa)46.5
Rotation speed (rpm)11
Climbing ability (%)70/35 °
Bucket digging force (kN)138
Rod digging force (kN)103
Travel speed (km/h)5.4/3.3
Main overflow set pressure (Mpa)34.3
Maximum flow of main pump (l/min)2 x 210
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)25.5
Control Hydraulic Circuit (Mpa)3.9
Hydraulic crushing pipeline is standardno
Total transport length (mm)9680
Total transport width (mm)2980
Total transport height (mm)3440
Full cab height (mm)2990
Minimum ground clearance (mm)440
Minimum turning radius of front working device (mm)3595
Back end turning radius (mm)2890
Onboard width (mm)2710
Total track length (mm)4250
Track gauge (mm)2380
Track plate width (mm)600 (800/700 optional)
Total track width (mm)2980
Track ground length (mm)3445
Maximum digging radius (mm)9950
Maximum digging depth (mm)6600
Maximum excavation height (mm)9570
Maximum unloading height (mm)6700
Maximum vertical digging depth (mm)5800
Bulldozer lift or depth (mm)There is no
Dodging plate width × height (mm)There is no
Maximum excavation radius of stop surface (mm)9885
