Product Description

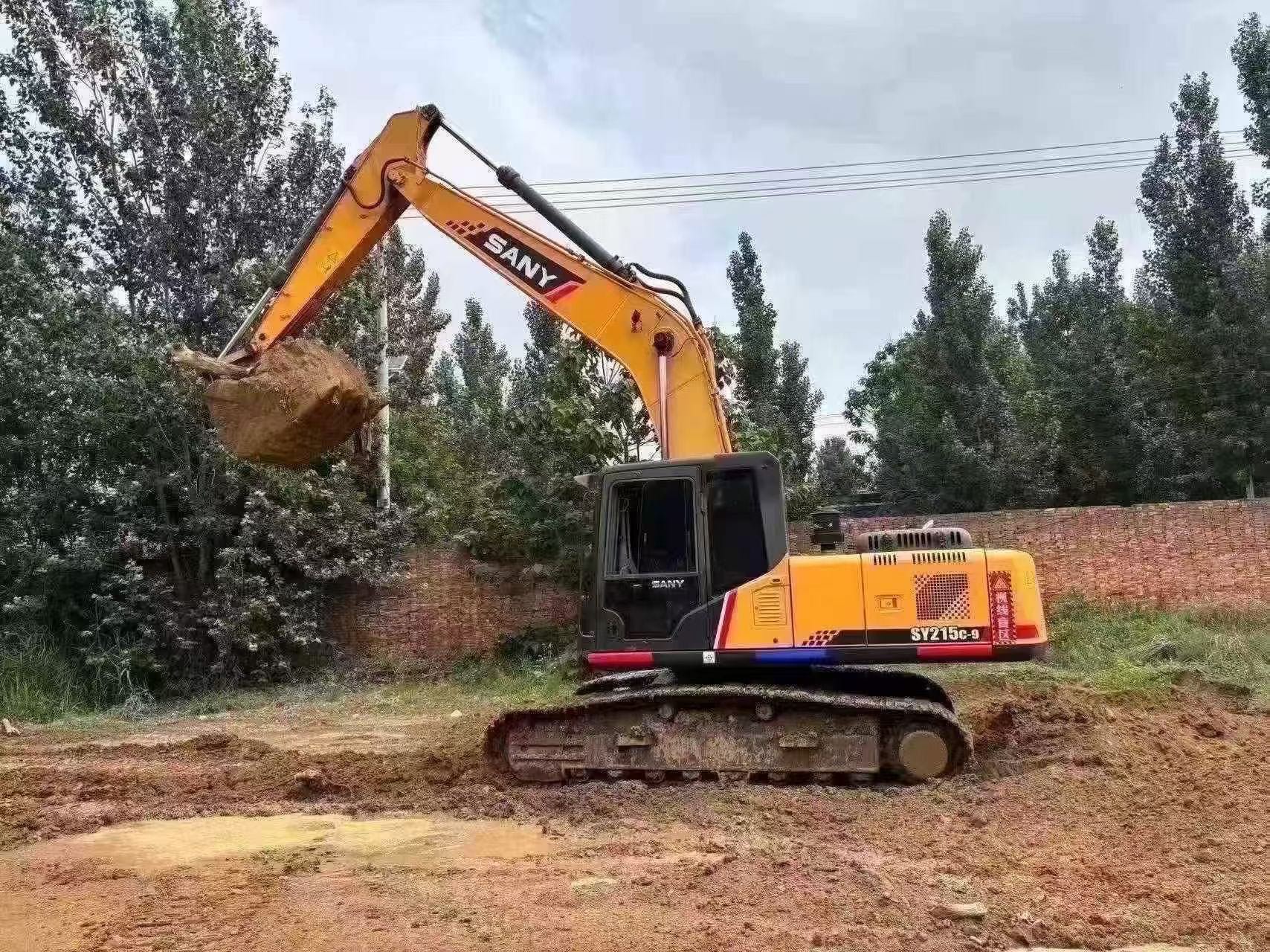

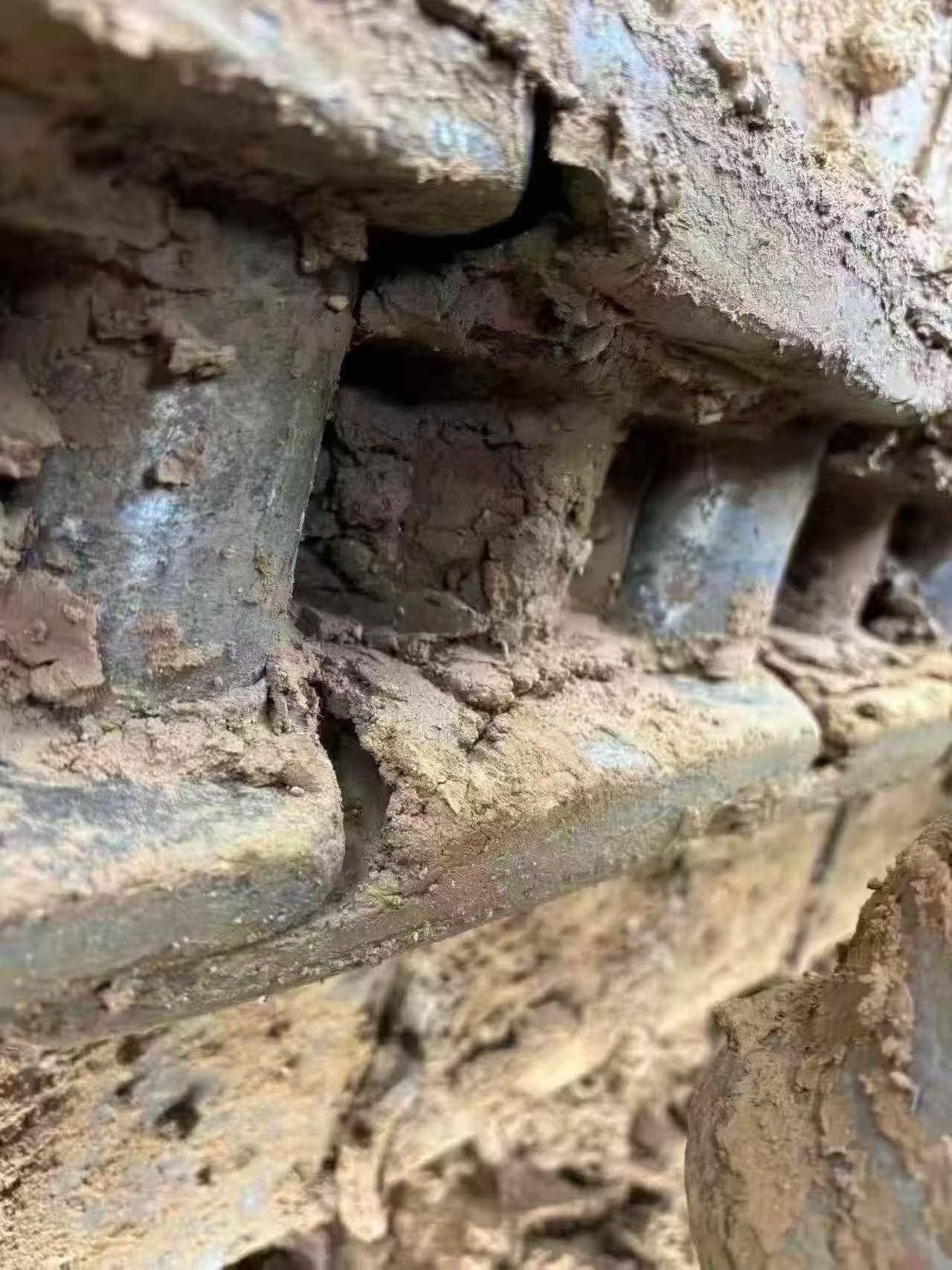

Discover the exceptional 2020 Sany 215C-9, a used heavy machine currently located in Hebei, China. This excavator is renowned for its robust undercarriage and well-coordinated overall performance, ensuring reliable operation on various job sites. With its swift movement capabilities, this model provides efficient and rapid work execution. Equipped with an original electric throttle and dual-speed settings, it offers both high and low speed options, enhancing versatility and control. Priced affordably at just over 100,000, this Sany 215C-9 represents a cost-effective solution for your construction needs.
- Year: 2020
- Brand: Sany
- Model: 215C-9
- Location: Hebei, China
- Features: Robust undercarriage, well-coordinated movements, fast operational speed, original electric throttle, dual-speed settings
- Affordable price: Just over 100,000
| Specifications | Value |
|---|---|
| No. | 1111833 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 21800 |
| Bucket capacity (m³) | 0.93 (0.8~1.2) |
| Country of origin | Shanghai |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 114/2050 |
| Cooling mode | water-cooling |
| Ground specific pressure (Kpa) | 46.5 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 103 |
| Travel speed (km/h) | 5.4/3.3 |
| Main overflow set pressure (Mpa) | 34.3 |
| Maximum flow of main pump (l/min) | 2 x 210 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 25.5 |
| Control Hydraulic Circuit (Mpa) | 3.9 |
| Hydraulic crushing pipeline is standard | no |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 2990 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3595 |
| Back end turning radius (mm) | 2890 |
| Onboard width (mm) | 2710 |
| Total track length (mm) | 4250 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 (800/700 optional) |
| Total track width (mm) | 2980 |
| Track ground length (mm) | 3445 |
| Maximum digging radius (mm) | 9950 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9570 |
| Maximum unloading height (mm) | 6700 |
| Maximum vertical digging depth (mm) | 5800 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
| Maximum excavation radius of stop surface (mm) | 9885 |
