2020 Sany 215C-9

1/9
Buy Sany 215C-9 Used Excavator / 1

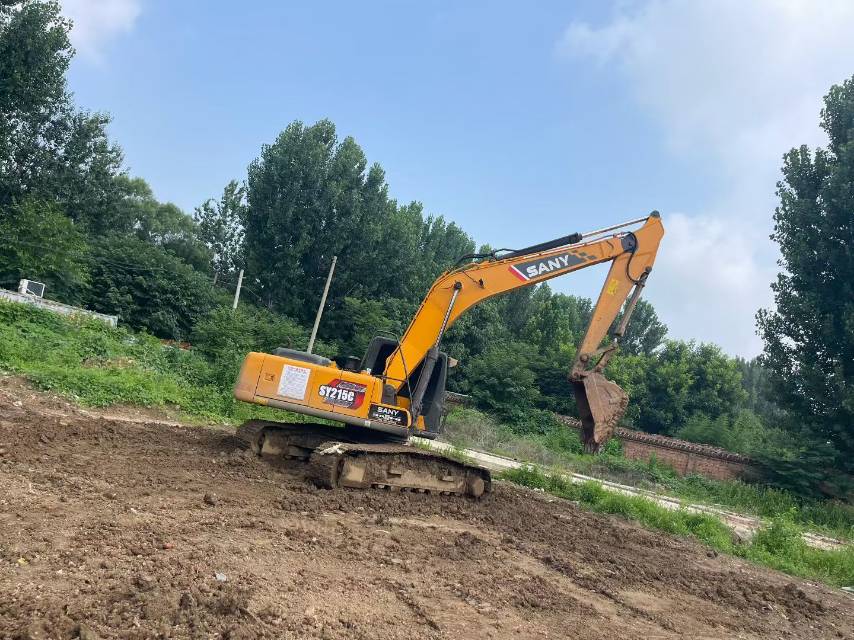

Buy Sany 215C-9 Used Excavator / 2

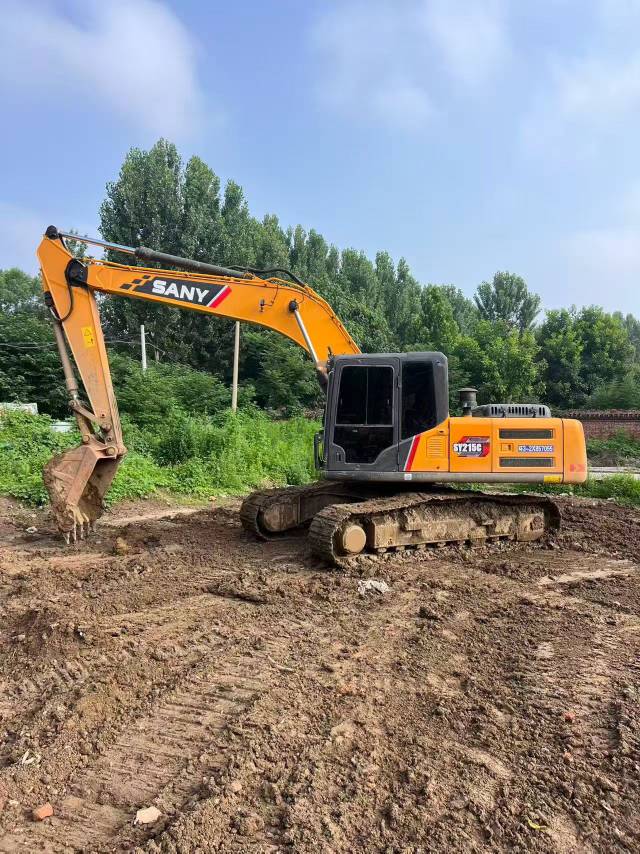

Buy Sany 215C-9 Used Excavator / 3

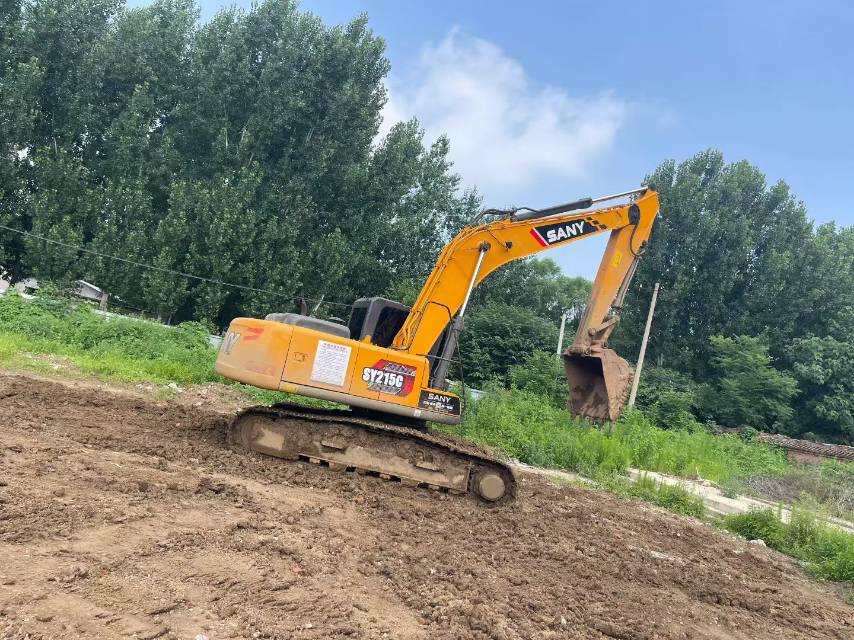

Buy Sany 215C-9 Used Excavator / 4
Buy Sany 215C-9 Used Excavator / 5

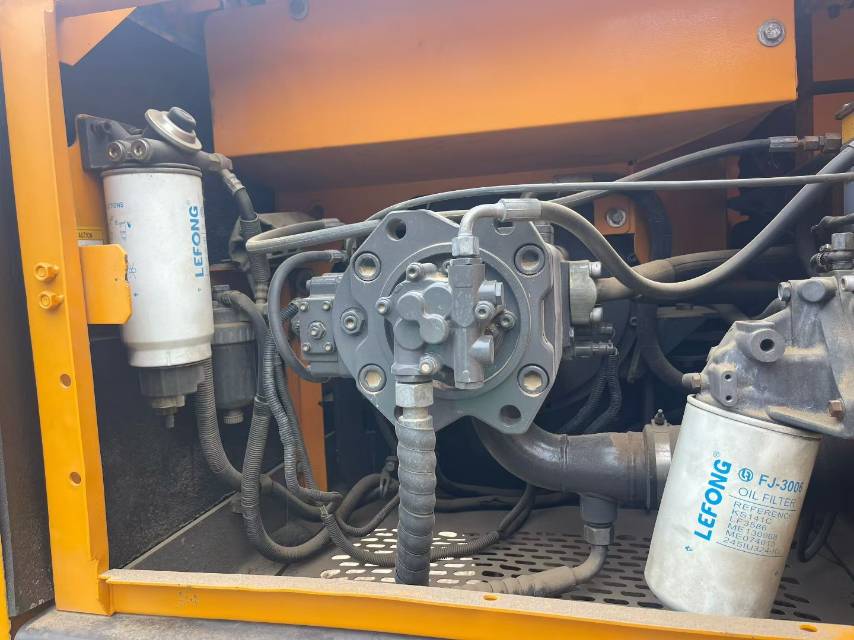

Buy Sany 215C-9 Used Excavator / 6

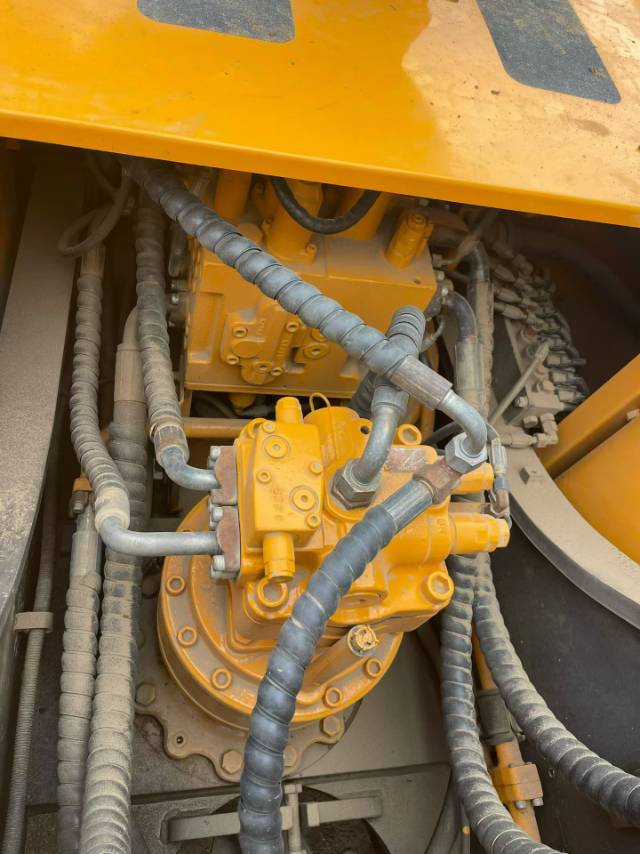

Buy Sany 215C-9 Used Excavator / 7

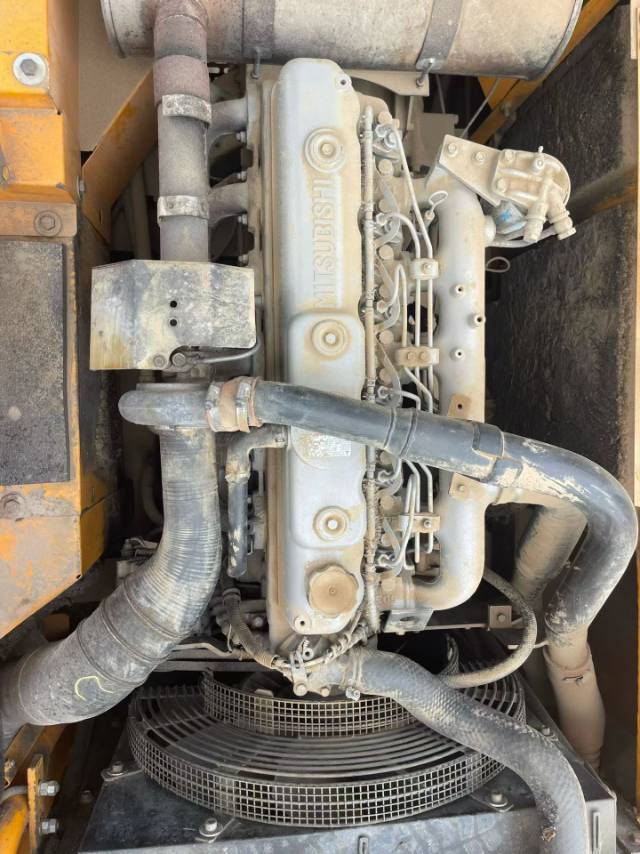

Buy Sany 215C-9 Used Excavator / 8

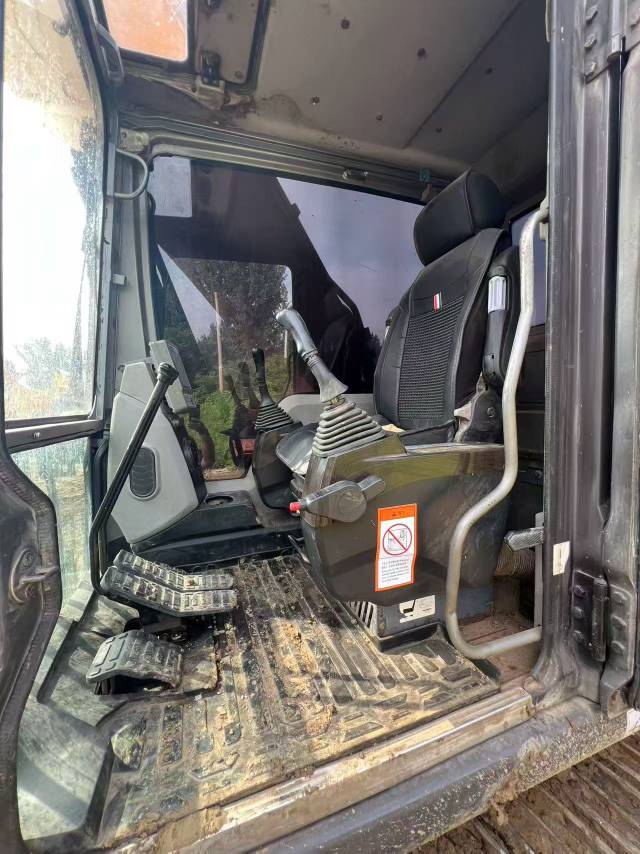

Buy Sany 215C-9 Used Excavator / 9

Product Description

This 2020 Sany 215C-9 excavator represents exceptional value in the used heavy equipment market. Currently located in Beijing, China, this machine has been meticulously maintained and shows minimal wear with approximately 90% remaining condition.

Key highlights include:

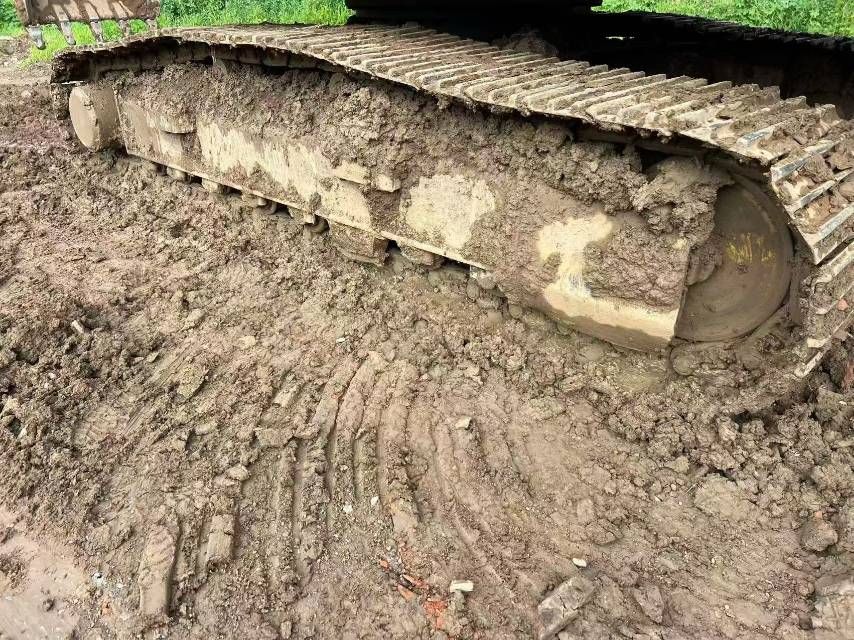

  • Undercarriage in excellent condition with even wear patterns
  • Major components professionally serviced with no oil leaks
  • Regular maintenance schedule strictly followed throughout service life
  • Proven operational performance suitable for immediate deployment
  • Clean service history with documented upkeep

The Sany 215C-9 is a reliable 21-ton class excavator known for fuel efficiency and operator comfort. This unit is ready for productive work in construction, excavation, and material handling applications. Ideal for contractors seeking dependable performance without the premium of new equipment pricing.

SpecificationsValue
No.1136600
Tonnage (tons)21
Working weight (kg)21800
Bucket capacity (m³)0.93 (0.8~1.2)
Country of originShanghai
powerTraditional power
manufacturerMade in China
bucketbackhoe
Rated power (kw/rpm)114/2050
Cooling modewater-cooling
Ground specific pressure (Kpa)46.5
Rotation speed (rpm)11
Climbing ability (%)70/35 °
Bucket digging force (kN)138
Rod digging force (kN)103
Travel speed (km/h)5.4/3.3
Main overflow set pressure (Mpa)34.3
Maximum flow of main pump (l/min)2 x 210
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)25.5
Control Hydraulic Circuit (Mpa)3.9
Hydraulic crushing pipeline is standardno
Total transport length (mm)9680
Total transport width (mm)2980
Total transport height (mm)3440
Full cab height (mm)2990
Minimum ground clearance (mm)440
Minimum turning radius of front working device (mm)3595
Back end turning radius (mm)2890
Onboard width (mm)2710
Total track length (mm)4250
Track gauge (mm)2380
Track plate width (mm)600 (800/700 optional)
Total track width (mm)2980
Track ground length (mm)3445
Maximum digging radius (mm)9950
Maximum digging depth (mm)6600
Maximum excavation height (mm)9570
Maximum unloading height (mm)6700
Maximum vertical digging depth (mm)5800
Bulldozer lift or depth (mm)There is no
Dodging plate width × height (mm)There is no
Maximum excavation radius of stop surface (mm)9885
see more

Overview

No.1136600

Brand Name:

Sany

Model Number:

215C-9

Year:

2020

Location:

Peking China

Pub Date
