Product Description

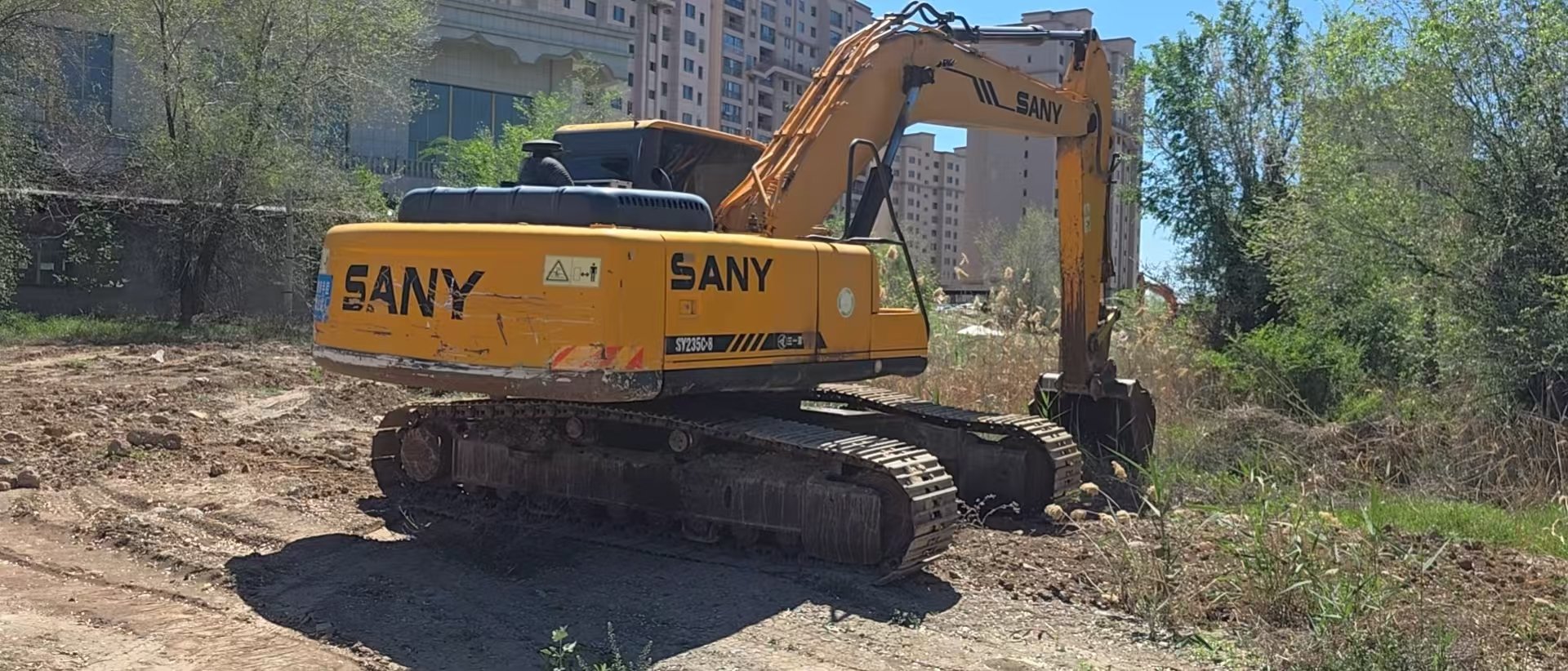

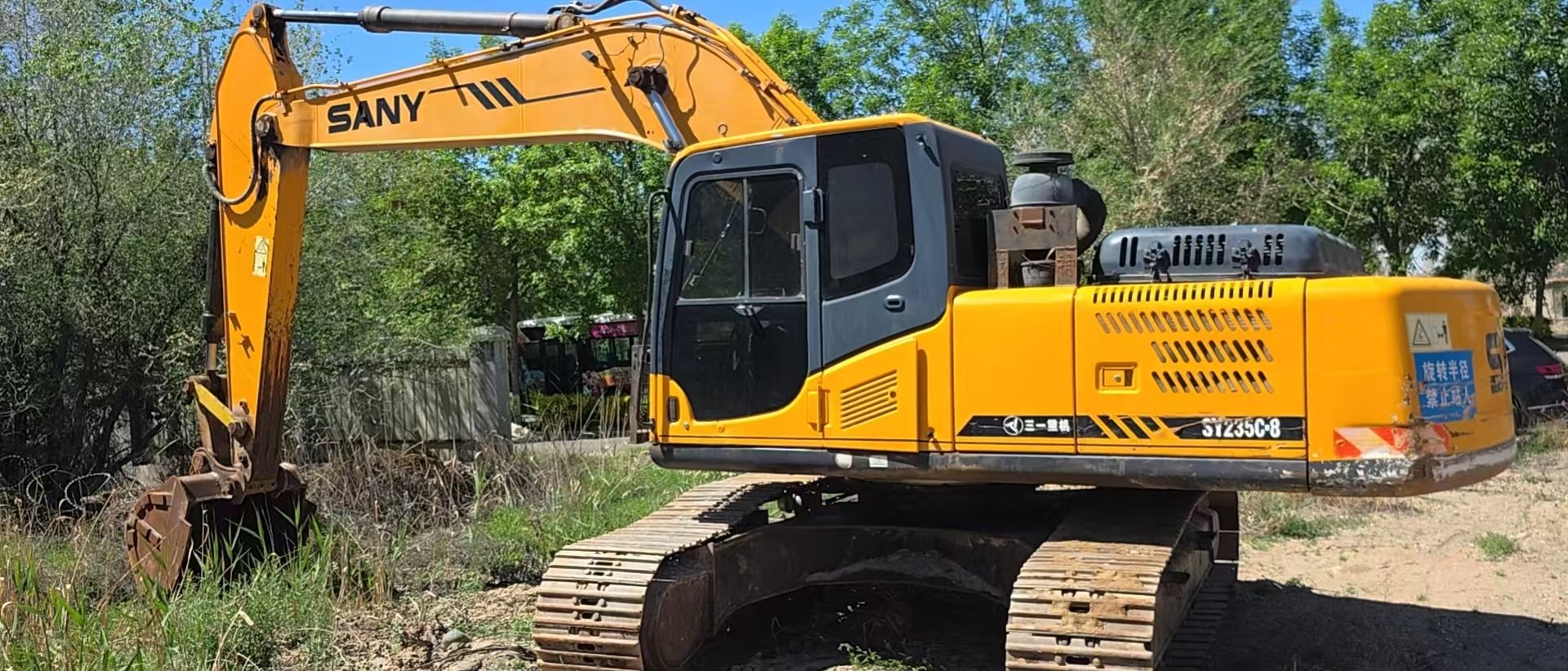

Discover the robust and reliable Sany 235C-9, a 2012 model excavator available for purchase. This machine, located in Xinjiang, China, is an excellent choice for construction and excavation projects, offering durability and efficiency. The Sany 235C-9 is known for its strong performance and easy maintenance, making it a valuable asset for any industrial operation.
- Year: 2012
- Brand: Sany
- Model: 235C-9
- Location: Xinjiang, China
| Specifications | Value |
|---|---|
| No. | 1095539 |
| Tonnage (tons) | 23 |
| Working weight (kg) | 24200 |
| Bucket capacity (m³) | 1.1 (Optional 1.1 to 1.2) |
| Country of origin | Shanghai |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

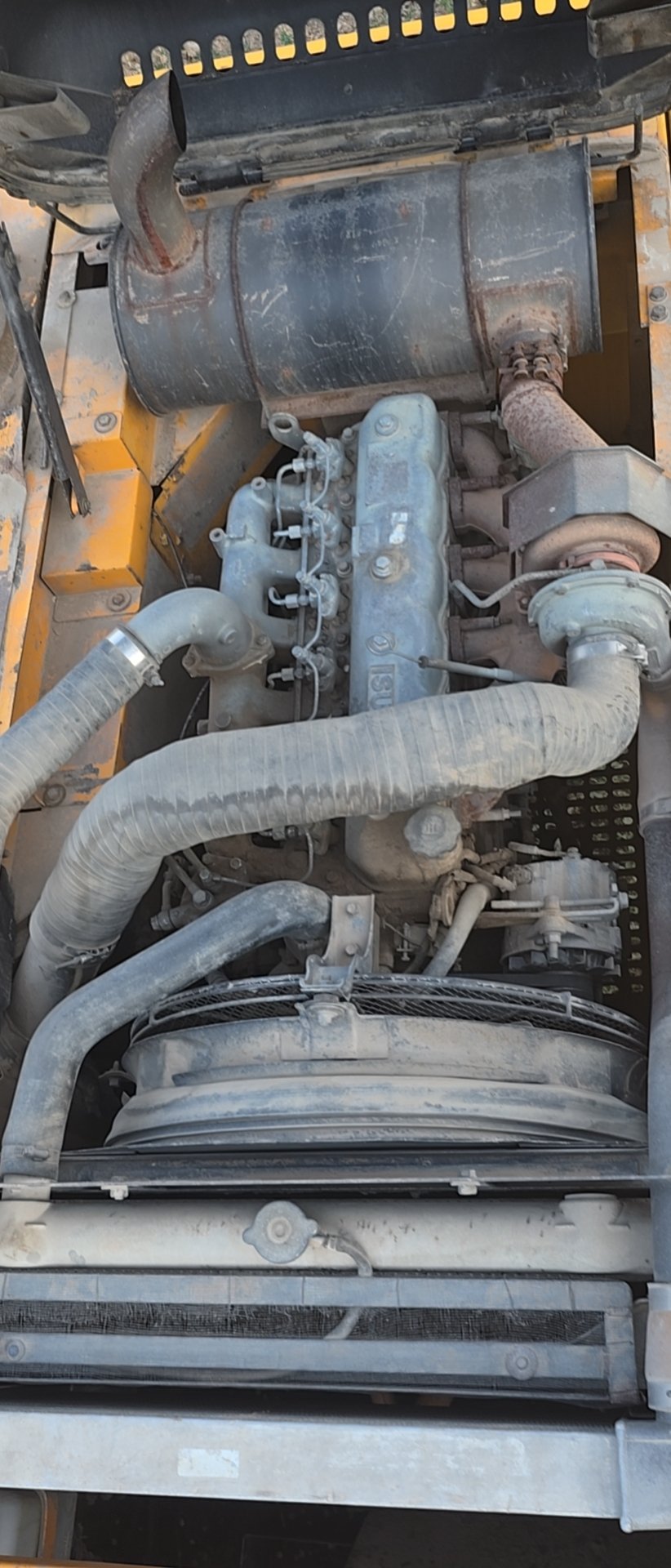

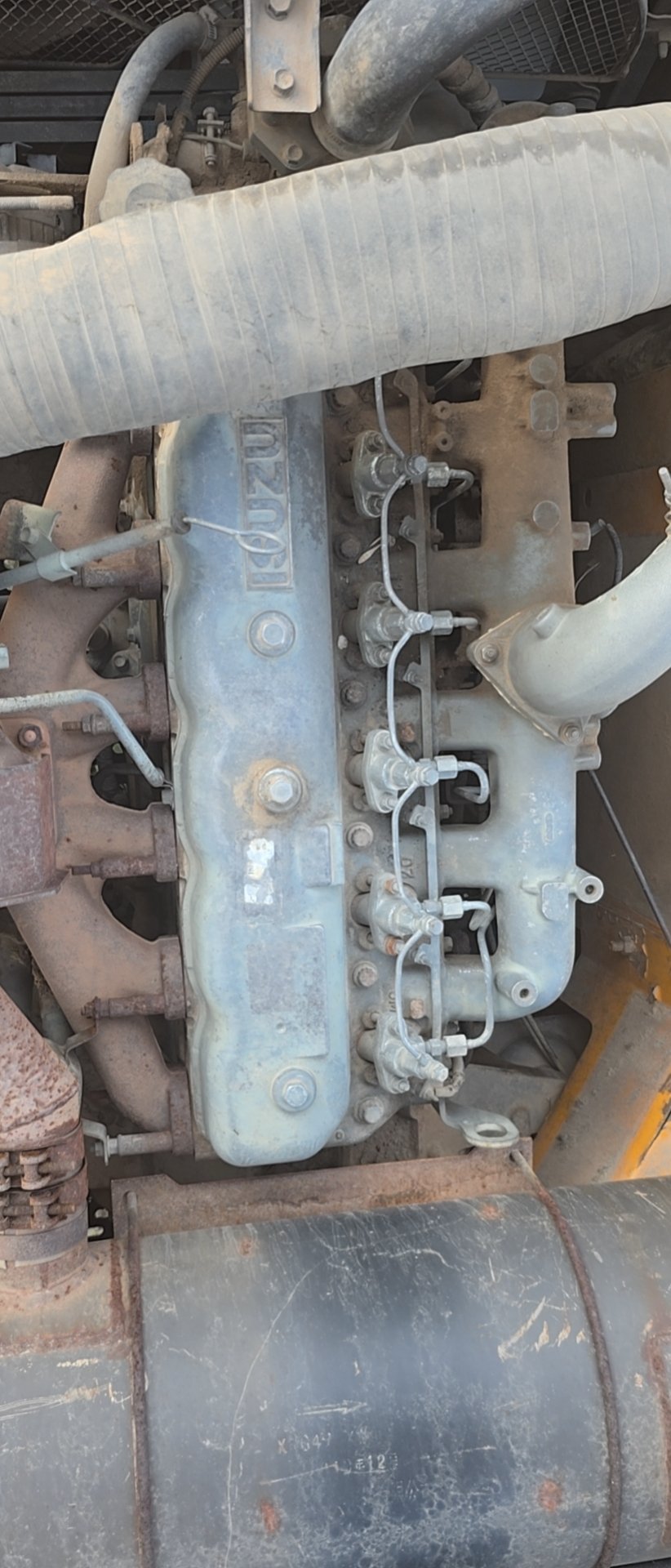

| Engine type | ISUZU 6BG1 |
| Rated power (kw/rpm) | 128.5/2100 |
| Number of cylinders (PCS) | 6-cylinder |
| Working form | Four-stroke, six-cylinder turbocharged direct injection engine |
| Ground specific pressure (Kpa) | 47.6 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% / 35 ° |
| Bucket digging force (kN) | 175 |
| Rod digging force (kN) | 122 |
| Travel speed (km/h) | 5.5/3.5 |
| Total transport length (mm) | 9920 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3550 |
| Full cab height (mm) | 2990 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3800 |
| Back end turning radius (mm) | 2890 |
| Onboard width (mm) | 2710 |

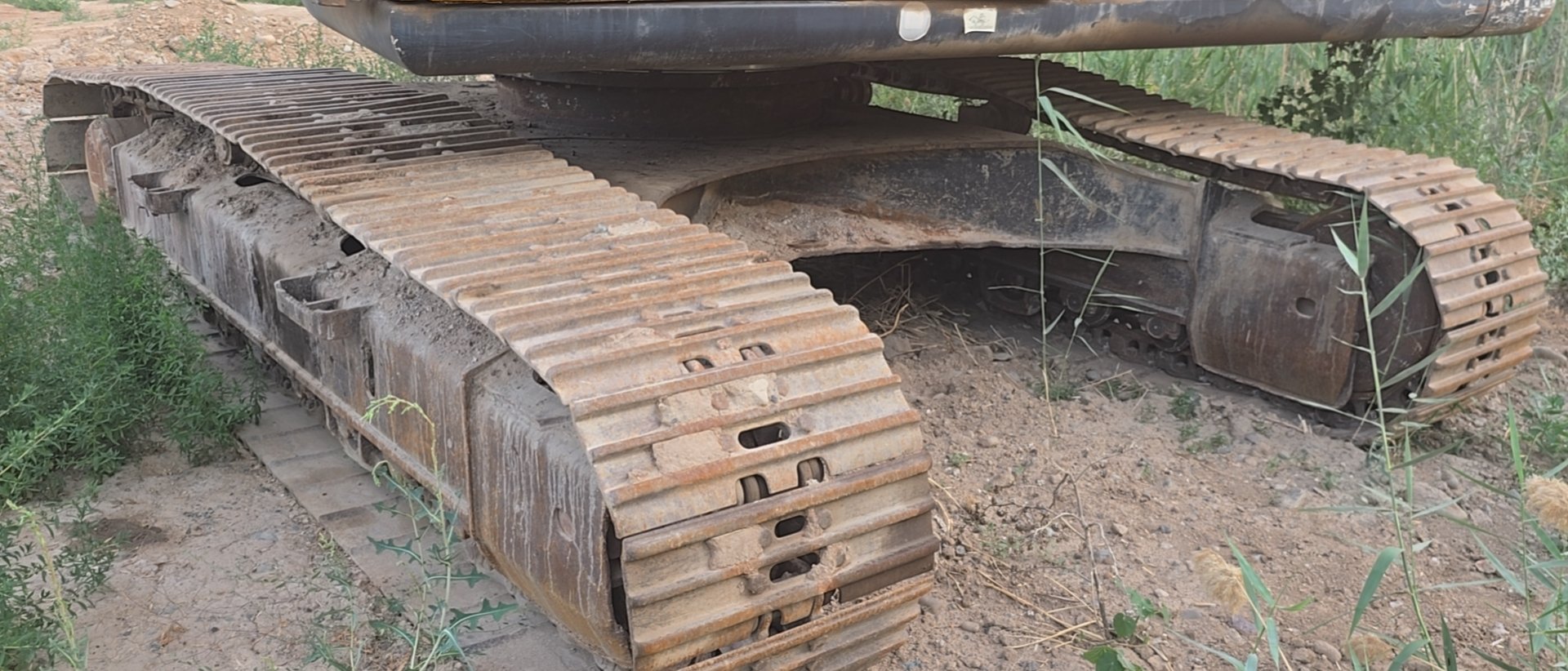

| Total track length (mm) | 4445 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 (800/700 optional) |
| Total track width (mm) | 2980 |
| Track ground length (mm) | 3640 |
| Maximum height at minimum turning radius (mm) | 7940 |
| Maximum digging radius (mm) | 10150 |
| Maximum digging depth (mm) | 6785 |
| Maximum excavation height (mm) | 9640 |
| Maximum unloading height (mm) | 6725 |
| Maximum vertical digging depth (mm) | 5845 |
