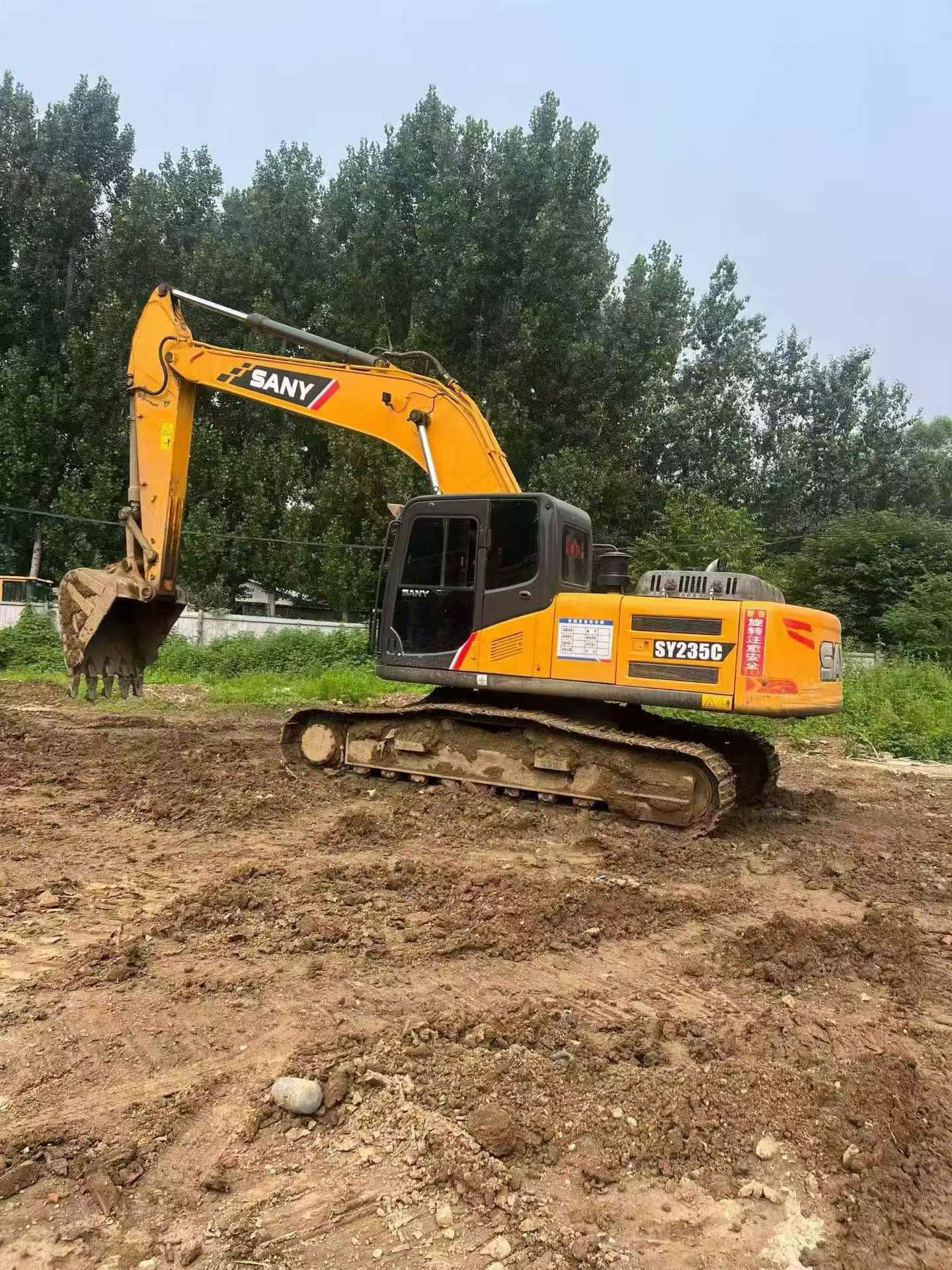

Buy Sany 235C-9 Used Excavator / 1

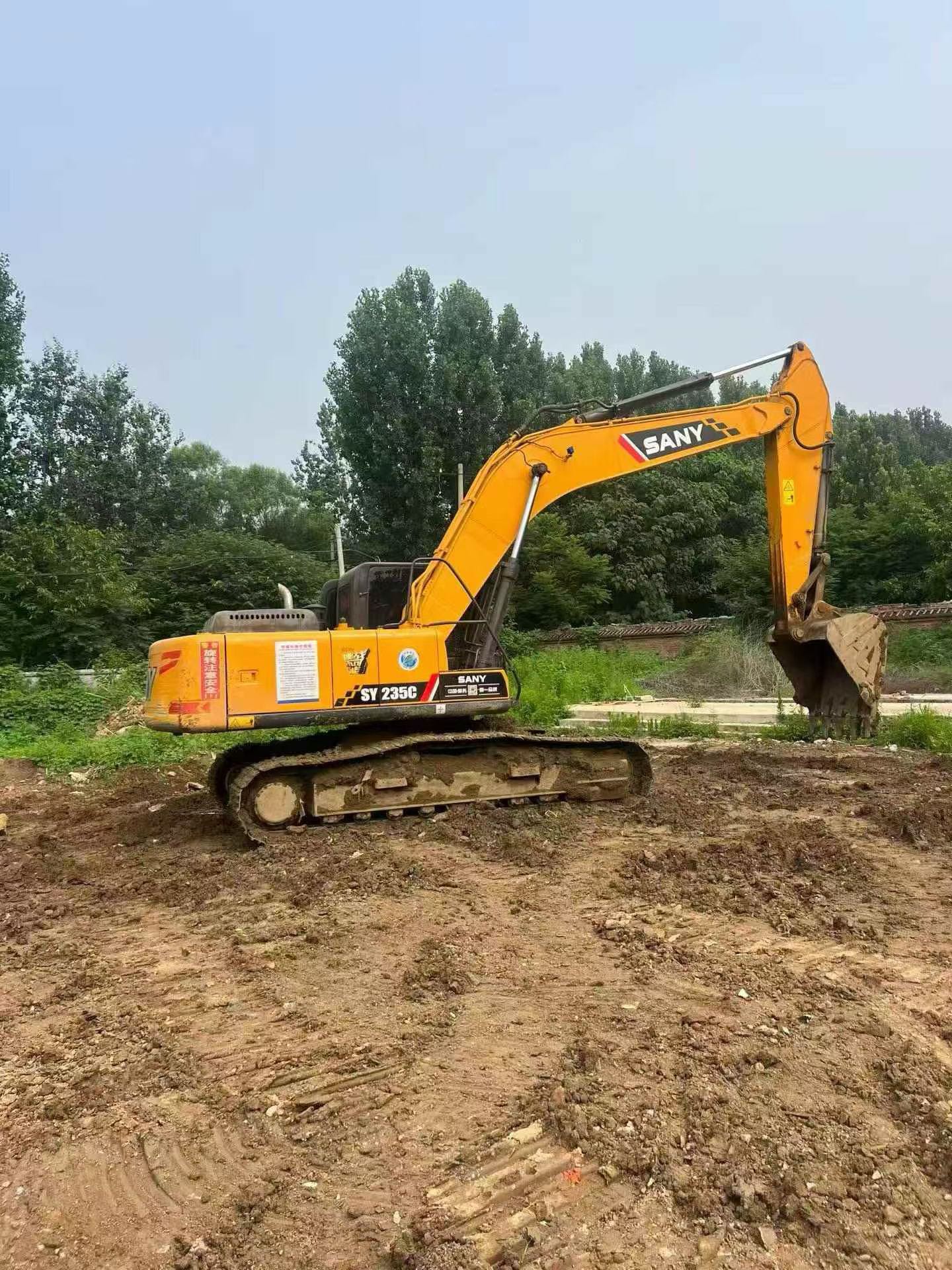

Buy Sany 235C-9 Used Excavator / 2
Buy Sany 235C-9 Used Excavator / 3

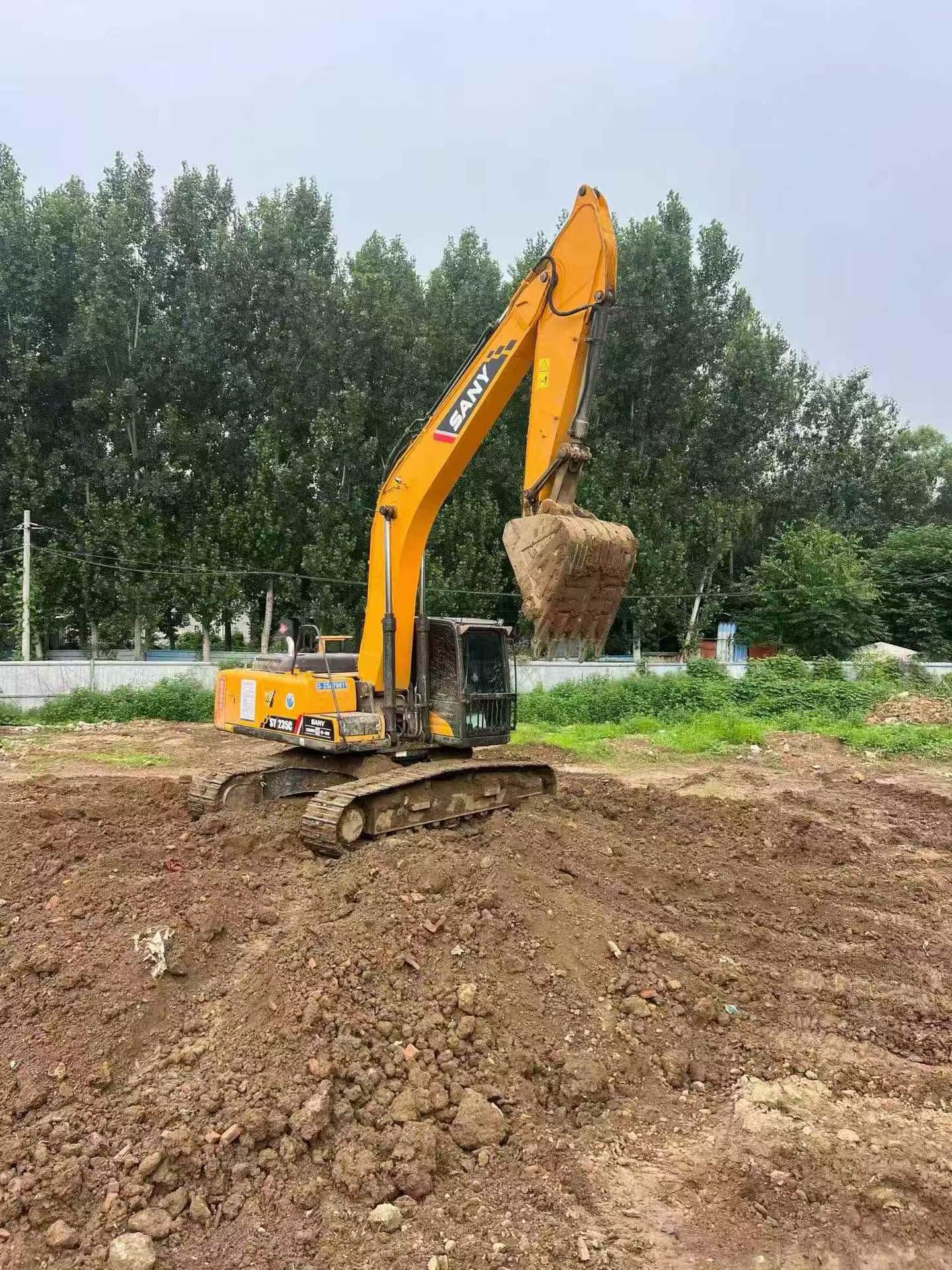

Buy Sany 235C-9 Used Excavator / 4
Buy Sany 235C-9 Used Excavator / 5
Buy Sany 235C-9 Used Excavator / 6

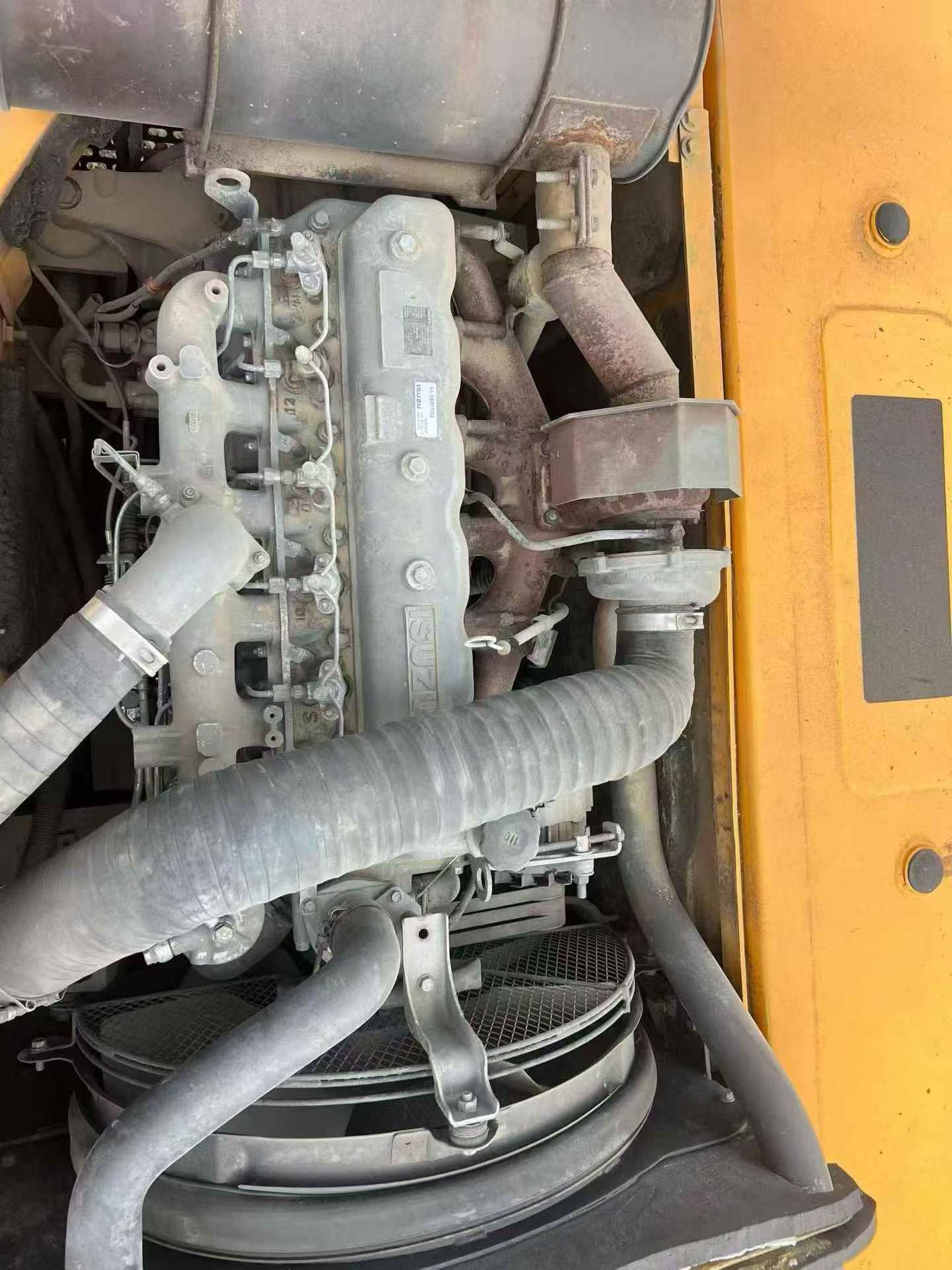

Buy Sany 235C-9 Used Excavator / 7

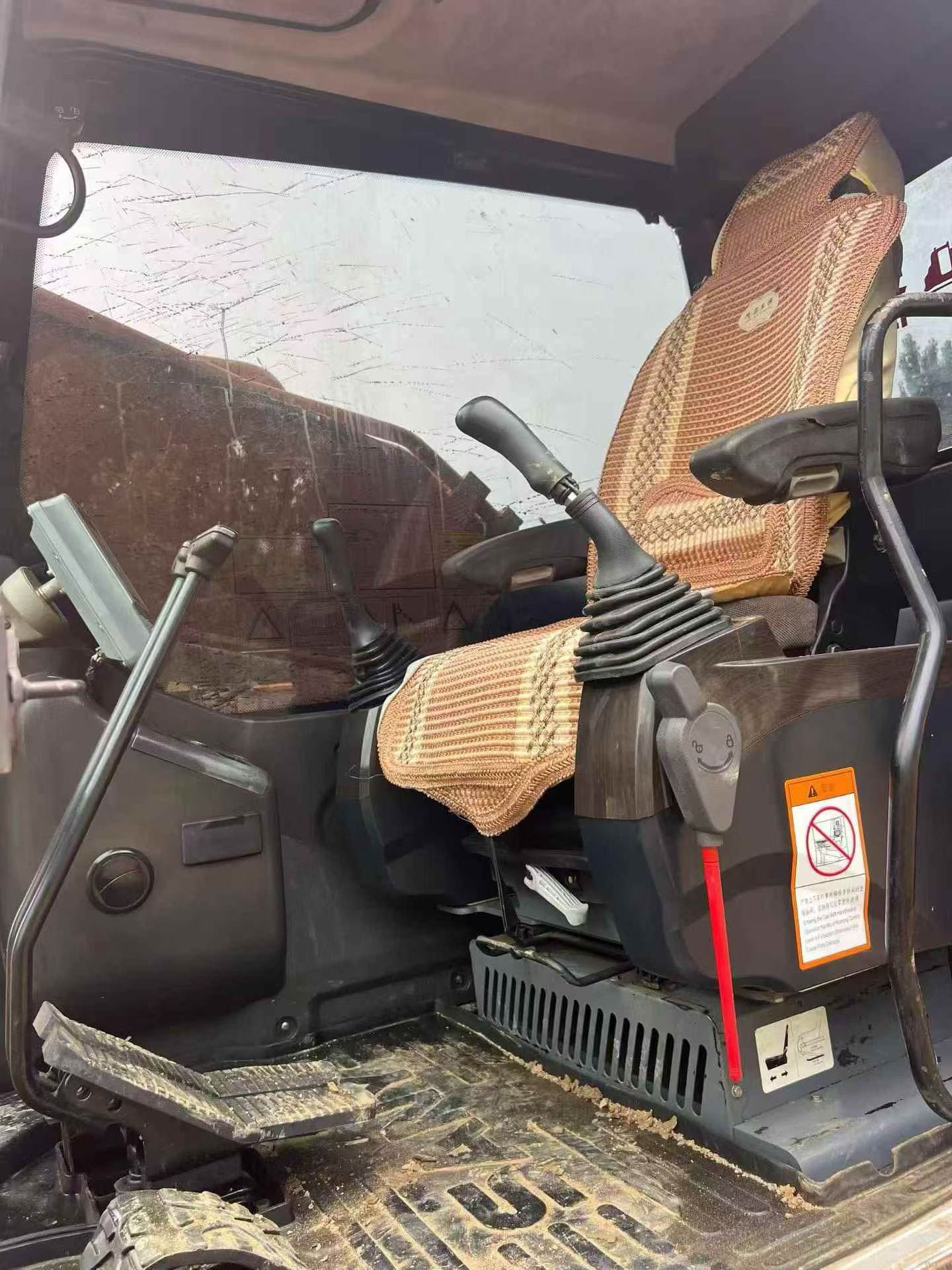

Buy Sany 235C-9 Used Excavator / 8

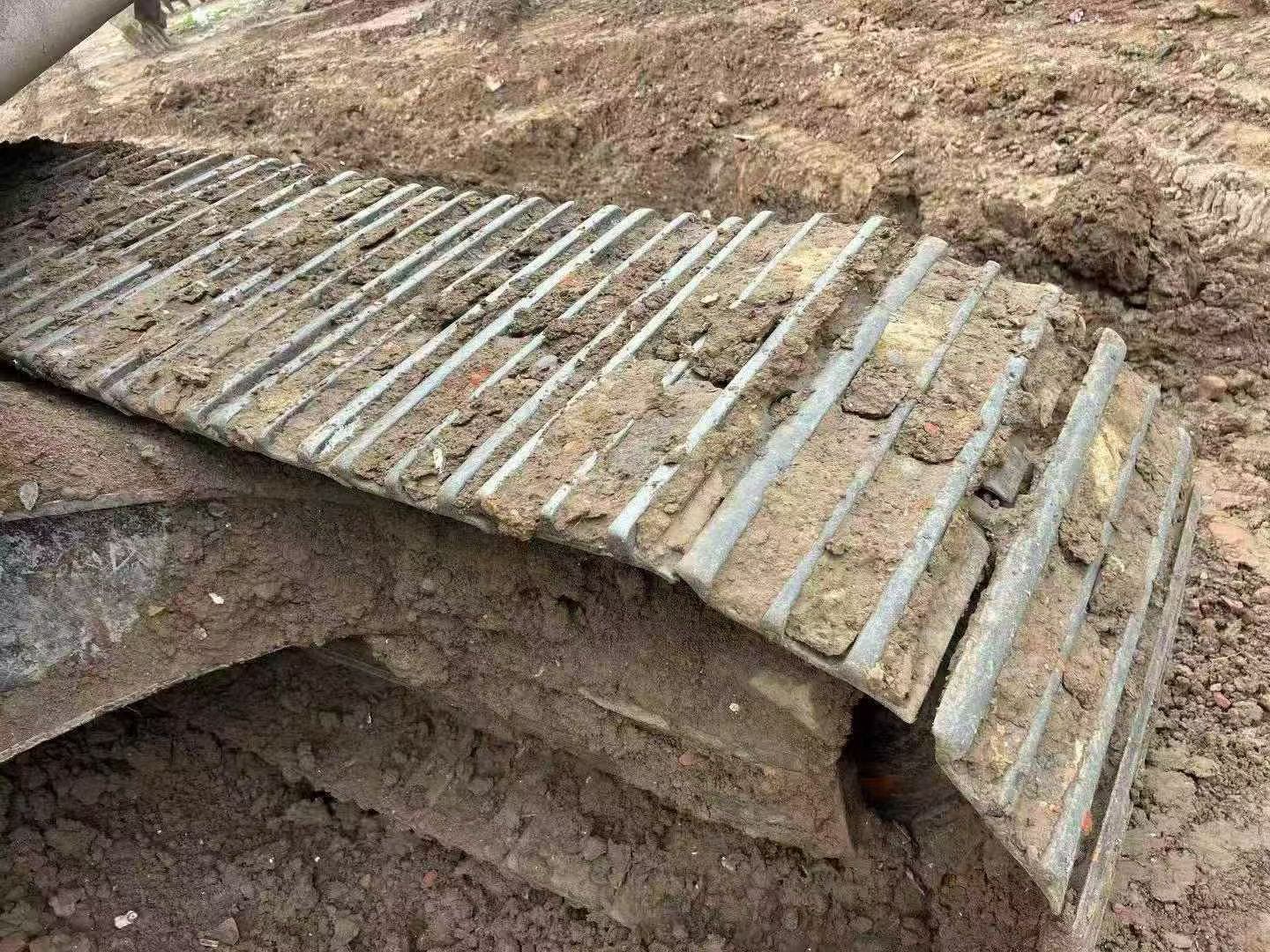

Buy Sany 235C-9 Used Excavator / 9

Product Description

Discover the reliability and efficiency of this 2020 Sany 235C-9 excavator, available in Hebei, China. This machine is in excellent condition, offering robust performance and strong power, making it ideal for a variety of heavy-duty tasks. The 235C-9 is known for its durability and capability, with components that are clean and well-maintained, ensuring no leaks and minimal wear. The tracks are nearly new, adding to the overall value and longevity of the equipment. Potential buyers are welcome to inspect and test the machine on-site to ensure it meets their operational needs.

  • Year: 2020
  • Brand: Sany
  • Model: 235C-9
  • Location: Hebei, China
  • Condition: Excellent, with nearly new tracks and leak-free components
  • Performance: Strong and reliable, suitable for demanding jobs
SpecificationsValue
No.1119444
Tonnage (tons)23
Working weight (kg)24200
Bucket capacity (m³)1.1 (Optional 1.1 to 1.2)
Country of originShanghai
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeISUZU 6BG1
Rated power (kw/rpm)128.5/2100
Number of cylinders (PCS)6-cylinder
Working formFour-stroke, six-cylinder turbocharged direct injection engine
Ground specific pressure (Kpa)47.6
Rotation speed (rpm)11
Climbing ability (%)70% / 35 °
Bucket digging force (kN)175
Rod digging force (kN)122
Travel speed (km/h)5.5/3.5
Total transport length (mm)9920
Total transport width (mm)2980
Total transport height (mm)3550
Full cab height (mm)2990
Minimum ground clearance (mm)440
Minimum turning radius of front working device (mm)3800
Back end turning radius (mm)2890
Onboard width (mm)2710
Total track length (mm)4445
Track gauge (mm)2380
Track plate width (mm)600 (800/700 optional)
Total track width (mm)2980
Track ground length (mm)3640
Maximum height at minimum turning radius (mm)7940
Maximum digging radius (mm)10150
Maximum digging depth (mm)6785
Maximum excavation height (mm)9640
Maximum unloading height (mm)6725
Maximum vertical digging depth (mm)5845
