Product Description

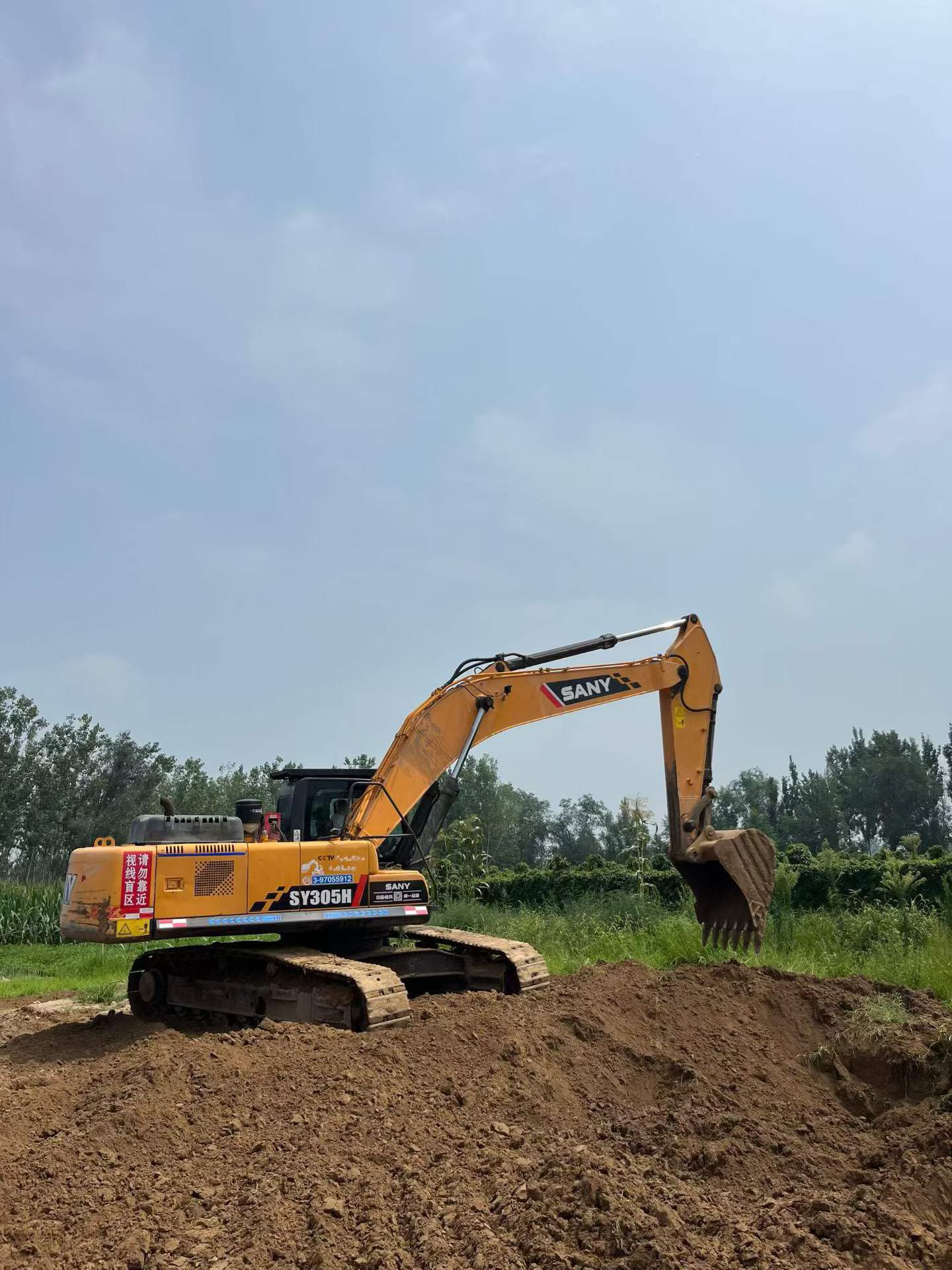

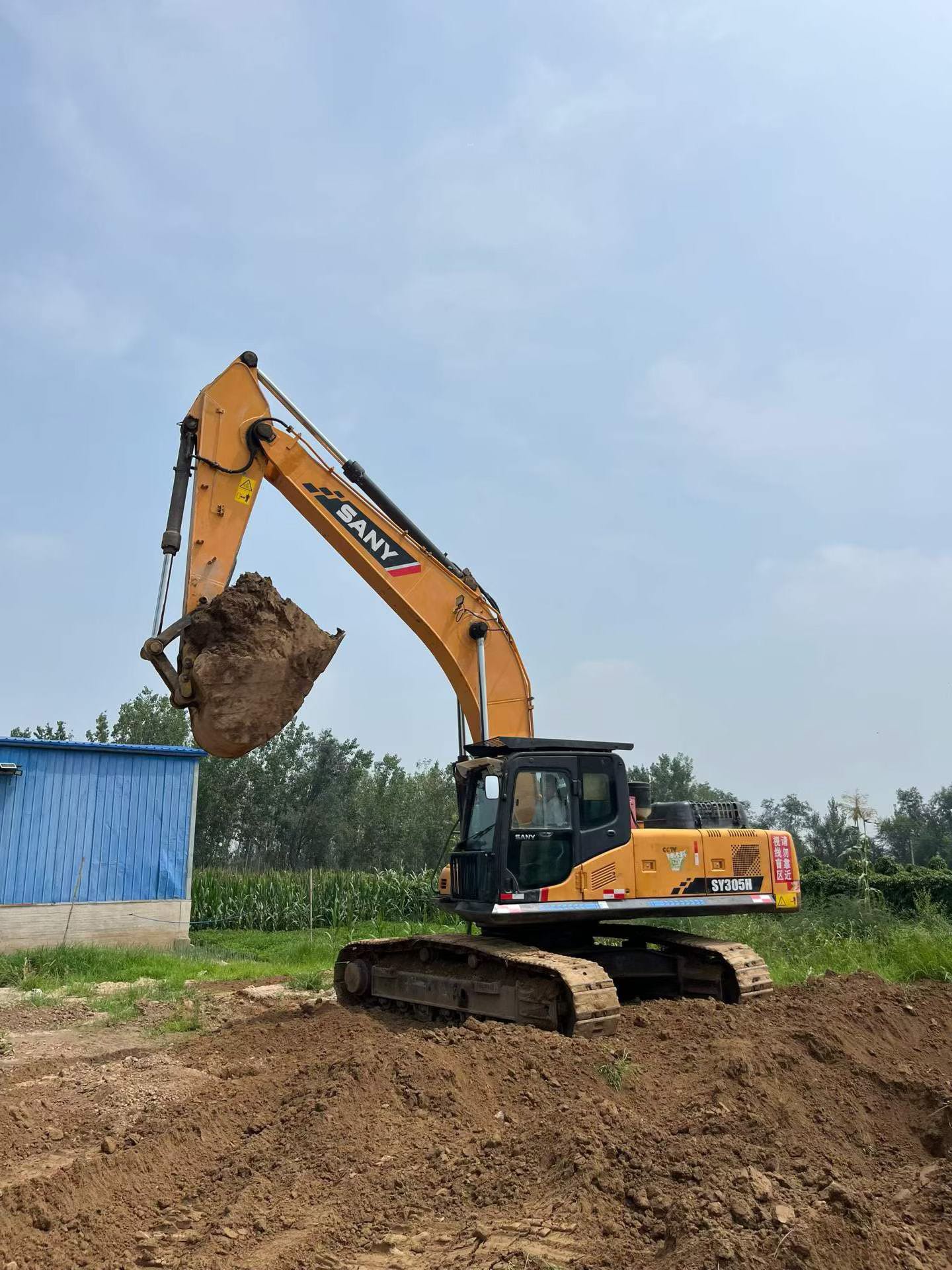

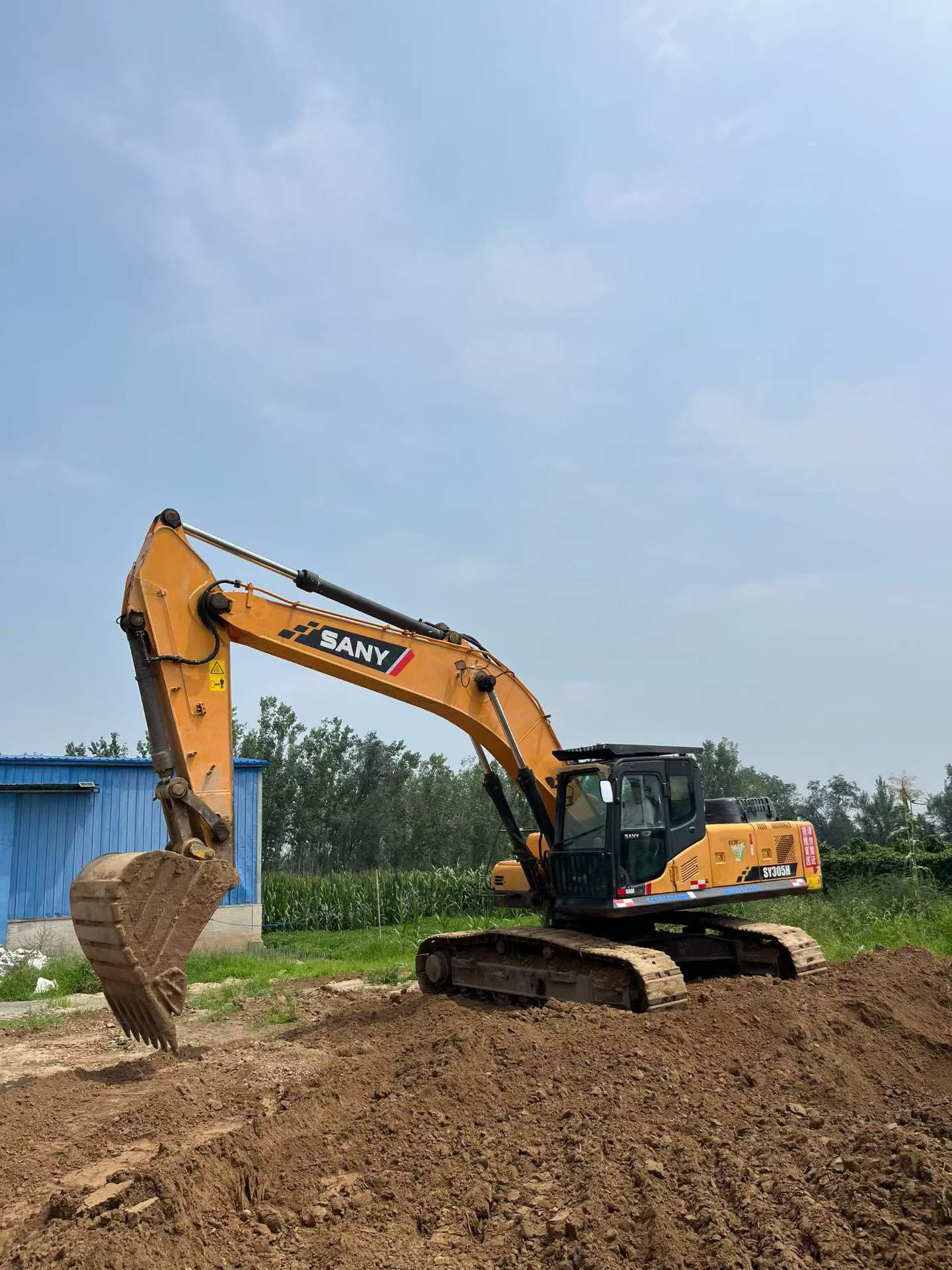

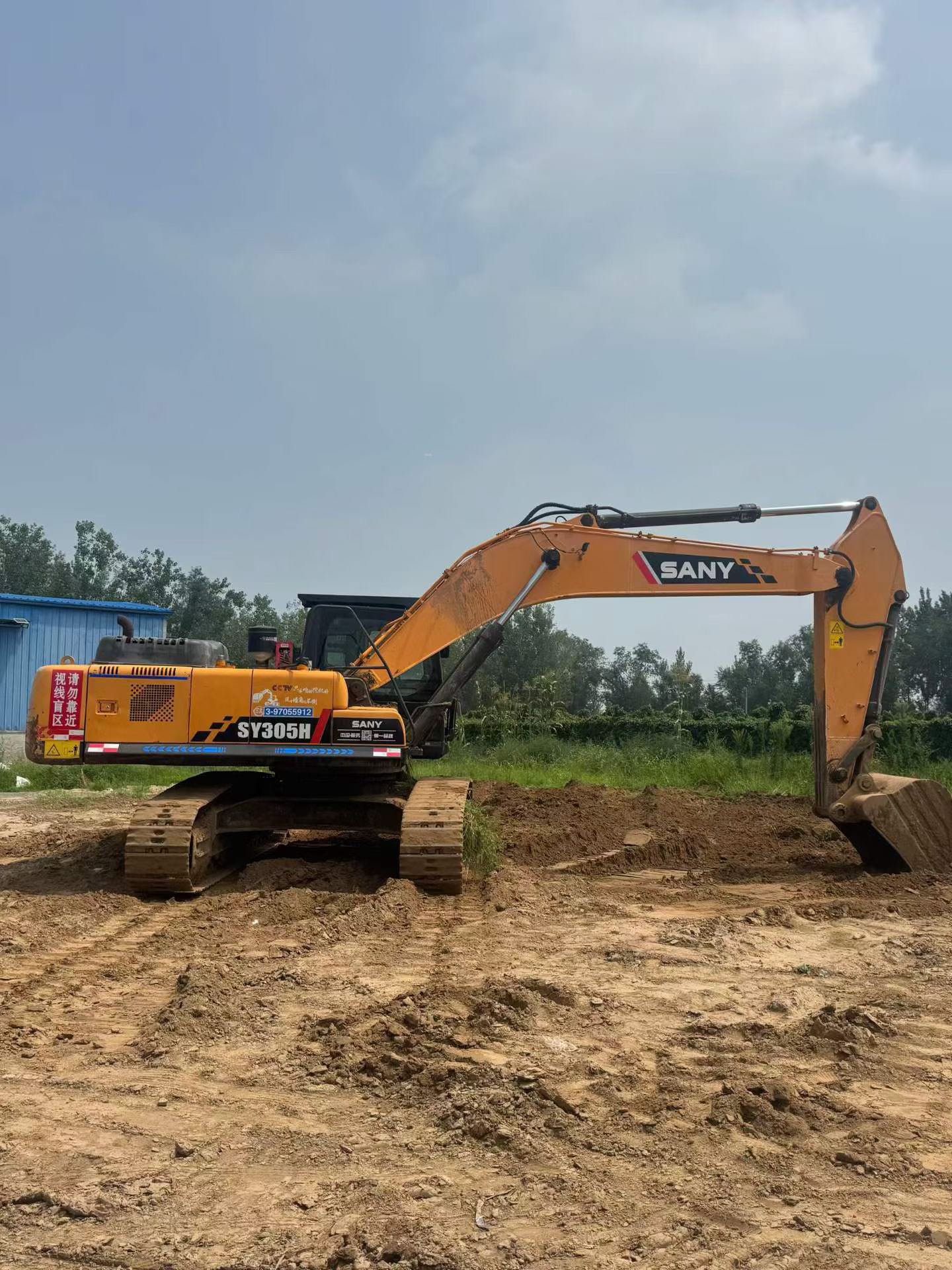

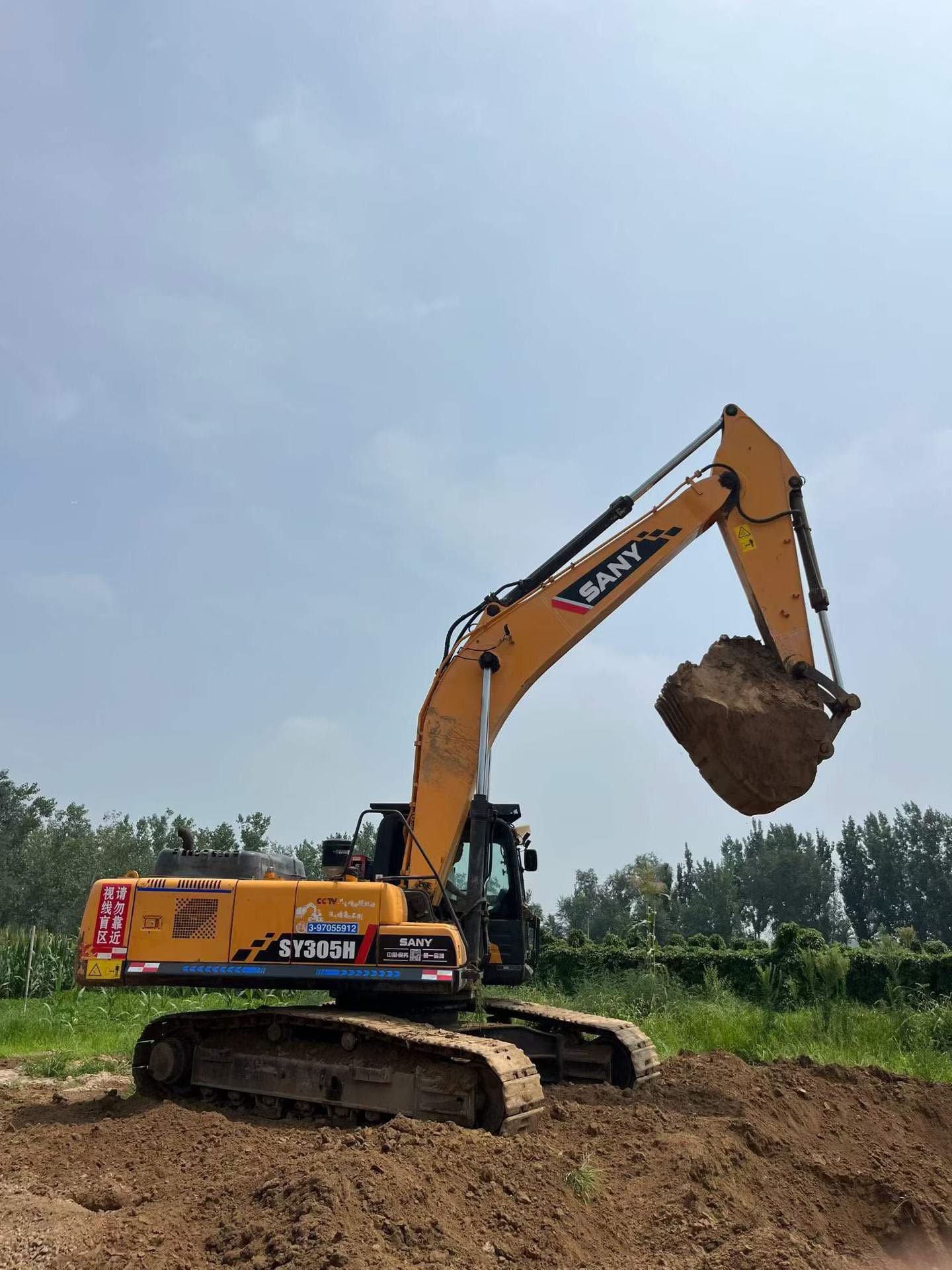

Discover the Sany 305C-9, a 2020 model that exemplifies reliability and performance in heavy machinery. Located in Hebei, China, this used excavator is a classic choice for earthmoving tasks, featuring a robust bucket designed specifically for digging and moving soil. The hydraulic and electrical systems are in excellent working condition, ensuring stable and dependable operation. Ideal for construction and excavation projects, this machine offers a cost-effective solution without compromising on quality or functionality.
- Year: 2020
- Brand: Sany
- Model: 305C-9
- Location: Hebei, China
- Designed for earthmoving with a specialized bucket

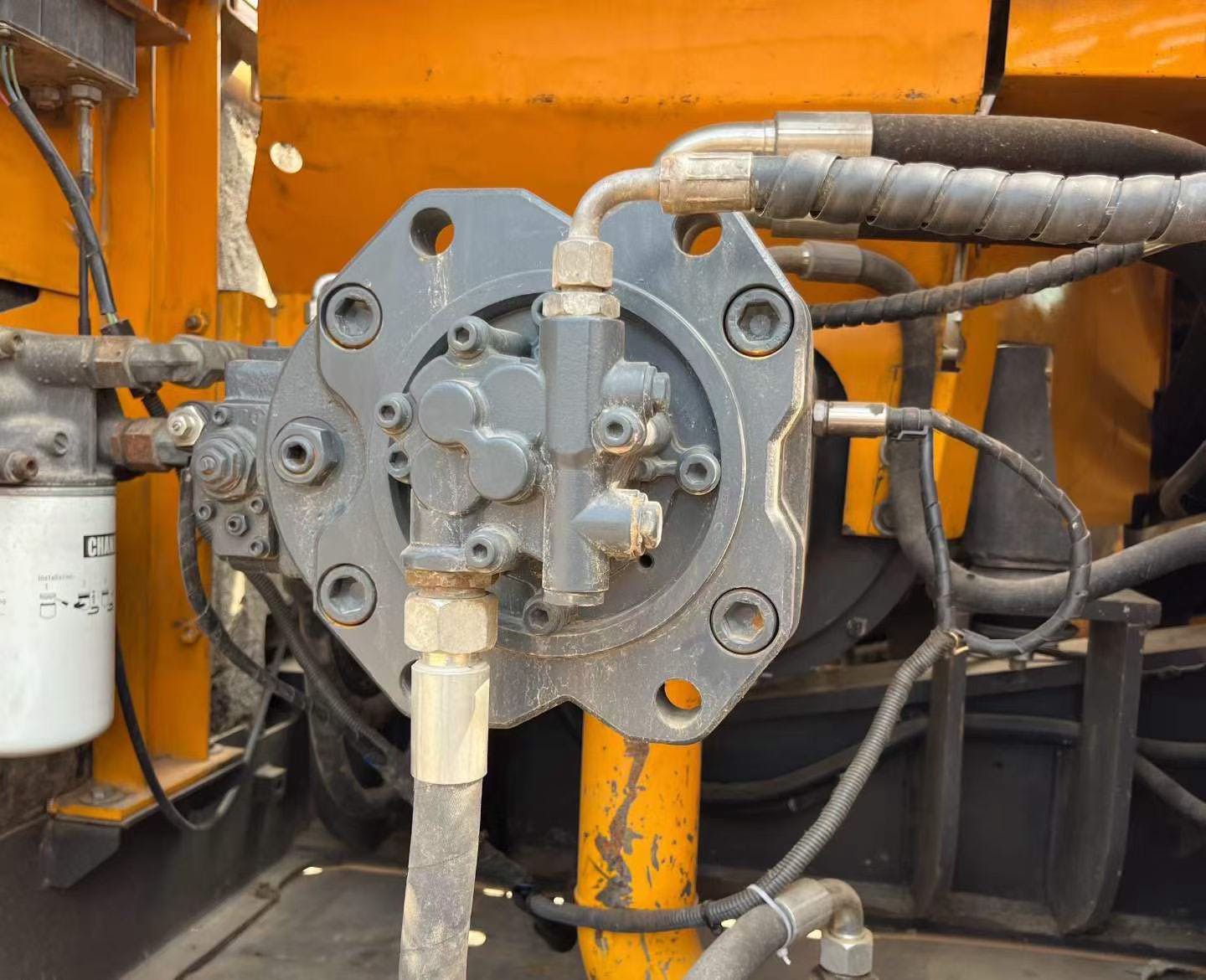

- Reliable hydraulic and electrical systems
- Stable and efficient performance
| Specifications | Value |
|---|---|
| No. | 1115635 |
| Tonnage (tons) | 30 |
| Working weight (kg) | 30600 |
| Bucket capacity (m³) | 1.45 |
| Country of origin | Kunshan in Jiangsu Province |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

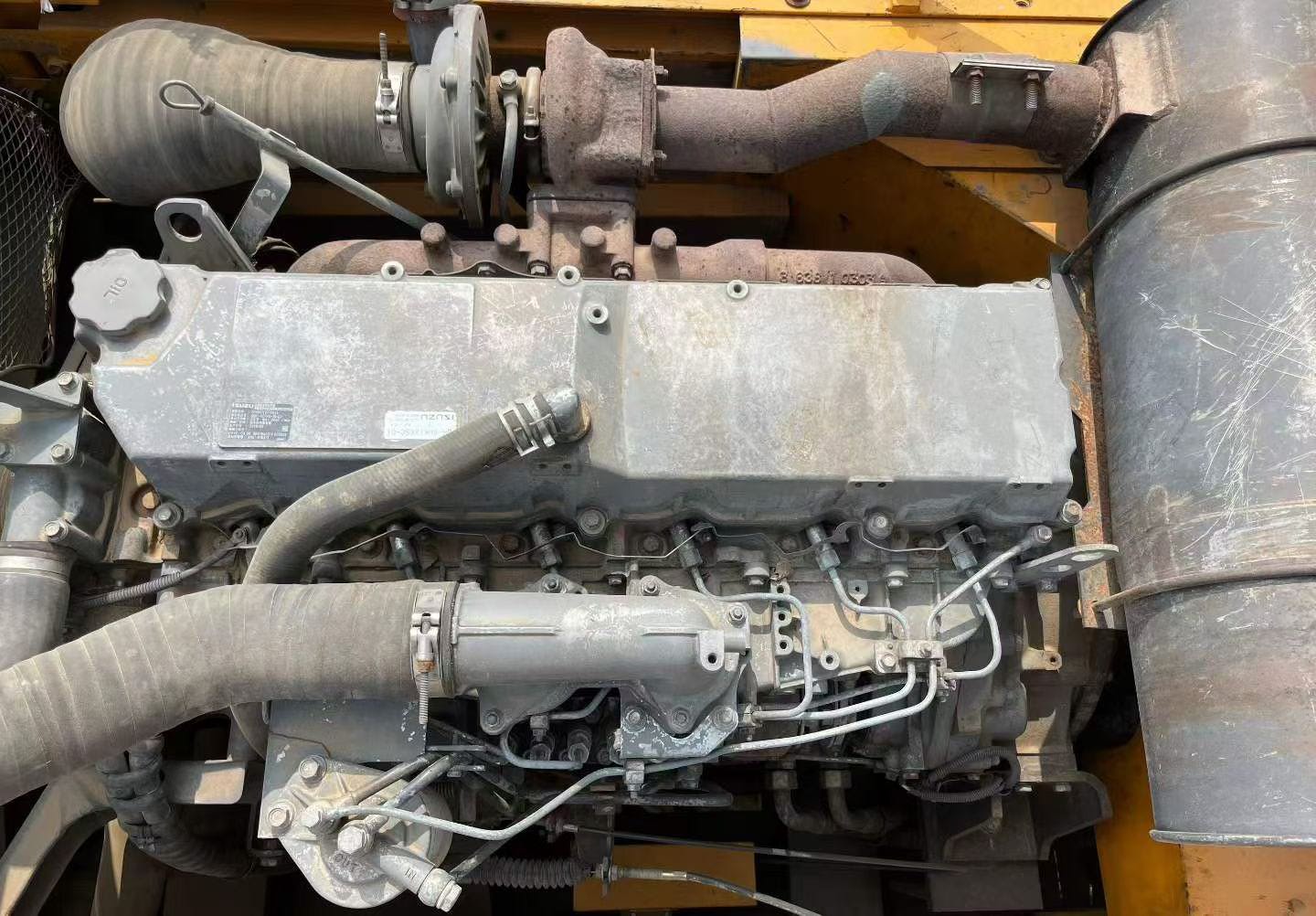

| Rated power (kw/rpm) | 190.5/2000 |
| Ground specific pressure (Kpa) | 62 |
| Rotation speed (rpm) | 10.5 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 193 |
| Rod digging force (kN) | 165 |
| Travel speed (km/h) | 5.1/3.2 |
| Total transport length (mm) | 10560 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3430 |

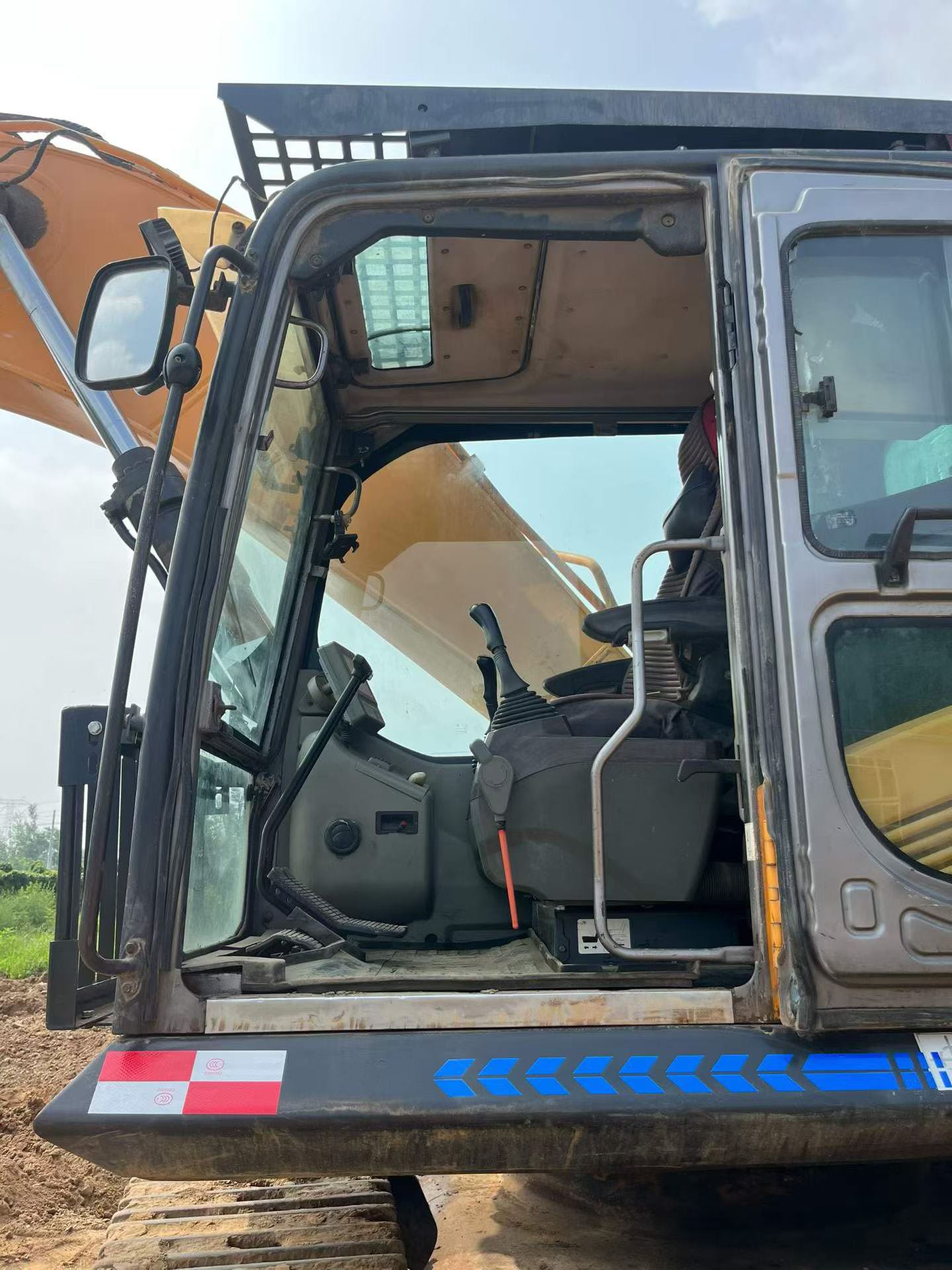

| Full cab height (mm) | 3095 |
| Minimum ground clearance (mm) | 500 |
| Minimum turning radius of front working device (mm) | 4350 |
| Back end turning radius (mm) | 3250 |

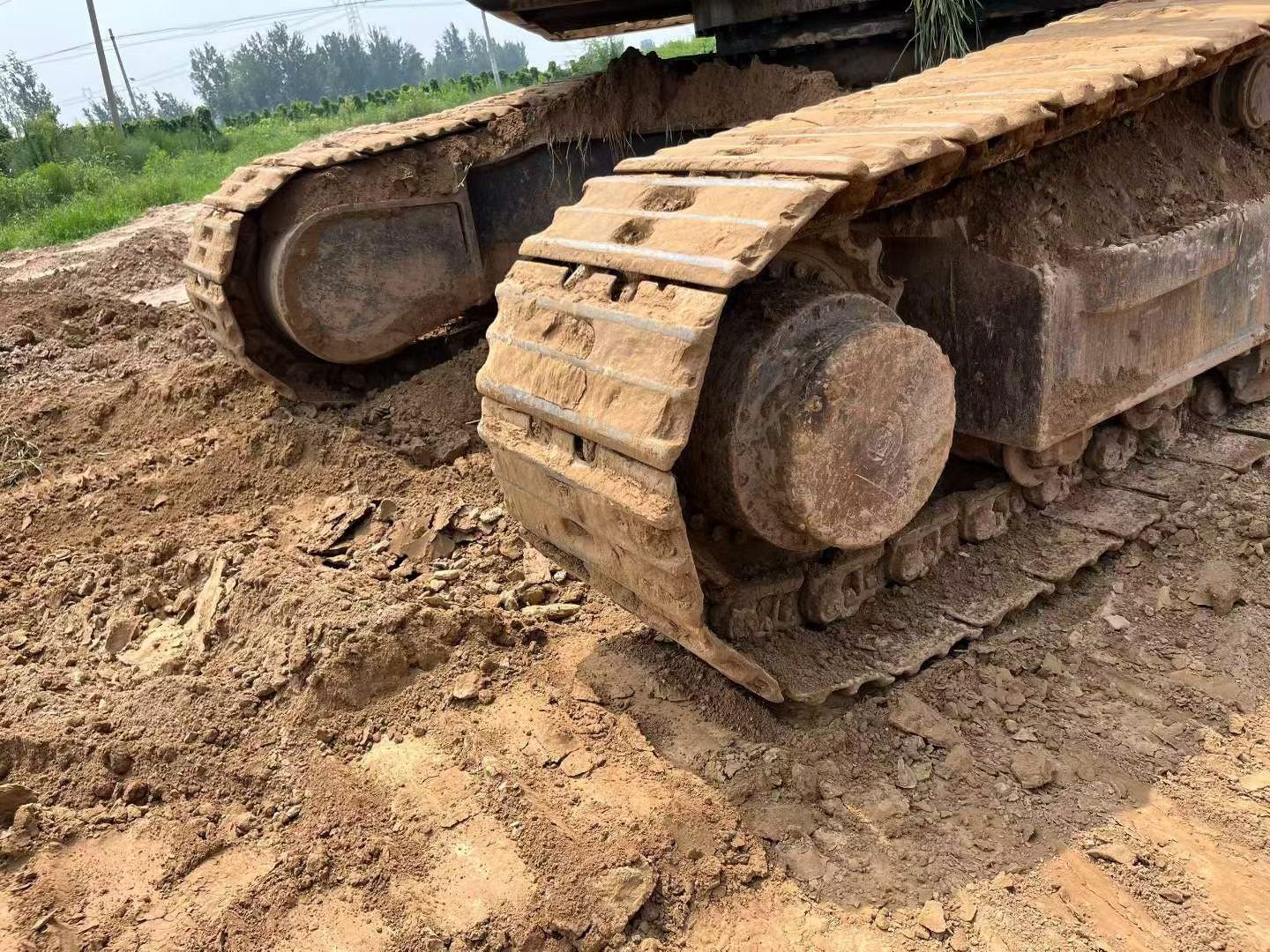

| Total track length (mm) | 4625 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3190 |
| Track ground length (mm) | 3700 |
| Maximum digging radius (mm) | 10620 |
| Maximum digging depth (mm) | 7100 |
| Maximum excavation height (mm) | 9950 |
| Maximum unloading height (mm) | 6850 |
| Maximum vertical digging depth (mm) | 5680 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
| Maximum effective digging depth (mm) | 7100 |
