Product Description

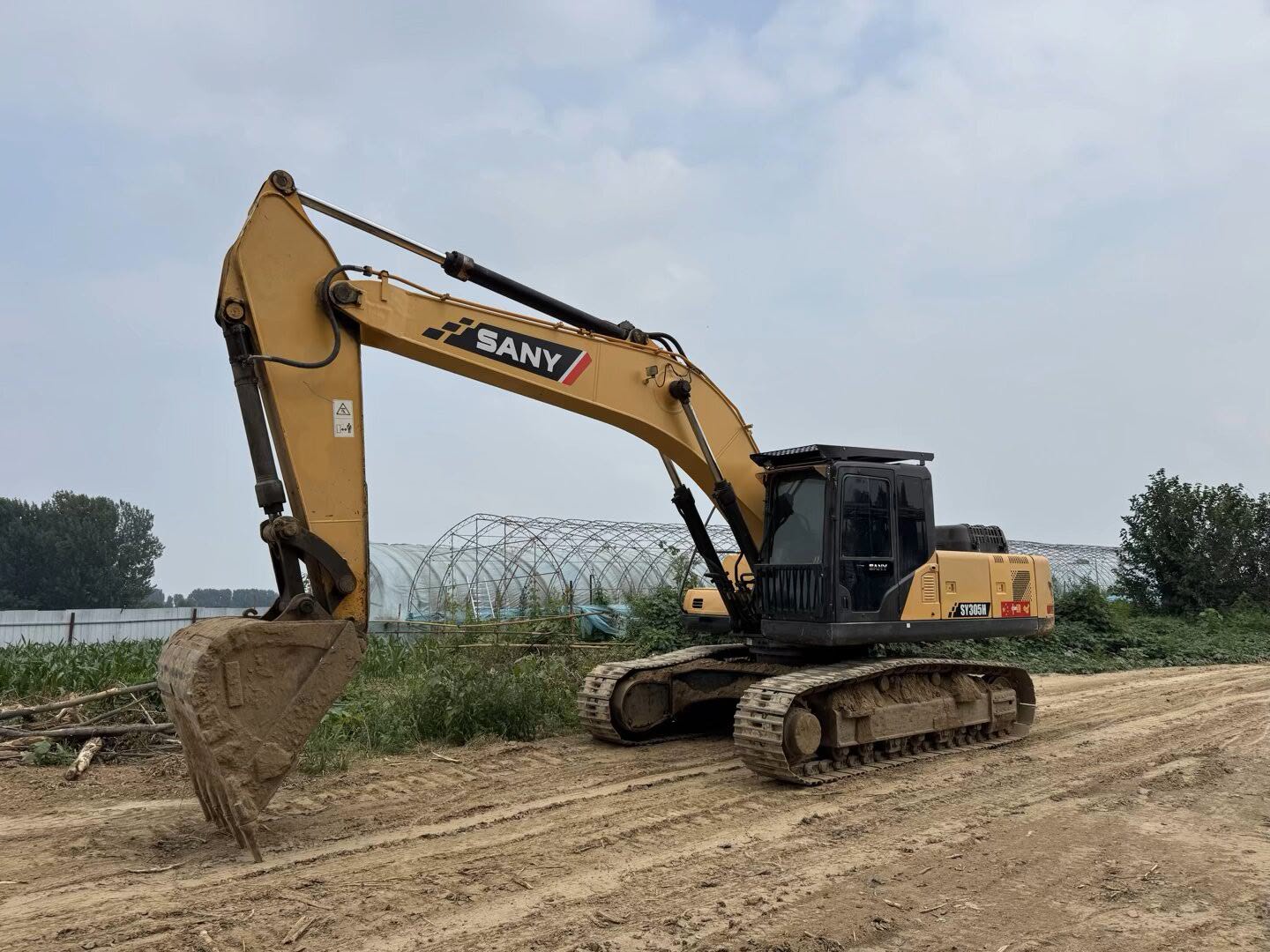

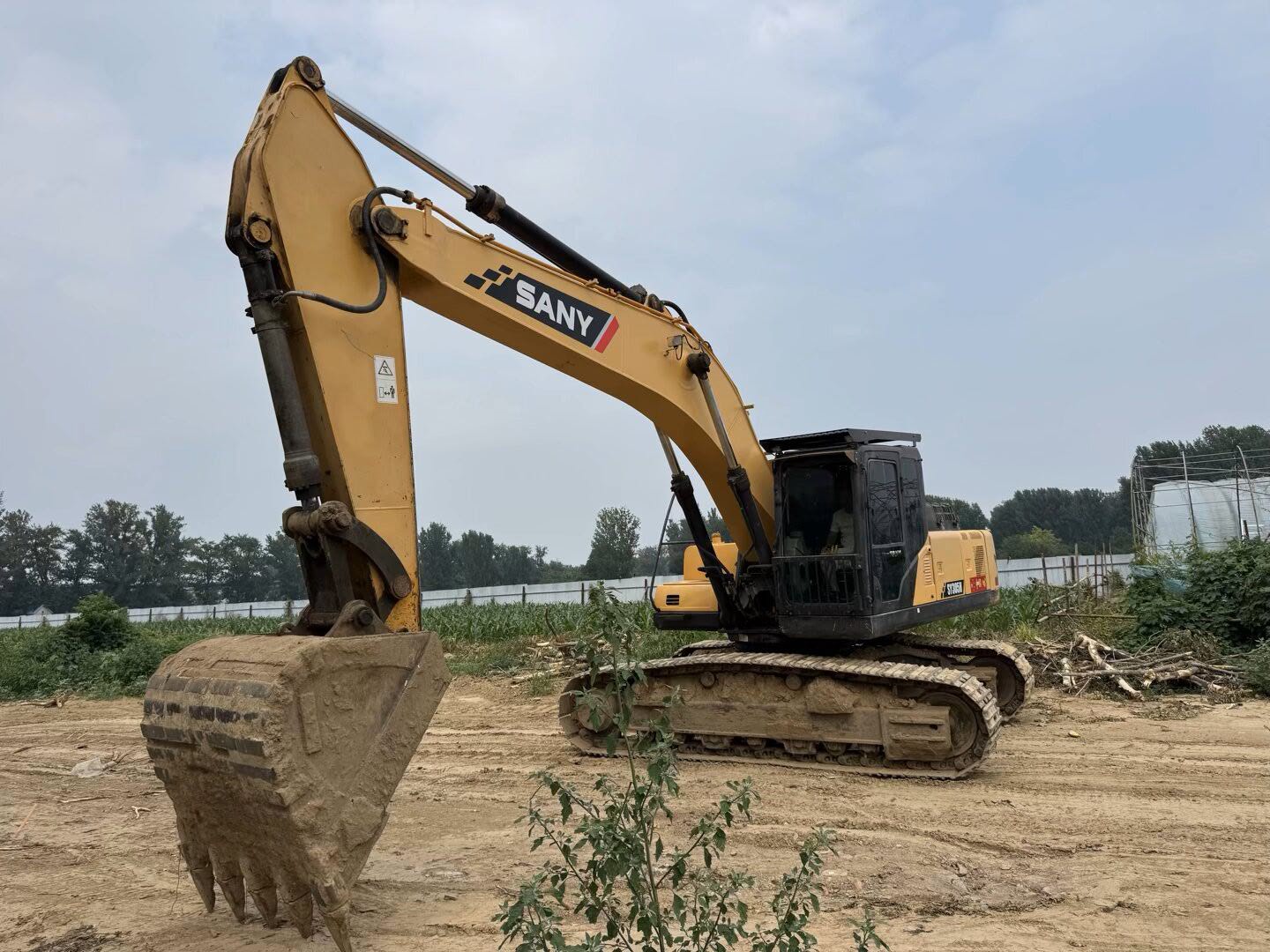

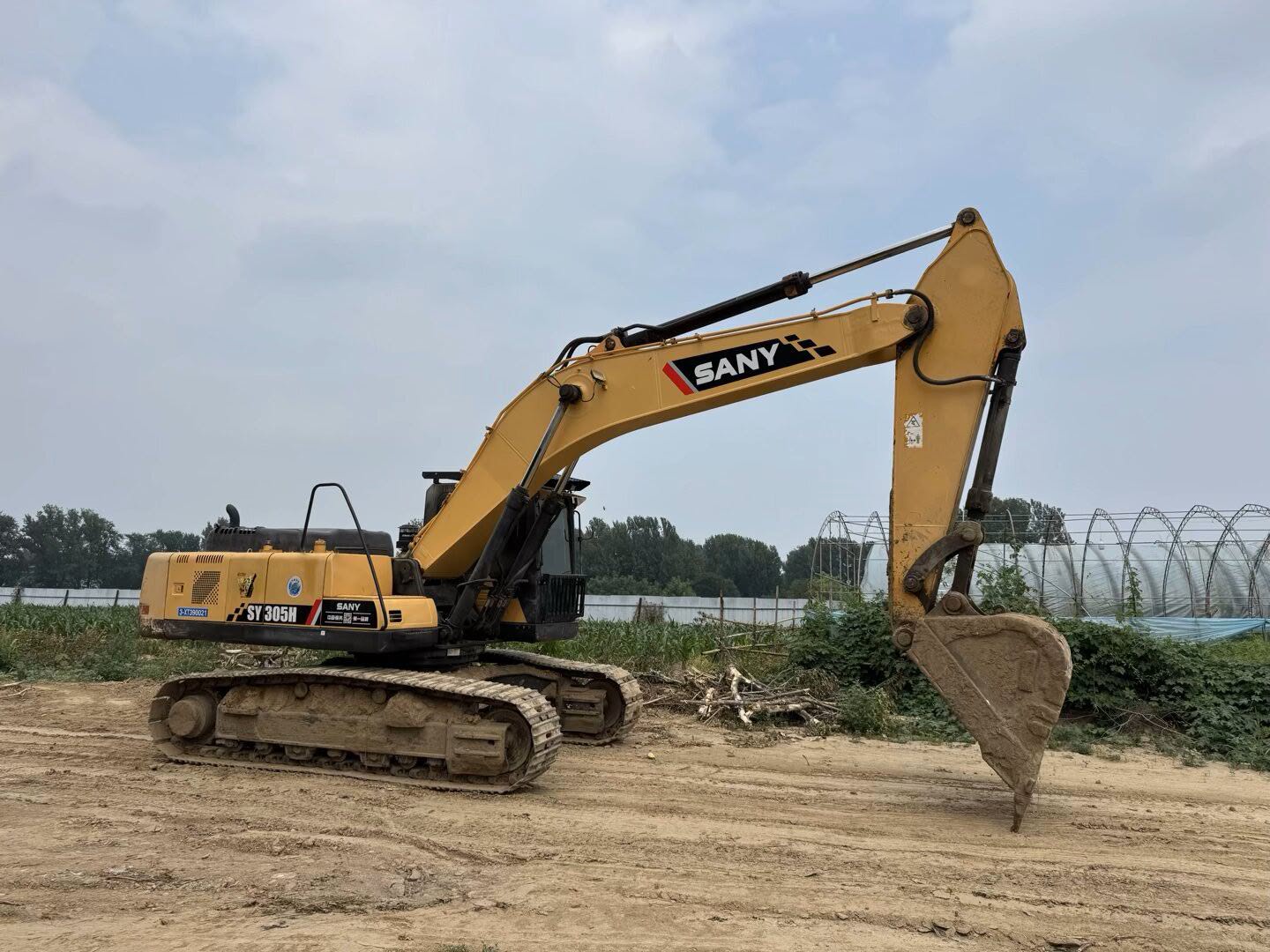

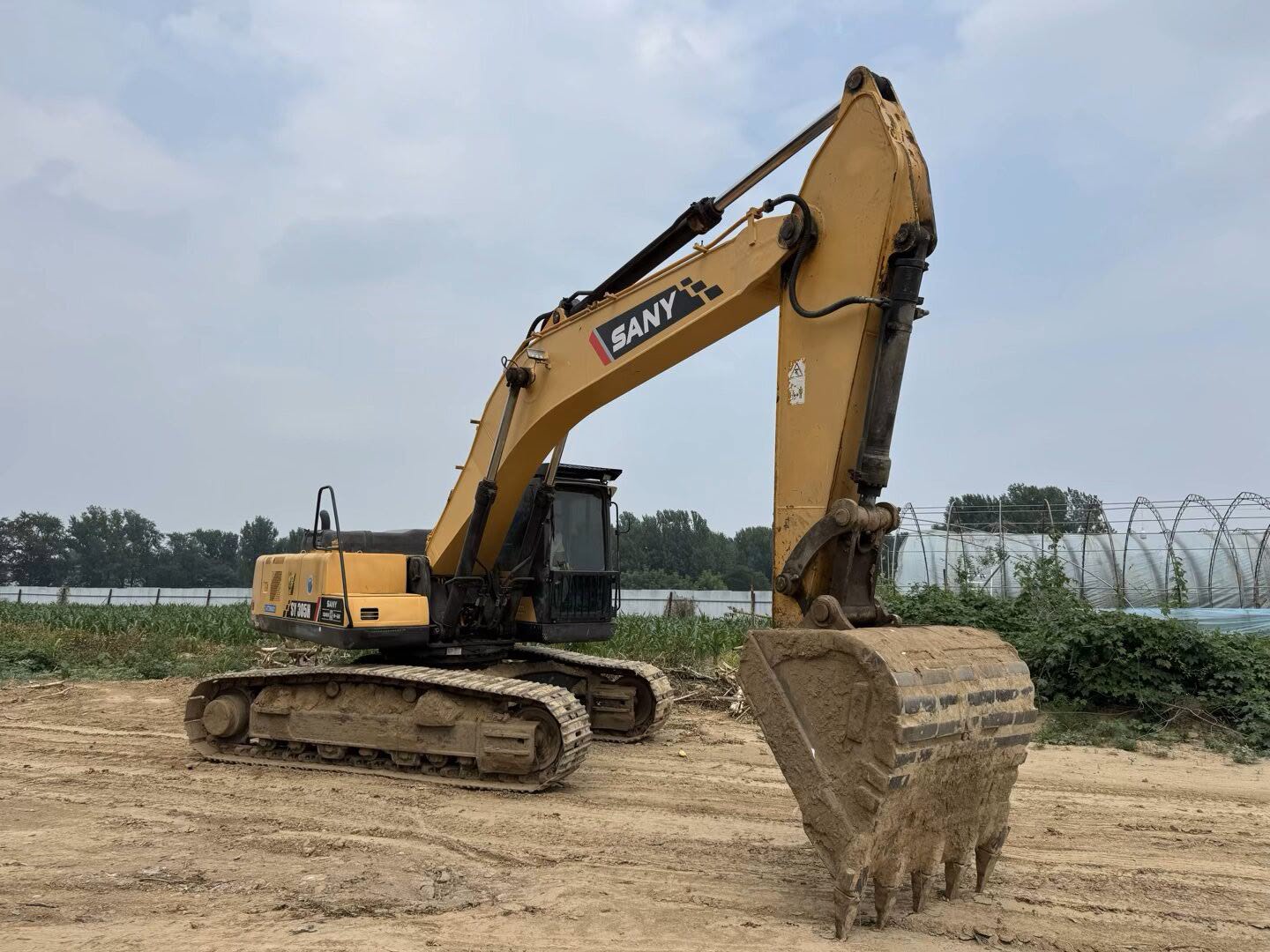

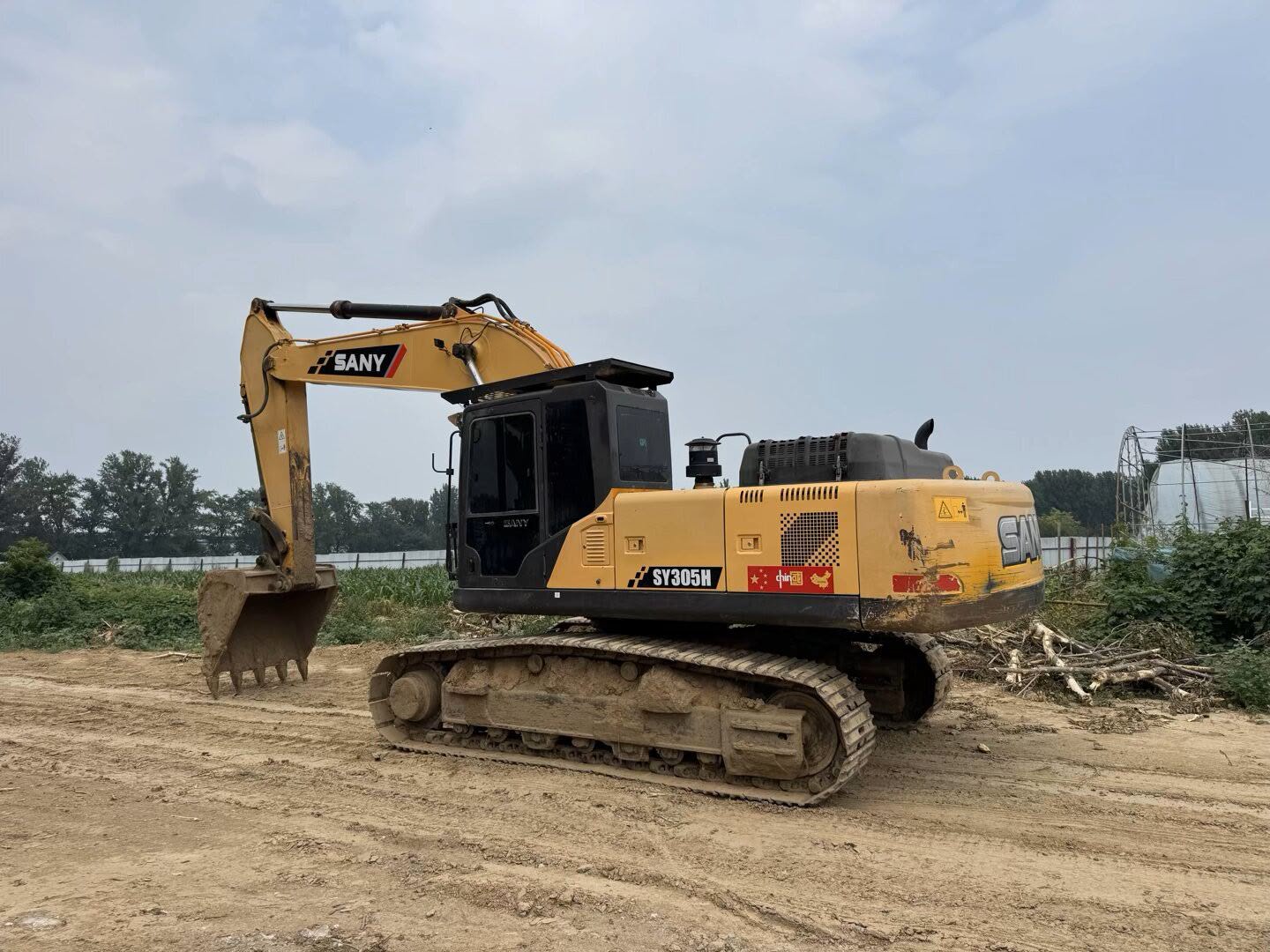

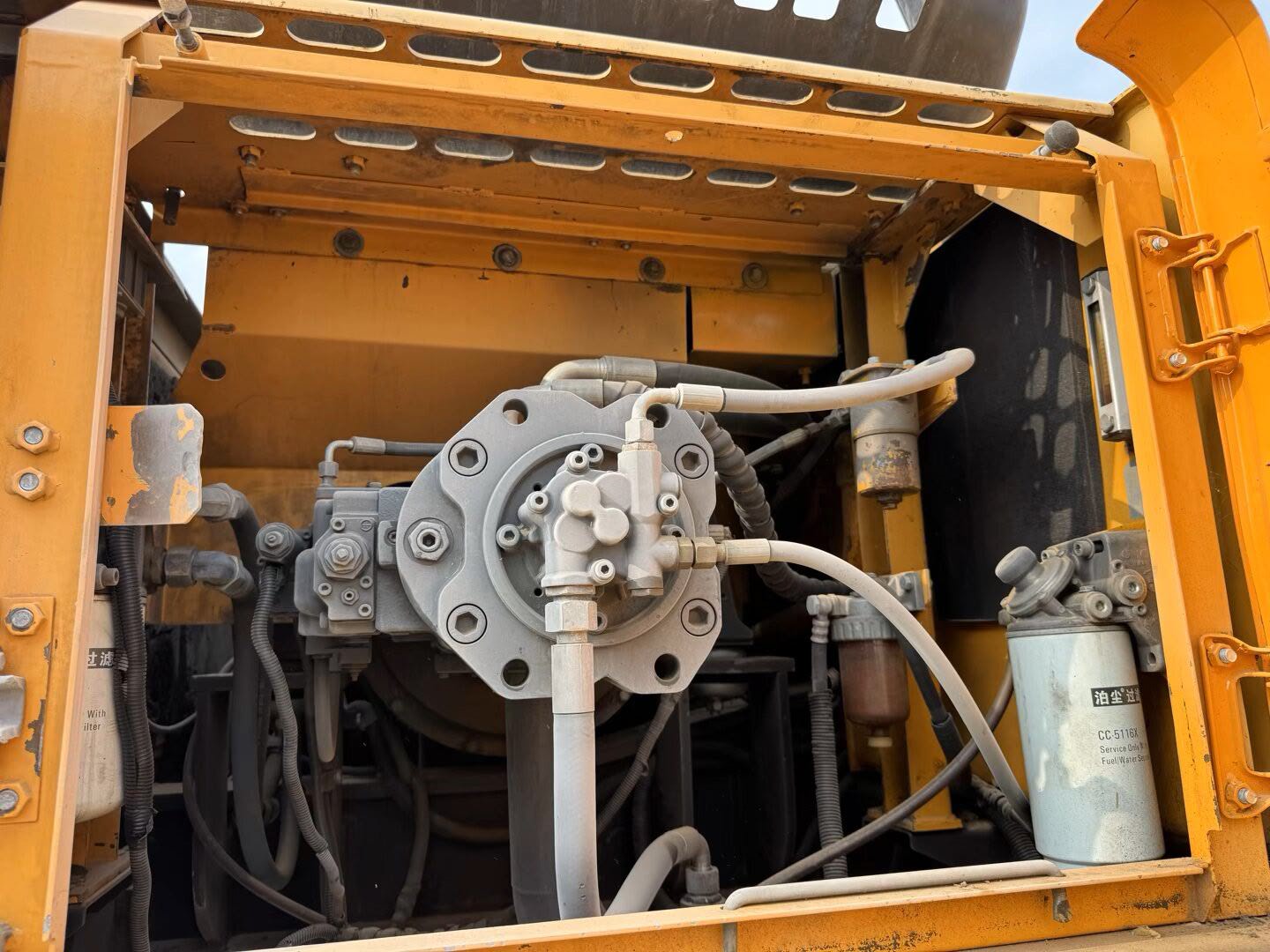

Discover the robust 2020 Sany 305C-9, a used heavy machine currently located in Hebei, China. This excavator is renowned for its exceptional performance and reliability, making it an ideal choice for demanding construction and earthmoving tasks. Designed with efficiency and durability in mind, the 305C-9 delivers powerful digging forces and smooth operation, ensuring that your projects stay on schedule and within budget.
- Year: 2020
- Brand: Sany
- Model: 305C-9
- Location: Hebei, China
- Exceptional performance and reliability
- Ideal for construction and earthmoving tasks
| Specifications | Value |
|---|---|
| No. | 1115944 |
| Tonnage (tons) | 30 |
| Working weight (kg) | 30600 |
| Bucket capacity (m³) | 1.45 |
| Country of origin | Kunshan in Jiangsu Province |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 190.5/2000 |
| Ground specific pressure (Kpa) | 62 |
| Rotation speed (rpm) | 10.5 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 193 |
| Rod digging force (kN) | 165 |
| Travel speed (km/h) | 5.1/3.2 |
| Total transport length (mm) | 10560 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3430 |
| Full cab height (mm) | 3095 |
| Minimum ground clearance (mm) | 500 |
| Minimum turning radius of front working device (mm) | 4350 |
| Back end turning radius (mm) | 3250 |
| Total track length (mm) | 4625 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3190 |
| Track ground length (mm) | 3700 |
| Maximum digging radius (mm) | 10620 |
| Maximum digging depth (mm) | 7100 |
| Maximum excavation height (mm) | 9950 |
| Maximum unloading height (mm) | 6850 |
| Maximum vertical digging depth (mm) | 5680 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
| Maximum effective digging depth (mm) | 7100 |
