Sany 60C-9

1/8

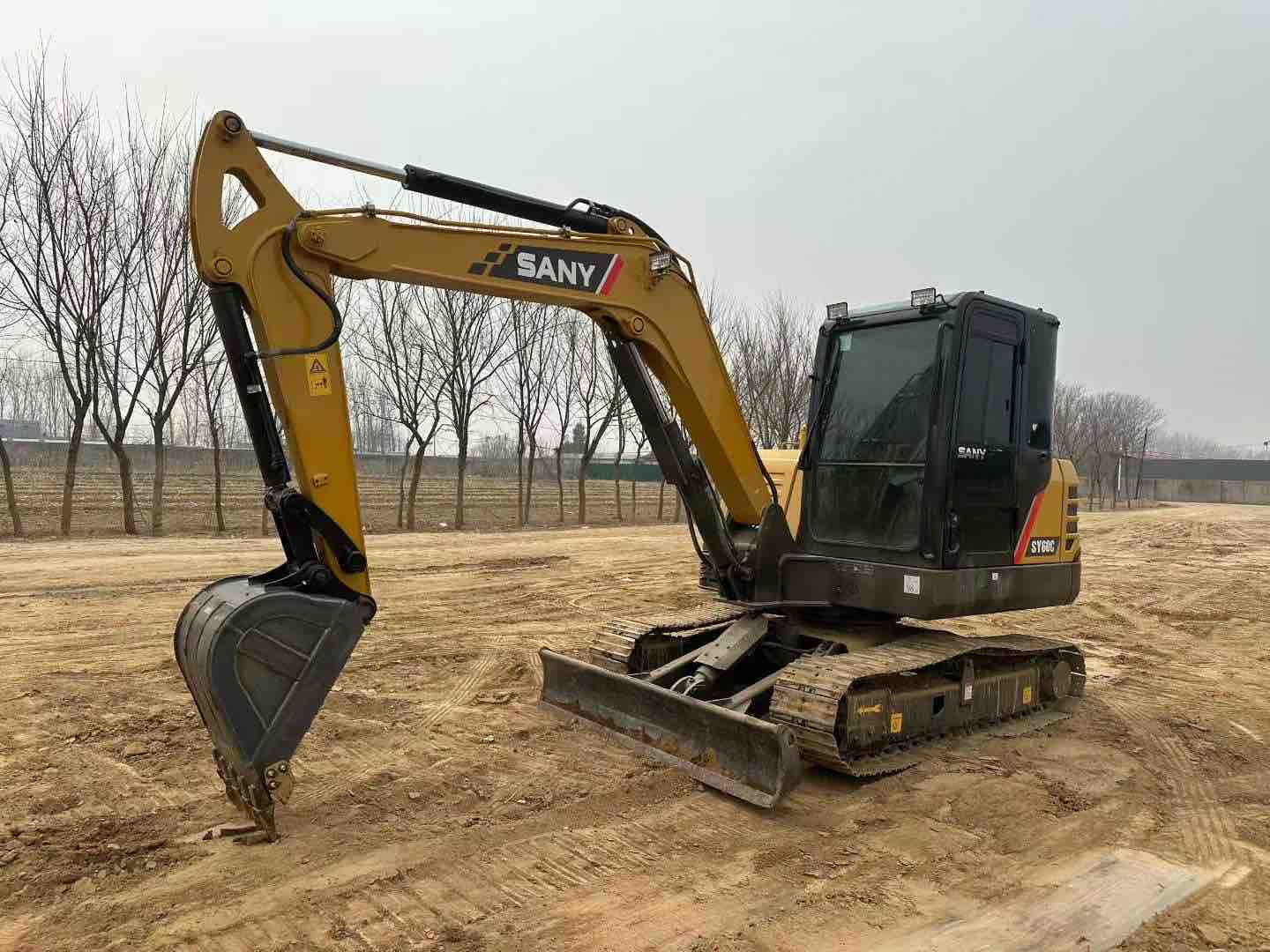

Buy Sany 60C-9 Used Excavator / 1

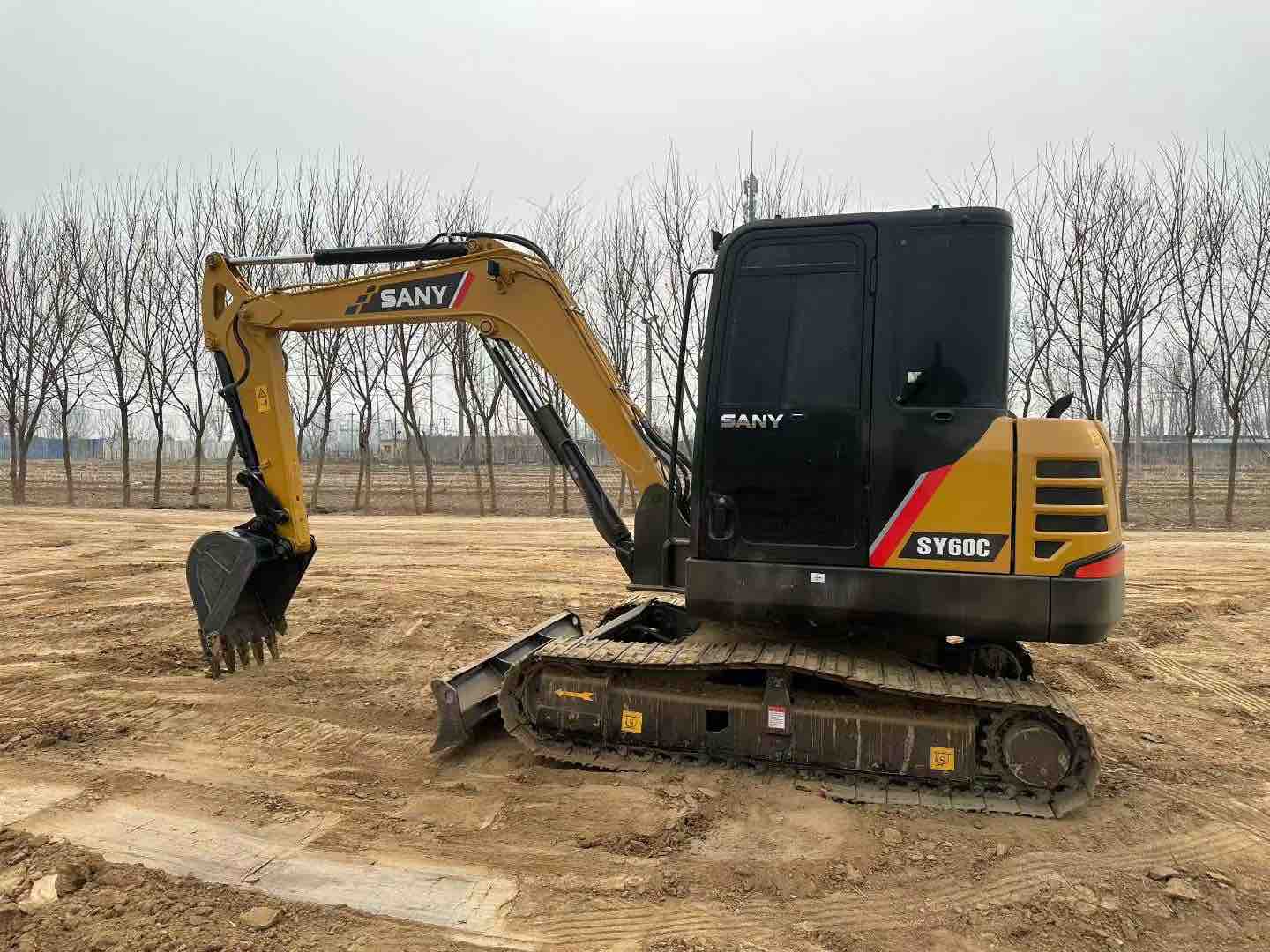

Buy Sany 60C-9 Used Excavator / 2

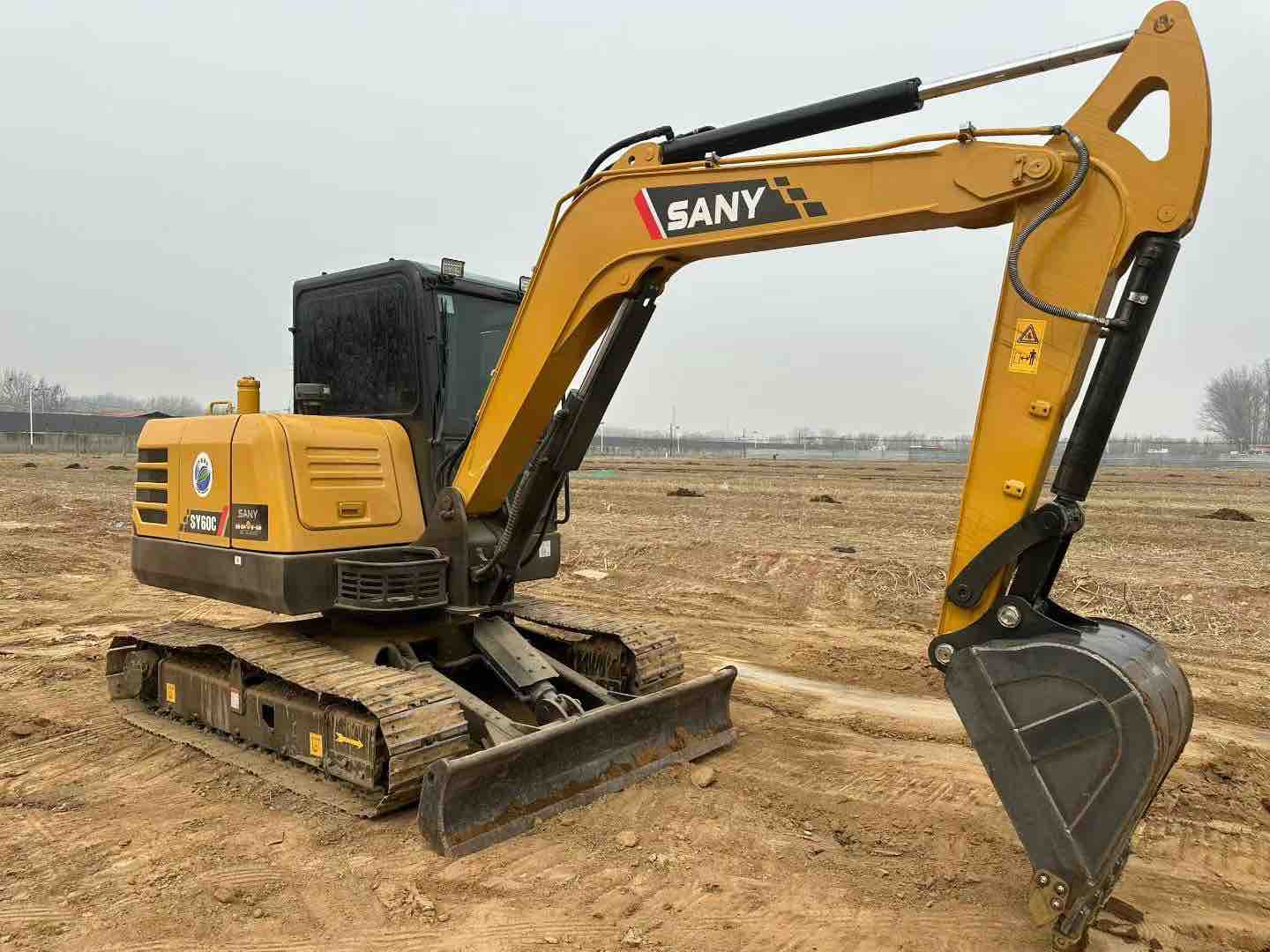

Buy Sany 60C-9 Used Excavator / 3

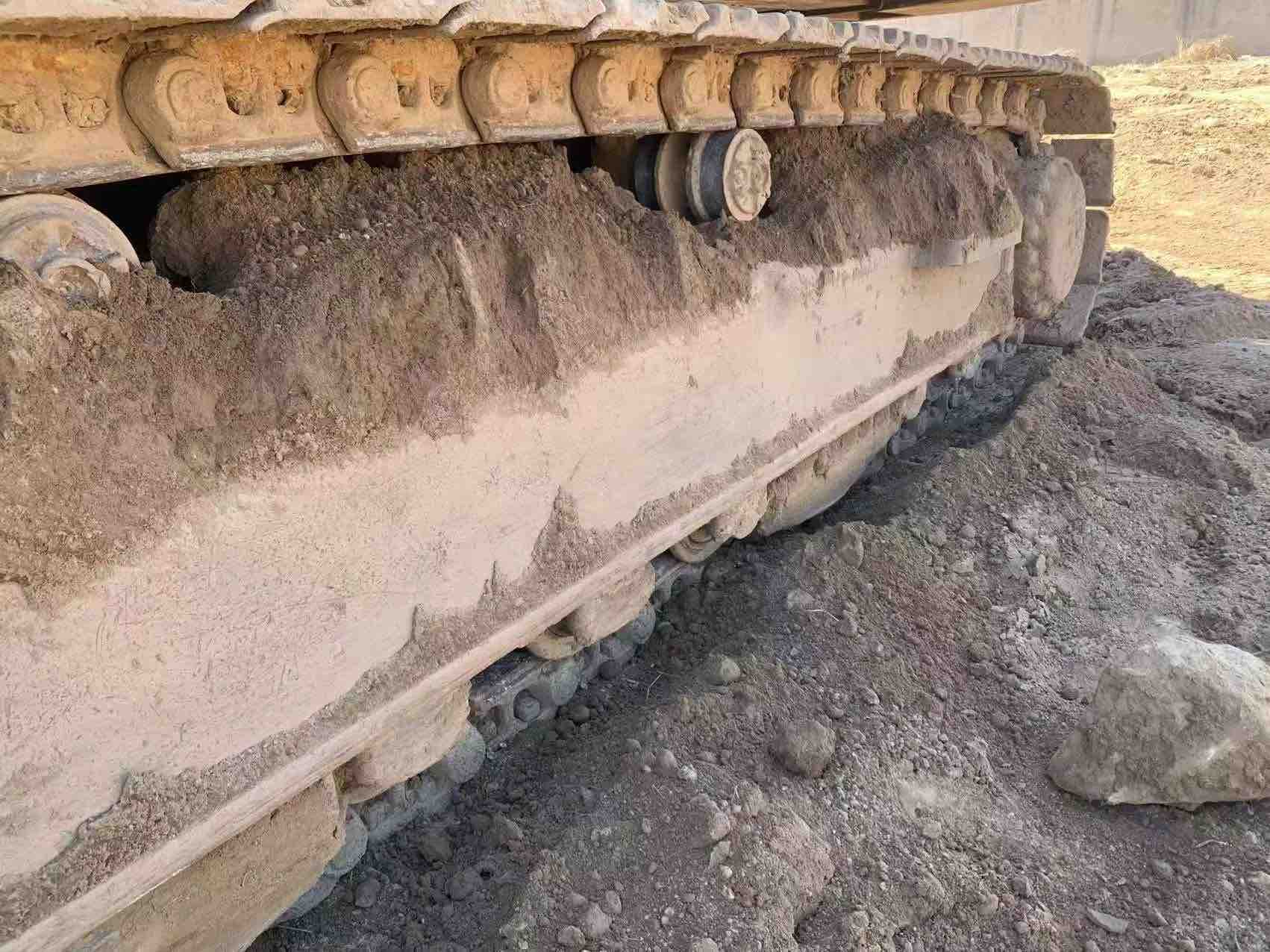

Buy Sany 60C-9 Used Excavator / 4

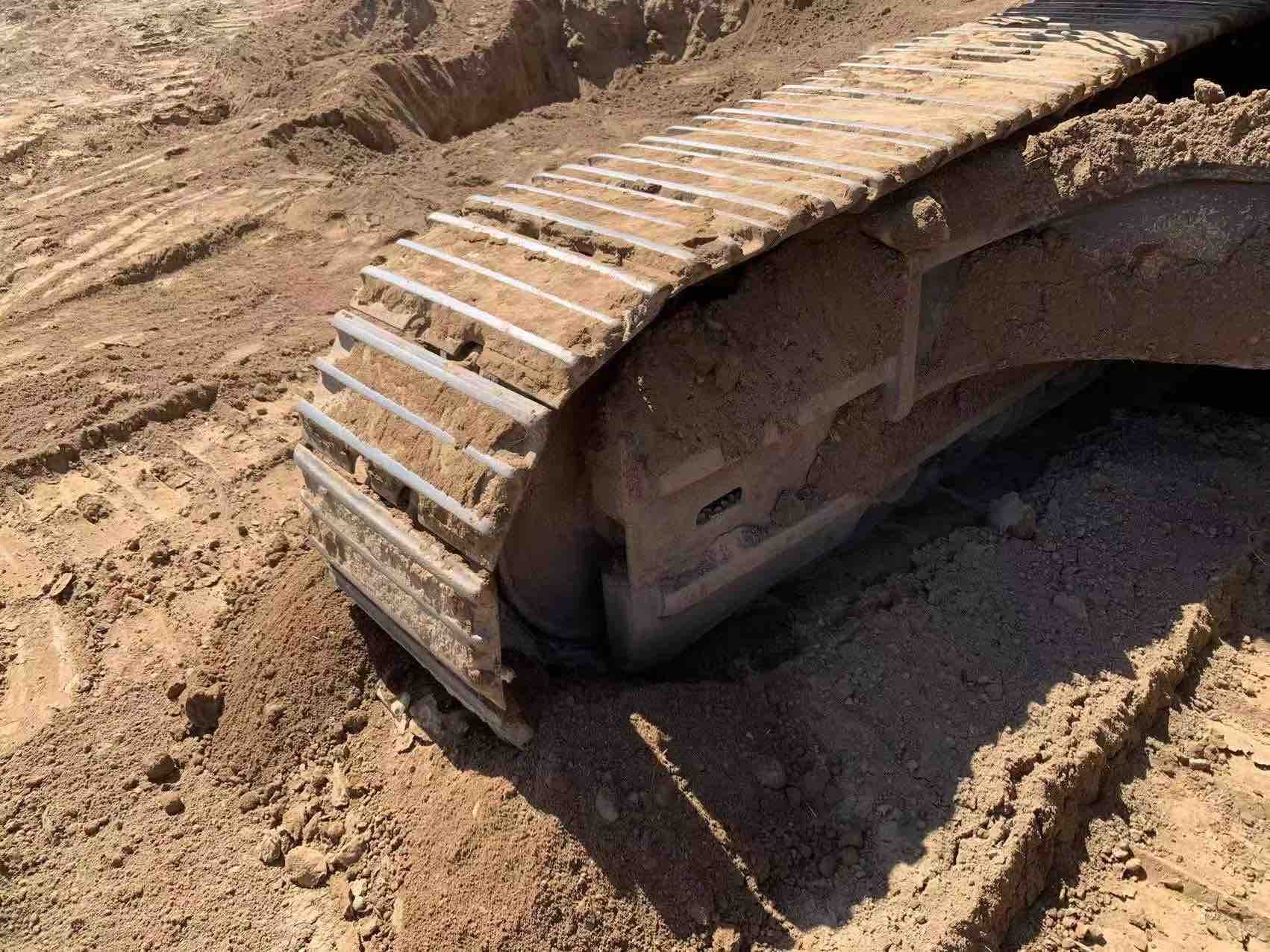

Buy Sany 60C-9 Used Excavator / 5

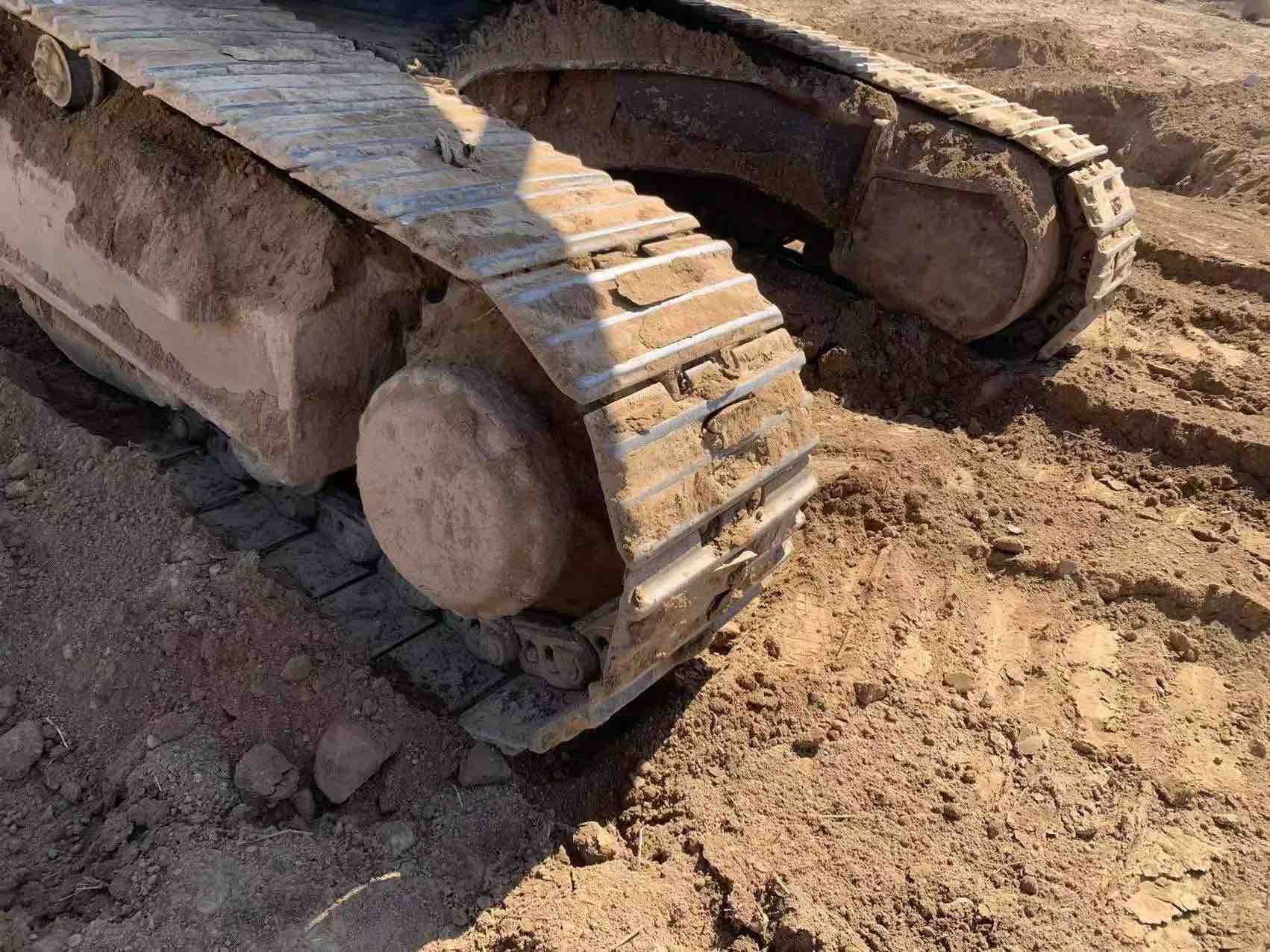

Buy Sany 60C-9 Used Excavator / 6

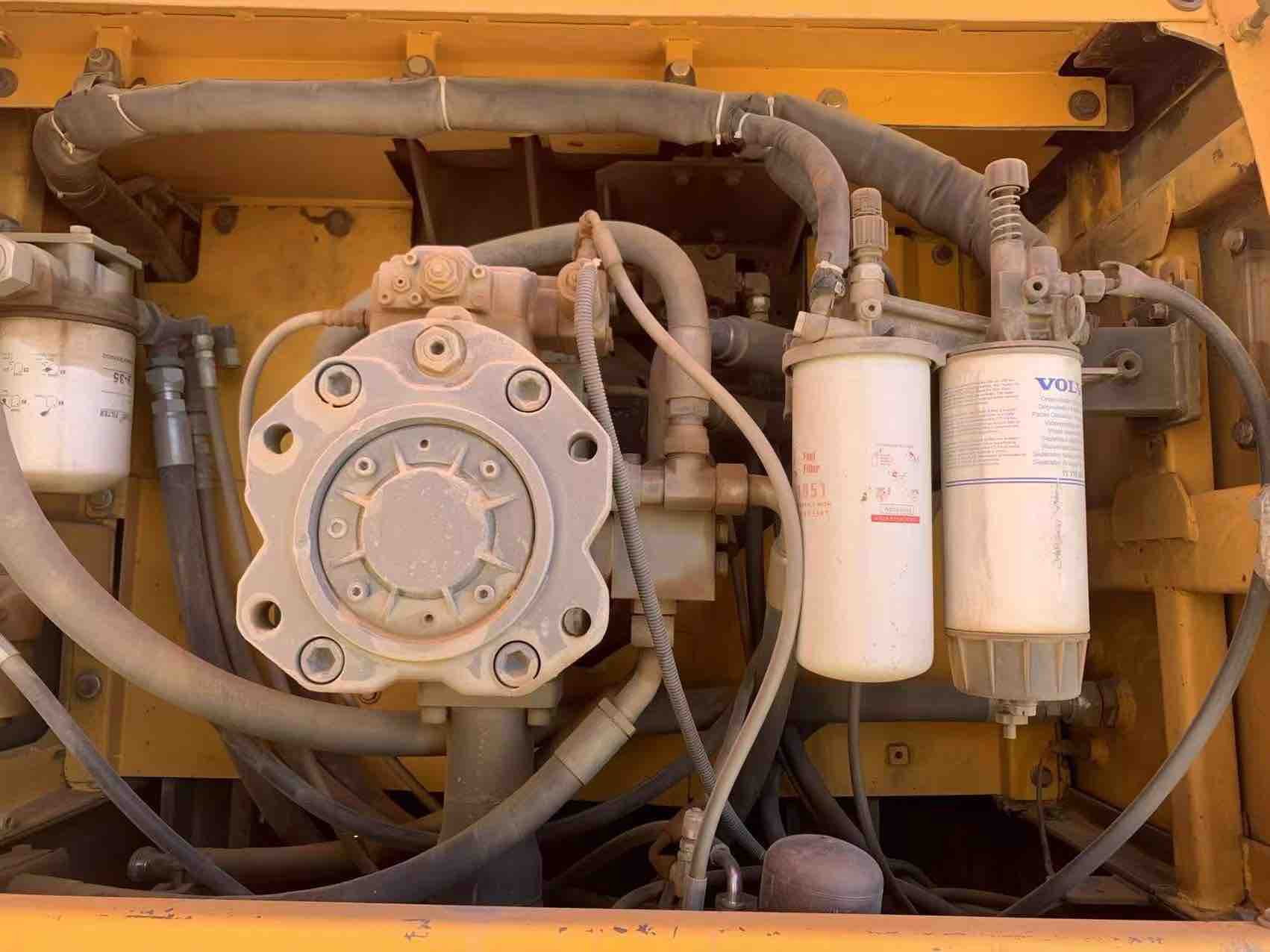

Buy Sany 60C-9 Used Excavator / 7

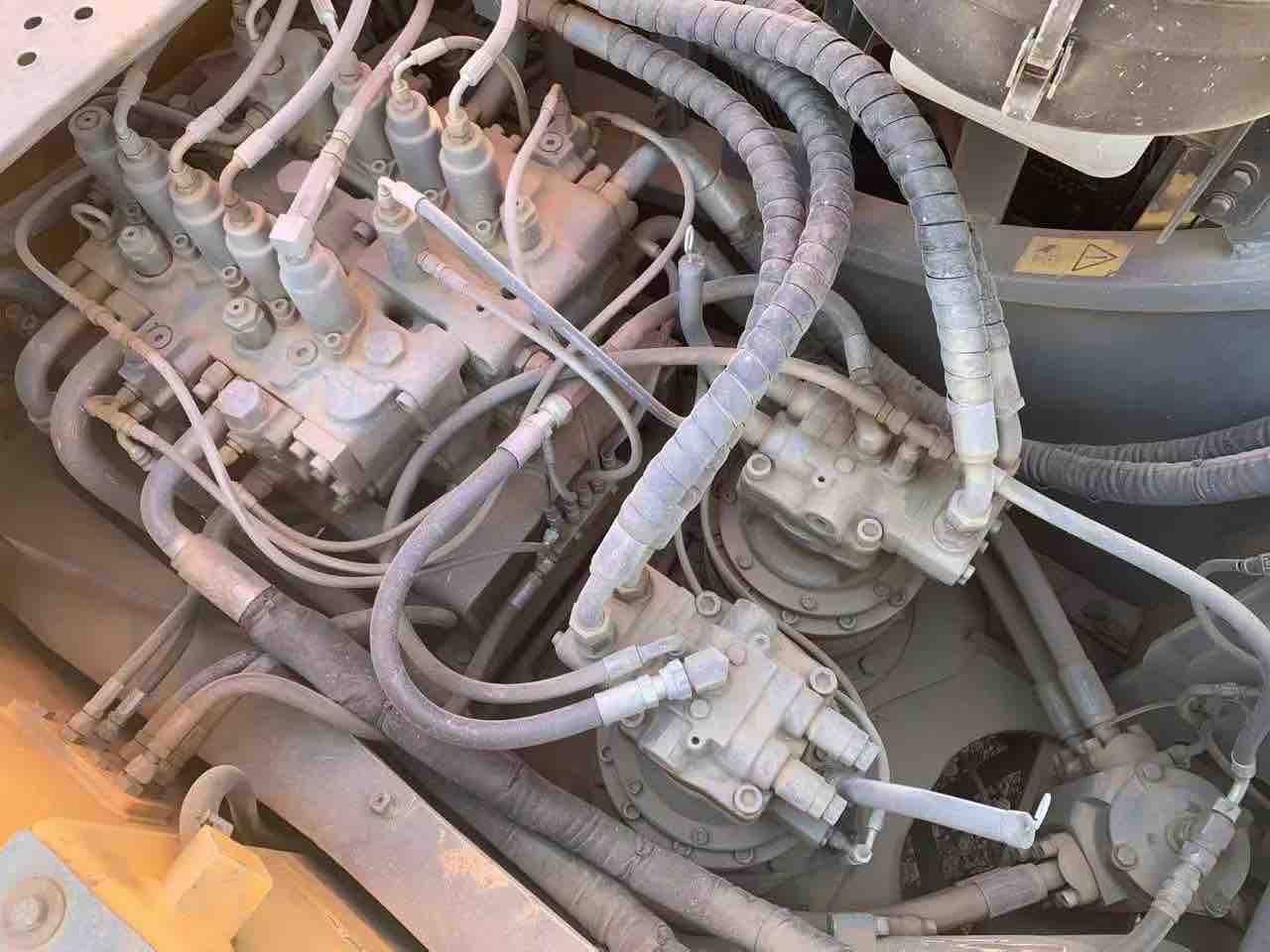

Buy Sany 60C-9 Used Excavator / 8

Product Description

Sany SY60C-9 compact excavator available from Anhui, China. This machine is currently in active operation, demonstrating reliable field performance. The unit features a well-maintained engine with good operational status and dry, leak-free hydraulic lines indicating proper system integrity. Original side panels remain intact, reflecting careful ownership and authentic configuration.

  • Brand: Sany
  • Model: 60C-9
  • Location: Anhui Province, China
  • Condition: Operational, currently in use
  • Engine: Good working condition
  • Hydraulics: Dry lines, no leaks detected
  • Body: Original factory panels maintained

This excavator is ready for immediate deployment upon purchase. Suitable for construction, landscaping, and light excavation applications. Contact us for inspection arrangements and shipping options to your location.

SpecificationsValue
No.1052792
Tonnage (tons)6
Working weight (kg)6,000
Bucket capacity (m³)0.23 (optional 0.21)
Country of originShanghai
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeIsuzu 4JG1-NABGB-04-C2
Rated power (kw/rpm)40.9/2100
Cooling modewater-cooling
Maximum torque (N.m)191/1800
Number of cylinders (PCS)4-cylinder
Displacement (L)3.059
Working formFour cylinder, four stroke, direct injection engine
Ground specific pressure (Kpa)30.7
Rotation speed (rpm)9.6
Climbing ability (%)70% / 35 °
Bucket digging force (kN)45
Rod digging force (kN)33
Travel speed (km/h)4.22/2.25
Total transport length (mm)5925
Total transport width (mm)2005
Total transport height (mm)2630
Minimum ground clearance (mm)370
Minimum turning radius of front working device (mm)2555
Back end turning radius (mm)1640
Onboard width (mm)1860
Total track length (mm)2700
Track gauge (mm)1600
Track plate width (mm)400
Total track width (mm)2000
Maximum digging radius (mm)6090
Maximum digging depth (mm)3770
Maximum excavation height (mm)5735
Maximum unloading height (mm)3975
Maximum vertical digging depth (mm)3025
Bulldozer lift or depth (mm)Lift 300/ push 405
Dodging plate width × height (mm)Height 400
