Product Description

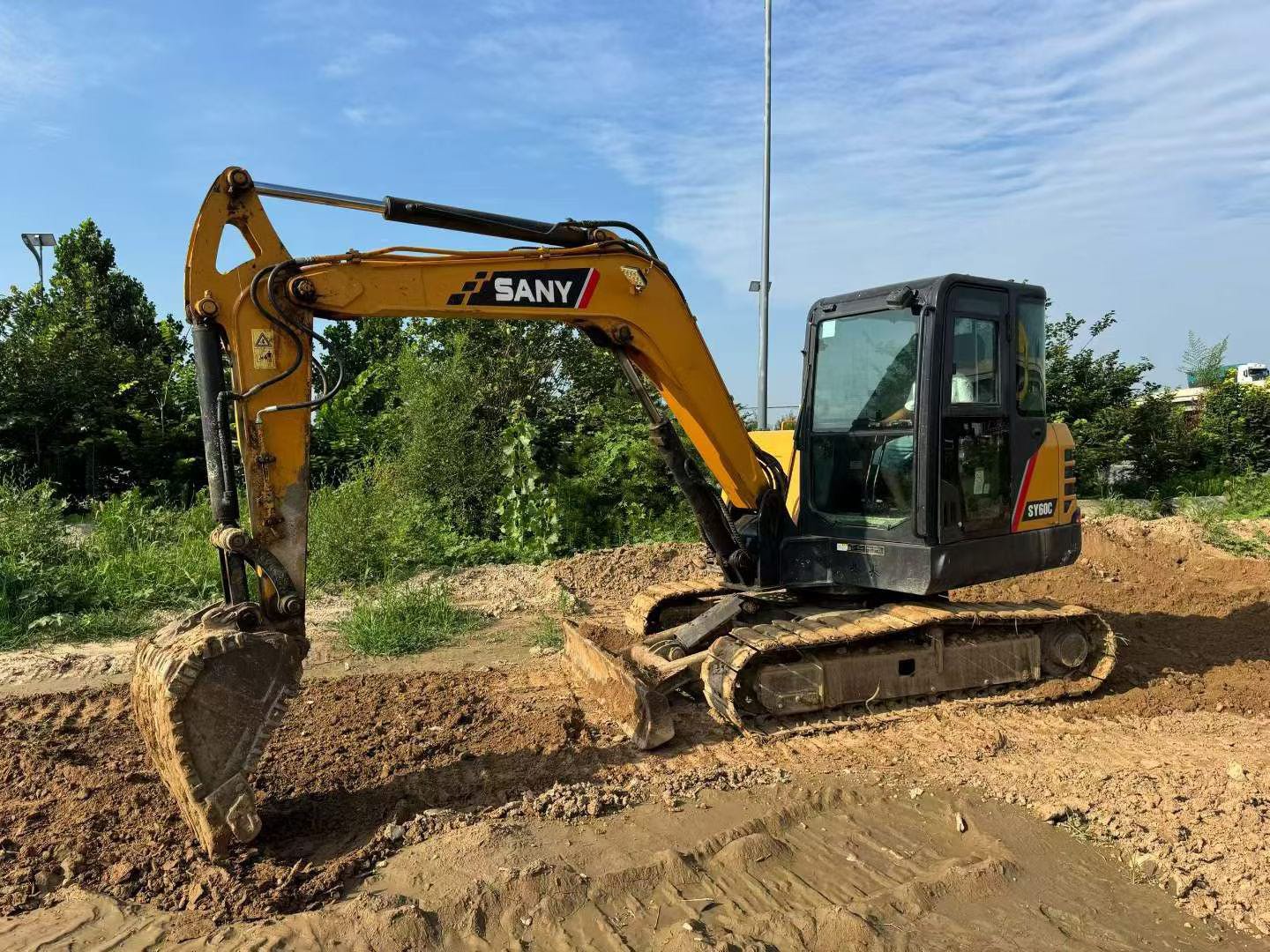

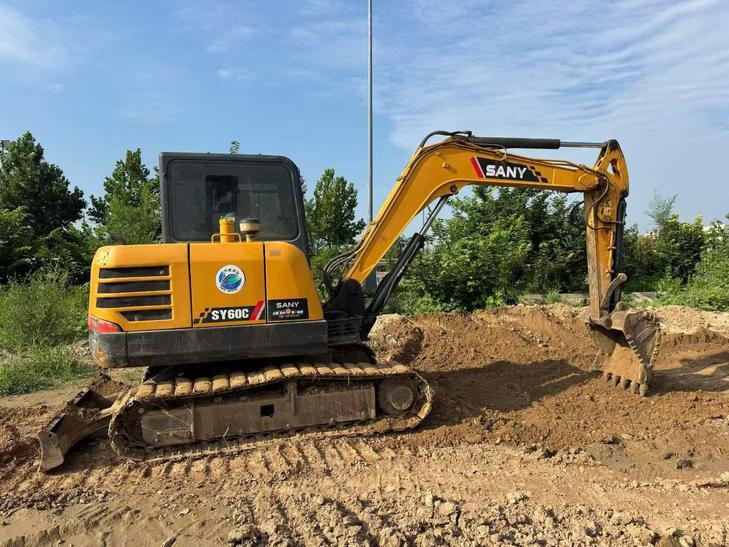

Discover the reliability and durability of the 2020 Sany 60C-9, a robust machine currently located in Hebei, China. This excavator is renowned for its Isuzu engine, which is celebrated for its sturdiness and endurance. The 60C-9 has been maintained meticulously, with no major overhauls or replacements needed; it remains in its original, impeccable condition. Its performance is consistently stable, ensuring that it can handle demanding tasks without any issues, such as oil leaks. Additionally, the air conditioning system functions perfectly, providing a comfortable working environment even in the hottest conditions.
- Year: 2020
- Brand: Sany
- Model: 60C-9
- Location: Hebei, China

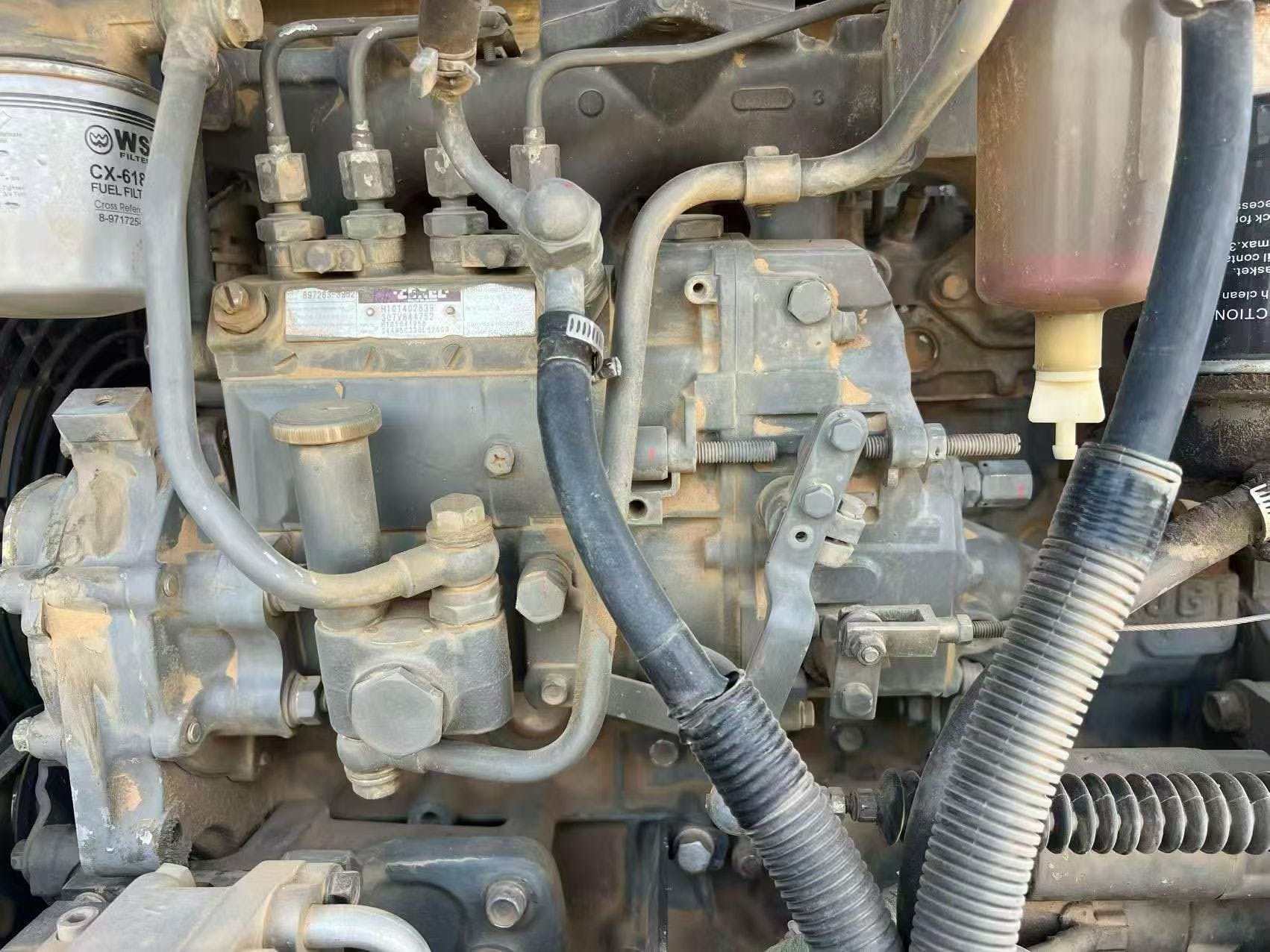

- Engine: Reliable Isuzu power
- Condition: Exceptionally well-maintained, no major repairs
- Performance: Stable and efficient, no oil leaks
- Features: Fully functional, effective air conditioning
| Specifications | Value |
|---|---|
| No. | 1113564 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 6,000 |
| Bucket capacity (m³) | 0.23 (optional 0.21) |
| Country of origin | Shanghai |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Isuzu 4JG1-NABGB-04-C2 |
| Rated power (kw/rpm) | 40.9/2100 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 191/1800 |
| Number of cylinders (PCS) | 4-cylinder |
| Displacement (L) | 3.059 |
| Working form | Four cylinder, four stroke, direct injection engine |
| Ground specific pressure (Kpa) | 30.7 |
| Rotation speed (rpm) | 9.6 |
| Climbing ability (%) | 70% / 35 ° |
| Bucket digging force (kN) | 45 |
| Rod digging force (kN) | 33 |
| Travel speed (km/h) | 4.22/2.25 |
| Total transport length (mm) | 5925 |
| Total transport width (mm) | 2005 |
| Total transport height (mm) | 2630 |
| Minimum ground clearance (mm) | 370 |
| Minimum turning radius of front working device (mm) | 2555 |
| Back end turning radius (mm) | 1640 |
| Onboard width (mm) | 1860 |
| Total track length (mm) | 2700 |
| Track gauge (mm) | 1600 |
| Track plate width (mm) | 400 |
| Total track width (mm) | 2000 |
| Maximum digging radius (mm) | 6090 |
| Maximum digging depth (mm) | 3770 |
| Maximum excavation height (mm) | 5735 |
| Maximum unloading height (mm) | 3975 |
| Maximum vertical digging depth (mm) | 3025 |
| Bulldozer lift or depth (mm) | Lift 300/ push 405 |
| Dodging plate width × height (mm) | Height 400 |
