Product Description

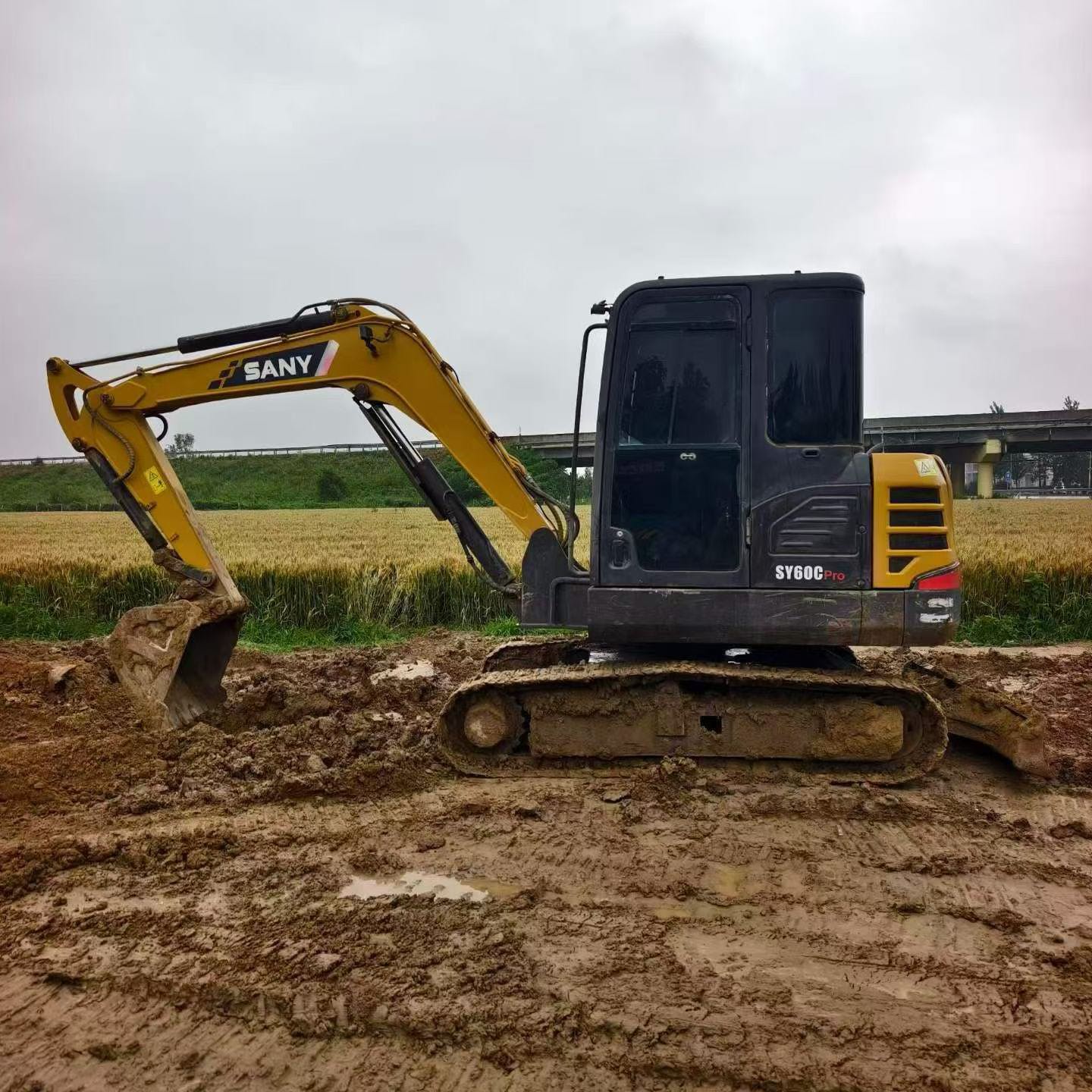

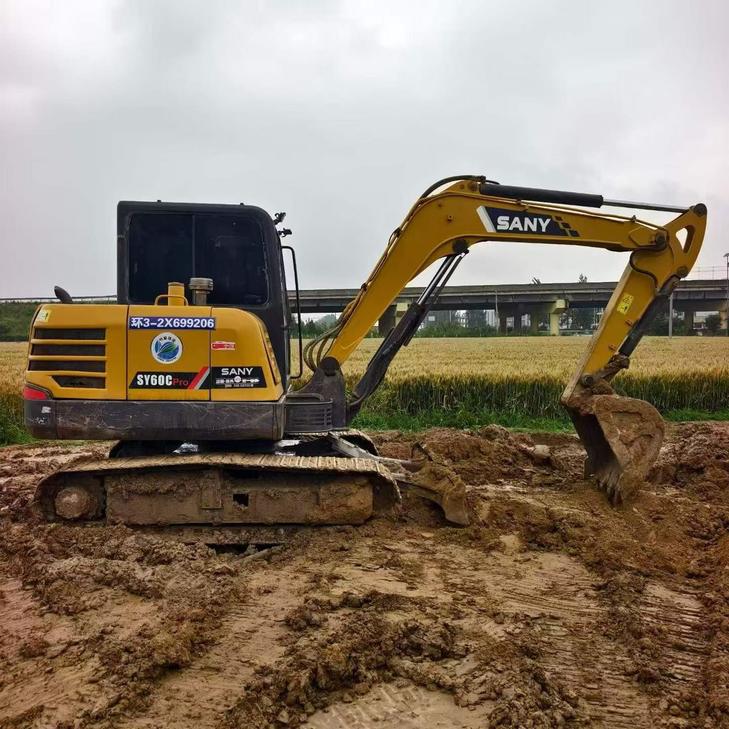

Discover the reliability and efficiency of the 2020 Sany 60C-9, a used heavy machine currently available in Hebei, China. This model is well-maintained, ensuring it remains in top condition with all features fully operational and ready for immediate use. The Sany 60C-9 is known for its robust performance and durability, making it an excellent choice for demanding industrial applications. With its air conditioning system providing a comfortable working environment, this machine ensures that operators can work efficiently even in challenging conditions. Regular maintenance has kept this equipment in pristine condition, resembling new machinery quality, and it is offered at a highly competitive price, making it a cost-effective solution for your business needs.
- Year: 2020
- Brand: Sany
- Model: 60C-9
- Location: Hebei, China
| Specifications | Value |
|---|---|
| No. | 1121705 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 6,000 |
| Bucket capacity (m³) | 0.23 (optional 0.21) |
| Country of origin | Shanghai |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

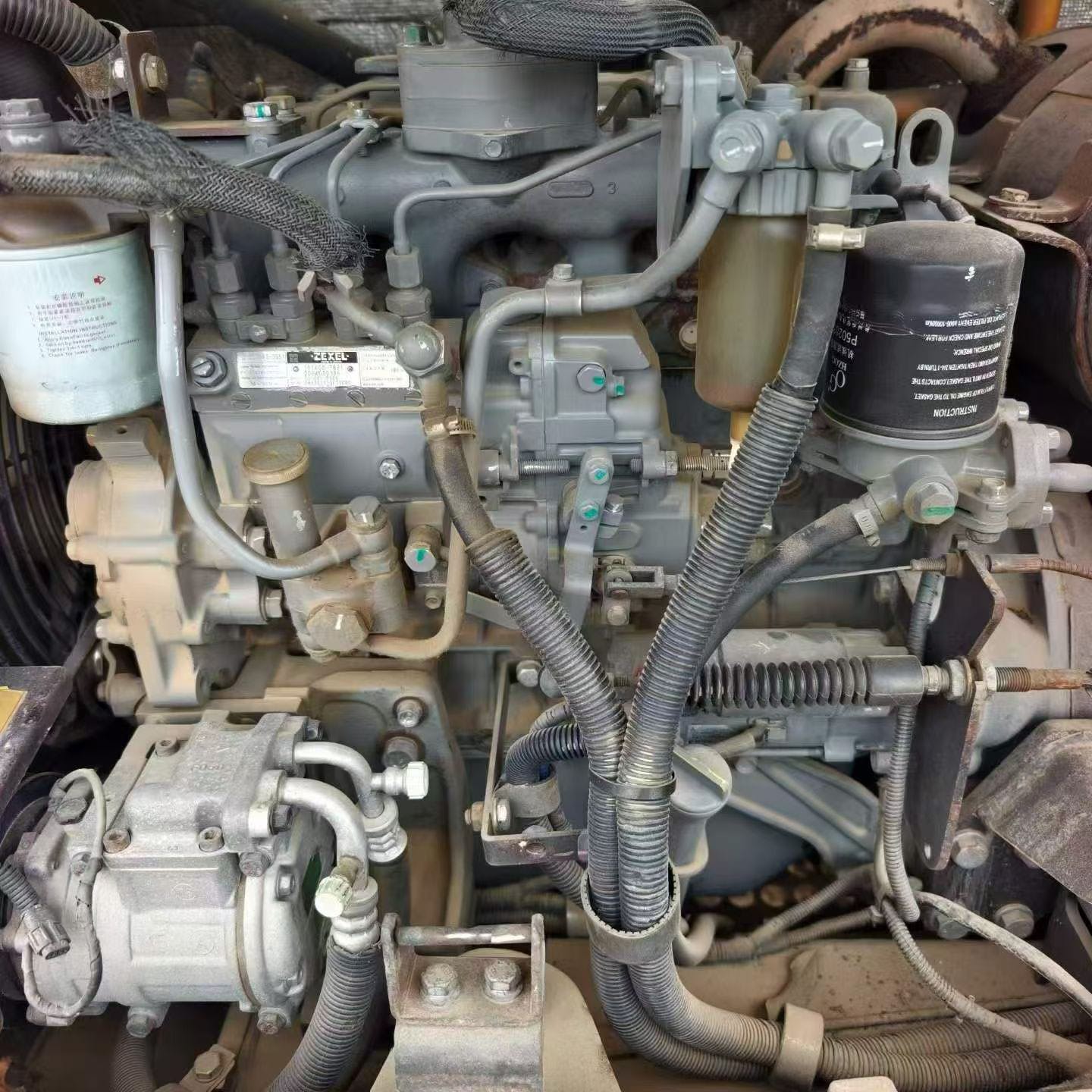

| Engine type | Isuzu 4JG1-NABGB-04-C2 |
| Rated power (kw/rpm) | 40.9/2100 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 191/1800 |
| Number of cylinders (PCS) | 4-cylinder |
| Displacement (L) | 3.059 |
| Working form | Four cylinder, four stroke, direct injection engine |
| Ground specific pressure (Kpa) | 30.7 |
| Rotation speed (rpm) | 9.6 |
| Climbing ability (%) | 70% / 35 ° |
| Bucket digging force (kN) | 45 |
| Rod digging force (kN) | 33 |
| Travel speed (km/h) | 4.22/2.25 |
| Total transport length (mm) | 5925 |
| Total transport width (mm) | 2005 |
| Total transport height (mm) | 2630 |
| Minimum ground clearance (mm) | 370 |
| Minimum turning radius of front working device (mm) | 2555 |
| Back end turning radius (mm) | 1640 |
| Onboard width (mm) | 1860 |
| Total track length (mm) | 2700 |
| Track gauge (mm) | 1600 |
| Track plate width (mm) | 400 |
| Total track width (mm) | 2000 |
| Maximum digging radius (mm) | 6090 |
| Maximum digging depth (mm) | 3770 |
| Maximum excavation height (mm) | 5735 |
| Maximum unloading height (mm) | 3975 |
| Maximum vertical digging depth (mm) | 3025 |
| Bulldozer lift or depth (mm) | Lift 300/ push 405 |
| Dodging plate width × height (mm) | Height 400 |
