Product Description

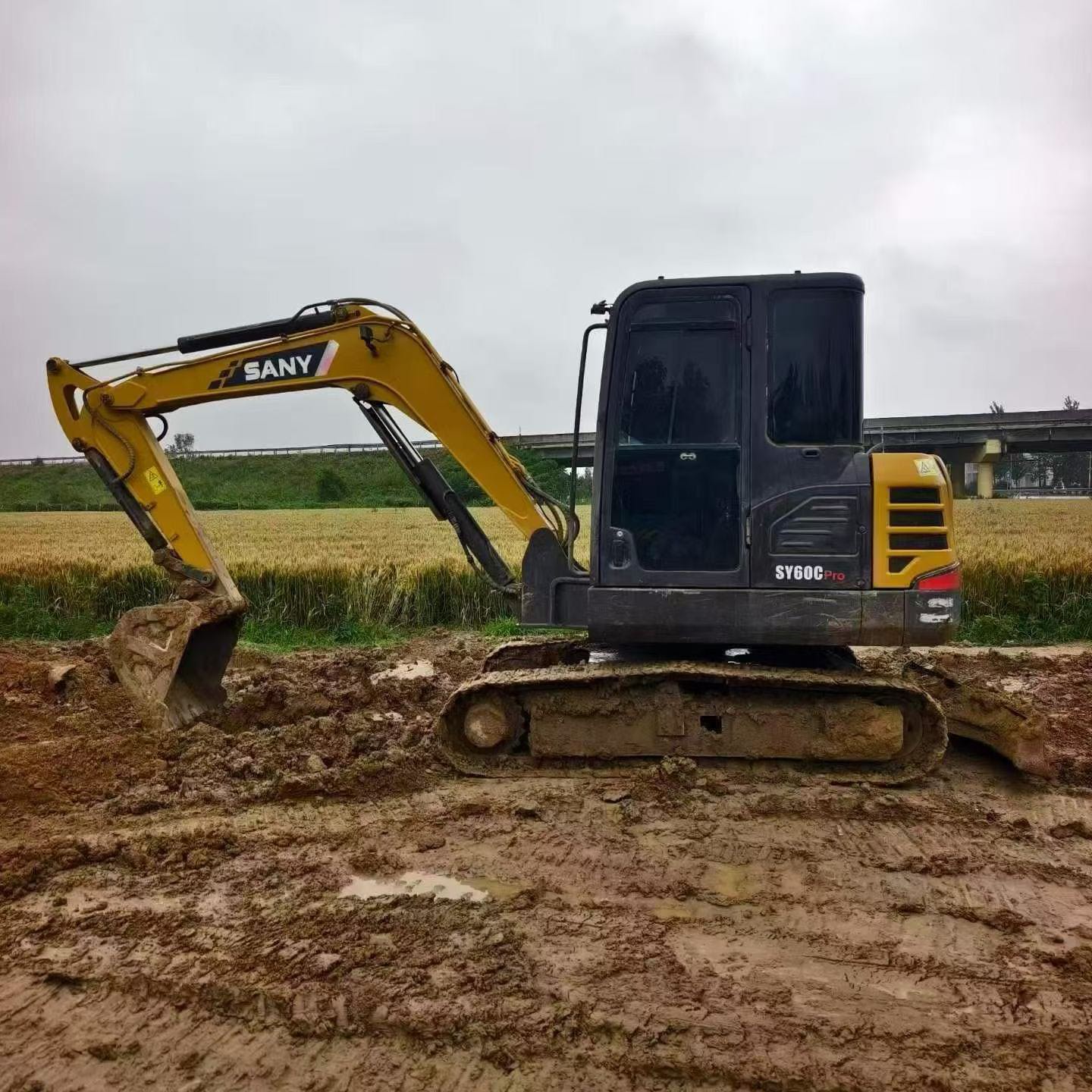

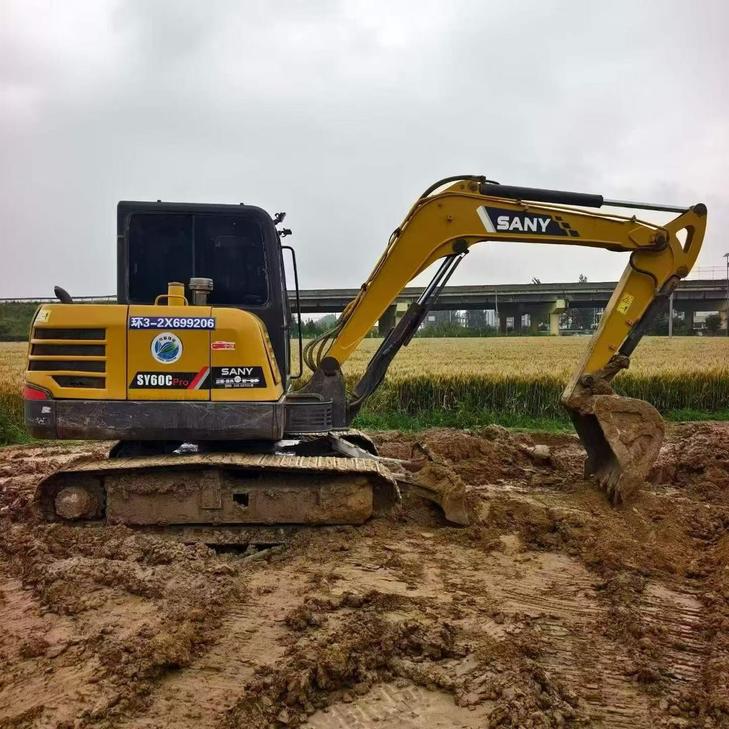

Discover the 2020 Sany 60C-9, a robust and reliable excavator available in Hebei, China. This machine is in excellent condition, boasting a well-maintained body and top-notch performance. The 60C-9 is equipped with an efficient air conditioning system, ensuring operator comfort even in the most demanding conditions. Known for its durability and precision, this excavator is ideal for various construction and excavation projects. Regular maintenance has kept it in prime condition, making it a highly dependable choice for your fleet. Experience the quality and reliability of this Sany model, ready to meet your industrial needs.
- Year: 2020
- Brand: Sany
- Model: 60C-9
- Location: Hebei, China
- Excellent overall condition and performance
- Efficient air conditioning system
- Regularly maintained and in prime working condition
| Specifications | Value |
|---|---|
| No. | 1129364 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 6,000 |
| Bucket capacity (m³) | 0.23 (optional 0.21) |
| Country of origin | Shanghai |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

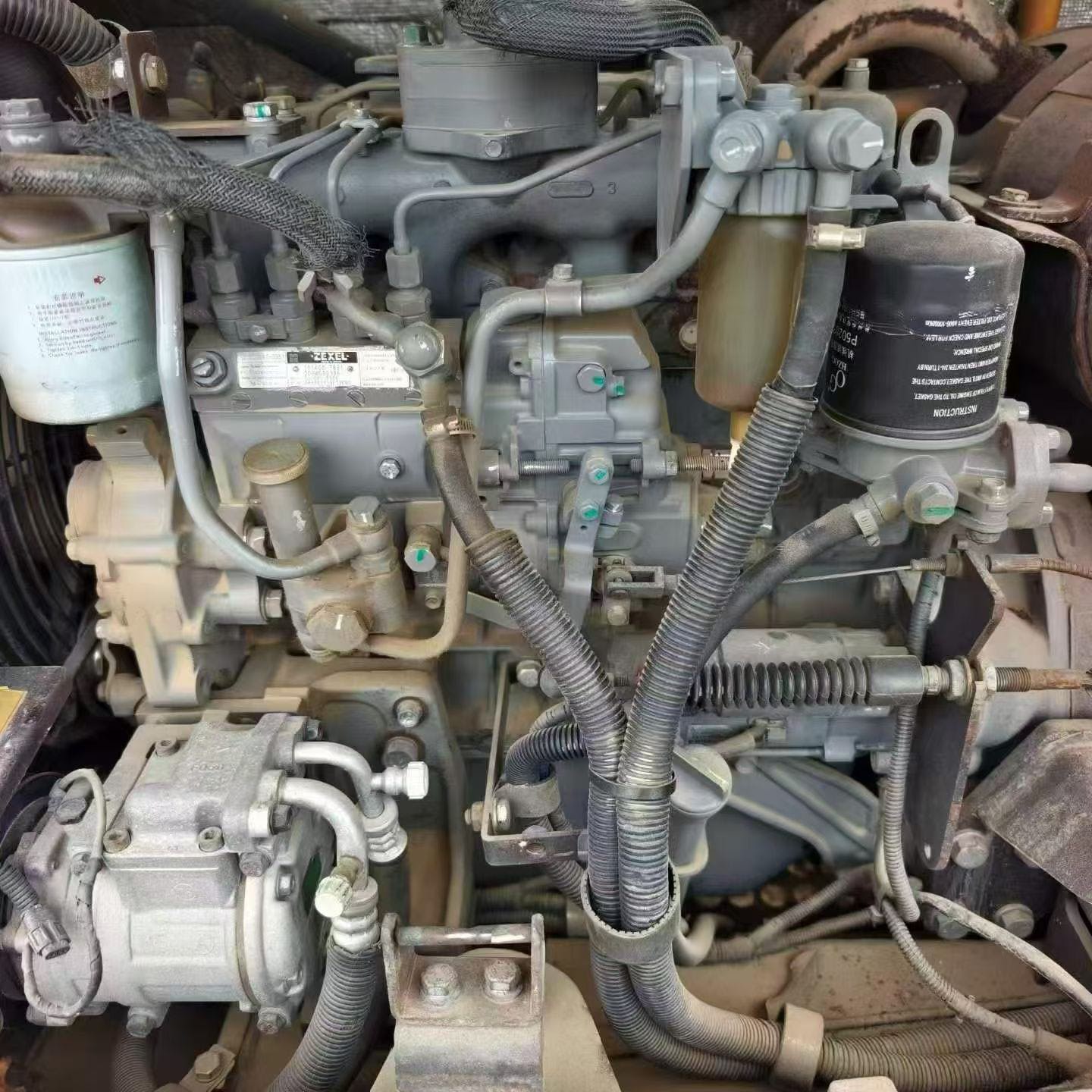

| Engine type | Isuzu 4JG1-NABGB-04-C2 |
| Rated power (kw/rpm) | 40.9/2100 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 191/1800 |
| Number of cylinders (PCS) | 4-cylinder |
| Displacement (L) | 3.059 |
| Working form | Four cylinder, four stroke, direct injection engine |
| Ground specific pressure (Kpa) | 30.7 |
| Rotation speed (rpm) | 9.6 |
| Climbing ability (%) | 70% / 35 ° |
| Bucket digging force (kN) | 45 |
| Rod digging force (kN) | 33 |
| Travel speed (km/h) | 4.22/2.25 |
| Total transport length (mm) | 5925 |
| Total transport width (mm) | 2005 |
| Total transport height (mm) | 2630 |
| Minimum ground clearance (mm) | 370 |
| Minimum turning radius of front working device (mm) | 2555 |
| Back end turning radius (mm) | 1640 |
| Onboard width (mm) | 1860 |
| Total track length (mm) | 2700 |
| Track gauge (mm) | 1600 |

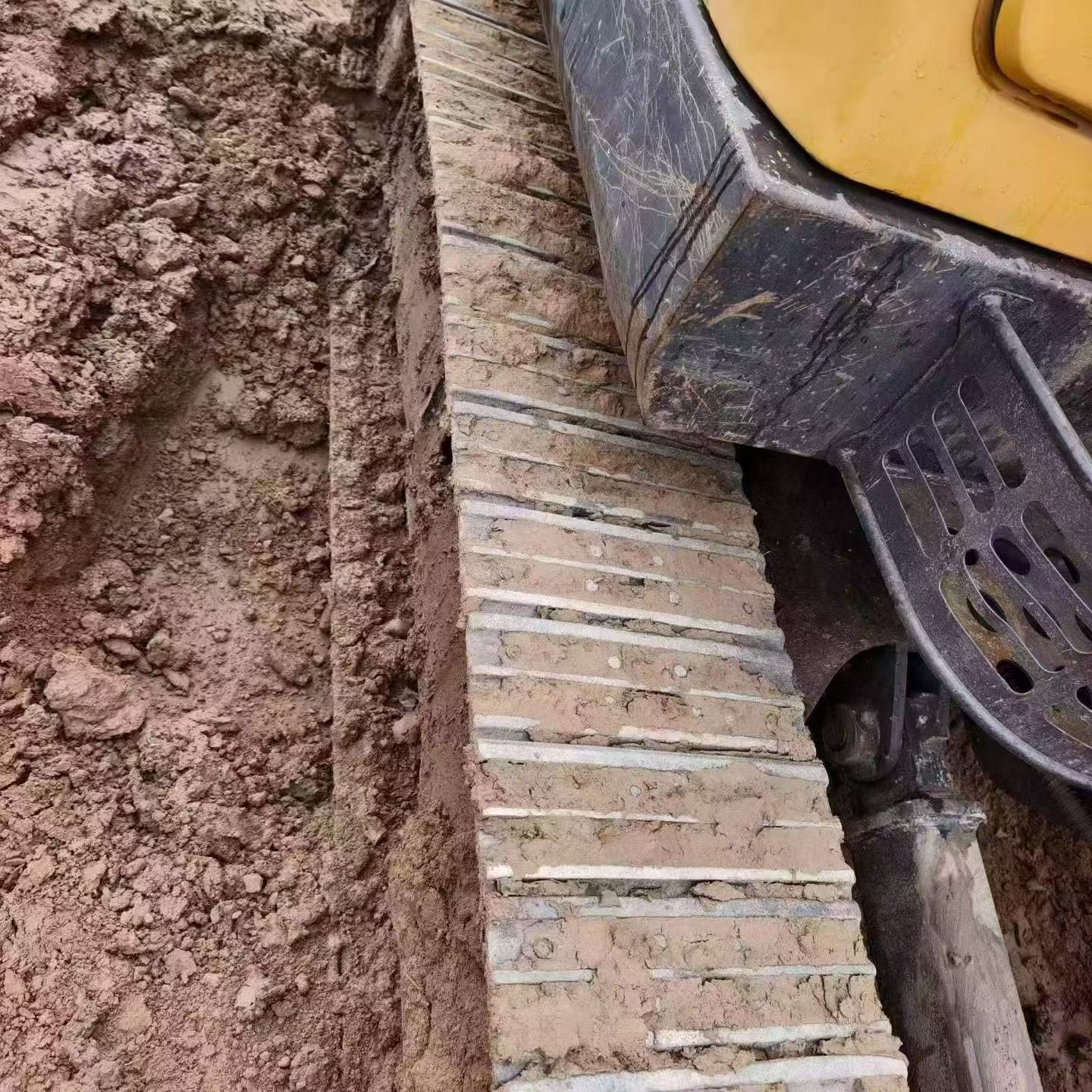

| Track plate width (mm) | 400 |
| Total track width (mm) | 2000 |
| Maximum digging radius (mm) | 6090 |
| Maximum digging depth (mm) | 3770 |
| Maximum excavation height (mm) | 5735 |
| Maximum unloading height (mm) | 3975 |
| Maximum vertical digging depth (mm) | 3025 |
| Bulldozer lift or depth (mm) | Lift 300/ push 405 |
| Dodging plate width × height (mm) | Height 400 |
