Product Description

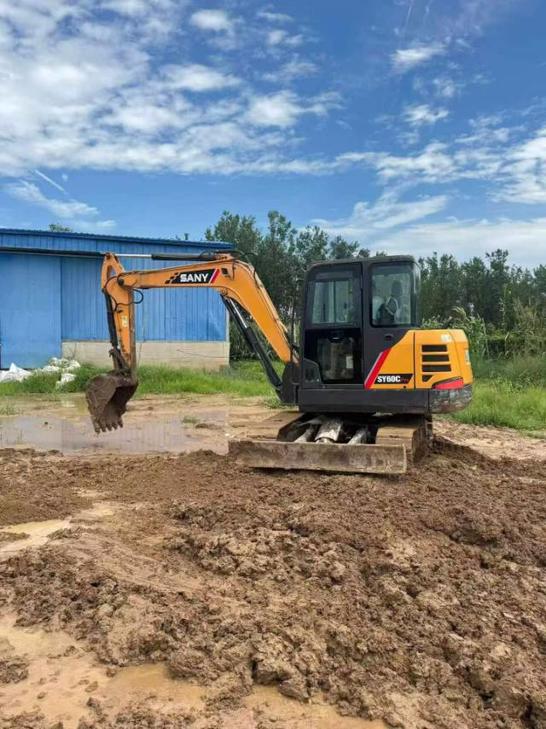

Discover the Sany 60C-9, a robust and reliable excavator from 2020, currently available in Peking, China. This machine has been meticulously maintained, with under 1,000 operational hours, ensuring it is in excellent condition. The tracks are nearly new, maintaining about 90% of their original integrity, and all major components are in top-notch condition, free from any leaks. Ready to be deployed immediately upon purchase, this Sany 60C-9 is an economical choice for your construction needs, offering a cost-effective solution without compromising on performance.
- Year: 2020
- Brand: Sany
- Model: 60C-9
- Location: Peking, China
- Operational Hours: Under 1,000
- Condition: Excellent, with nearly new tracks and leak-free components
| Specifications | Value |
|---|---|
| No. | 1136049 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 6,000 |
| Bucket capacity (m³) | 0.23 (optional 0.21) |
| Country of origin | Shanghai |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Isuzu 4JG1-NABGB-04-C2 |
| Rated power (kw/rpm) | 40.9/2100 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 191/1800 |
| Number of cylinders (PCS) | 4-cylinder |
| Displacement (L) | 3.059 |
| Working form | Four cylinder, four stroke, direct injection engine |
| Ground specific pressure (Kpa) | 30.7 |
| Rotation speed (rpm) | 9.6 |
| Climbing ability (%) | 70% / 35 ° |
| Bucket digging force (kN) | 45 |
| Rod digging force (kN) | 33 |
| Travel speed (km/h) | 4.22/2.25 |
| Total transport length (mm) | 5925 |
| Total transport width (mm) | 2005 |
| Total transport height (mm) | 2630 |
| Minimum ground clearance (mm) | 370 |
| Minimum turning radius of front working device (mm) | 2555 |
| Back end turning radius (mm) | 1640 |
| Onboard width (mm) | 1860 |
| Total track length (mm) | 2700 |
| Track gauge (mm) | 1600 |
| Track plate width (mm) | 400 |
| Total track width (mm) | 2000 |
| Maximum digging radius (mm) | 6090 |
| Maximum digging depth (mm) | 3770 |
| Maximum excavation height (mm) | 5735 |
| Maximum unloading height (mm) | 3975 |
| Maximum vertical digging depth (mm) | 3025 |
| Bulldozer lift or depth (mm) | Lift 300/ push 405 |
| Dodging plate width × height (mm) | Height 400 |
