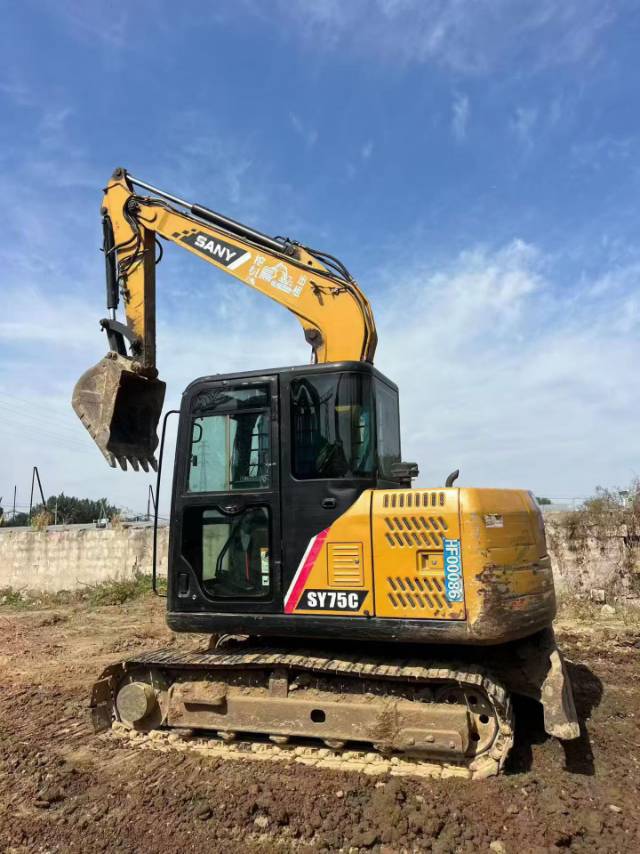

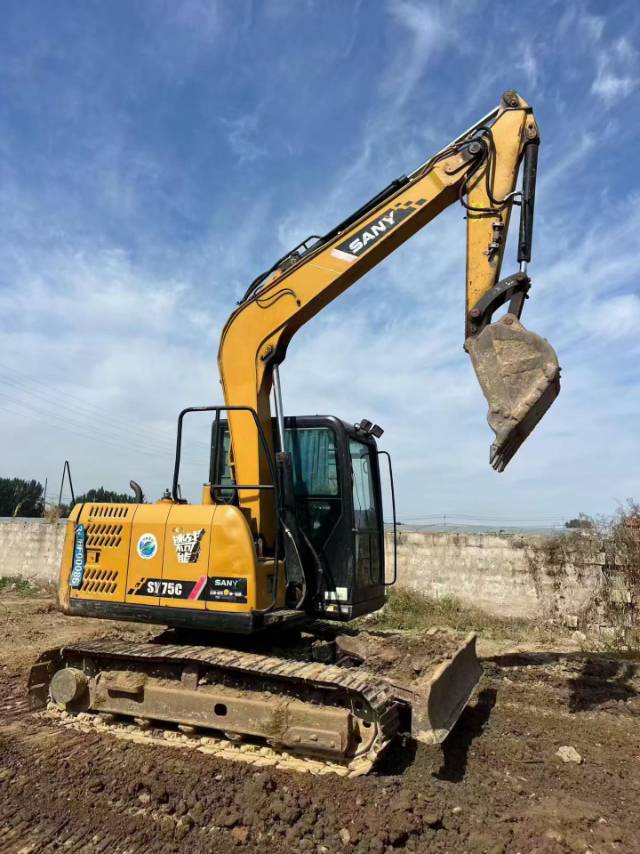

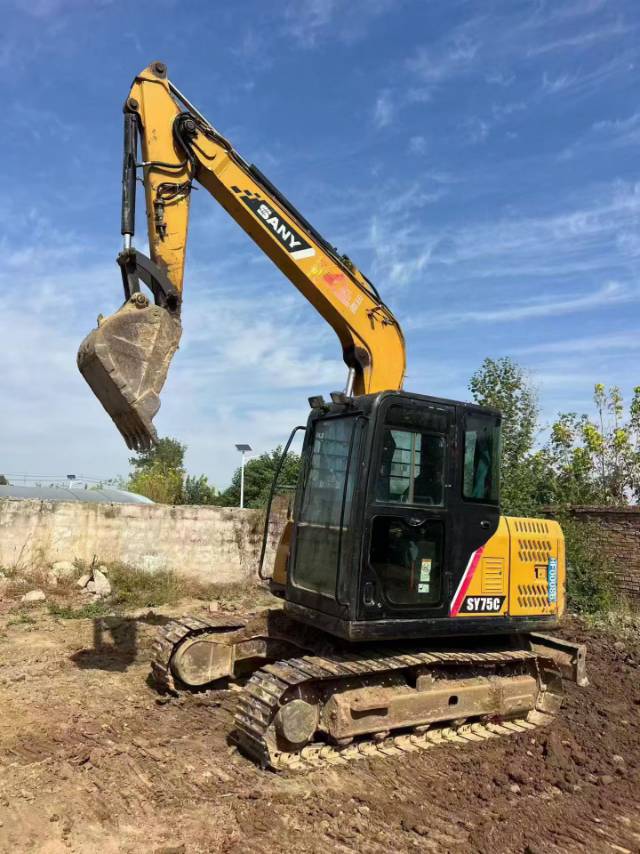

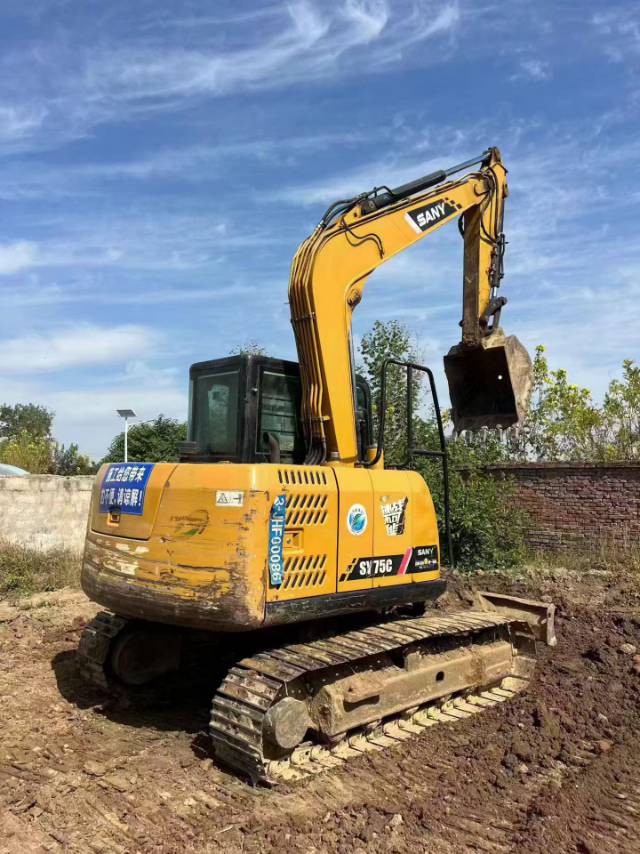

2018 Sany 75C-9

1/9
Buy Sany 75C-9 Used Excavator / 1
Buy Sany 75C-9 Used Excavator / 2
Buy Sany 75C-9 Used Excavator / 3
Buy Sany 75C-9 Used Excavator / 4
Buy Sany 75C-9 Used Excavator / 5
Buy Sany 75C-9 Used Excavator / 6
Buy Sany 75C-9 Used Excavator / 7
Buy Sany 75C-9 Used Excavator / 8

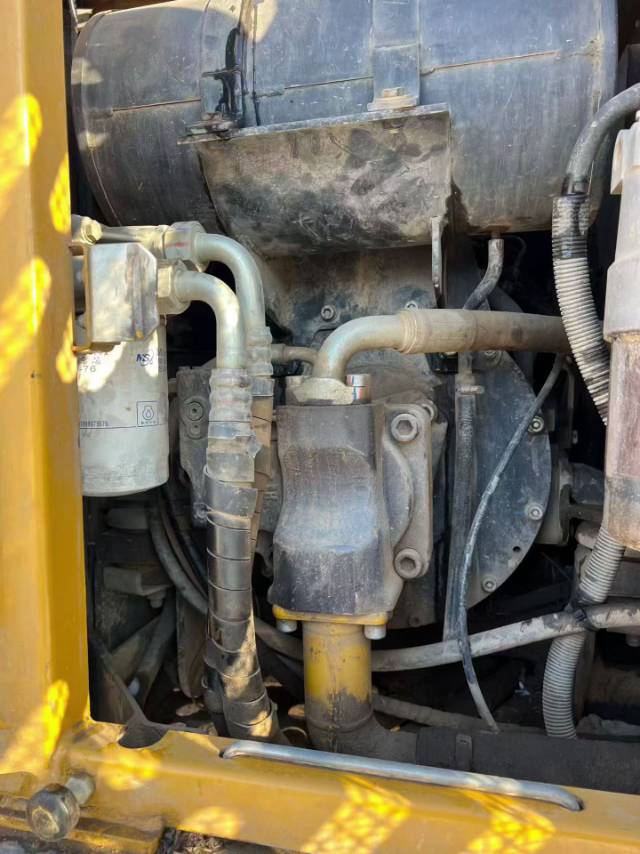

Buy Sany 75C-9 Used Excavator / 9

Product Description

This 2018 Sany 75C-9 excavator represents a well-maintained addition to any construction or earthmoving fleet. Operating under China III emission standards, this machine comes from a single owner who has prioritized proper maintenance throughout its service life. The engine, hydraulic pump, and multi-way valve—the three critical components—remain in excellent original condition with no repair history, demonstrating careful operation and regular servicing.

Currently located in Beijing, China, this unit is available with complete documentation and competitive pricing. The machine's original configuration has been preserved, reflecting the owner's commitment to systematic maintenance protocols.

  • Year: 2018
  • Model: Sany 75C-9
  • Emission Standard: China III
  • Ownership: Single owner
  • Location: Beijing, China
  • Documentation: Complete

Detailed photos and video documentation available upon request. Suitable for inspection at any time.

SpecificationsValue
No.1054988
Tonnage (tons)7
Working weight (kg)7280
Bucket capacity (m³)0.28 (optional 0.16 ~ 0.32)
Country of originShanghai, China
powerTraditional power
manufacturerMade in China
bucketbackhoe

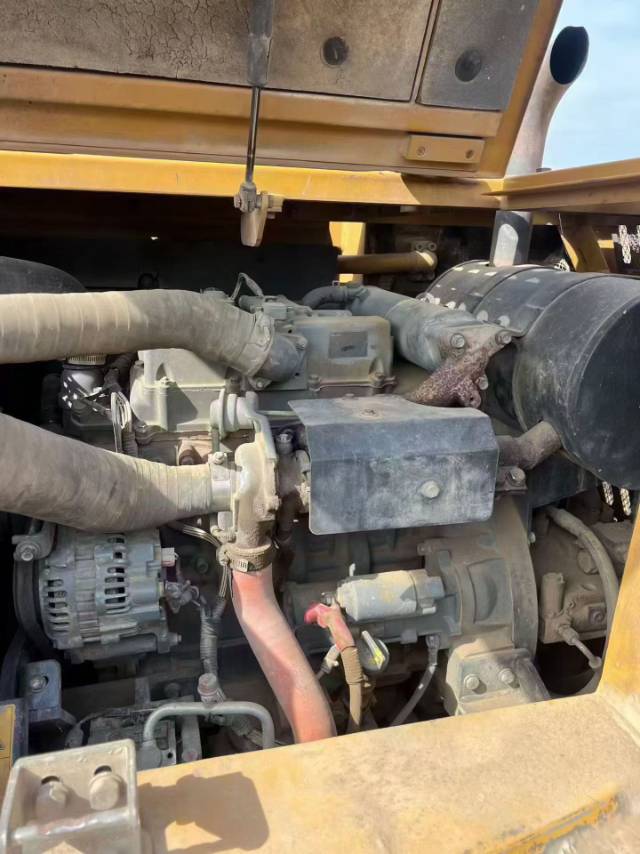

Engine typeCC-4JG1PAC
Rated power (kw/rpm)40.9/2100
Cooling modewater-cooling
Number of cylinders (PCS)four-cylinder
Working formFour-cylinder four-stroke direct injection diesel engine
Ground specific pressure (Kpa)33
Rotation speed (rpm)11.5
Climbing ability (%)70% / 35 °
Bucket digging force (kN)56
Rod digging force (kN)38
Travel speed (km/h)4.4/2.4
Maximum flow of main pump (l/min)149
Traveling Hydraulic Circuit (Mpa)26
Rotary Hydraulic Circuit (Mpa)21.6
Control Hydraulic Circuit (Mpa)3.6
Hydraulic crushing pipeline is standardno
Total transport length (mm)6120
Total transport width (mm)2220
Total transport height (mm)2720
Minimum ground clearance (mm)380
Back end turning radius (mm)1720
Onboard width (mm)2040
Total track length (mm)2820
Track gauge (mm)1750
Track plate width (mm)450
Total track width (mm)2220
Maximum digging radius (mm)6240
Maximum digging depth (mm)4020
Maximum excavation height (mm)7060
Maximum unloading height (mm)5155
Maximum vertical digging depth (mm)3290
Bulldozer lift or depth (mm)Lift 350/ depth 360
Dodging plate width × height (mm)Altitude 405
see more

Overview

No.1054988

Brand Name:

Sany

Model Number:

75C-9

Year:

2018

Location:

Peking China

Pub Date
