Product Description

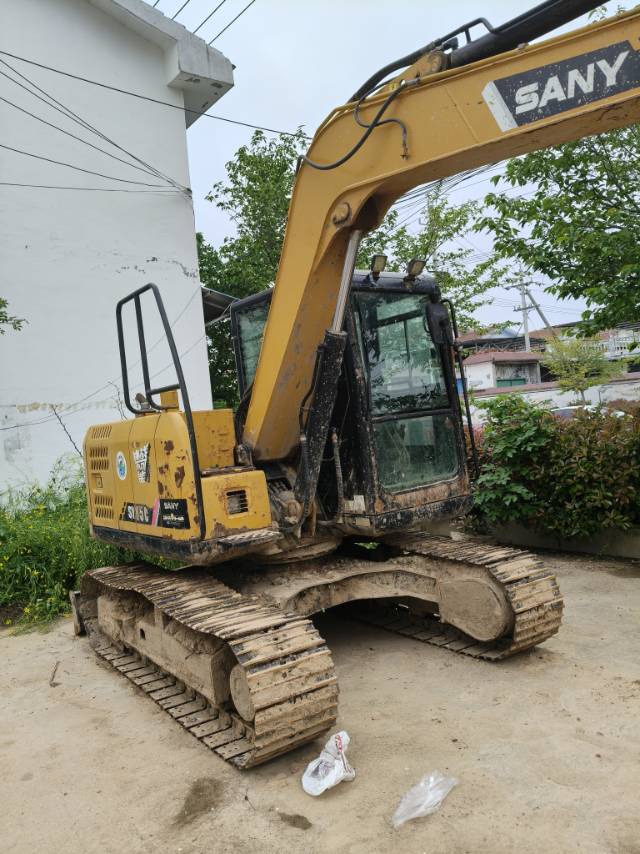

Discover the reliability and performance of the 2018 Sany 75C-9, available for purchase from Henan, China. This used excavator is renowned for its robust construction and operational efficiency, making it a valuable asset for any construction or excavation project. With a reputation for delivering excellent performance, the Sany 75C-9 is designed to handle tough jobs with ease, ensuring that your projects are completed on time and to the highest standards.
- Year: 2018
- Brand: Sany
- Model: 75C-9
- Location: Henan, China
| Specifications | Value |
|---|---|
| No. | 1056757 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7280 |
| Bucket capacity (m³) | 0.28 (optional 0.16 ~ 0.32) |
| Country of origin | Shanghai, China |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | CC-4JG1PAC |
| Rated power (kw/rpm) | 40.9/2100 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | four-cylinder |
| Working form | Four-cylinder four-stroke direct injection diesel engine |
| Ground specific pressure (Kpa) | 33 |
| Rotation speed (rpm) | 11.5 |
| Climbing ability (%) | 70% / 35 ° |
| Bucket digging force (kN) | 56 |
| Rod digging force (kN) | 38 |
| Travel speed (km/h) | 4.4/2.4 |
| Maximum flow of main pump (l/min) | 149 |
| Traveling Hydraulic Circuit (Mpa) | 26 |
| Rotary Hydraulic Circuit (Mpa) | 21.6 |
| Control Hydraulic Circuit (Mpa) | 3.6 |
| Hydraulic crushing pipeline is standard | no |
| Total transport length (mm) | 6120 |
| Total transport width (mm) | 2220 |
| Total transport height (mm) | 2720 |
| Minimum ground clearance (mm) | 380 |
| Back end turning radius (mm) | 1720 |
| Onboard width (mm) | 2040 |
| Total track length (mm) | 2820 |
| Track gauge (mm) | 1750 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2220 |
| Maximum digging radius (mm) | 6240 |
| Maximum digging depth (mm) | 4020 |
| Maximum excavation height (mm) | 7060 |
| Maximum unloading height (mm) | 5155 |
| Maximum vertical digging depth (mm) | 3290 |
| Bulldozer lift or depth (mm) | Lift 350/ depth 360 |
| Dodging plate width × height (mm) | Altitude 405 |
