Product Description
This 2020 Sany 75C-9 hydraulic excavator, currently located in Sichuan, China, presents a solid opportunity for buyers seeking reliable mid-size earthmoving equipment. With approximately 7,000 operational hours recorded on the original meter, this machine demonstrates moderate use over its service life. The unit features the high-specification Kawasaki hydraulic system, known for enhanced performance and durability in demanding applications.
Key features include:
- Year of Manufacture: 2020
- Genuine recorded hours: ~7,000

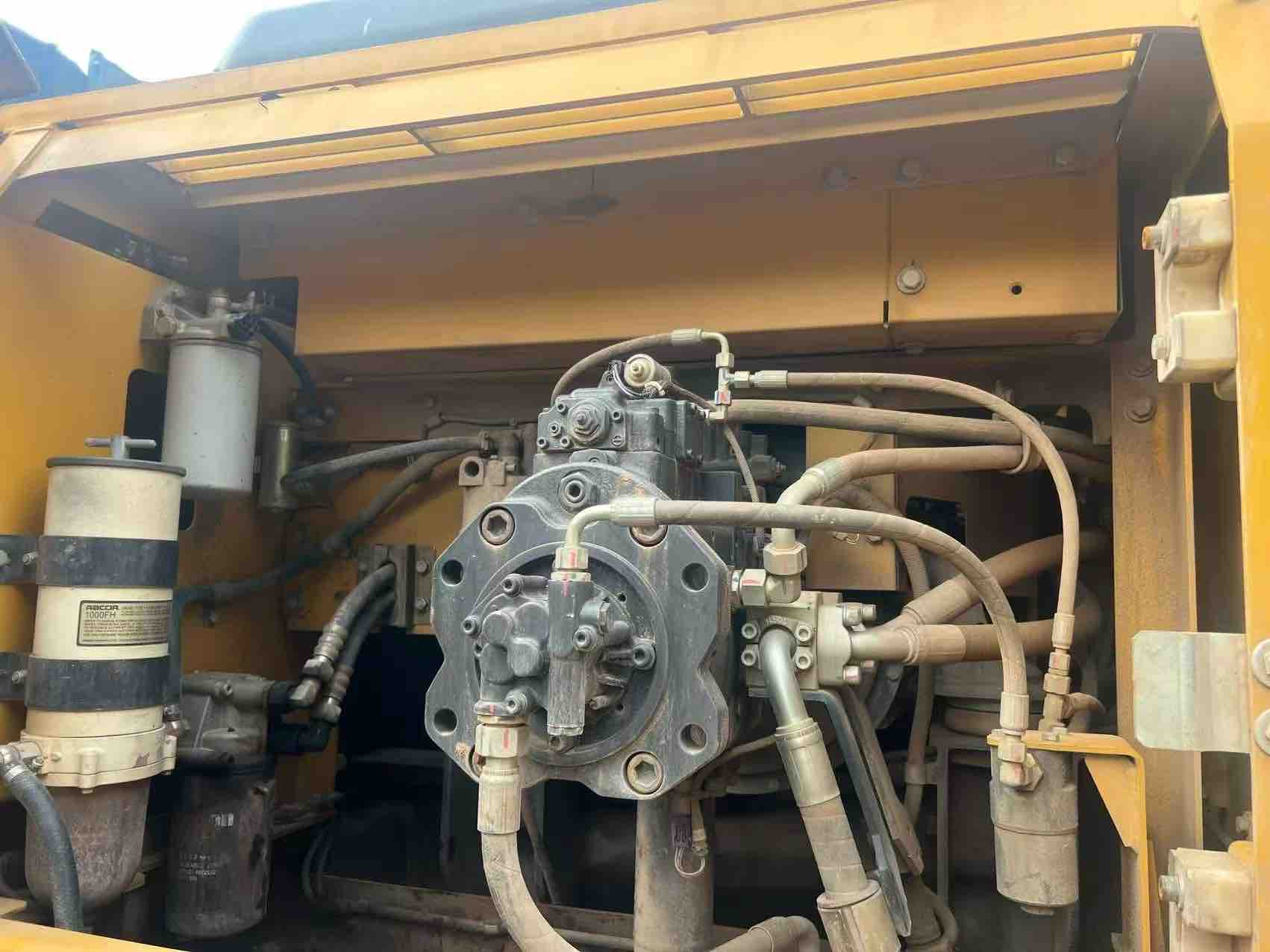

- Kawasaki premium hydraulic configuration
- Local Chinese market unit
- Well-maintained operational condition
This excavator is suitable for construction, excavation, and material handling operations. The machine is available for immediate inspection and purchase. Contact us for detailed specifications, current photographs, and export arrangements to your destination.
| Specifications | Value |
|---|---|
| No. | 1054243 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7280 |
| Bucket capacity (m³) | 0.28 (optional 0.16 ~ 0.32) |
| Country of origin | Shanghai, China |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | CC-4JG1PAC |
| Rated power (kw/rpm) | 40.9/2100 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | four-cylinder |
| Working form | Four-cylinder four-stroke direct injection diesel engine |
| Ground specific pressure (Kpa) | 33 |
| Rotation speed (rpm) | 11.5 |
| Climbing ability (%) | 70% / 35 ° |
| Bucket digging force (kN) | 56 |
| Rod digging force (kN) | 38 |
| Travel speed (km/h) | 4.4/2.4 |
| Maximum flow of main pump (l/min) | 149 |
| Traveling Hydraulic Circuit (Mpa) | 26 |
| Rotary Hydraulic Circuit (Mpa) | 21.6 |
| Control Hydraulic Circuit (Mpa) | 3.6 |
| Hydraulic crushing pipeline is standard | no |
| Total transport length (mm) | 6120 |
| Total transport width (mm) | 2220 |
| Total transport height (mm) | 2720 |
| Minimum ground clearance (mm) | 380 |
| Back end turning radius (mm) | 1720 |
| Onboard width (mm) | 2040 |
| Total track length (mm) | 2820 |
| Track gauge (mm) | 1750 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2220 |
| Maximum digging radius (mm) | 6240 |
| Maximum digging depth (mm) | 4020 |
| Maximum excavation height (mm) | 7060 |
| Maximum unloading height (mm) | 5155 |
| Maximum vertical digging depth (mm) | 3290 |
| Bulldozer lift or depth (mm) | Lift 350/ depth 360 |
| Dodging plate width × height (mm) | Altitude 405 |
