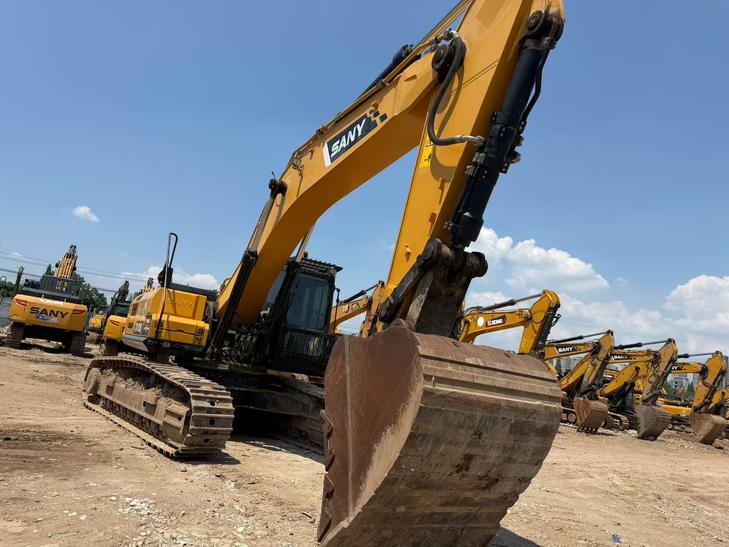

2020 Sany 75C-9

1/8
Buy Sany 75C-9 Used Excavator / 1
Buy Sany 75C-9 Used Excavator / 2
Buy Sany 75C-9 Used Excavator / 3
Buy Sany 75C-9 Used Excavator / 4
Buy Sany 75C-9 Used Excavator / 5
Buy Sany 75C-9 Used Excavator / 6
Buy Sany 75C-9 Used Excavator / 7
Buy Sany 75C-9 Used Excavator / 8

Product Description

Discover the reliability and efficiency of the 2020 Sany 75C-9, now available in Sichuan, China. This used excavator has a proven track record with over 6,000 genuine operational hours, making it a robust choice for your construction needs. Known for its durability and performance, the Sany 75C-9 is designed to handle a variety of tasks with ease, ensuring that your projects stay on schedule and within budget. Ideal for medium to large-scale operations, this machine offers a combination of power, precision, and versatility.

  • Year: 2020
  • Brand: Sany
  • Model: 75C-9
  • Location: Sichuan, China

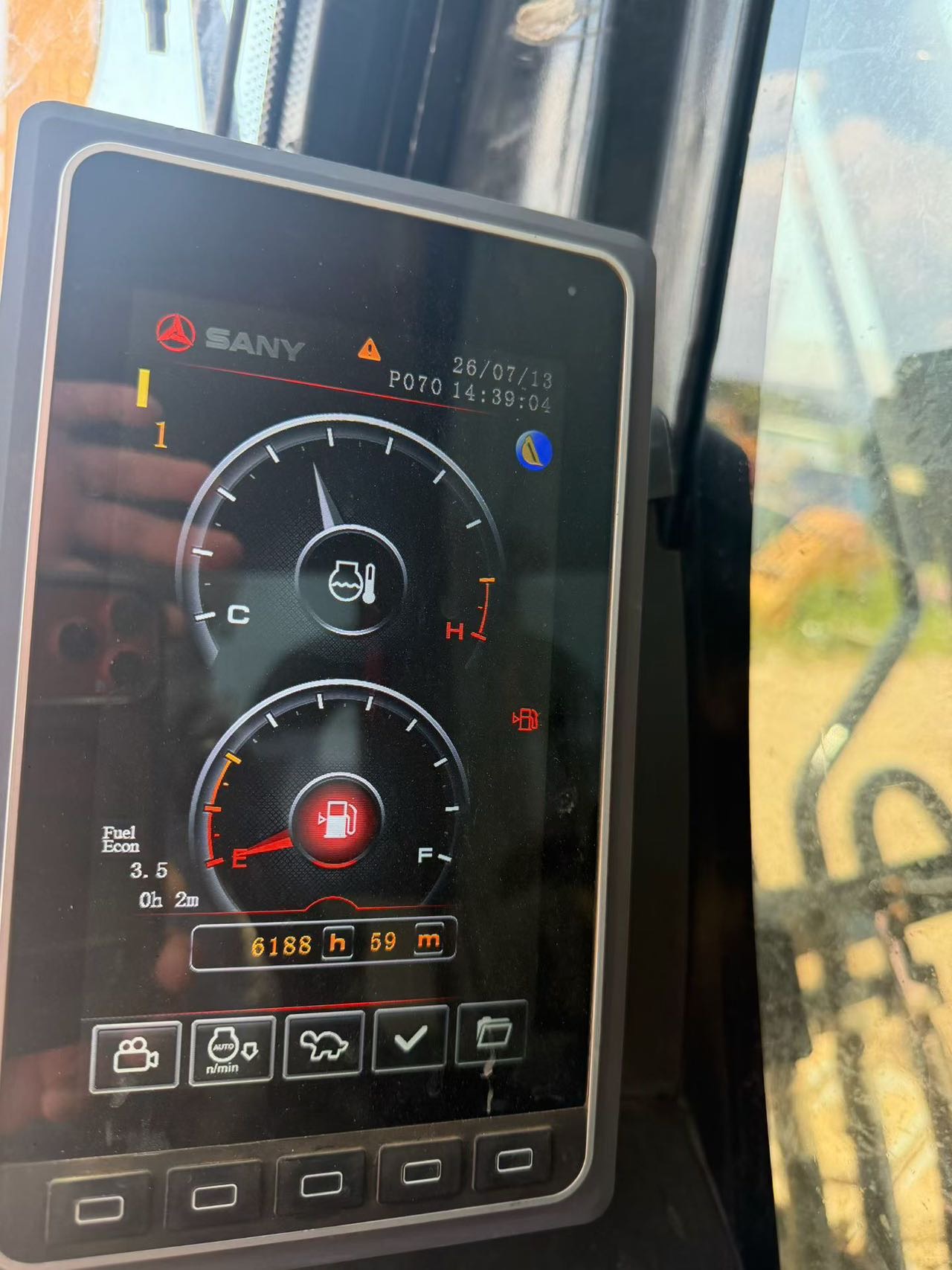

  • Operational Hours: Over 6,000
SpecificationsValue
No.1106530
Tonnage (tons)37
Working weight (kg)37500
Bucket capacity (m³)1.7-2.4 (1.9)
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeGH-6HK1XKSC
Rated power (kw/rpm)212/2000
Cooling modewater-cooling
Maximum torque (N.m)1080/1500
Number of cylinders (PCS)6
Displacement (L)7.79
Working formDirect injection, 6 cylinders, 4 strokes, turbocharged, water cooled
Ground specific pressure (Kpa)68.8
Rotation speed (rpm)8.8
Climbing ability (%)70
Bucket digging force (kN)235
Rod digging force (kN)210
Travel speed (km/h)5.5/3.5
Fuel Tank (L)540
Engine Oil changes (L)36
Total transport length (mm)11425
Total transport width (mm)3190
Total transport height (mm)3825
Full cab height (mm)3440
Minimum ground clearance (mm)550
Minimum turning radius of front working device (mm)4390
Back end turning radius (mm)3610
Onboard width (mm)3230
Total track length (mm)5100
Track gauge (mm)2590
Track plate width (mm)600
Track ground length (mm)4140
Maximum height at minimum turning radius (mm)8930
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)9
Number of track plates (single side) (PCS)49
Maximum digging radius (mm)10750
Maximum digging depth (mm)7155
Maximum excavation height (mm)9920
Maximum unloading height (mm)7010
Maximum vertical digging depth (mm)5125
see more

Overview

No.1106530

Brand Name:

Sany

Model Number:

75C-9

Year:

2020

Location:

Sichuan China

Pub Date
