Product Description

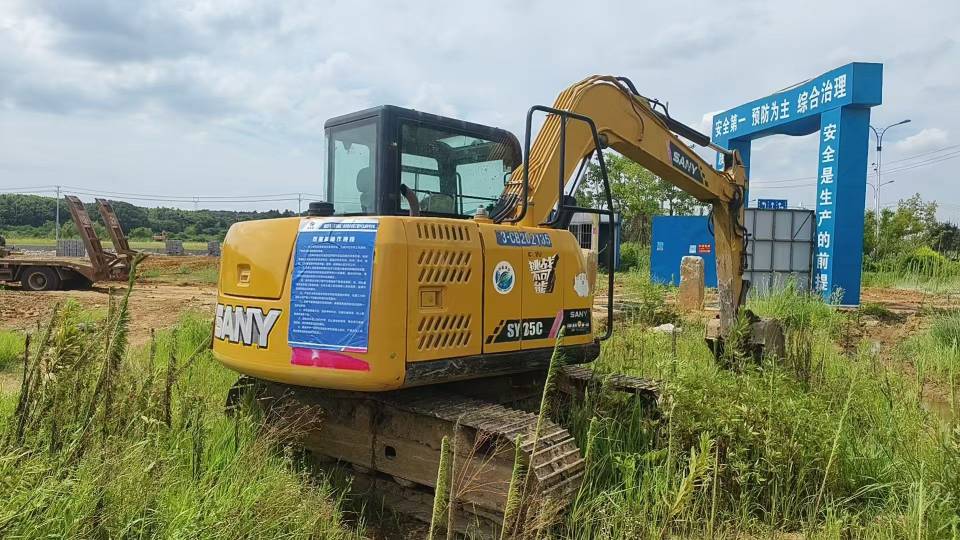

Discover the reliability and performance of the 2020 Sany 75C-9, a robust excavator available for sale in Anhui, China. This machine is designed to meet the rigorous demands of various construction and excavation projects, ensuring efficiency and durability on the job site. Ideal for contractors and industrial operators, the Sany 75C-9 offers a blend of power and precision, making it a valuable addition to your fleet.
- Year: 2020
- Brand: Sany
- Model: 75C-9
- Location: Anhui, China
- Detailed images available upon request
- Guaranteed genuine equipment
We invite knowledgeable buyers to discuss pricing and further details. Contact us today to learn more about this high-quality, used excavator and how it can enhance your operations.
| Specifications | Value |
|---|---|
| No. | 1129677 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7280 |
| Bucket capacity (m³) | 0.28 (optional 0.16 ~ 0.32) |
| Country of origin | Shanghai, China |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | CC-4JG1PAC |
| Rated power (kw/rpm) | 40.9/2100 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | four-cylinder |
| Working form | Four-cylinder four-stroke direct injection diesel engine |
| Ground specific pressure (Kpa) | 33 |
| Rotation speed (rpm) | 11.5 |
| Climbing ability (%) | 70% / 35 ° |
| Bucket digging force (kN) | 56 |
| Rod digging force (kN) | 38 |
| Travel speed (km/h) | 4.4/2.4 |
| Maximum flow of main pump (l/min) | 149 |
| Traveling Hydraulic Circuit (Mpa) | 26 |
| Rotary Hydraulic Circuit (Mpa) | 21.6 |
| Control Hydraulic Circuit (Mpa) | 3.6 |
| Hydraulic crushing pipeline is standard | no |
| Total transport length (mm) | 6120 |
| Total transport width (mm) | 2220 |
| Total transport height (mm) | 2720 |
| Minimum ground clearance (mm) | 380 |
| Back end turning radius (mm) | 1720 |
| Onboard width (mm) | 2040 |
| Total track length (mm) | 2820 |
| Track gauge (mm) | 1750 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2220 |
| Maximum digging radius (mm) | 6240 |
| Maximum digging depth (mm) | 4020 |
| Maximum excavation height (mm) | 7060 |
| Maximum unloading height (mm) | 5155 |
| Maximum vertical digging depth (mm) | 3290 |
| Bulldozer lift or depth (mm) | Lift 350/ depth 360 |
| Dodging plate width × height (mm) | Altitude 405 |
