Product Description
This 2021 Sany 75C-9 excavator offers reliable performance for contractors seeking dependable mid-size equipment. Currently located in Zhejiang, China, this machine demonstrates strong operational capability with well-maintained undercarriage components showing approximately 90% remaining life.
- Year: 2021
- Make: Sany
- Model: 75C-9

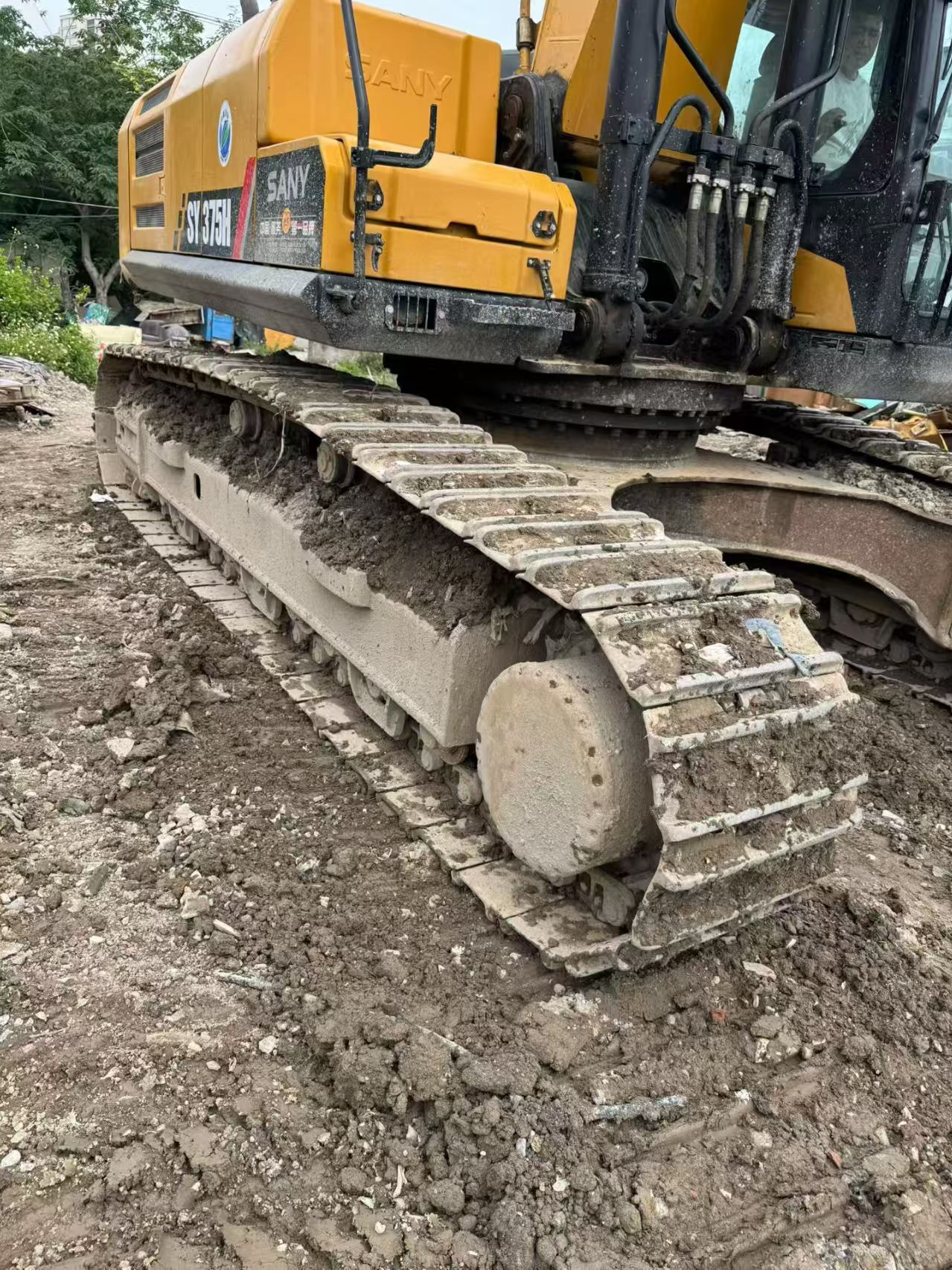

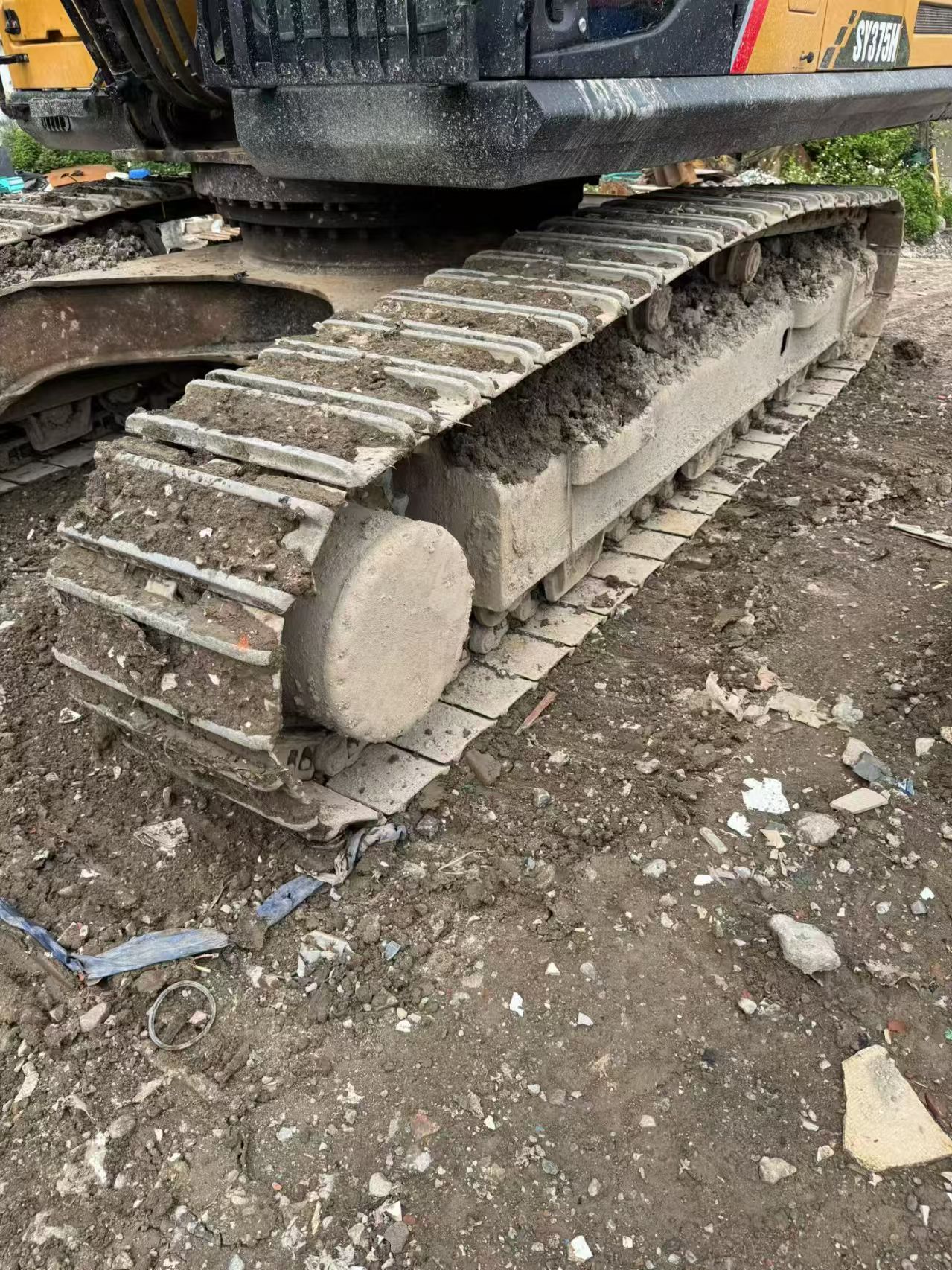

- Undercarriage Condition: 90% remaining
- Location: Zhejiang, China
The Sany 75C-9 is engineered for versatility across construction, excavation, and material handling applications. This unit has been maintained to preserve its operational integrity, making it suitable for immediate deployment. The machine's performance characteristics remain consistent with factory specifications, and the undercarriage condition indicates careful operation and proper maintenance protocols throughout its service life.
Available for inspection in Zhejiang. Contact us for detailed specifications, shipping arrangements, and pricing information.
| Specifications | Value |
|---|---|
| No. | 1074172 |
| Tonnage (tons) | 37 |
| Working weight (kg) | 37500 |
| Bucket capacity (m³) | 1.7-2.4 (1.9) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

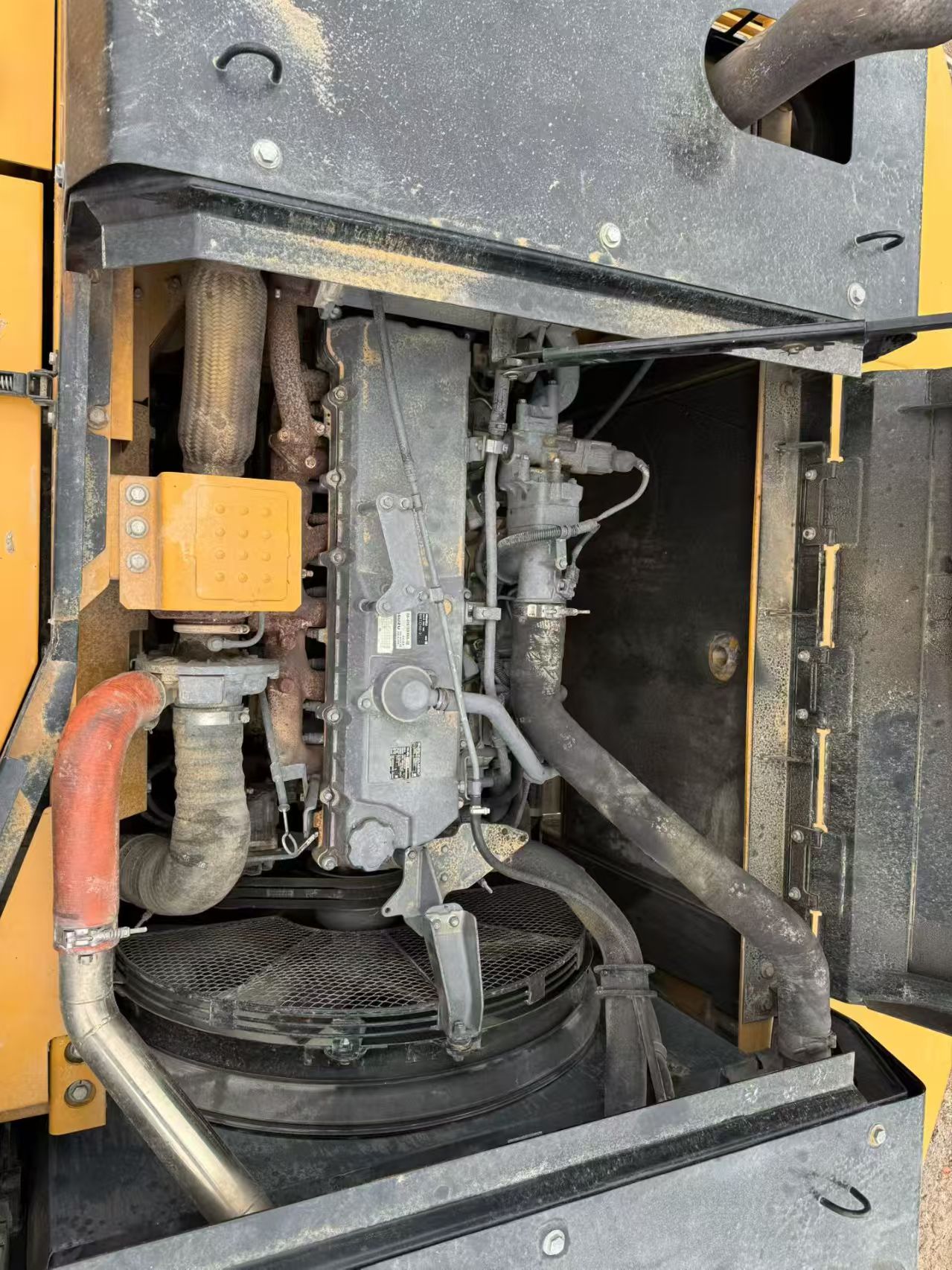

| Engine type | GH-6HK1XKSC |
| Rated power (kw/rpm) | 212/2000 |

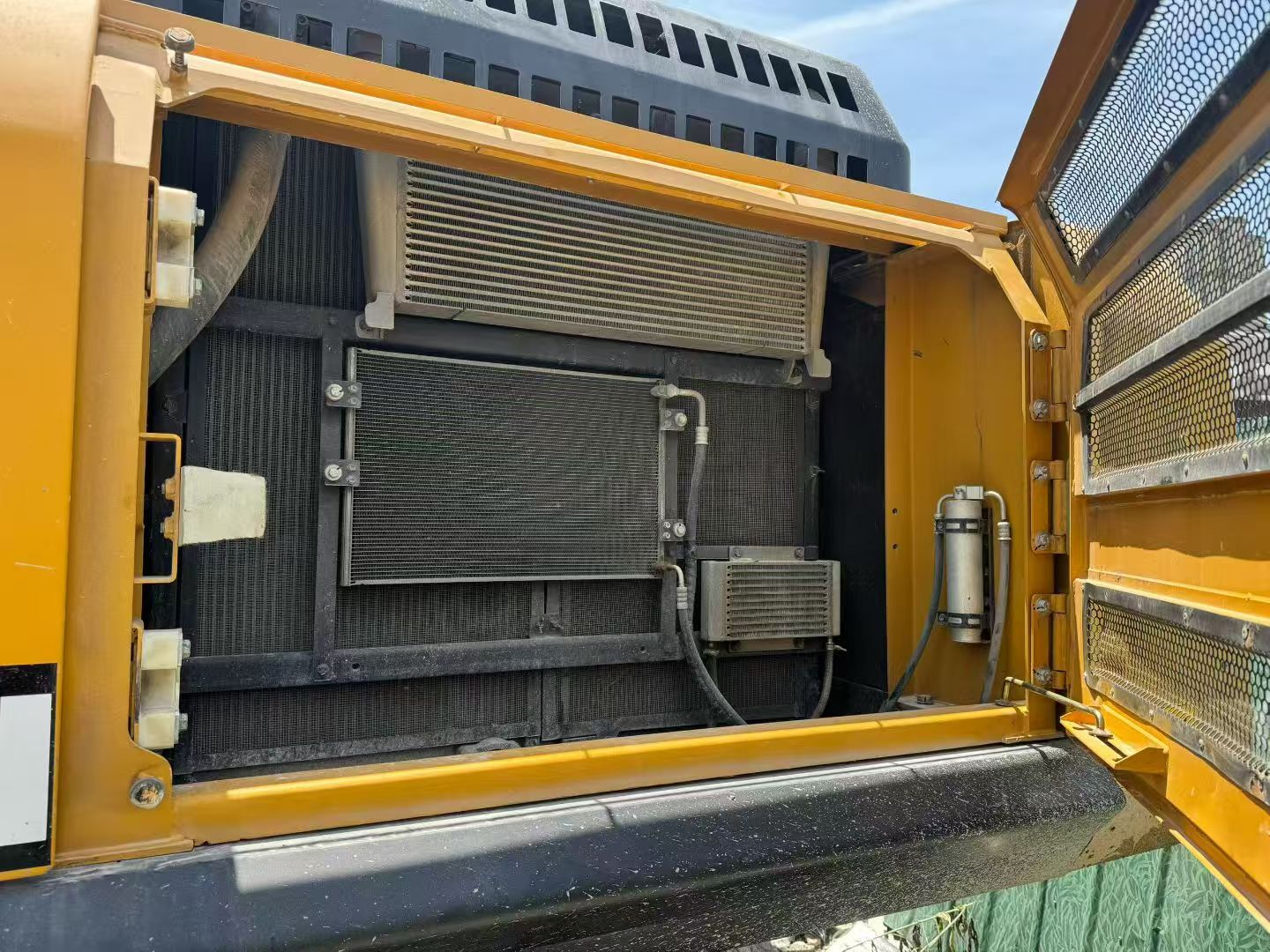

| Cooling mode | water-cooling |
| Maximum torque (N.m) | 1080/1500 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.79 |
| Working form | Direct injection, 6 cylinders, 4 strokes, turbocharged, water cooled |
| Ground specific pressure (Kpa) | 68.8 |
| Rotation speed (rpm) | 8.8 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 235 |
| Rod digging force (kN) | 210 |
| Travel speed (km/h) | 5.5/3.5 |
| Fuel Tank (L) | 540 |
| Engine Oil changes (L) | 36 |
| Total transport length (mm) | 11425 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3825 |
| Full cab height (mm) | 3440 |
| Minimum ground clearance (mm) | 550 |
| Minimum turning radius of front working device (mm) | 4390 |
| Back end turning radius (mm) | 3610 |
| Onboard width (mm) | 3230 |
| Total track length (mm) | 5100 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 4140 |
| Maximum height at minimum turning radius (mm) | 8930 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 49 |
| Maximum digging radius (mm) | 10750 |
| Maximum digging depth (mm) | 7155 |
| Maximum excavation height (mm) | 9920 |
| Maximum unloading height (mm) | 7010 |
| Maximum vertical digging depth (mm) | 5125 |
