Product Description
Engineered for precision and daily productivity, this 2015 Sany SY115C excavator delivers reliable performance across demanding jobsites. Operating at 12 tons with a 73 kW rated power output, this machine combines responsive hydraulics with practical cab design tailored for extended shifts. Operators benefit from excellent sightlines and intuitive controls that reduce fatigue during long working hours.
- Working weight: 12,400 kg with 0.5 m³ bucket capacity for versatile digging tasks
- Powerful digging forces: 90.6 kN bucket force and 57.2 kN arm force for challenging ground conditions

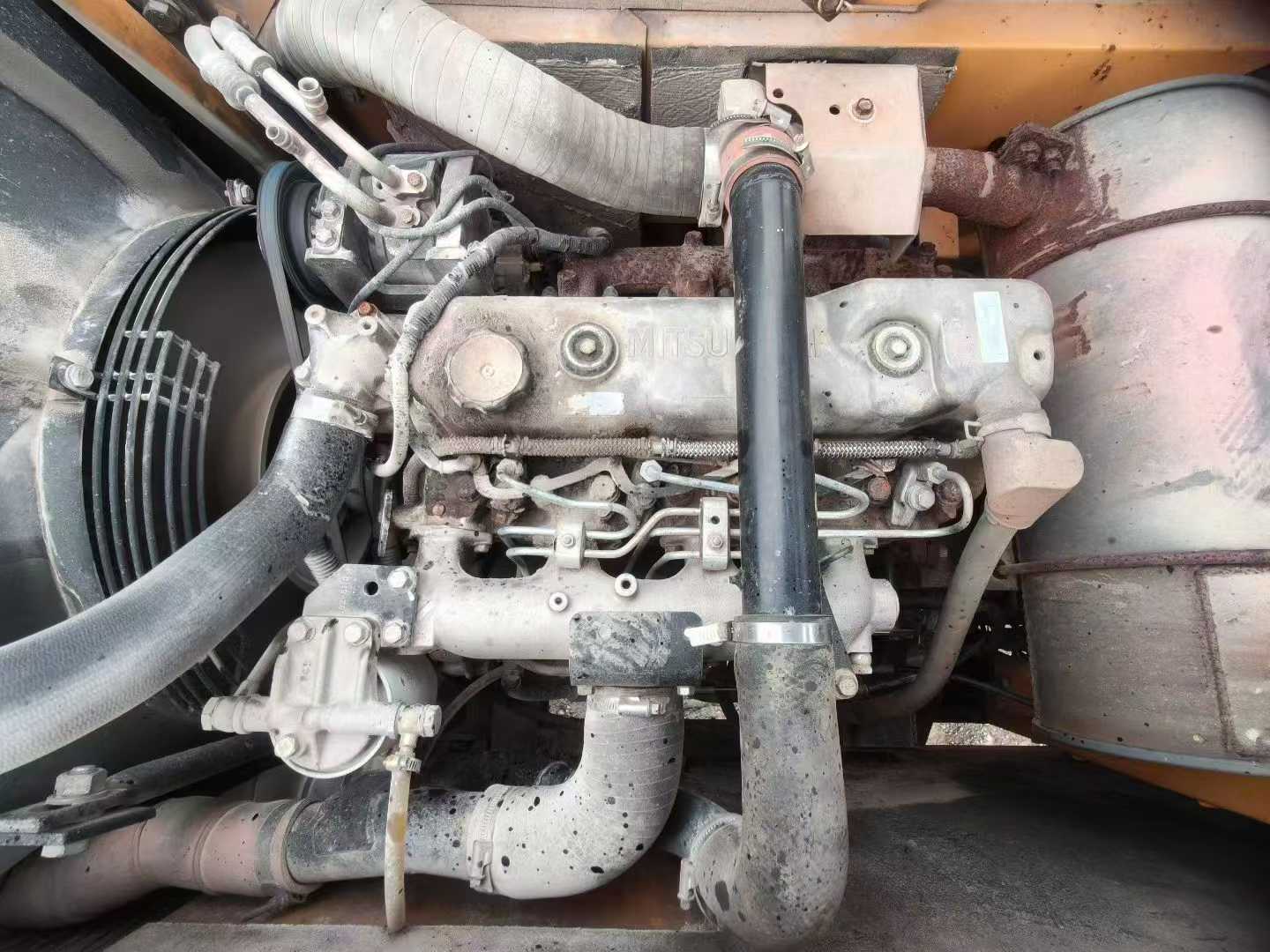

- 4JJ1-XDJAG-01-C3 engine producing 365 N.m maximum torque at 1,600 rpm
- Stable platform: 41.6 kPa ground pressure and 70% climbing ability (35°) for slope work
- 240 L fuel tank and 150 L hydraulic reservoir minimize refueling downtime
- Dual travel speeds (5.5/3.5 km/h) optimize site mobility and transport efficiency
Currently located in Kunming, Yunnan, this Chinese-manufactured excavator represents proven mid-range capability for contractors seeking dependable earthmoving equipment with straightforward maintenance requirements.
| Specifications | Value |
|---|---|
| No. | 1047619 |
| Tonnage (tons) | 12 |
| Working weight (kg) | 12400 |
| Bucket capacity (m³) | 0.5 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | 4JJ1-XDJAG-01-C3 |
| Rated power (kw/rpm) | 73/2000 |
| Maximum torque (N.m) | 365/1600 |
| Displacement (L) | 2.999 |
| Ground specific pressure (Kpa) | 41.6 |
| Rotation speed (rpm) | 13.06 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 90.6 |
| Rod digging force (kN) | 57.2 |
| Travel speed (km/h) | 5.5/3.5 |
| Fuel Tank (L) | 240 |
| Hydraulic Tank (L) | 150 |
| Engine Oil changes (L) | 15 |
| Total track length (mm) | 500 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 1 |
| Number of track plates (single side) (PCS) | 41 |
