Product Description

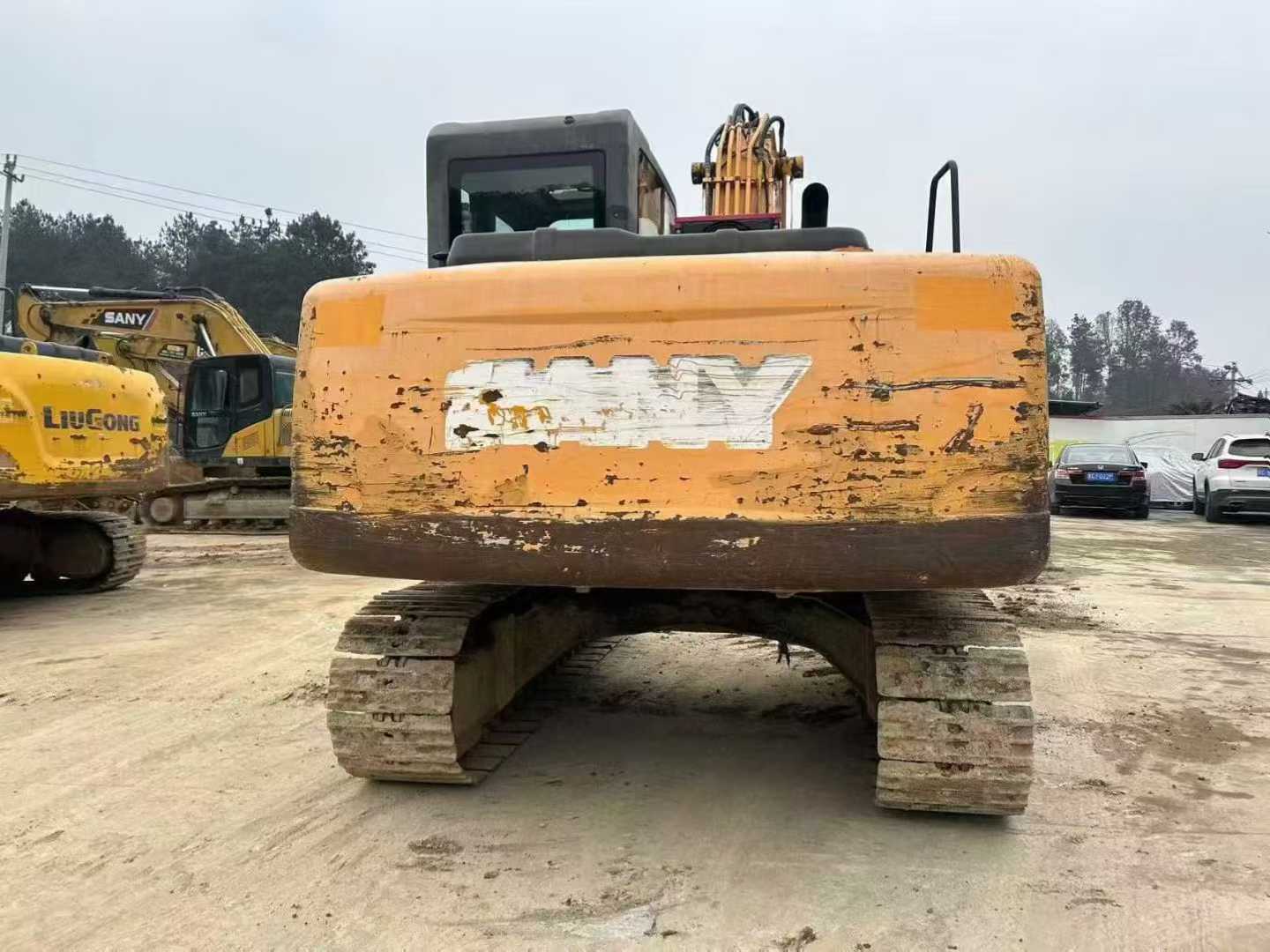

Built to endure the toughest jobsite conditions, this 2015 Sany SY115C excavator demonstrates exceptional longevity and reliability. Operating at 12 tons with a robust 12,400 kg working weight, this proven workhorse continues to deliver consistent performance year after year. Powered by a dependable 4JJ1-XDJAG-01-C3 engine producing 73 kW at 2000 rpm, this machine combines traditional power with field-tested engineering that stands the test of time.
Currently located in Maoming, Guangdong, this excavator features impressive operational capabilities including 90.6 kN bucket digging force and 57.2 kN rod digging force. With a 0.5 m³ backhoe bucket capacity and 70% climbing ability, it tackles demanding excavation tasks with confidence. The substantial 240L fuel tank and 150L hydraulic tank ensure extended operation between refills, maximizing productivity on extended shifts.
- Working Weight: 12,400 kg with proven stability
- Maximum Torque: 365 N.m at 1600 rpm
- Travel Speed: 5.5/3.5 km/h for efficient repositioning
- Ground Pressure: 41.6 Kpa for versatile terrain adaptability
- Made in China with durable construction standards
| Specifications | Value |
|---|---|
| No. | 996071 |
| Tonnage (tons) | 12 |
| Working weight (kg) | 12400 |
| Bucket capacity (m³) | 0.5 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | 4JJ1-XDJAG-01-C3 |
| Rated power (kw/rpm) | 73/2000 |
| Maximum torque (N.m) | 365/1600 |
| Displacement (L) | 2.999 |
| Ground specific pressure (Kpa) | 41.6 |
| Rotation speed (rpm) | 13.06 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 90.6 |
| Rod digging force (kN) | 57.2 |
| Travel speed (km/h) | 5.5/3.5 |
| Fuel Tank (L) | 240 |
| Hydraulic Tank (L) | 150 |
| Engine Oil changes (L) | 15 |
| Total track length (mm) | 500 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 1 |
| Number of track plates (single side) (PCS) | 41 |
