Product Description

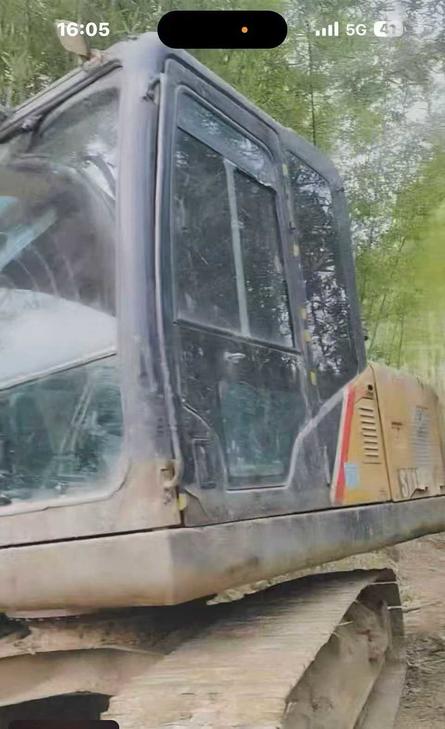

Built for productivity, this 2018 Sany SY115C excavator delivers consistent performance across digging, grading, and demolition applications. Operating at 12 tons with a 0.5 m³ backhoe bucket, this machine tackles foundation work, utility trenching, and site preparation with precision. Powered by a 4JJ1-XDJAG-01-C3 engine generating 73 kW at 2000 rpm, it provides reliable power for demanding jobsites.
Performance specifications include a bucket digging force of 90.6 kN and rod digging force of 57.2 kN, ensuring efficient material handling in compact to medium-scale operations. With a 70% climbing ability and 41.6 kPa ground pressure, this excavator navigates challenging terrain while minimizing surface impact. Travel speeds of 5.5/3.5 km/h optimize repositioning between work areas.
Currently located in Yunnan, China, this machine arrives site-ready with:
- 240L fuel capacity for extended operation
- 150L hydraulic tank supporting consistent cycle times
- 13.06 rpm rotation speed for smooth swing performance
- Complete track assembly with 41 plates per side
Deploy this excavator immediately for trenching, loading, and earthmoving tasks requiring proven 12-ton class capabi
| Specifications | Value |
|---|---|
| No. | 1031396 |
| Tonnage (tons) | 12 |
| Working weight (kg) | 12400 |
| Bucket capacity (m³) | 0.5 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | 4JJ1-XDJAG-01-C3 |
| Rated power (kw/rpm) | 73/2000 |
| Maximum torque (N.m) | 365/1600 |
| Displacement (L) | 2.999 |
| Ground specific pressure (Kpa) | 41.6 |
| Rotation speed (rpm) | 13.06 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 90.6 |
| Rod digging force (kN) | 57.2 |
| Travel speed (km/h) | 5.5/3.5 |
| Fuel Tank (L) | 240 |
| Hydraulic Tank (L) | 150 |
| Engine Oil changes (L) | 15 |
| Total track length (mm) | 500 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 1 |
| Number of track plates (single side) (PCS) | 41 |
