Product Description
With a working weight of 12,400 kg and a bucket capacity of 0.5 m³, the Sany SY115C excavator from 2018 offers exceptional performance for various construction tasks. Located in Sichuan, this machine is designed with the operator in mind, ensuring smooth handling and enhanced stability. The 4JJ1-XDJAG-01-C3 engine delivers 73 kW at 2000 rpm, providing reliable power for demanding jobs. Visibility from the cabin is excellent, thanks to its well-designed layout, allowing operators to maintain a clear view of the work area. The SY115C also boasts a climbing ability of 70% (35°), making it suitable for challenging terrains. Its hydraulic system, with a tank capacity of 150 L, ensures efficient and responsive operation. Operators can expect a comfortable and productive experience with this robust and versatile excavator.
| Specifications | Value |
|---|---|
| No. | 999206 |
| Tonnage (tons) | 12 |
| Working weight (kg) | 12400 |
| Bucket capacity (m³) | 0.5 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

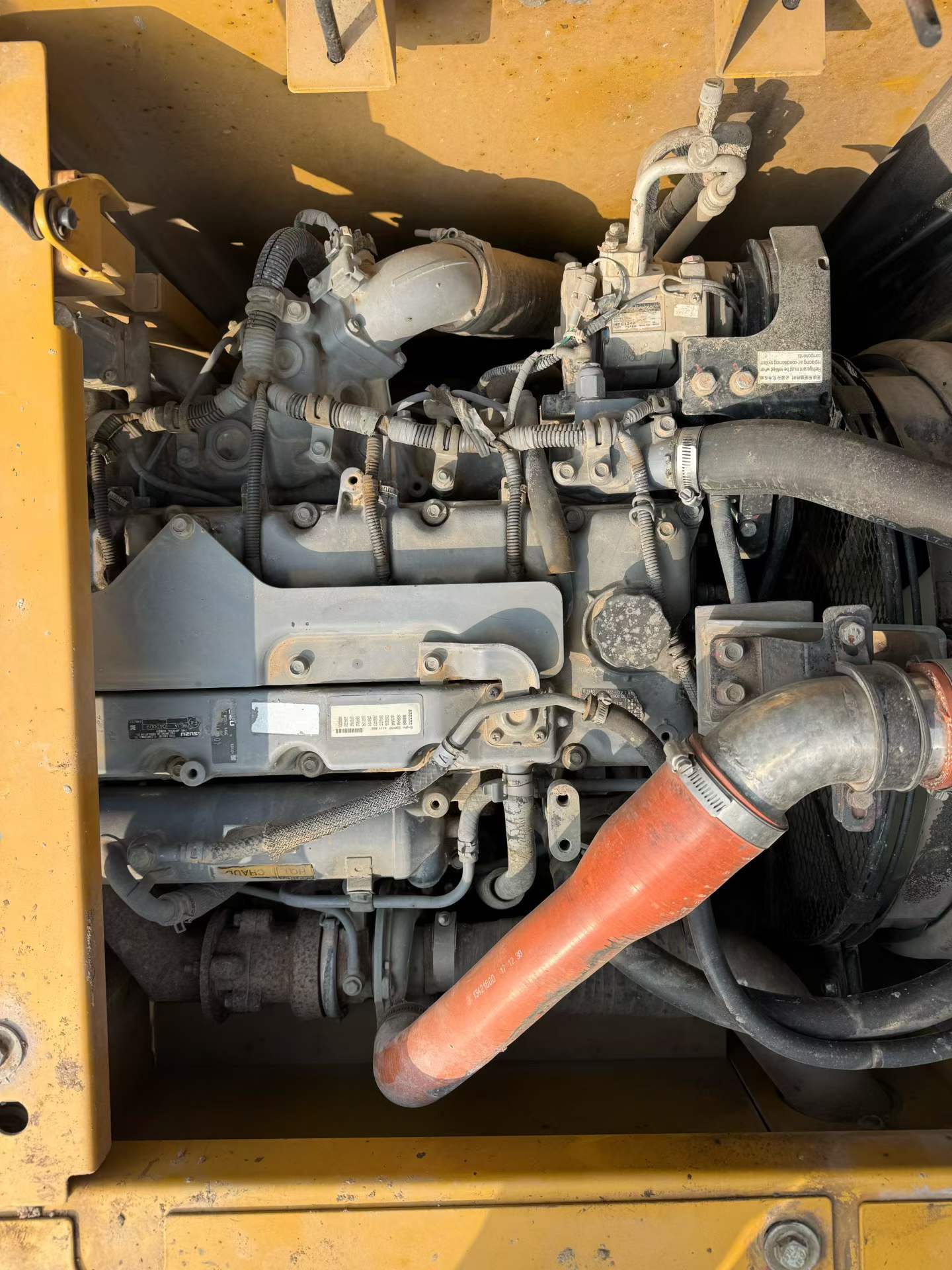

| Engine type | 4JJ1-XDJAG-01-C3 |
| Rated power (kw/rpm) | 73/2000 |
| Maximum torque (N.m) | 365/1600 |
| Displacement (L) | 2.999 |
| Ground specific pressure (Kpa) | 41.6 |
| Rotation speed (rpm) | 13.06 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 90.6 |
| Rod digging force (kN) | 57.2 |
| Travel speed (km/h) | 5.5/3.5 |
| Fuel Tank (L) | 240 |
| Hydraulic Tank (L) | 150 |
| Engine Oil changes (L) | 15 |
| Total track length (mm) | 500 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 1 |
| Number of track plates (single side) (PCS) | 41 |
