Product Description

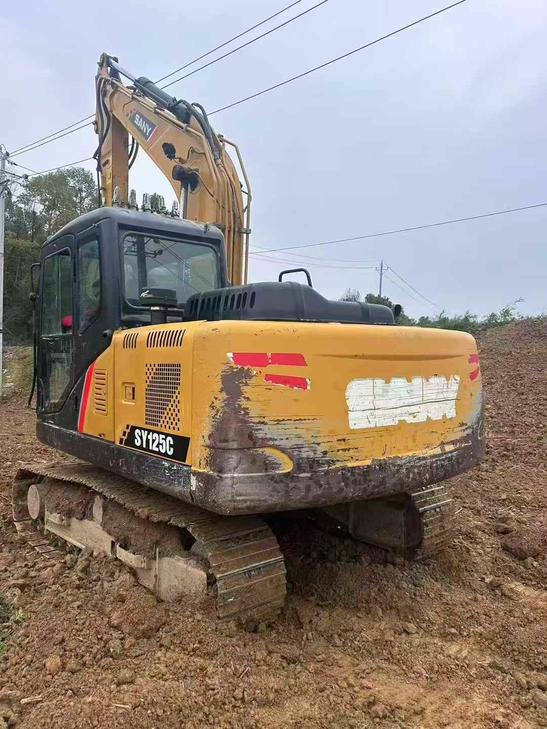

With a 12-ton capacity and a working weight of 12,450 kg, the Sany SY125C excavator, manufactured in 2016, is now available for immediate deployment from 江西赣州. Skip the factory lead times and get your project moving with this reliable machine. Equipped with an Isuzu 4JJ1-XDJAG-01-C3 engine, it delivers 73 kW of power at 2000 rpm, ensuring robust performance. The excavator boasts a travel speed of up to 5.5 km/h, facilitating quick and efficient movement across your worksite. Its 240-liter fuel tank and 150-liter hydraulic tank support long hours of operation without frequent refueling. Available now, this Sany SY125C is ready to be dispatched to your location, providing fast and effective solutions to meet your logistical needs.
- Available now in 江西赣州
- Fast deployment to your site
- Travel speed: 5.5/3.5 km/h
- Fuel Tank: 240 L
- Hydraulic Tank: 150 L
| Specifications | Value |
|---|---|
| No. | 1032382 |
| Tonnage (tons) | 12 |
| Working weight (kg) | 12450 |
| Bucket capacity (m³) | 0.22-0.7 (0.55) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Isuzu 4JJ1-XDJAG-01-C3 |
| Rated power (kw/rpm) | 73/2000 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 365/1600 |
| Displacement (L) | 2.999 |
| Ground specific pressure (Kpa) | 41.6 |
| Rotation speed (rpm) | 13.06 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 90.6 |
| Rod digging force (kN) | 57.2 |
| Travel speed (km/h) | 5.5/3.5 |
| Fuel Tank (L) | 240 |
| Hydraulic Tank (L) | 150 |
| Engine Oil changes (L) | 15 |
| Total transport length (mm) | 7280 |
| Total transport width (mm) | 2550 |
| Total transport height (mm) | 2890 |
| Full cab height (mm) | 2740 |
| Minimum ground clearance (mm) | 425 |
| Minimum turning radius of front working device (mm) | 2880 |
| Back end turning radius (mm) | 2205 |
| Onboard width (mm) | 2490 |
| Total track length (mm) | 3360 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Track ground length (mm) | 2680 |
| Maximum height at minimum turning radius (mm) | 5905 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 6 |
| Number of track plates (single side) (PCS) | 41 |
| Maximum digging radius (mm) | 7735 |
| Maximum digging depth (mm) | 5190 |
| Maximum excavation height (mm) | 7695 |
| Maximum unloading height (mm) | 5440 |
| Maximum vertical digging depth (mm) | 4720 |
