Product Description

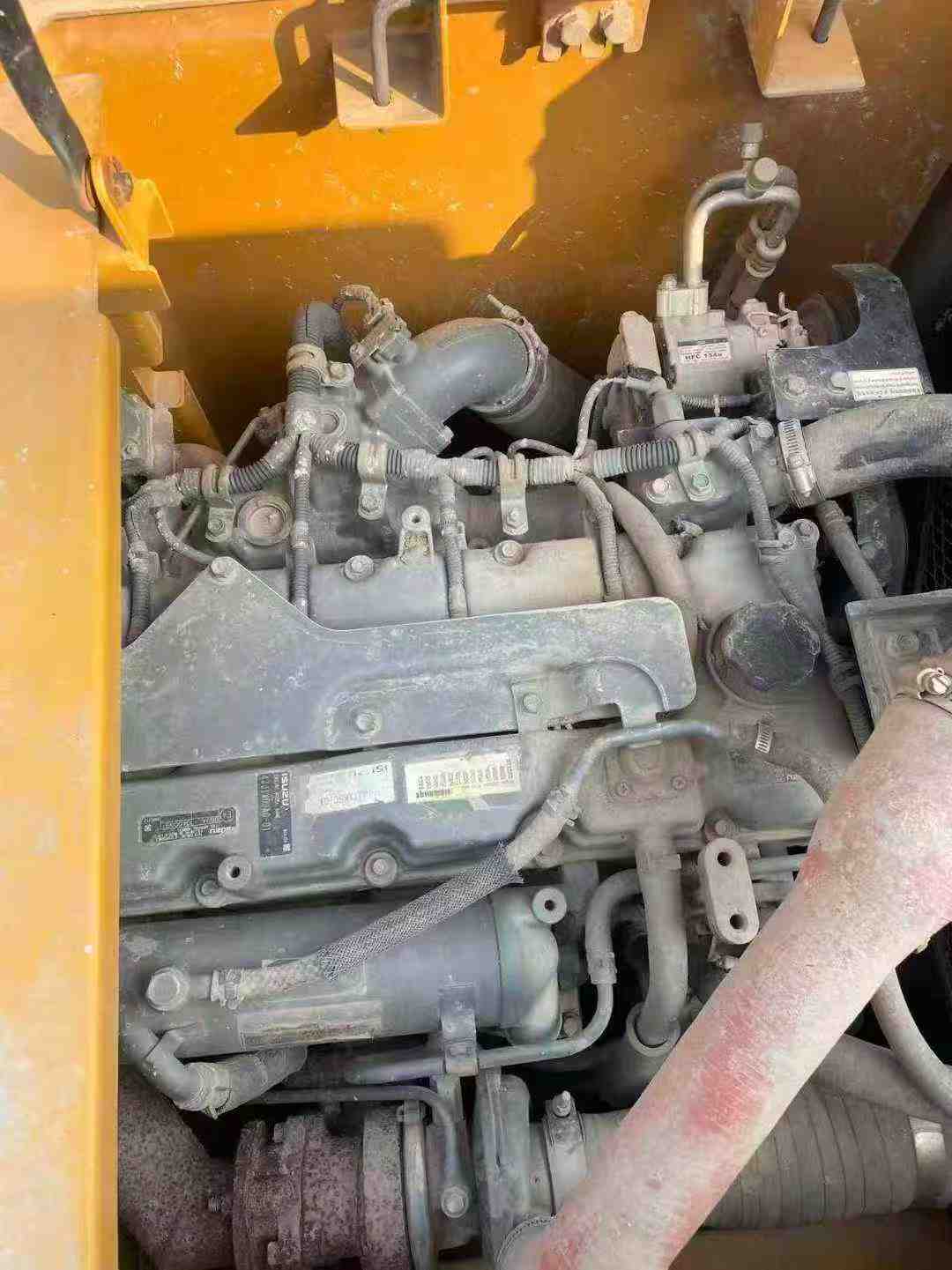

Proven in demanding jobsites worldwide, this 2018 Sany SY125C excavator delivers reliable 12-ton performance backed by one of China's most established heavy equipment manufacturers. Powered by an Isuzu 4JJ1 engine generating 73kW at 2000rpm, this machine combines robust digging force (90.6kN bucket, 57.2kN arm) with a versatile bucket capacity range of 0.22-0.7m³ to handle diverse excavation tasks efficiently.
Currently located in Hangzhou, Zhejiang, this water-cooled unit offers impressive operational specs including a maximum digging radius of 7735mm, maximum depth of 5190mm, and 70% climbing ability. With 12,450kg working weight and 240L fuel capacity, it balances power with extended runtime.
Why Sany holds value in the used market:
- Extensive global dealer network ensures parts availability across continents
- Standardized Isuzu engine components simplify maintenance and reduce downtime
- Strong resale demand in Asia-Pacific, Middle East, and African markets
- Factory support continues for models 5+ years old, protecting your investment
Complete transport dimensions (7280×2550×2890mm) facilitate international shipping. Ideal for contractors seeking
| Specifications | Value |
|---|---|
| No. | 1026083 |
| Tonnage (tons) | 12 |
| Working weight (kg) | 12450 |
| Bucket capacity (m³) | 0.22-0.7 (0.55) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Isuzu 4JJ1-XDJAG-01-C3 |
| Rated power (kw/rpm) | 73/2000 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 365/1600 |
| Displacement (L) | 2.999 |
| Ground specific pressure (Kpa) | 41.6 |
| Rotation speed (rpm) | 13.06 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 90.6 |
| Rod digging force (kN) | 57.2 |
| Travel speed (km/h) | 5.5/3.5 |
| Fuel Tank (L) | 240 |
| Hydraulic Tank (L) | 150 |
| Engine Oil changes (L) | 15 |
| Total transport length (mm) | 7280 |
| Total transport width (mm) | 2550 |
| Total transport height (mm) | 2890 |
| Full cab height (mm) | 2740 |
| Minimum ground clearance (mm) | 425 |
| Minimum turning radius of front working device (mm) | 2880 |
| Back end turning radius (mm) | 2205 |
| Onboard width (mm) | 2490 |
| Total track length (mm) | 3360 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Track ground length (mm) | 2680 |
| Maximum height at minimum turning radius (mm) | 5905 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 6 |
| Number of track plates (single side) (PCS) | 41 |
| Maximum digging radius (mm) | 7735 |
| Maximum digging depth (mm) | 5190 |
| Maximum excavation height (mm) | 7695 |
| Maximum unloading height (mm) | 5440 |
| Maximum vertical digging depth (mm) | 4720 |
