HOME>>Sany>>Sany SY125C

2018 Sany SY125C

1/5
Buy Sany SY125C Used Excavator / 1

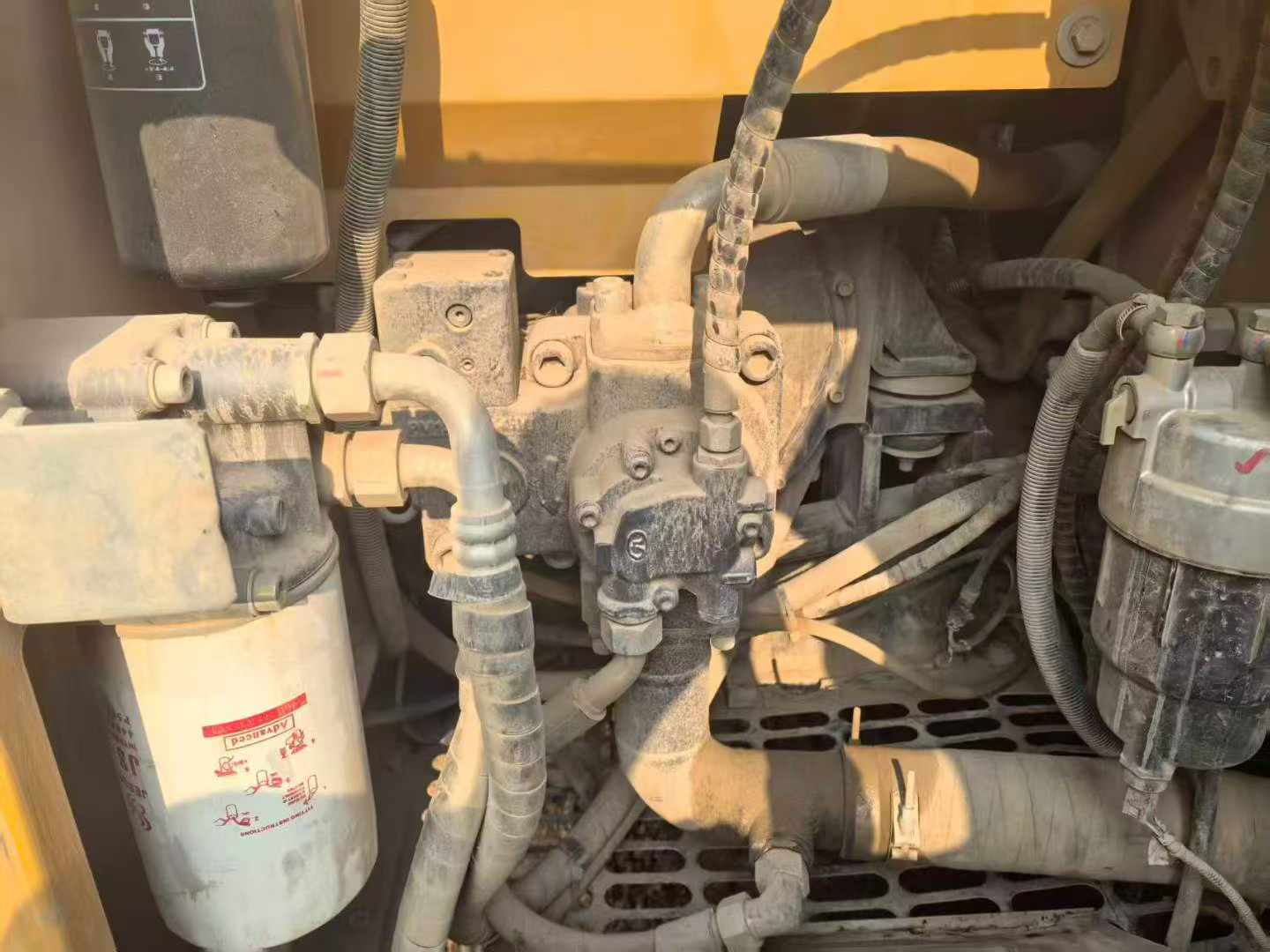

Buy Sany SY125C Used Excavator / 2

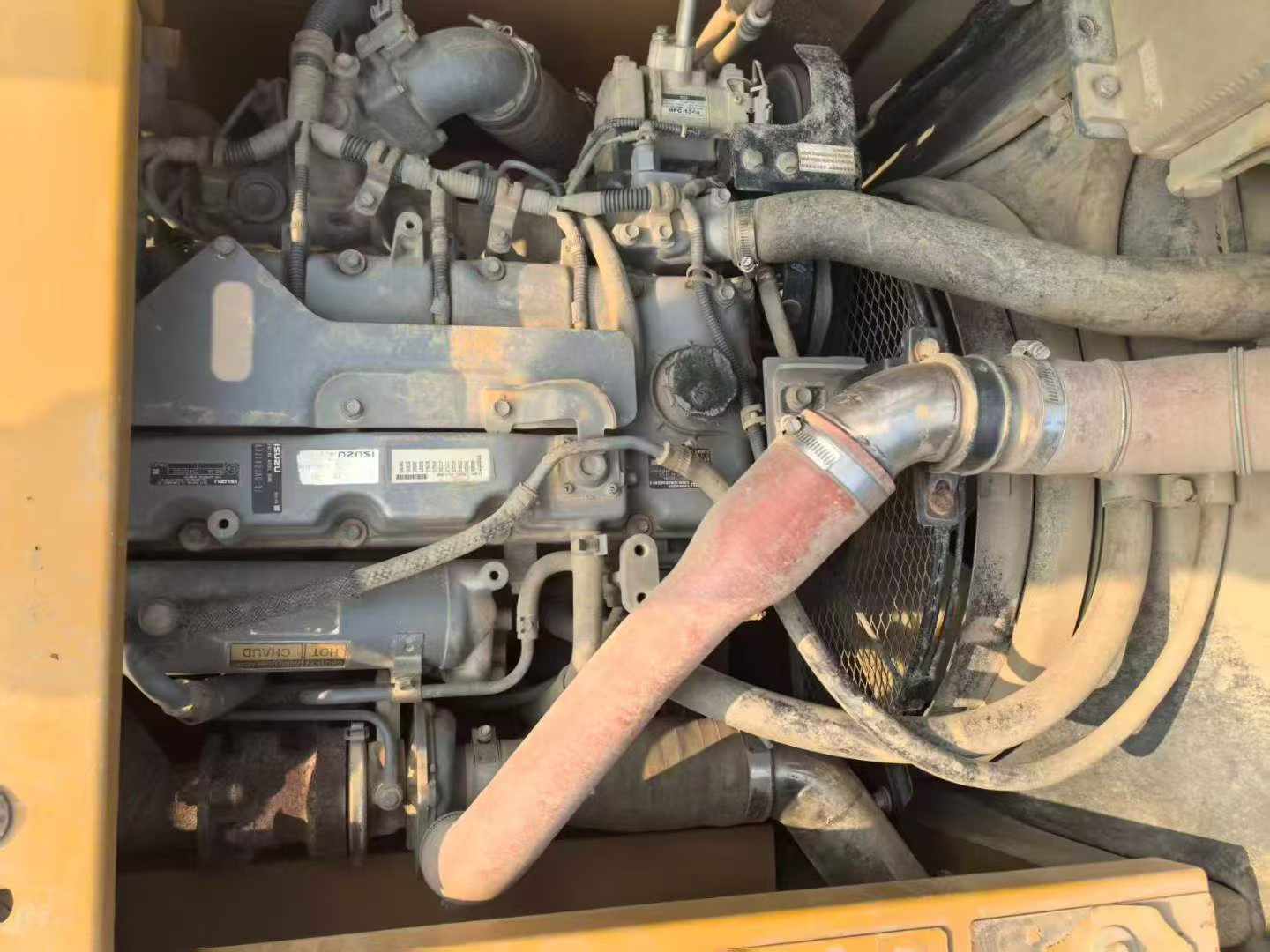

Buy Sany SY125C Used Excavator / 3

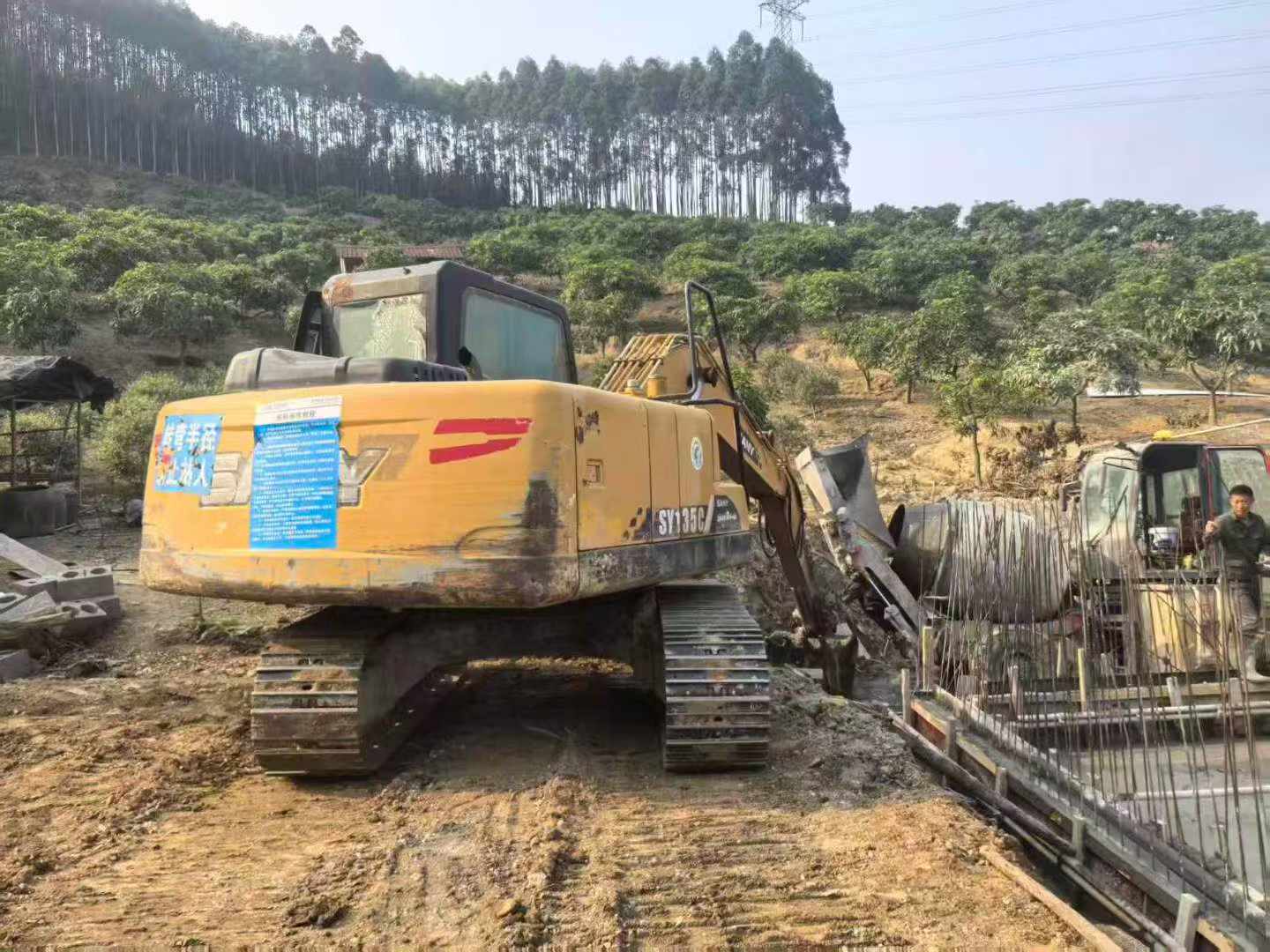

Buy Sany SY125C Used Excavator / 4

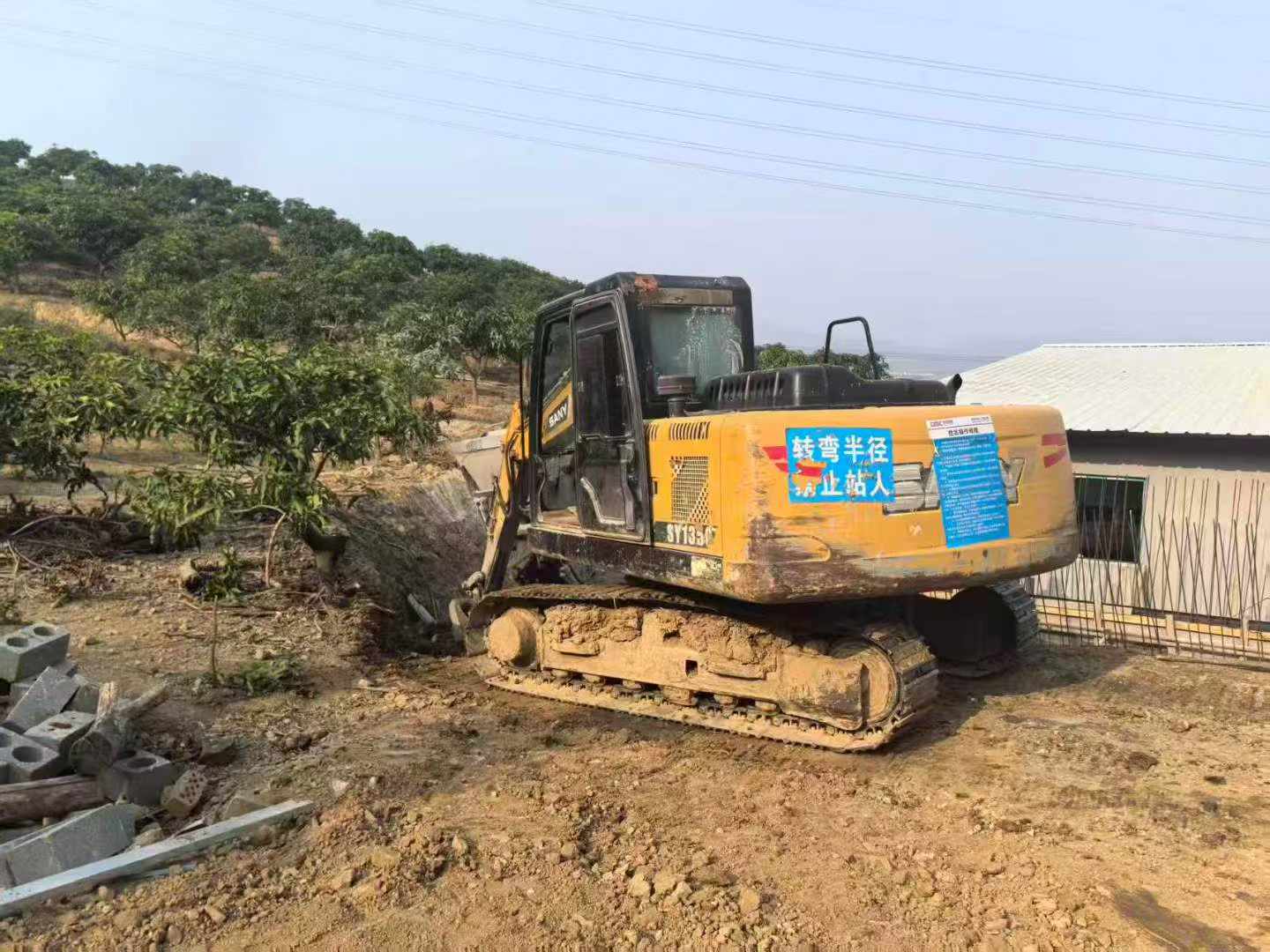

Buy Sany SY125C Used Excavator / 5

Product Description

Ready to deploy from 广西 (Guangxi), this 2018 Sany SY125C excavator eliminates factory wait times and gets your project moving immediately. Built with a proven Isuzu 4JJ1 engine delivering 73kW at 2000rpm and 365N·m of torque, this 12-ton machine combines reliable power with efficient fuel consumption from its 240L tank. Operating weight of 12,450kg provides stable performance across varied terrain, while the 0.55m³ bucket capacity handles material efficiently on site.

  • Maximum Digging Reach: 7,735mm with 5,190mm depth capability
  • Digging Force: 90.6kN bucket force, 57.2kN arm force for tough ground conditions
  • Mobility: 5.5km/h travel speed, 70% gradeability, 2,880mm tight turning radius
  • Transport Dimensions: 7,280mm × 2,550mm × 2,890mm for standard logistics
  • Hydraulic System: 150L tank capacity supporting smooth multi-function operation

Available now for immediate inspection and shipment. Skip months of lead time—secure this water-cooled, field-proven excavator and maintain your project schedule without compromise.

SpecificationsValue
No.1042515
Tonnage (tons)12
Working weight (kg)12450
Bucket capacity (m³)0.22-0.7 (0.55)
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeIsuzu 4JJ1-XDJAG-01-C3
Rated power (kw/rpm)73/2000
Cooling modewater-cooling
Maximum torque (N.m)365/1600
Displacement (L)2.999
Ground specific pressure (Kpa)41.6
Rotation speed (rpm)13.06
Climbing ability (%)70
Bucket digging force (kN)90.6
Rod digging force (kN)57.2
Travel speed (km/h)5.5/3.5
Fuel Tank (L)240
Hydraulic Tank (L)150
Engine Oil changes (L)15
Total transport length (mm)7280
Total transport width (mm)2550
Total transport height (mm)2890
Full cab height (mm)2740
Minimum ground clearance (mm)425
Minimum turning radius of front working device (mm)2880
Back end turning radius (mm)2205
Onboard width (mm)2490
Total track length (mm)3360
Track gauge (mm)1990
Track plate width (mm)500
Track ground length (mm)2680
Maximum height at minimum turning radius (mm)5905
Number of sprockets (single side) (each)1
Number of wheels (single side) (each)6
Number of track plates (single side) (PCS)41
Maximum digging radius (mm)7735
Maximum digging depth (mm)5190
Maximum excavation height (mm)7695
Maximum unloading height (mm)5440
Maximum vertical digging depth (mm)4720
see more

Overview

No.1042515

Brand Name:

Sany

Model Number:

SY125C

Year:

2018

Location:

Guangxi China

Pub Date
