2018 Sany SY125C

1/5

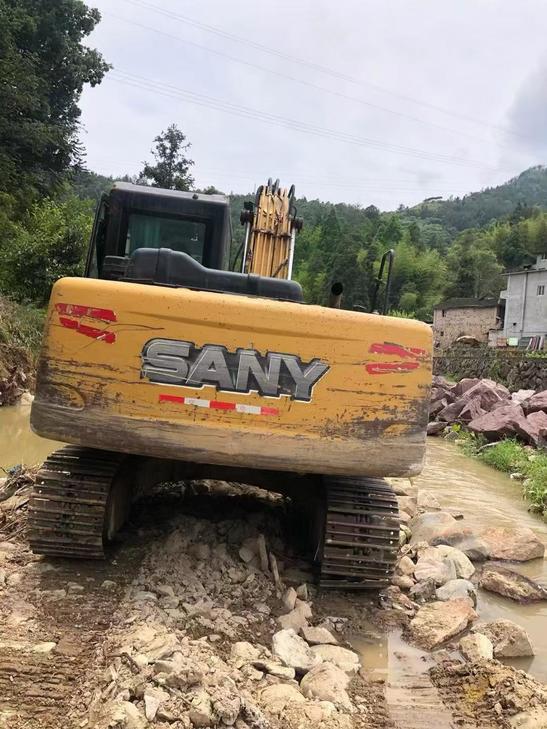

Buy Sany SY125C Used Excavator / 1
Buy Sany SY125C Used Excavator / 2
Buy Sany SY125C Used Excavator / 3
Buy Sany SY125C Used Excavator / 4
Buy Sany SY125C Used Excavator / 5

Product Description

Built to endure, the Sany SY125C has proven its worth since 2018 — and this 12-ton workhorse from Hunan, China still delivers day after day. Powered by a reliable Isuzu 4JJ1 water-cooled diesel engine producing 73 kW at 2,000 rpm and 365 N·m of maximum torque, this machine combines robust performance with lasting mechanical integrity. With years of operation behind it, this unit stands as a direct testament to Sany's manufacturing standards and the SY125C platform's long-term dependability.

  • Engine: Isuzu 4JJ1-XDJAG-01-C3 | 73 kW / 2,000 rpm | 365 N·m torque | 3.0L displacement | Water-cooled
  • Operating Weight: 12,450 kg | Ground Pressure: 41.6 kPa
  • Bucket: Backhoe | Capacity: 0.22–0.7 m³ (std. 0.55 m³) | Digging Force: 90.6 kN
  • Maximum Digging Depth: 5,190 mm | Max Digging Radius: 7,735 mm
  • Maximum Excavation Height: 7,695 mm | Max Unloading Height: 5,440 mm
  • Travel Speed: 5.5 / 3.5 km/h | Climbing Ability: 70%
  • Fuel Tank: 240 L | Hydraulic Tank: 150 L
  • Transport Dimensions: 7,280 × 2,550 × 2,890 mm
  • Location: Hunan, China | Ready for international export
SpecificationsValue
No.1090898
Tonnage (tons)12
Working weight (kg)12450
Bucket capacity (m³)0.22-0.7 (0.55)
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeIsuzu 4JJ1-XDJAG-01-C3
Rated power (kw/rpm)73/2000
Cooling modewater-cooling
Maximum torque (N.m)365/1600
Displacement (L)2.999
Ground specific pressure (Kpa)41.6
Rotation speed (rpm)13.06
Climbing ability (%)70
Bucket digging force (kN)90.6
Rod digging force (kN)57.2
Travel speed (km/h)5.5/3.5
Fuel Tank (L)240
Hydraulic Tank (L)150
Engine Oil changes (L)15
Total transport length (mm)7280
Total transport width (mm)2550
Total transport height (mm)2890
Full cab height (mm)2740
Minimum ground clearance (mm)425
Minimum turning radius of front working device (mm)2880
Back end turning radius (mm)2205
Onboard width (mm)2490
Total track length (mm)3360
Track gauge (mm)1990
Track plate width (mm)500
Track ground length (mm)2680
Maximum height at minimum turning radius (mm)5905
Number of sprockets (single side) (each)1
Number of wheels (single side) (each)6
Number of track plates (single side) (PCS)41
Maximum digging radius (mm)7735
Maximum digging depth (mm)5190
Maximum excavation height (mm)7695
Maximum unloading height (mm)5440
Maximum vertical digging depth (mm)4720
