2020 Sany SY125C

1/9

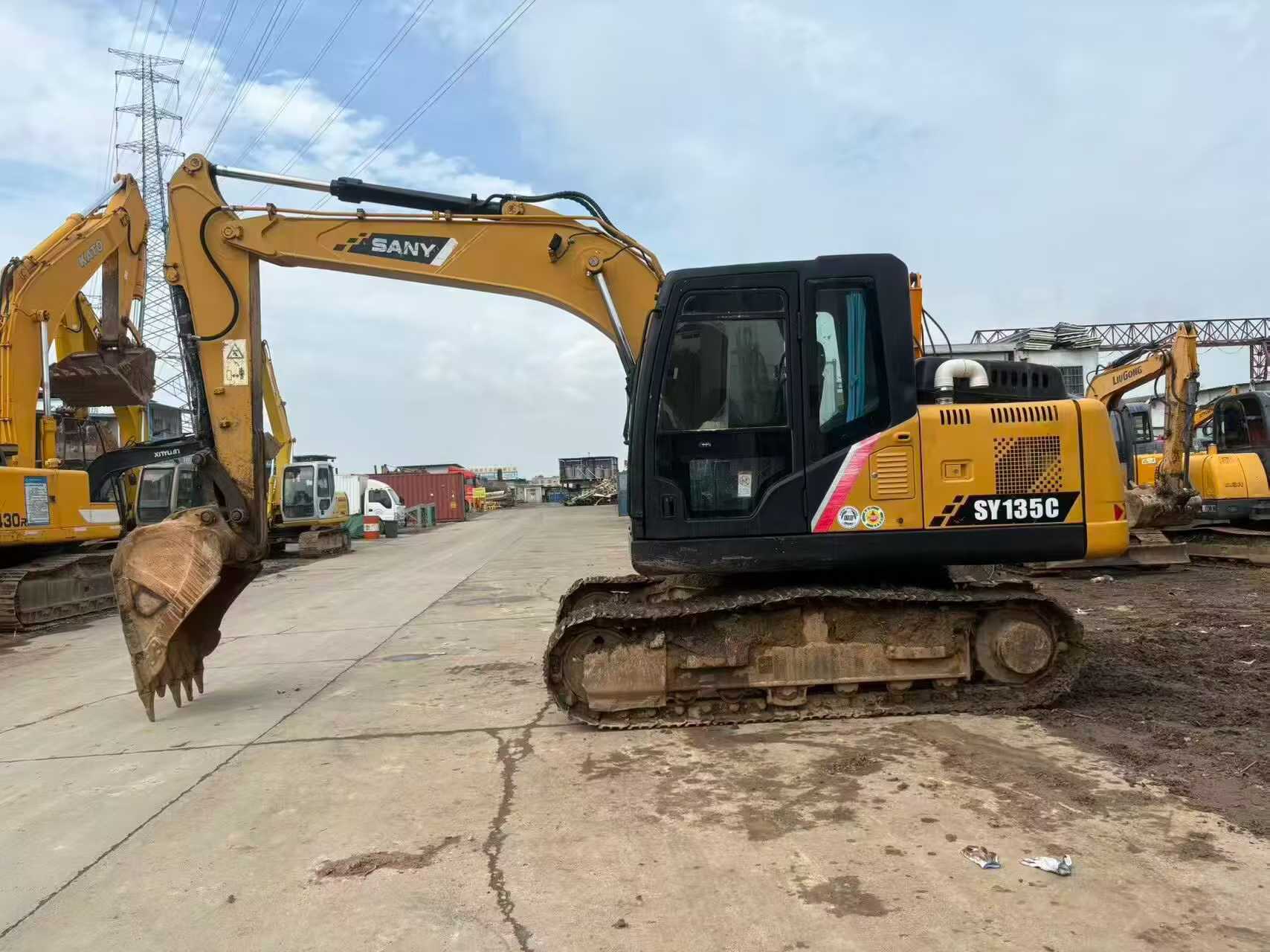

Buy Sany SY125C Used Excavator / 1

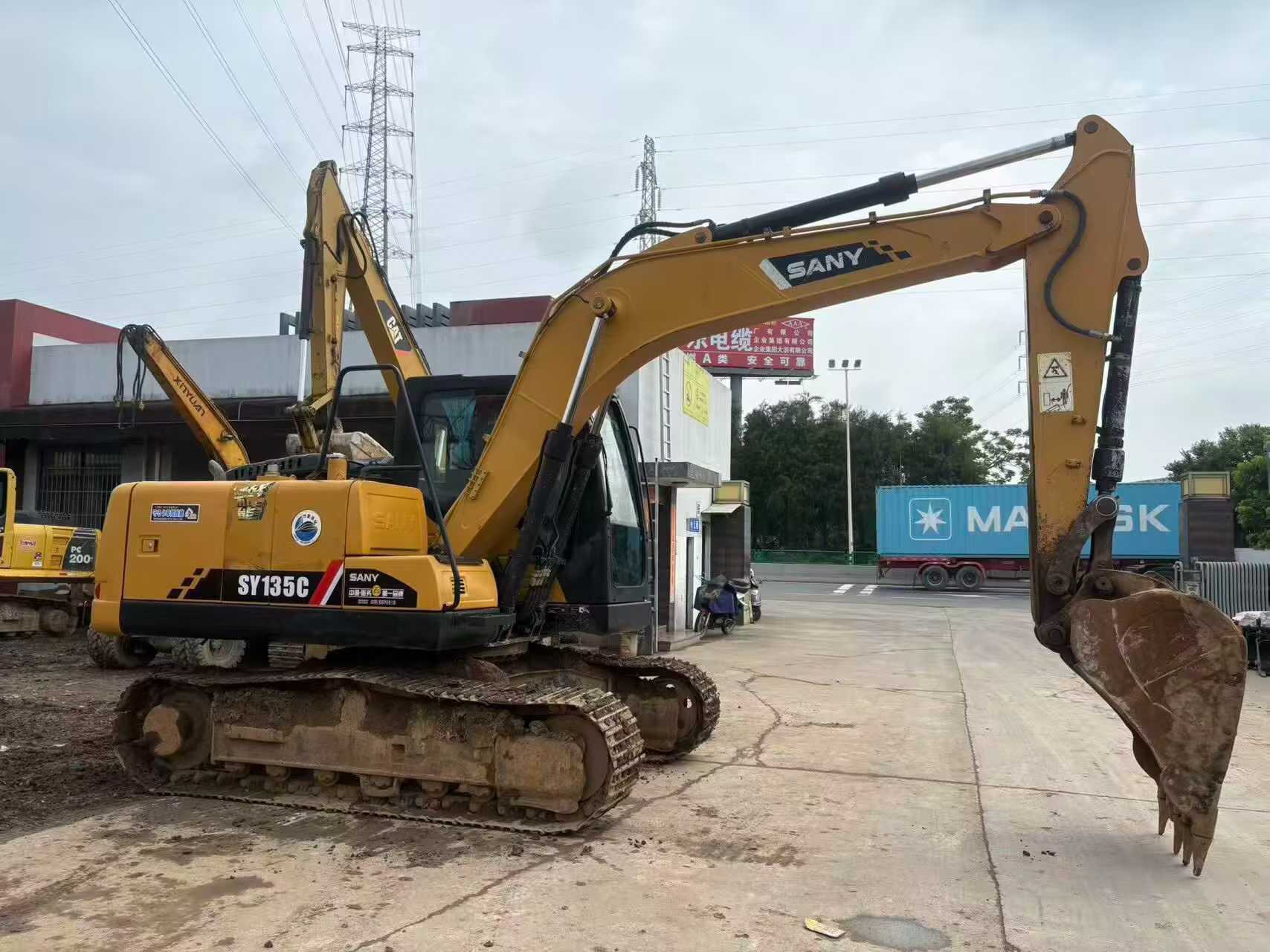

Buy Sany SY125C Used Excavator / 2

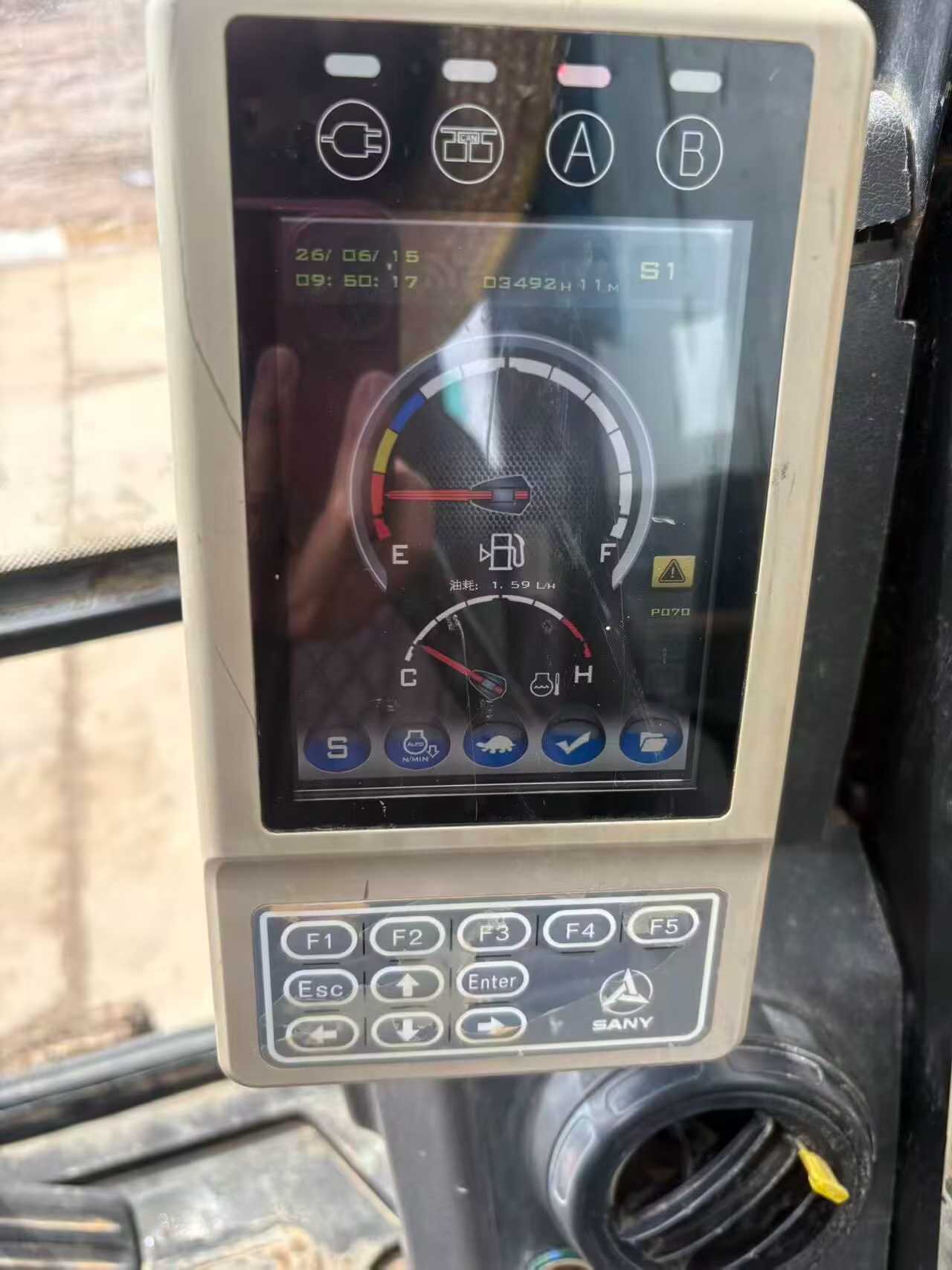

Buy Sany SY125C Used Excavator / 3

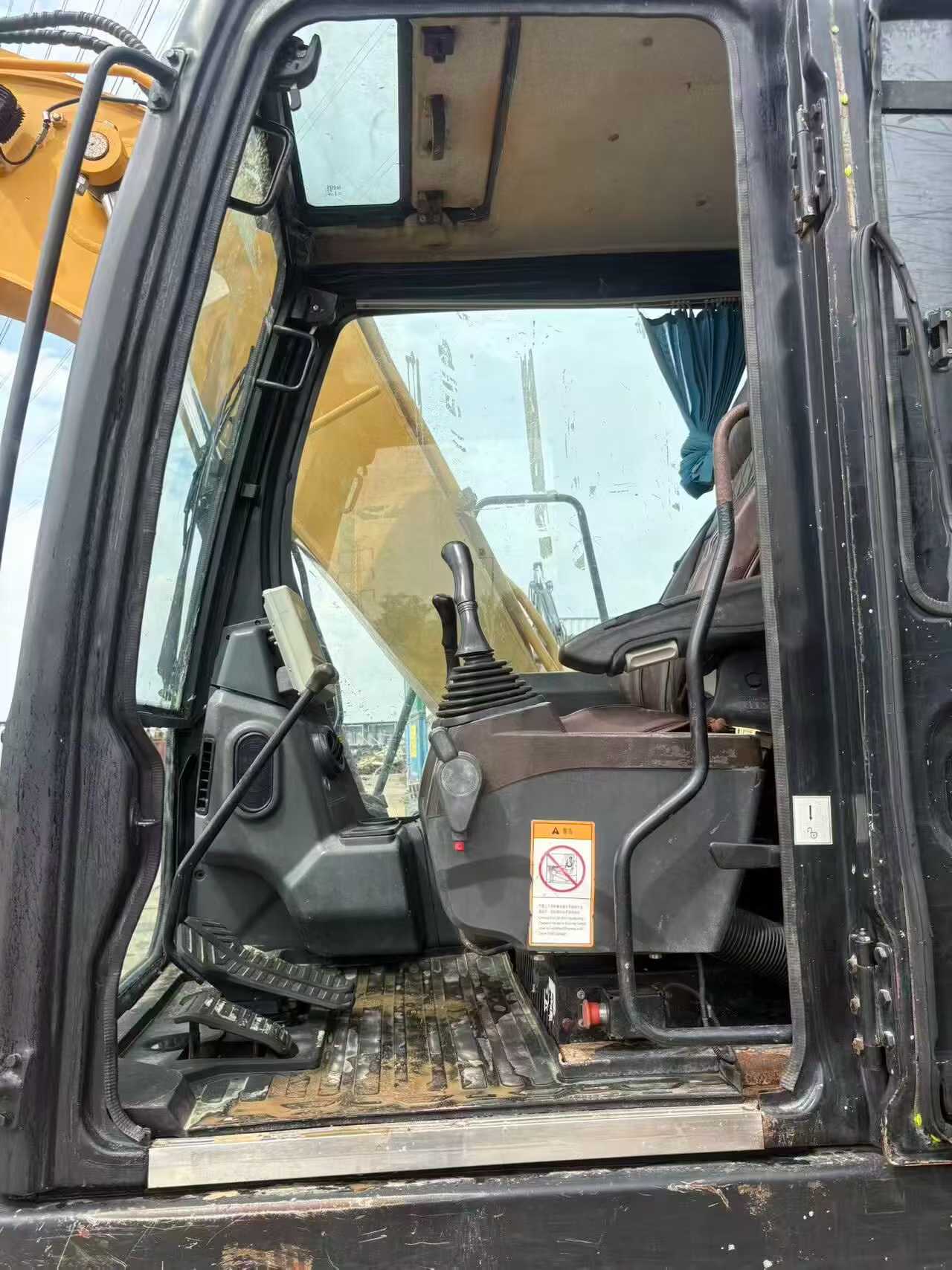

Buy Sany SY125C Used Excavator / 4

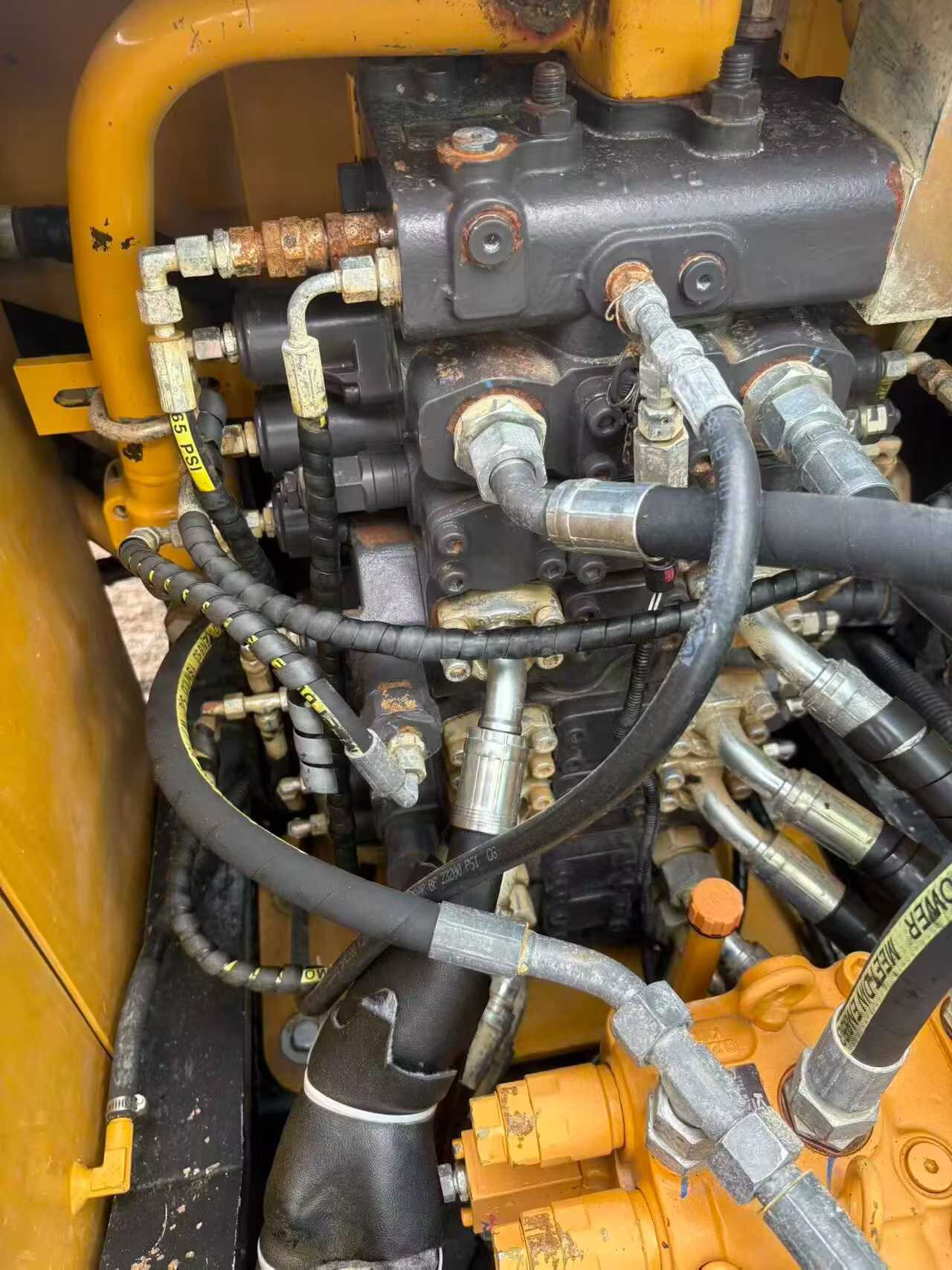

Buy Sany SY125C Used Excavator / 5

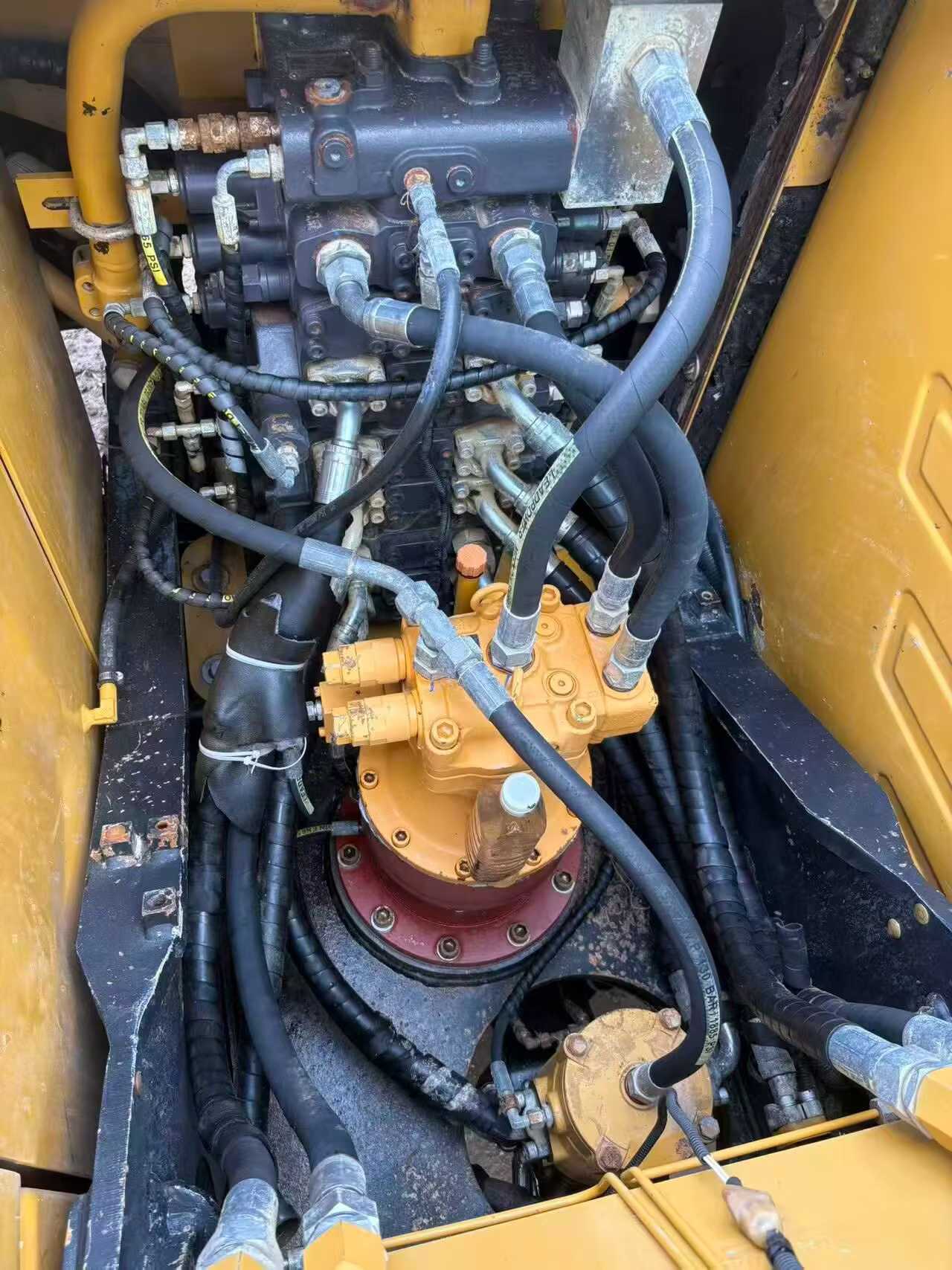

Buy Sany SY125C Used Excavator / 6

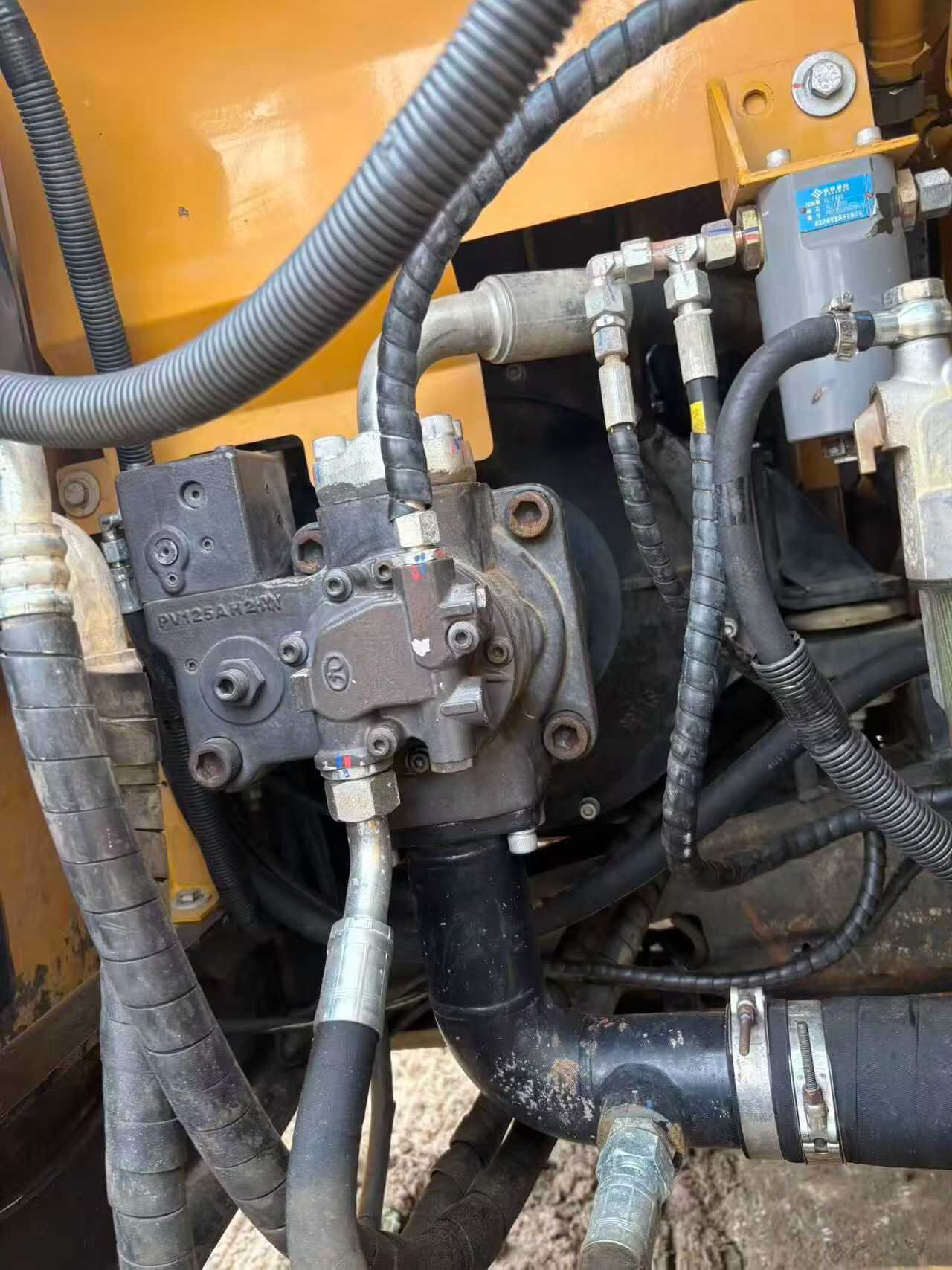

Buy Sany SY125C Used Excavator / 7

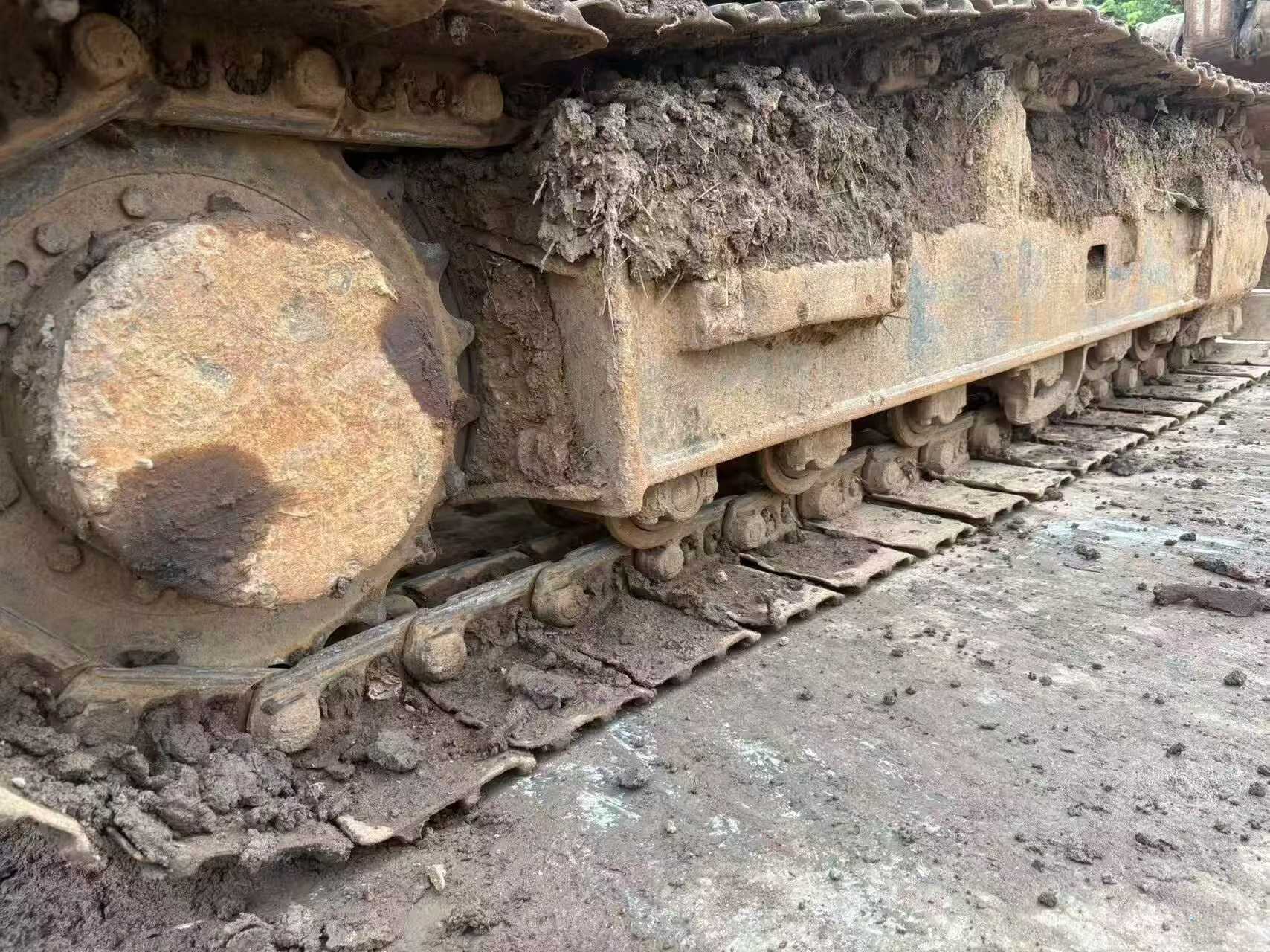

Buy Sany SY125C Used Excavator / 8

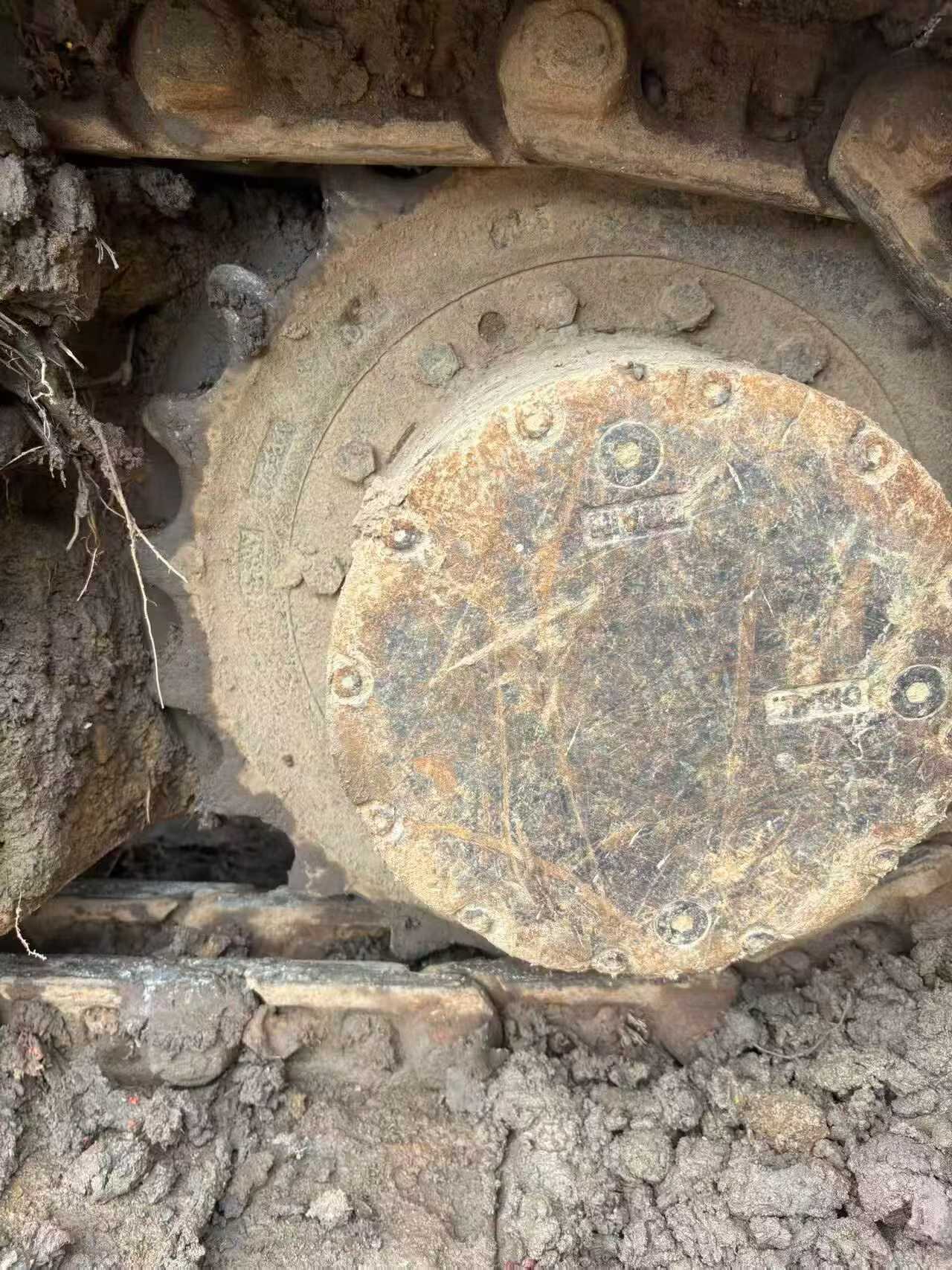

Buy Sany SY125C Used Excavator / 9

Product Description

This 2020 Sany SY125C excavator offers reliable performance for mid-sized construction and earthmoving applications. Currently located in Guangdong, China, this 12.5-ton class machine represents Sany's proven hydraulic excavator platform with a balance of digging force, reach, and fuel efficiency suited for contractors and rental fleets.

Key features include:

  • 12.5-ton operating weight for stable operation
  • Sany-branded hydraulic system with responsive controls
  • Standard bucket and arm configuration
  • Cab with operator comfort features
  • Suitable for excavation, trenching, and material handling

As a used unit from 2020, this excavator has accumulated operational hours. Prospective buyers should conduct a thorough inspection or request a detailed condition report. The machine is available for viewing in Guangdong province. Contact us for pricing, shipping options, and additional documentation.

SpecificationsValue
No.1085170
Tonnage (tons)12
Working weight (kg)12450
Bucket capacity (m³)0.22-0.7 (0.55)
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeIsuzu 4JJ1-XDJAG-01-C3
Rated power (kw/rpm)73/2000
Cooling modewater-cooling
Maximum torque (N.m)365/1600
Displacement (L)2.999
Ground specific pressure (Kpa)41.6
Rotation speed (rpm)13.06
Climbing ability (%)70
Bucket digging force (kN)90.6
Rod digging force (kN)57.2
Travel speed (km/h)5.5/3.5
Fuel Tank (L)240
Hydraulic Tank (L)150
Engine Oil changes (L)15
Total transport length (mm)7280
Total transport width (mm)2550
Total transport height (mm)2890
Full cab height (mm)2740
Minimum ground clearance (mm)425
Minimum turning radius of front working device (mm)2880
Back end turning radius (mm)2205
Onboard width (mm)2490
Total track length (mm)3360
Track gauge (mm)1990
Track plate width (mm)500
Track ground length (mm)2680
Maximum height at minimum turning radius (mm)5905
Number of sprockets (single side) (each)1
Number of wheels (single side) (each)6
Number of track plates (single side) (PCS)41
Maximum digging radius (mm)7735
Maximum digging depth (mm)5190
Maximum excavation height (mm)7695
Maximum unloading height (mm)5440
Maximum vertical digging depth (mm)4720
see more

Overview

No.1085170

Brand Name:

Sany

Model Number:

SY125C

Year:

2020

Location:

Guangdong China

Pub Date
