2020 Sany SY125C

1/9
Buy Sany SY125C Used Excavator / 1

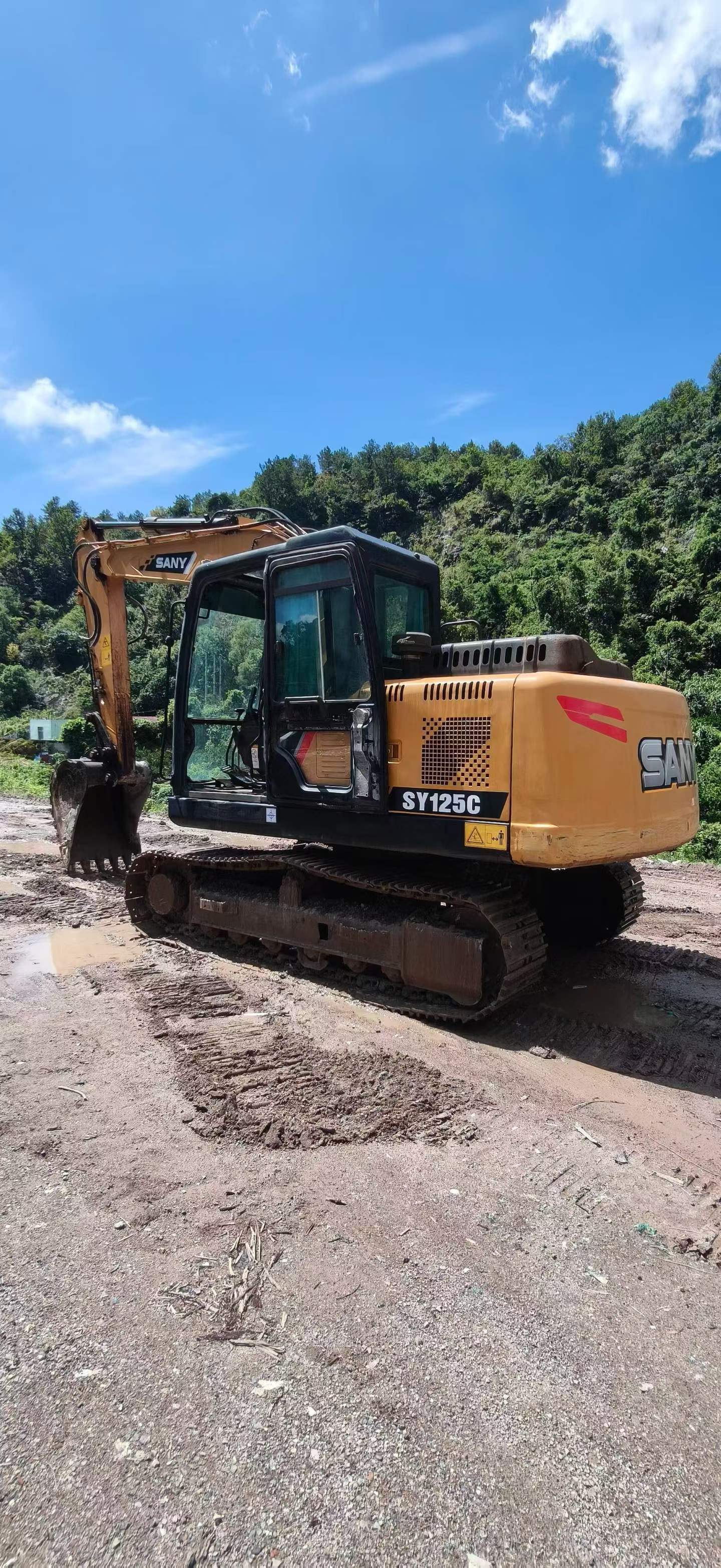

Buy Sany SY125C Used Excavator / 2
Buy Sany SY125C Used Excavator / 3

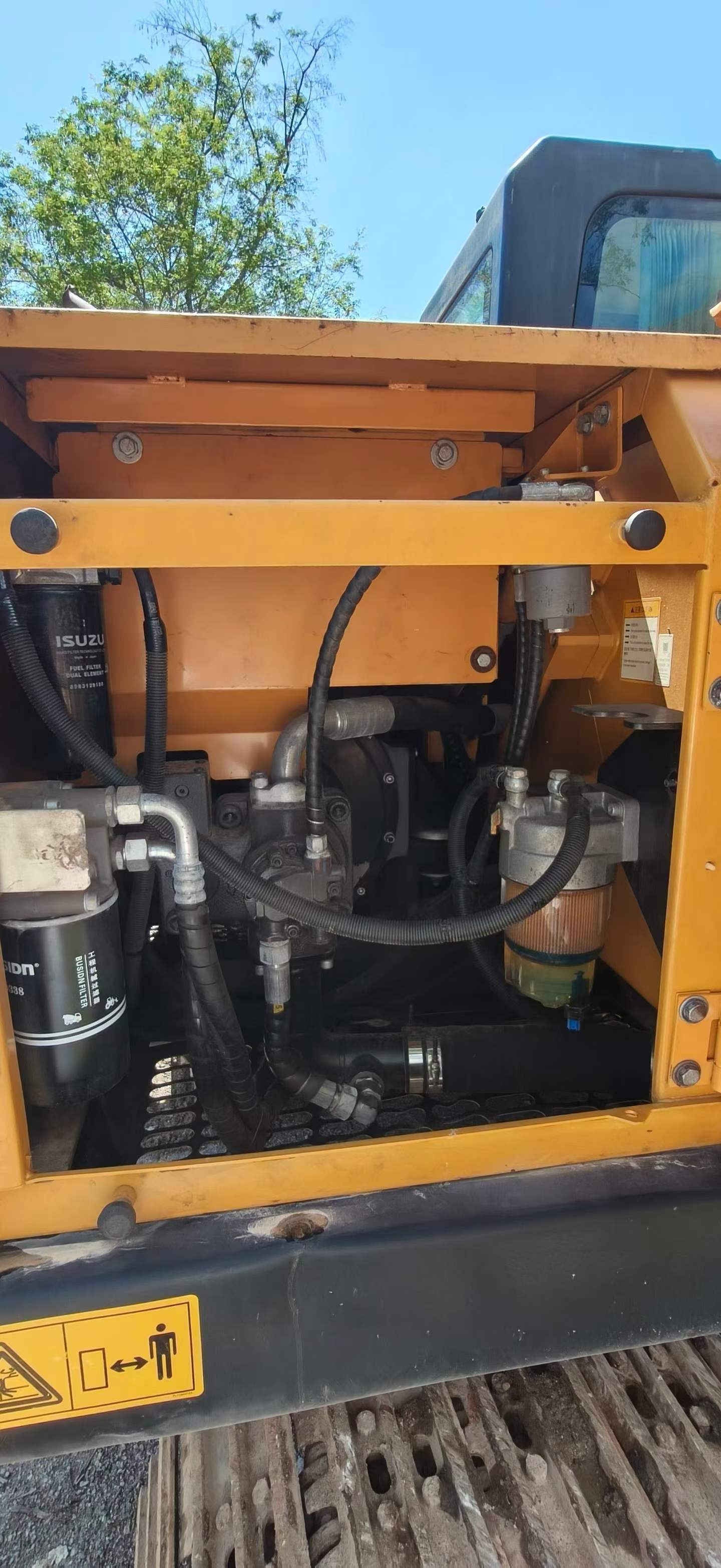

Buy Sany SY125C Used Excavator / 4

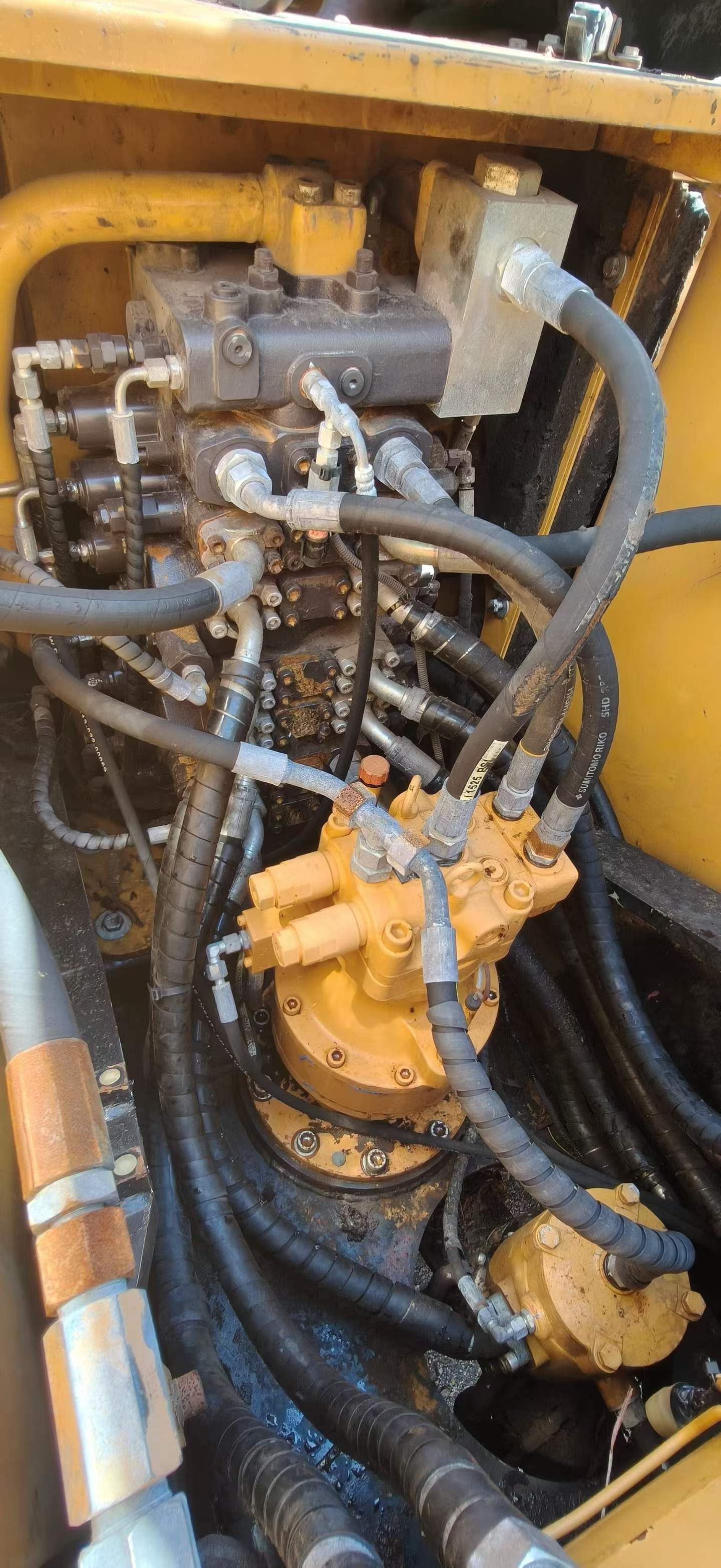

Buy Sany SY125C Used Excavator / 5

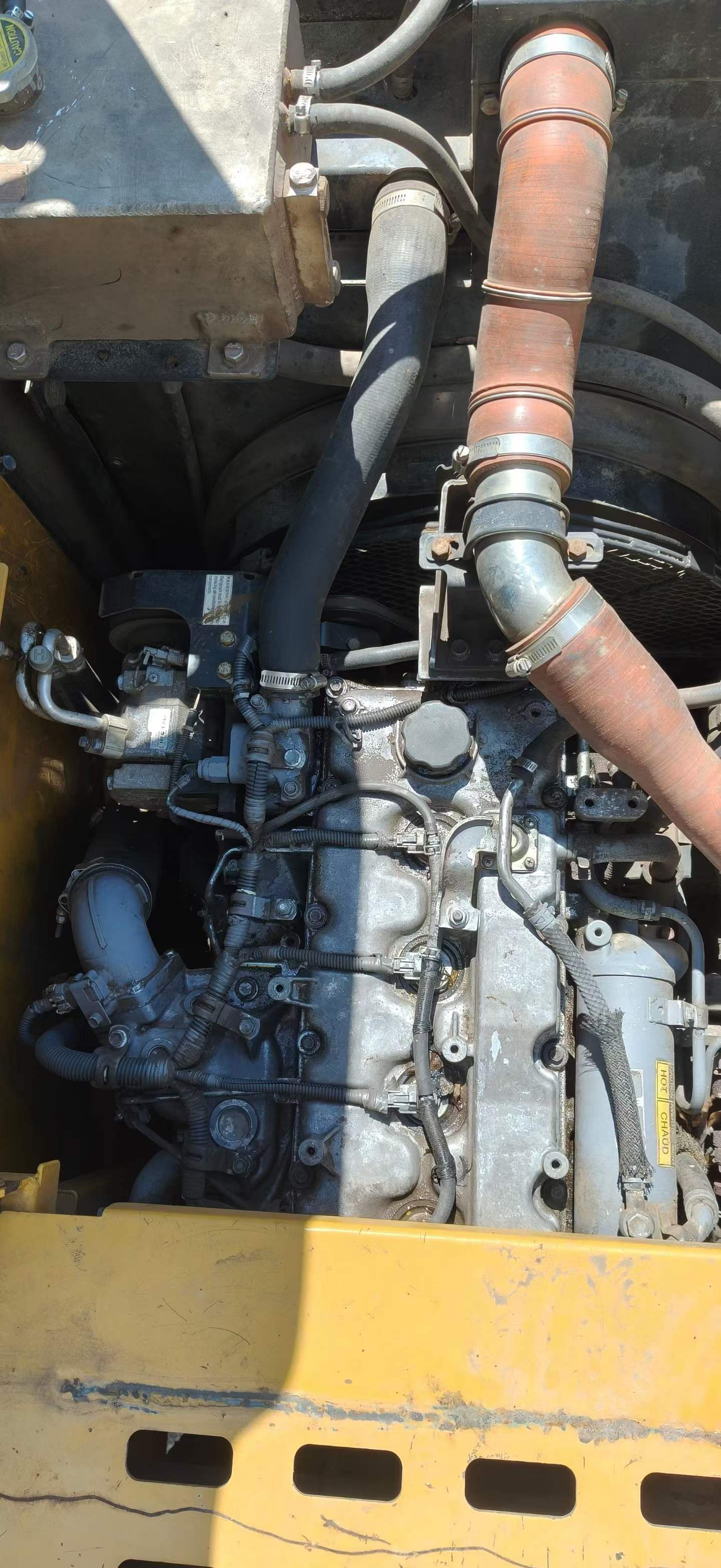

Buy Sany SY125C Used Excavator / 6

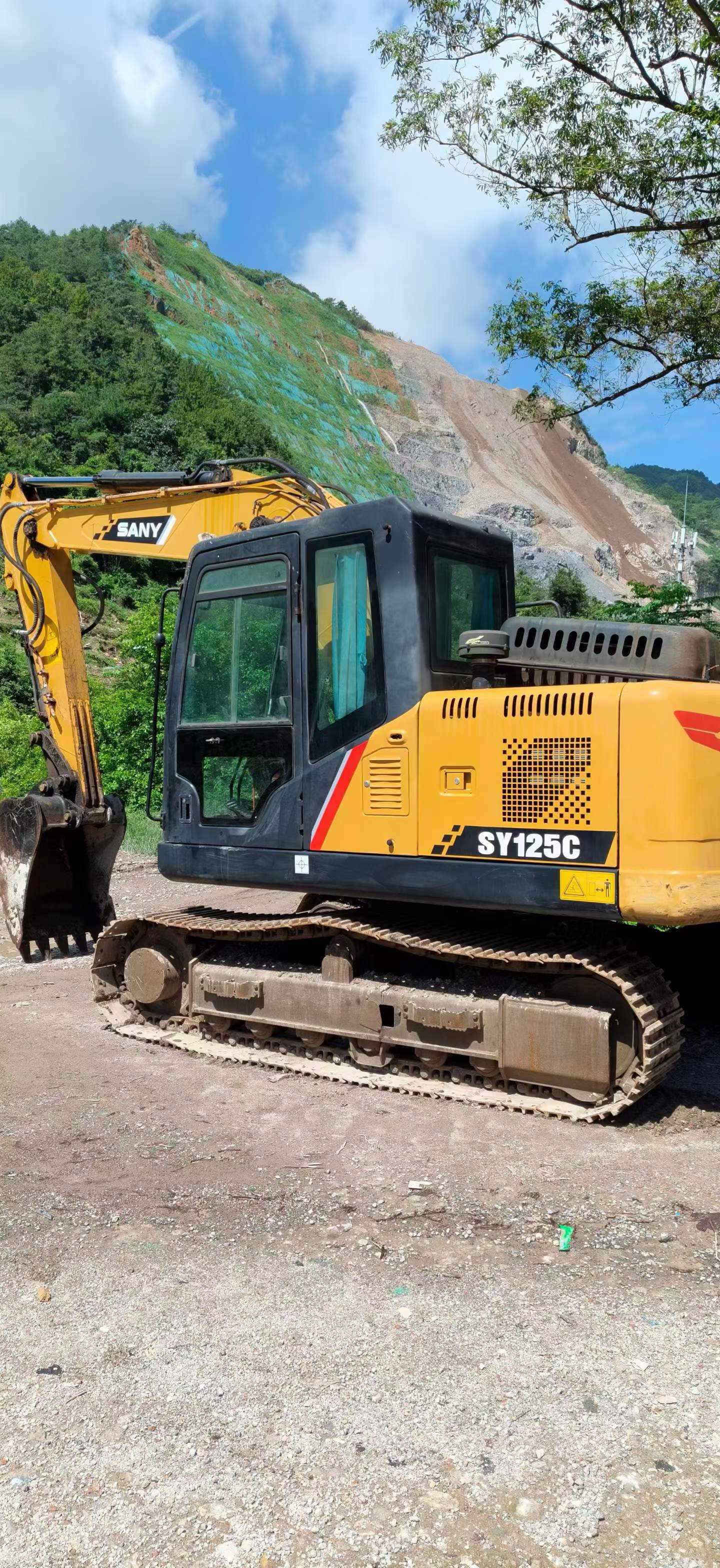

Buy Sany SY125C Used Excavator / 7

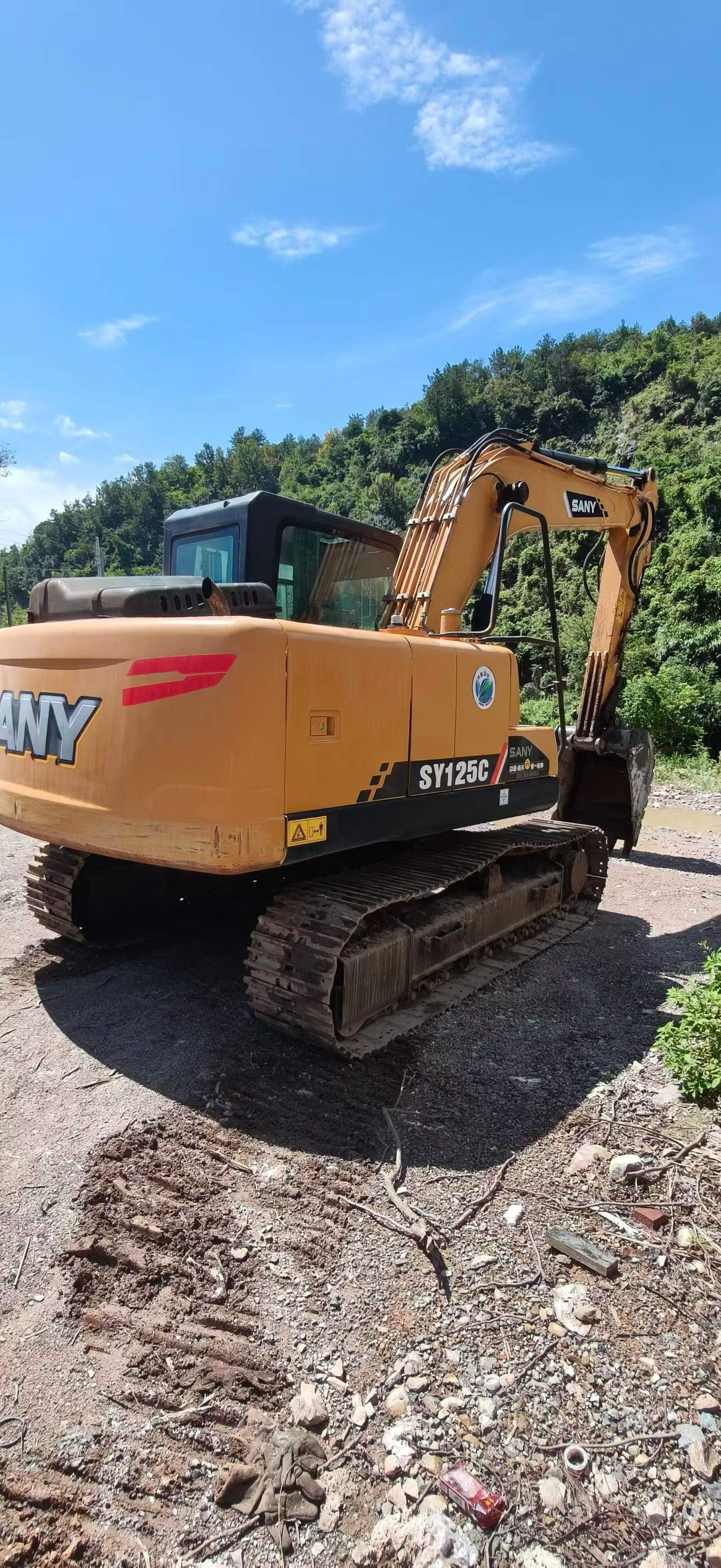

Buy Sany SY125C Used Excavator / 8

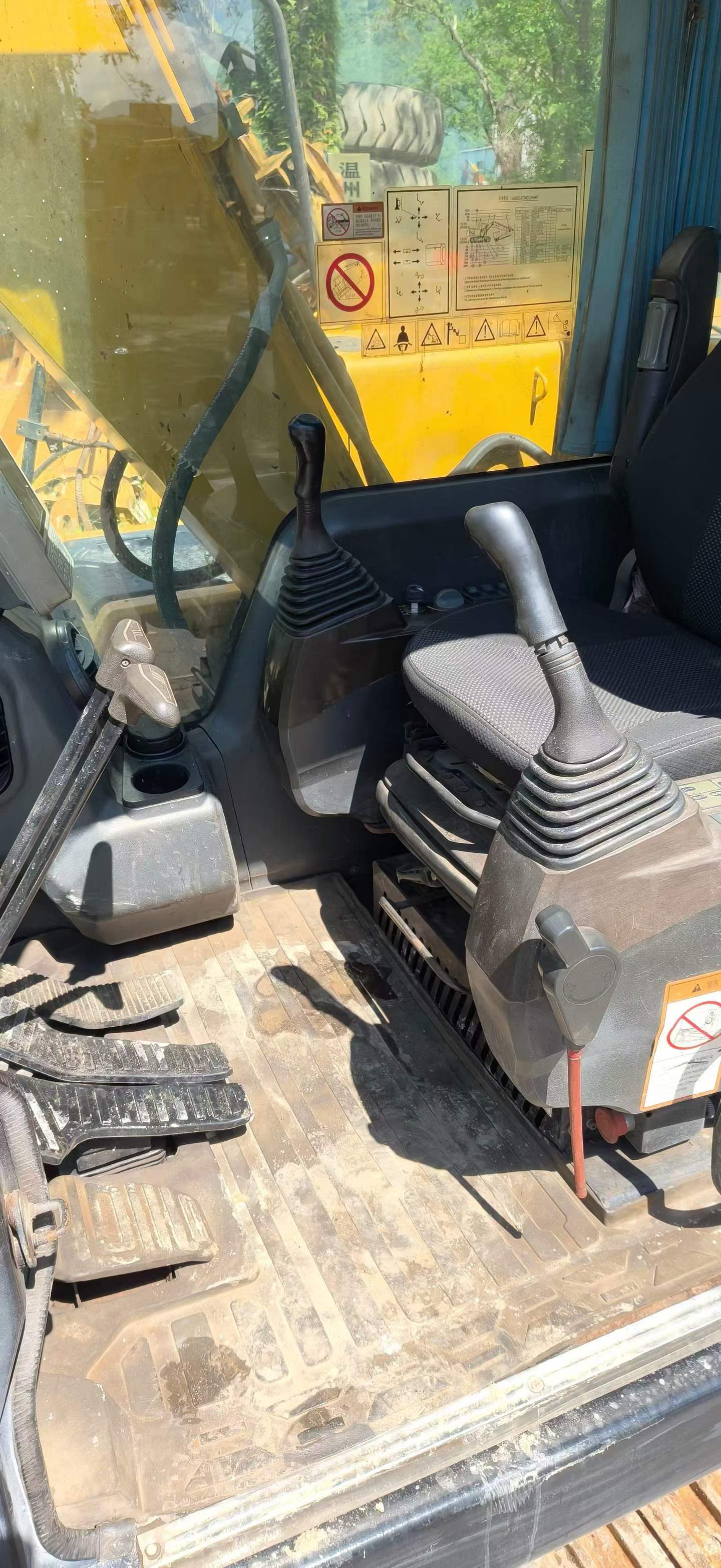

Buy Sany SY125C Used Excavator / 9

Product Description

This 2020 Sany SY125C hydraulic excavator offers reliable performance for mid-scale construction and earthmoving operations. With approximately 4 years of operational history, this 12.5-ton class machine represents Sany's proven engineering in the compact excavator segment.

Currently located in Zhejiang, China, this unit is available for immediate inspection and delivery. The SY125C is known for its fuel efficiency, straightforward maintenance, and suitable digging depth for utility work, foundation projects, and site preparation.

  • Operational weight: approximately 12,500 kg
  • Suitable for infrastructure and civil engineering projects
  • Standard bucket and boom configuration
  • Located in Zhejiang Province for convenient logistics

Contact us for detailed service records, current condition assessment, and pricing. Suitable for contractors seeking cost-effective equipment with established brand support.

SpecificationsValue
No.1136719
Tonnage (tons)12
Working weight (kg)12450
Bucket capacity (m³)0.22-0.7 (0.55)
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeIsuzu 4JJ1-XDJAG-01-C3
Rated power (kw/rpm)73/2000
Cooling modewater-cooling
Maximum torque (N.m)365/1600
Displacement (L)2.999
Ground specific pressure (Kpa)41.6
Rotation speed (rpm)13.06
Climbing ability (%)70
Bucket digging force (kN)90.6
Rod digging force (kN)57.2
Travel speed (km/h)5.5/3.5
Fuel Tank (L)240
Hydraulic Tank (L)150
Engine Oil changes (L)15
Total transport length (mm)7280
Total transport width (mm)2550
Total transport height (mm)2890
Full cab height (mm)2740
Minimum ground clearance (mm)425
Minimum turning radius of front working device (mm)2880
Back end turning radius (mm)2205
Onboard width (mm)2490
Total track length (mm)3360
Track gauge (mm)1990
Track plate width (mm)500
Track ground length (mm)2680
Maximum height at minimum turning radius (mm)5905
Number of sprockets (single side) (each)1
Number of wheels (single side) (each)6
Number of track plates (single side) (PCS)41
Maximum digging radius (mm)7735
Maximum digging depth (mm)5190
Maximum excavation height (mm)7695
Maximum unloading height (mm)5440
Maximum vertical digging depth (mm)4720
see more

Overview

No.1136719

Brand Name:

Sany

Model Number:

SY125C

Year:

2020

Location:

Zhejiang China

Pub Date
