Product Description

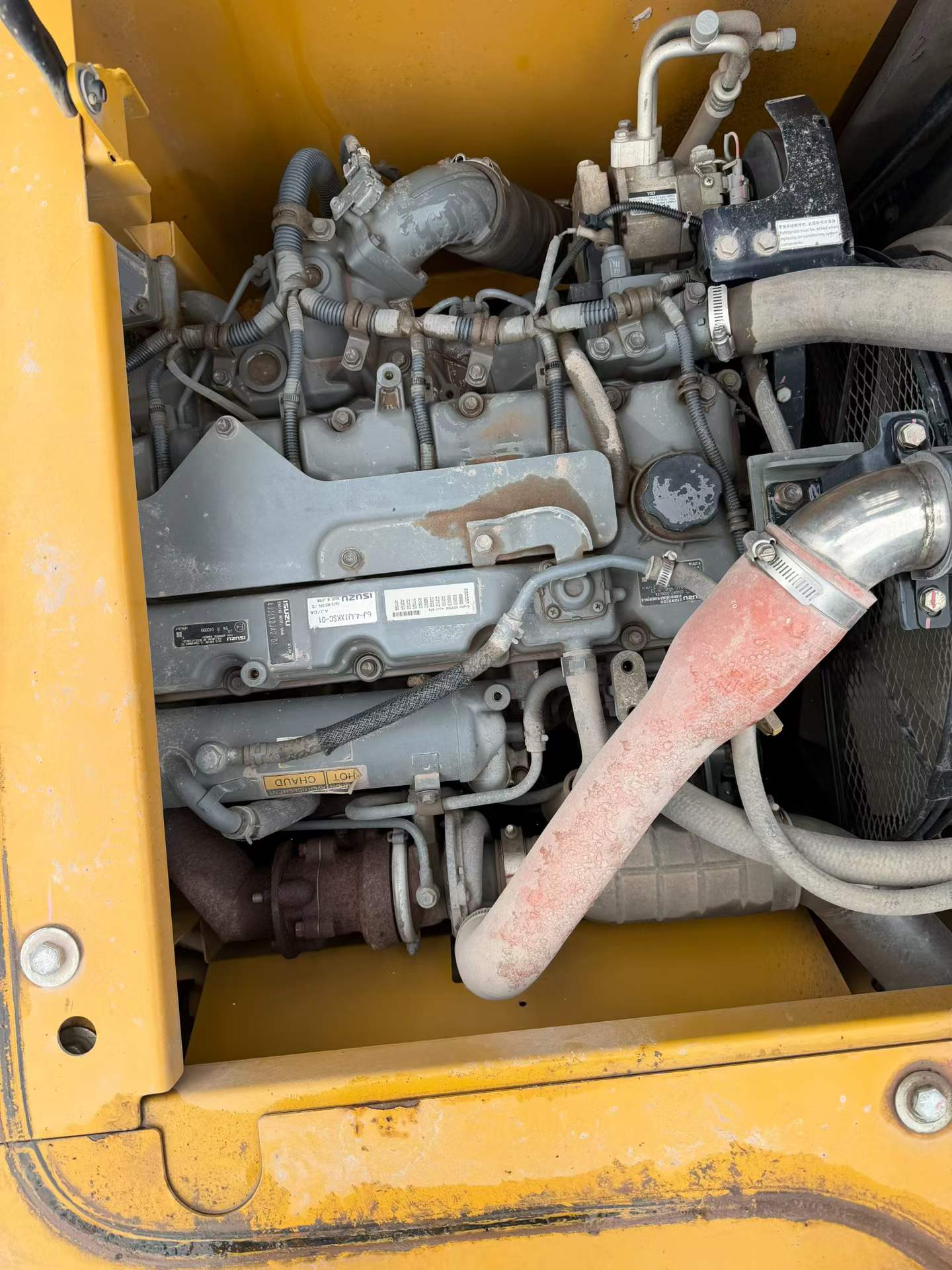

Featuring a robust Isuzu 4JJ1-XDJAG-01-C3 engine, this 2021 Sany SY125C excavator delivers 73 kW of power at 2000 rpm, ensuring efficient performance on any job site. With a working weight of 12,450 kg and a bucket capacity ranging from 0.22 to 0.7 m³, it is designed for both precision and heavy-duty tasks.
- Enhanced operator comfort with a full cab height of 2740 mm, providing ample space and visibility.
- Stability and handling are optimized with a ground specific pressure of 41.6 Kpa and a maximum torque of 365 N.m at 1600 rpm.
- Excellent maneuverability is achieved with a minimum turning radius of 2880 mm and a back end turning radius of 2205 mm.
- Travel speed options of 5.5 km/h and 3.5 km/h ensure flexibility in various terrains, supported by a climbing ability of 70%.
- Located in 浙江丽水, this excavator is ready for immediate deployment, equipped with a 240 L fuel tank and a 150 L hydraulic tank for extended operation.
| Specifications | Value |
|---|---|
| No. | 1020518 |
| Tonnage (tons) | 12 |
| Working weight (kg) | 12450 |
| Bucket capacity (m³) | 0.22-0.7 (0.55) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Isuzu 4JJ1-XDJAG-01-C3 |
| Rated power (kw/rpm) | 73/2000 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 365/1600 |
| Displacement (L) | 2.999 |
| Ground specific pressure (Kpa) | 41.6 |
| Rotation speed (rpm) | 13.06 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 90.6 |
| Rod digging force (kN) | 57.2 |
| Travel speed (km/h) | 5.5/3.5 |
| Fuel Tank (L) | 240 |
| Hydraulic Tank (L) | 150 |
| Engine Oil changes (L) | 15 |
| Total transport length (mm) | 7280 |
| Total transport width (mm) | 2550 |
| Total transport height (mm) | 2890 |
| Full cab height (mm) | 2740 |
| Minimum ground clearance (mm) | 425 |
| Minimum turning radius of front working device (mm) | 2880 |
| Back end turning radius (mm) | 2205 |
| Onboard width (mm) | 2490 |
| Total track length (mm) | 3360 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Track ground length (mm) | 2680 |
| Maximum height at minimum turning radius (mm) | 5905 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 6 |
| Number of track plates (single side) (PCS) | 41 |
| Maximum digging radius (mm) | 7735 |
| Maximum digging depth (mm) | 5190 |
| Maximum excavation height (mm) | 7695 |
| Maximum unloading height (mm) | 5440 |
| Maximum vertical digging depth (mm) | 4720 |
