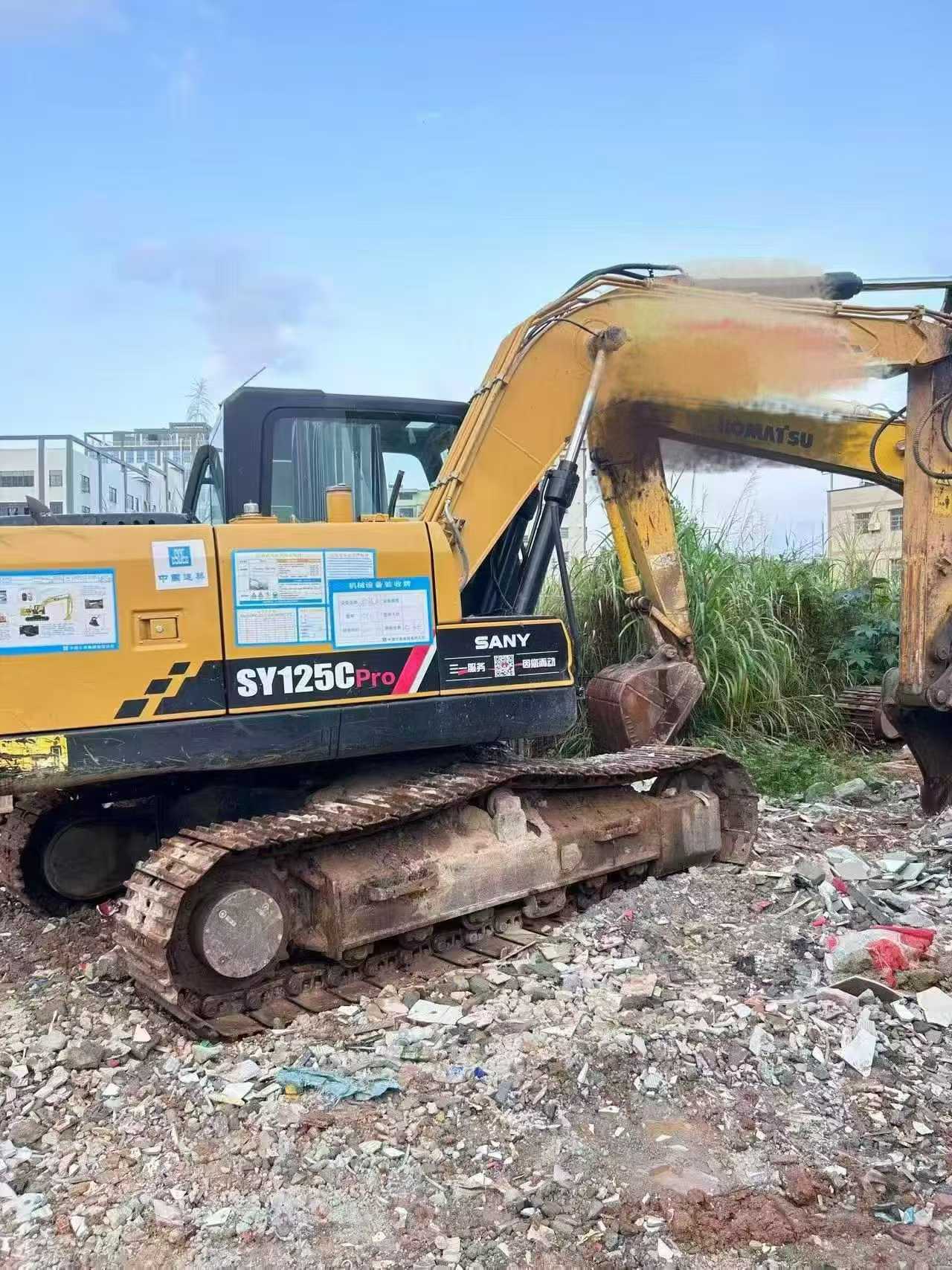

2022 Sany SY125C

1/6
Buy Sany SY125C Used Excavator / 1
Buy Sany SY125C Used Excavator / 2
Buy Sany SY125C Used Excavator / 3
Buy Sany SY125C Used Excavator / 4
Buy Sany SY125C Used Excavator / 5
Buy Sany SY125C Used Excavator / 6

Product Description

Ready to ship from 广东潮州 (Guangdong Chaozhou), this 2022 Sany SY125C offers immediate deployment without factory lead times. Operating at 12 tons with a robust Isuzu 4JJ1 engine delivering 73kW at 2000rpm, this excavator combines proven hydraulics with accessible logistics. Maximum digging depth reaches 5190mm, while the 7735mm working radius handles diverse site conditions across mining, construction, and infrastructure projects.

  • Working Weight: 12,450 kg with 0.55m³ bucket capacity

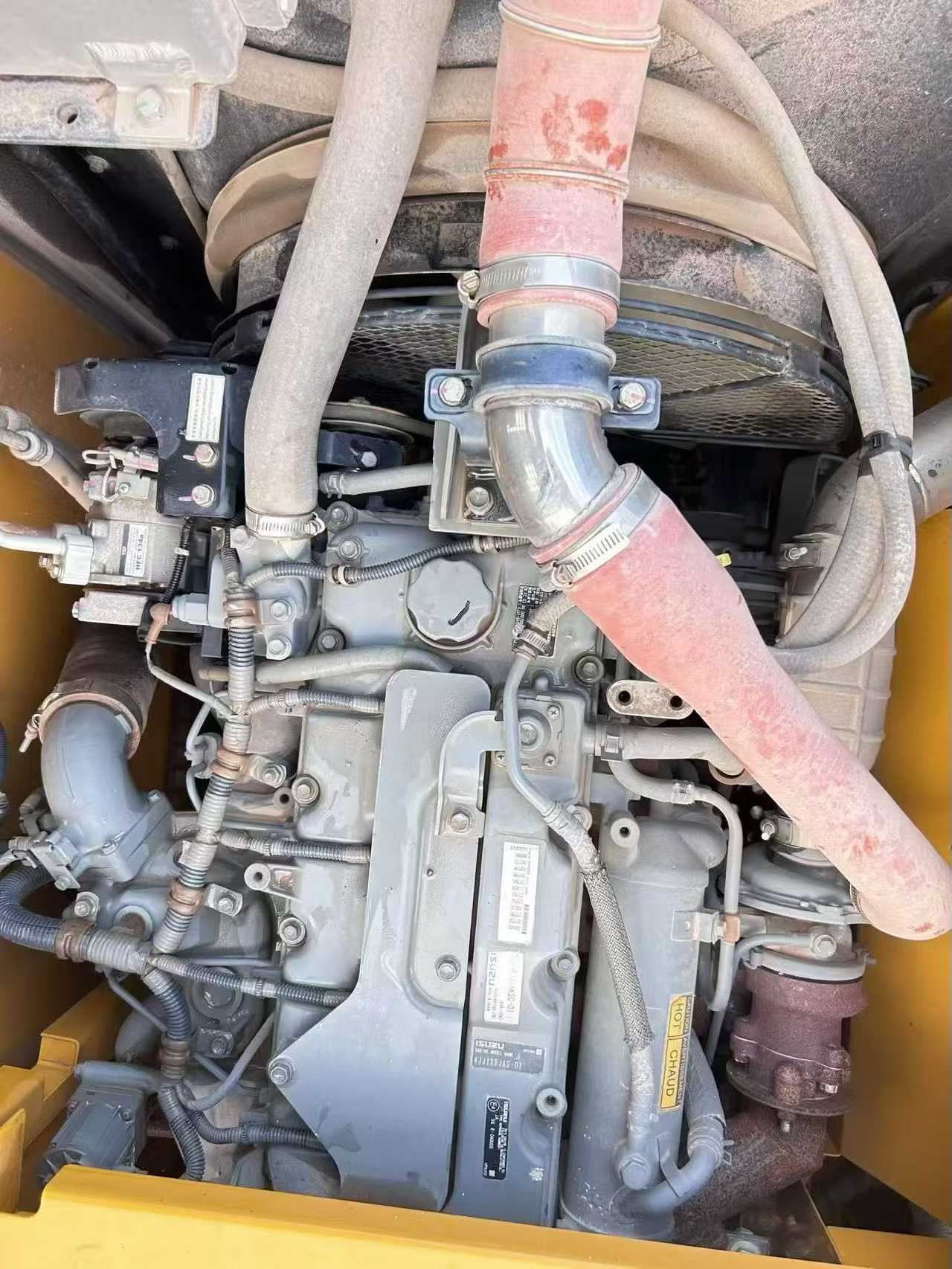

  • Power: Isuzu 4JJ1-XDJAG-01 engine, water-cooled, 2.999L displacement
  • Performance: 90.6kN bucket digging force, 70% gradeability
  • Dimensions: 7280mm transport length, 2550mm width
  • Availability: In-stock in 广东潮州, fast delivery nationwide and export-ready

Skip months of factory queues. Secure this inspection-ready machine and accelerate your project timeline with same-week coordination from our Chaozhou facility.

SpecificationsValue
No.1051191
Tonnage (tons)12
Working weight (kg)12450
Bucket capacity (m³)0.22-0.7 (0.55)
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeIsuzu 4JJ1-XDJAG-01-C3
Rated power (kw/rpm)73/2000
Cooling modewater-cooling
Maximum torque (N.m)365/1600
Displacement (L)2.999
Ground specific pressure (Kpa)41.6
Rotation speed (rpm)13.06
Climbing ability (%)70
Bucket digging force (kN)90.6
Rod digging force (kN)57.2
Travel speed (km/h)5.5/3.5
Fuel Tank (L)240
Hydraulic Tank (L)150
Engine Oil changes (L)15
Total transport length (mm)7280
Total transport width (mm)2550
Total transport height (mm)2890
Full cab height (mm)2740
Minimum ground clearance (mm)425
Minimum turning radius of front working device (mm)2880
Back end turning radius (mm)2205
Onboard width (mm)2490
Total track length (mm)3360
Track gauge (mm)1990
Track plate width (mm)500
Track ground length (mm)2680
Maximum height at minimum turning radius (mm)5905
Number of sprockets (single side) (each)1
Number of wheels (single side) (each)6
Number of track plates (single side) (PCS)41
Maximum digging radius (mm)7735
Maximum digging depth (mm)5190
Maximum excavation height (mm)7695
Maximum unloading height (mm)5440
Maximum vertical digging depth (mm)4720
see more

Overview

No.1051191

Brand Name:

Sany

Model Number:

SY125C

Year:

2022

Location:

Guangdong China

Pub Date
