Product Description

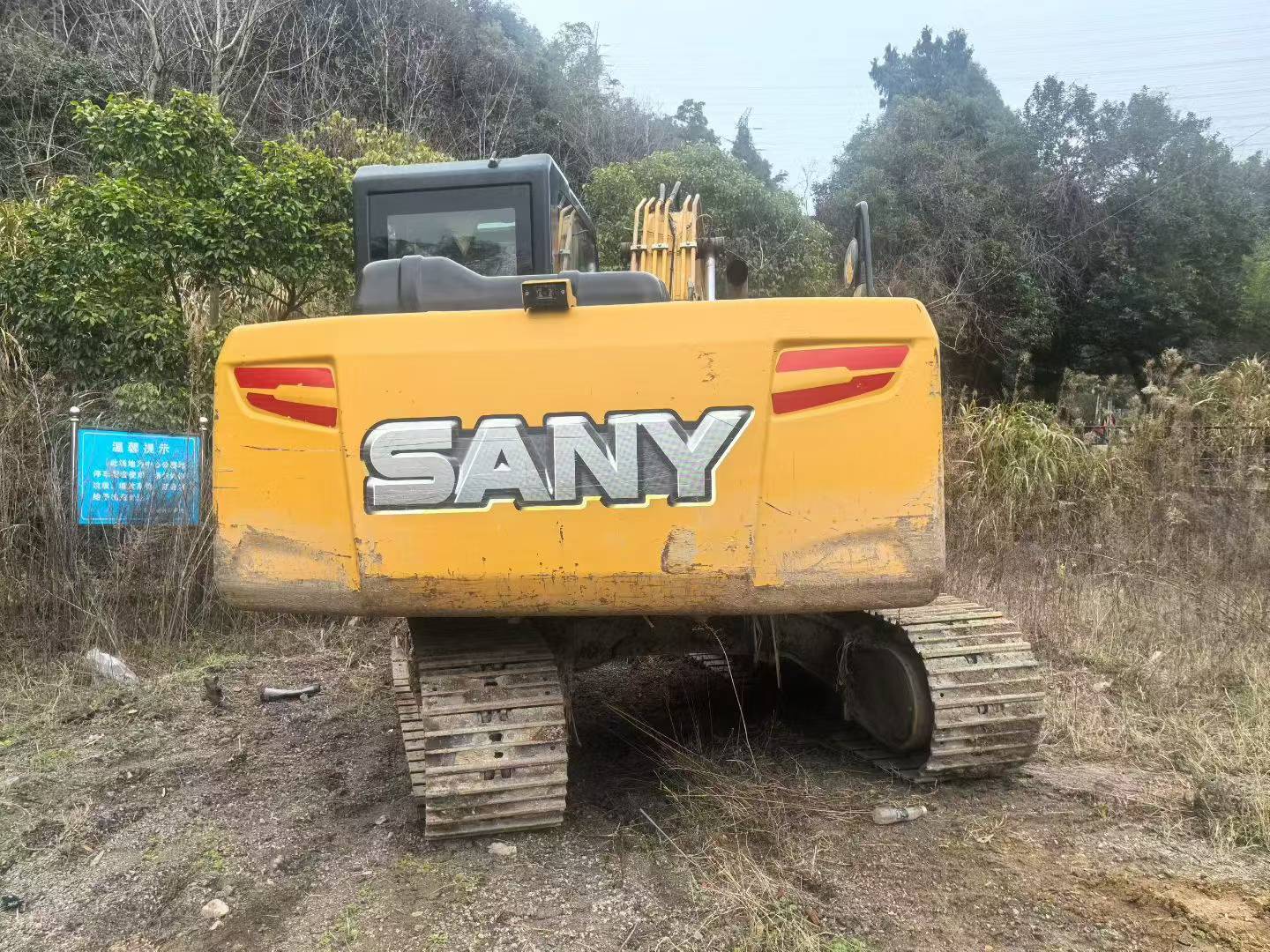

This 2022 Sany SY125C hydraulic excavator offers reliable performance for medium-duty construction and earthmoving applications. As part of Sany's proven C-series lineup, this 12.5-ton class machine combines efficient operation with robust build quality. Currently located in Zhejiang, China, this unit represents an excellent opportunity for contractors seeking dependable excavation equipment from one of the industry's leading manufacturers.
Key features of the SY125C include:
- 12.5-ton operating weight suitable for diverse job sites
- Fuel-efficient engine meeting modern emission standards
- Durable undercarriage designed for extended service life
- Ergonomic operator cabin with intuitive controls
- Proven hydraulic system for smooth operation
- Low operational hours given recent 2022 manufacture year
The Sany SY125C is ideal for excavation, trenching, loading, and general construction tasks. Contact us for complete inspection reports, pricing, and international shipping arrangements to your location.
| Specifications | Value |
|---|---|
| No. | 1080993 |
| Tonnage (tons) | 12 |
| Working weight (kg) | 12450 |
| Bucket capacity (m³) | 0.22-0.7 (0.55) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Isuzu 4JJ1-XDJAG-01-C3 |
| Rated power (kw/rpm) | 73/2000 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 365/1600 |
| Displacement (L) | 2.999 |
| Ground specific pressure (Kpa) | 41.6 |
| Rotation speed (rpm) | 13.06 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 90.6 |
| Rod digging force (kN) | 57.2 |
| Travel speed (km/h) | 5.5/3.5 |
| Fuel Tank (L) | 240 |
| Hydraulic Tank (L) | 150 |
| Engine Oil changes (L) | 15 |
| Total transport length (mm) | 7280 |
| Total transport width (mm) | 2550 |
| Total transport height (mm) | 2890 |
| Full cab height (mm) | 2740 |
| Minimum ground clearance (mm) | 425 |
| Minimum turning radius of front working device (mm) | 2880 |
| Back end turning radius (mm) | 2205 |
| Onboard width (mm) | 2490 |
| Total track length (mm) | 3360 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Track ground length (mm) | 2680 |
| Maximum height at minimum turning radius (mm) | 5905 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 6 |
| Number of track plates (single side) (PCS) | 41 |
| Maximum digging radius (mm) | 7735 |
| Maximum digging depth (mm) | 5190 |
| Maximum excavation height (mm) | 7695 |
| Maximum unloading height (mm) | 5440 |
| Maximum vertical digging depth (mm) | 4720 |
