Product Description

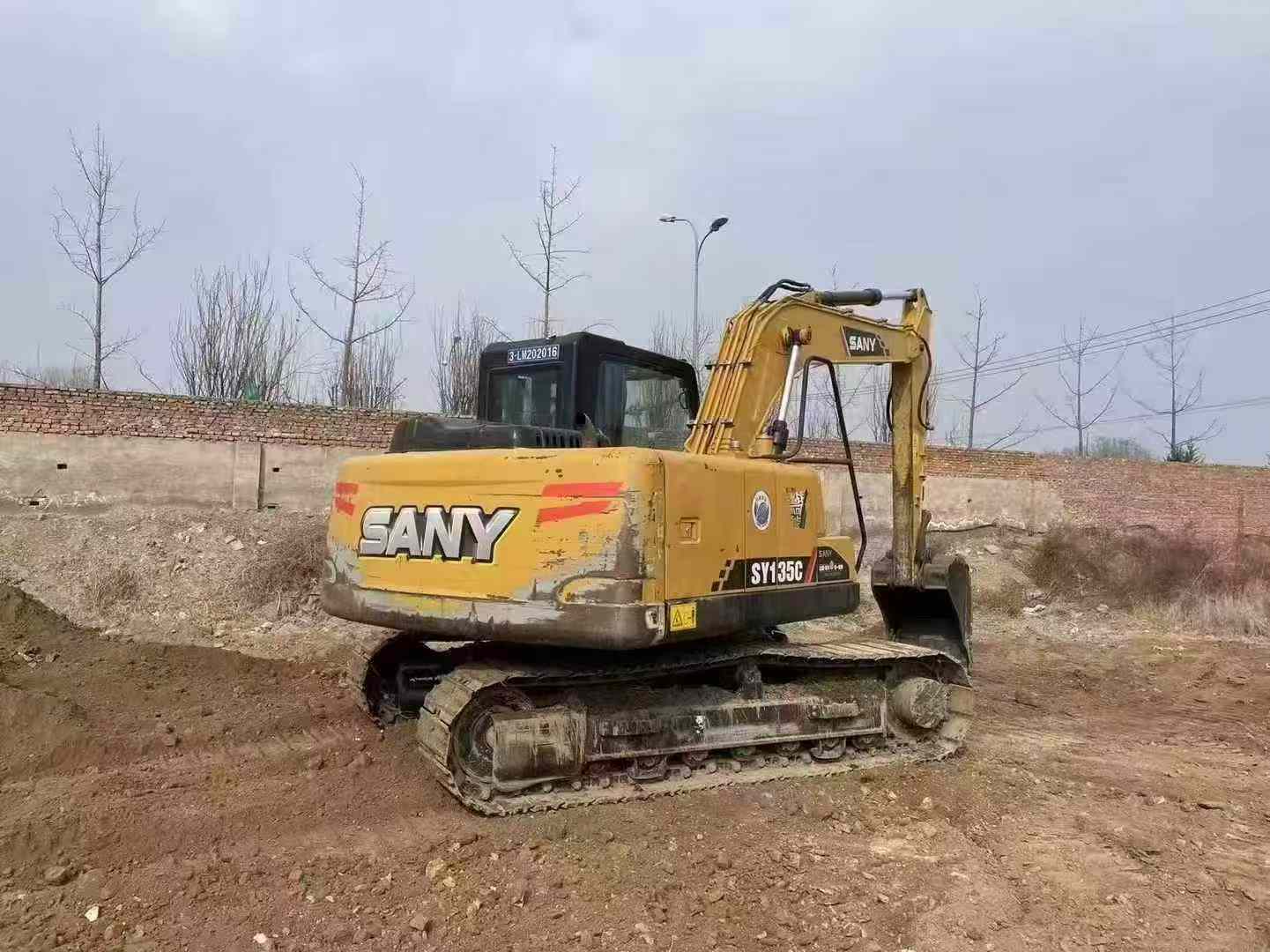

With a robust 13-ton working weight and a powerful Isuzu 4JJ1-XDJAG-01-C3 engine, this 2018 Sany SY135C excavator stands as a testament to reliability and performance. Featuring a bucket capacity of 0.22-0.7 m³ and a maximum digging depth of 5510 mm, it is designed for efficiency and durability. Made in China, Sany ensures that parts are readily available, making maintenance and repairs straightforward. The machine's strong resale value further enhances its appeal, providing a secure investment for your fleet. Equipped with water-cooling and a rated power of 73 kW at 2000 rpm, this excavator delivers consistent performance. Its climbing ability of 70% (35°) and travel speed of up to 5.5 km/h make it versatile for various terrains and job sites. Located in 北京市, this Sany SY135C is ready to meet the demands of your next project.
| Specifications | Value |
|---|---|
| No. | 1028835 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 13500 |
| Bucket capacity (m³) | 0.22-0.7 (0.6) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

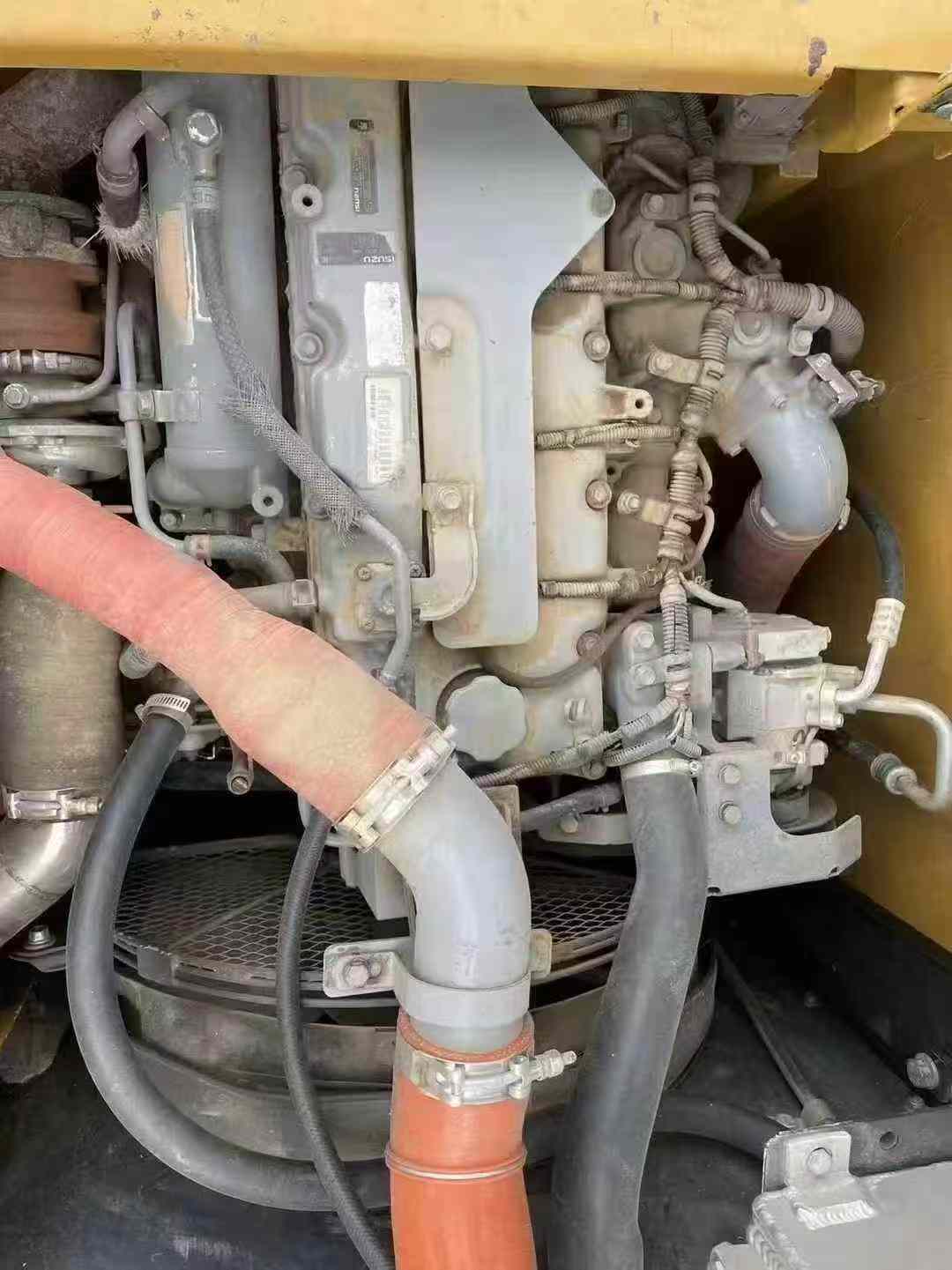

| Engine type | Isuzu 4JJ1-XDJAG-01-C3 |
| Rated power (kw/rpm) | 73/2000 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 365/1600 |
| Displacement (L) | 2.999 |
| Ground specific pressure (Kpa) | 41.7 |
| Rotation speed (rpm) | 12 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 92.7 |
| Rod digging force (kN) | 66.13 |
| Travel speed (km/h) | 5.5/3.5 |
| Fuel Tank (L) | 240 |
| Hydraulic Tank (L) | 150 |
| Engine Oil changes (L) | 15 |
| Total transport length (mm) | 7700 |
| Total transport width (mm) | 2550 |
| Total transport height (mm) | 2815 |
| Full cab height (mm) | 2740 |
| Minimum ground clearance (mm) | 425 |
| Minimum turning radius of front working device (mm) | 2500 |
| Back end turning radius (mm) | 2240 |
| Onboard width (mm) | 2490 |
| Total track length (mm) | 3665 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Track ground length (mm) | 2930 |
| Maximum height at minimum turning radius (mm) | 6500 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 7 |
| Number of track plates (single side) (PCS) | 44 |
| Maximum digging radius (mm) | 8290 |
| Maximum digging depth (mm) | 5510 |
| Maximum excavation height (mm) | 8685 |
| Maximum unloading height (mm) | 6180 |
| Maximum vertical digging depth (mm) | 4890 |
