Product Description

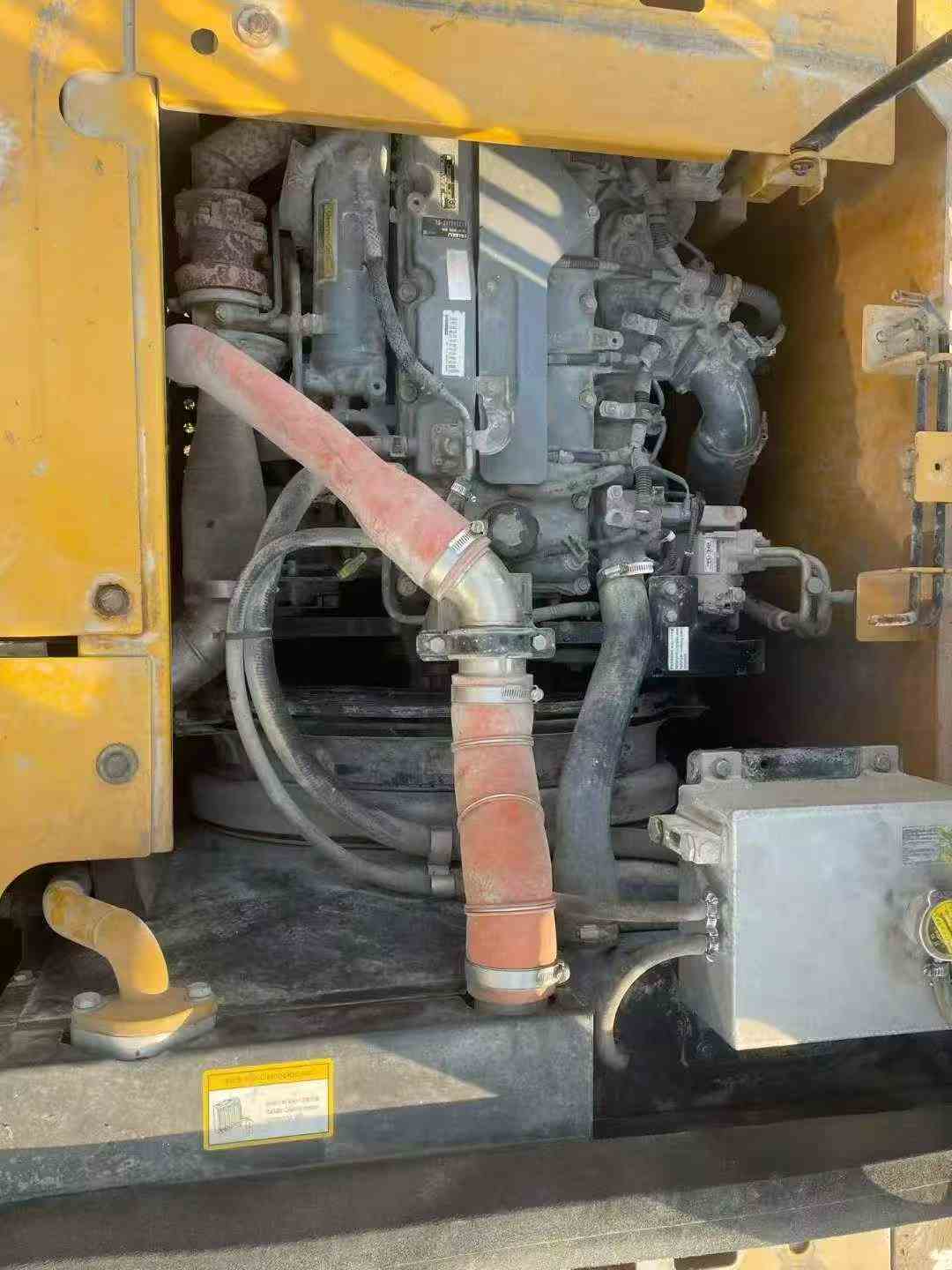

Built for contractors who need a dependable second unit on the job site, this 2019 Sany SY135C 13-ton excavator delivers consistent performance without the overhead of a new machine. Powered by an Isuzu 4JJ1 water-cooled diesel engine producing 73 kW at 2,000 RPM and 365 N·m of peak torque, it handles dig cycles efficiently across a full shift. Currently located in Hunan, China, and ready for export.
- Digging Performance: 92.7 kN bucket digging force, 5,510 mm maximum dig depth, 8,290 mm maximum reach
- Bucket Capacity: 0.22–0.7 m³ (standard 0.6 m³ backhoe bucket)

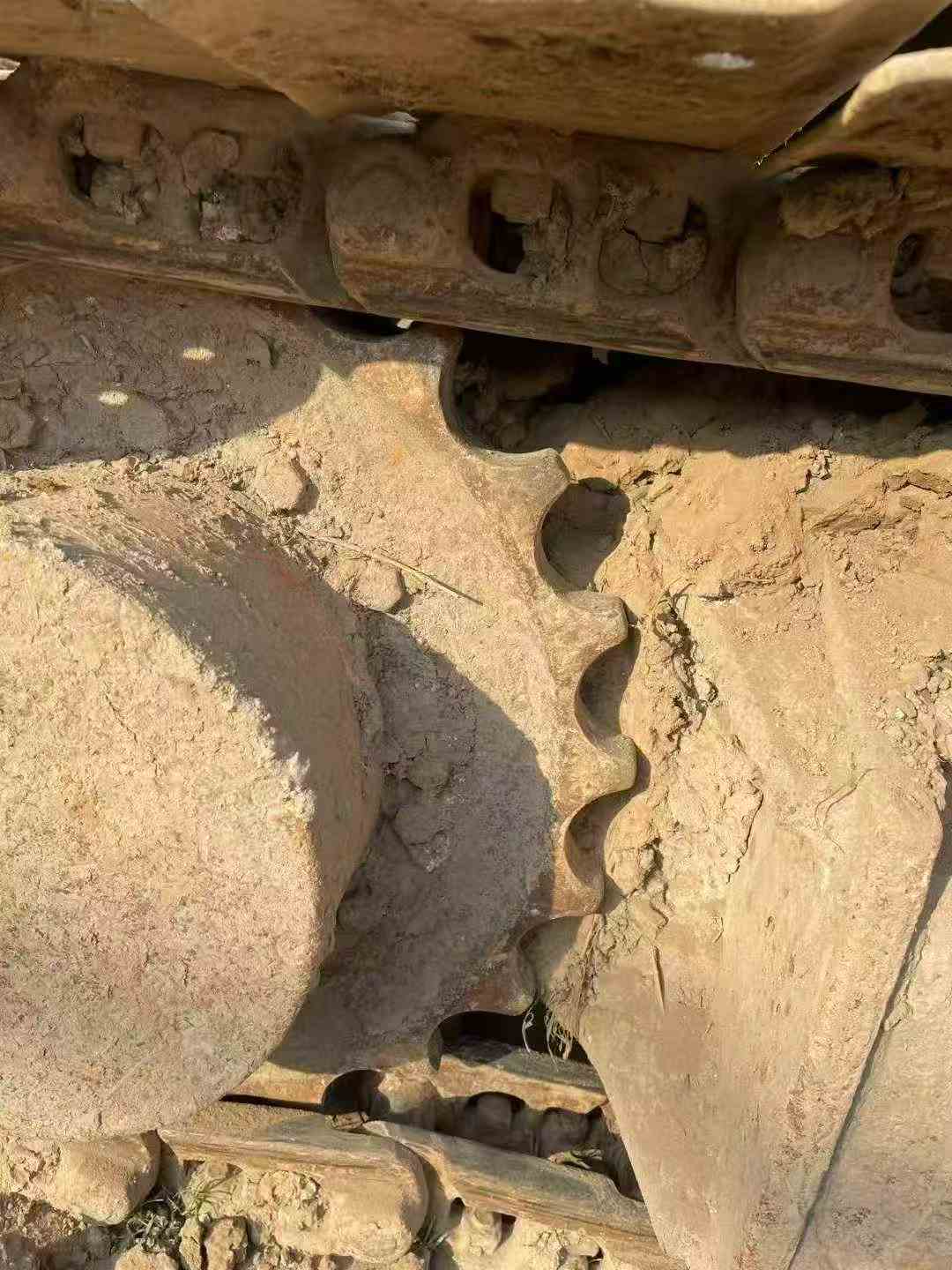

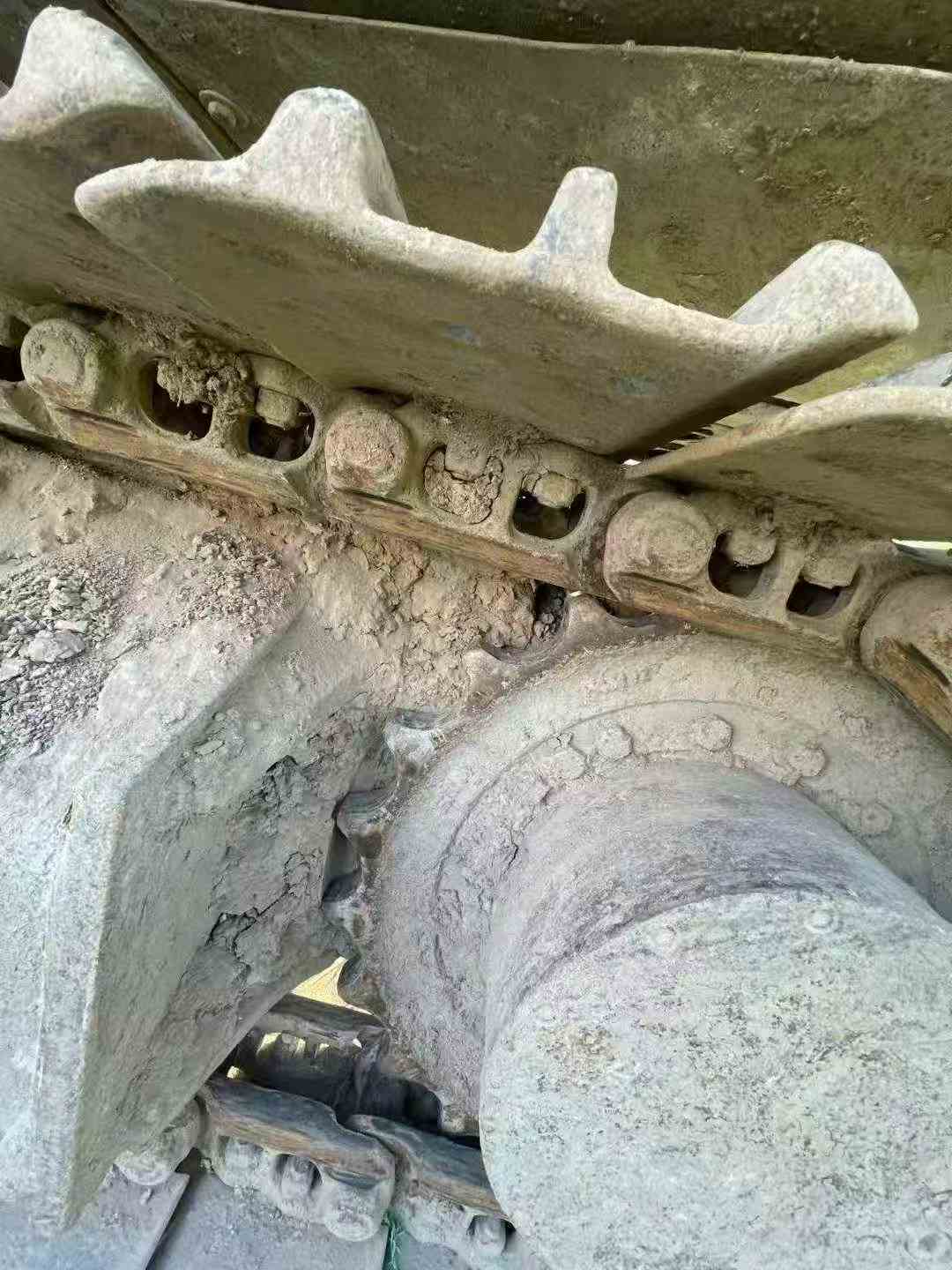

- Undercarriage: 500 mm track plates, 41.7 kPa ground pressure — suitable for soft and mixed terrain
- Travel: Dual-speed travel at 5.5 / 3.5 km/h with 70% gradeability
- Transport Dimensions: 7,700 × 2,550 × 2,815 mm — fits standard flat-bed shipping
- Fuel Capacity: 240 L tank for extended autonomous operation between refuels
A solid fleet addition for civil works, utility trenching, or site prep. Available now through Fair Trade Machinery — contact us for inspection reports and shipping options.
| Specifications | Value |
|---|---|
| No. | 1080341 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 13500 |
| Bucket capacity (m³) | 0.22-0.7 (0.6) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Isuzu 4JJ1-XDJAG-01-C3 |
| Rated power (kw/rpm) | 73/2000 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 365/1600 |
| Displacement (L) | 2.999 |
| Ground specific pressure (Kpa) | 41.7 |
| Rotation speed (rpm) | 12 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 92.7 |
| Rod digging force (kN) | 66.13 |
| Travel speed (km/h) | 5.5/3.5 |
| Fuel Tank (L) | 240 |
| Hydraulic Tank (L) | 150 |
| Engine Oil changes (L) | 15 |
| Total transport length (mm) | 7700 |
| Total transport width (mm) | 2550 |
| Total transport height (mm) | 2815 |
| Full cab height (mm) | 2740 |
| Minimum ground clearance (mm) | 425 |
| Minimum turning radius of front working device (mm) | 2500 |
| Back end turning radius (mm) | 2240 |
| Onboard width (mm) | 2490 |
| Total track length (mm) | 3665 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Track ground length (mm) | 2930 |
| Maximum height at minimum turning radius (mm) | 6500 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 7 |
| Number of track plates (single side) (PCS) | 44 |
| Maximum digging radius (mm) | 8290 |
| Maximum digging depth (mm) | 5510 |
| Maximum excavation height (mm) | 8685 |
| Maximum unloading height (mm) | 6180 |
| Maximum vertical digging depth (mm) | 4890 |
