Product Description

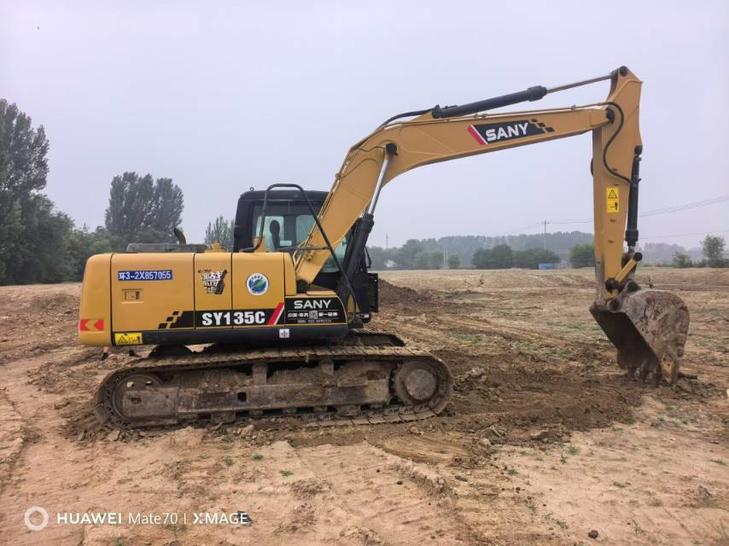

For sale is a 2020 Sany SY135C excavator, located in Peking, China. This machine is in excellent condition, with no leaks and has been meticulously maintained, making it ready for immediate deployment to your construction site. Ideal for earthmoving tasks, this excavator has just undergone a thorough service, ensuring optimal performance and reliability. Ready to start generating revenue right away, this Sany SY135C is a solid choice for any construction fleet.
- Year: 2020
- Brand: Sany
- Model: SY135C
- Location: Peking, China
- Condition: Excellent, recently serviced
- Usage: Primarily for earthmoving
| Specifications | Value |
|---|---|
| No. | 1086974 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 13500 |
| Bucket capacity (m³) | 0.22-0.7 (0.6) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Isuzu 4JJ1-XDJAG-01-C3 |
| Rated power (kw/rpm) | 73/2000 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 365/1600 |
| Displacement (L) | 2.999 |
| Ground specific pressure (Kpa) | 41.7 |
| Rotation speed (rpm) | 12 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 92.7 |
| Rod digging force (kN) | 66.13 |
| Travel speed (km/h) | 5.5/3.5 |
| Fuel Tank (L) | 240 |
| Hydraulic Tank (L) | 150 |
| Engine Oil changes (L) | 15 |
| Total transport length (mm) | 7700 |
| Total transport width (mm) | 2550 |
| Total transport height (mm) | 2815 |
| Full cab height (mm) | 2740 |
| Minimum ground clearance (mm) | 425 |
| Minimum turning radius of front working device (mm) | 2500 |
| Back end turning radius (mm) | 2240 |
| Onboard width (mm) | 2490 |
| Total track length (mm) | 3665 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Track ground length (mm) | 2930 |
| Maximum height at minimum turning radius (mm) | 6500 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 7 |
| Number of track plates (single side) (PCS) | 44 |
| Maximum digging radius (mm) | 8290 |
| Maximum digging depth (mm) | 5510 |
| Maximum excavation height (mm) | 8685 |
| Maximum unloading height (mm) | 6180 |
| Maximum vertical digging depth (mm) | 4890 |
