Product Description

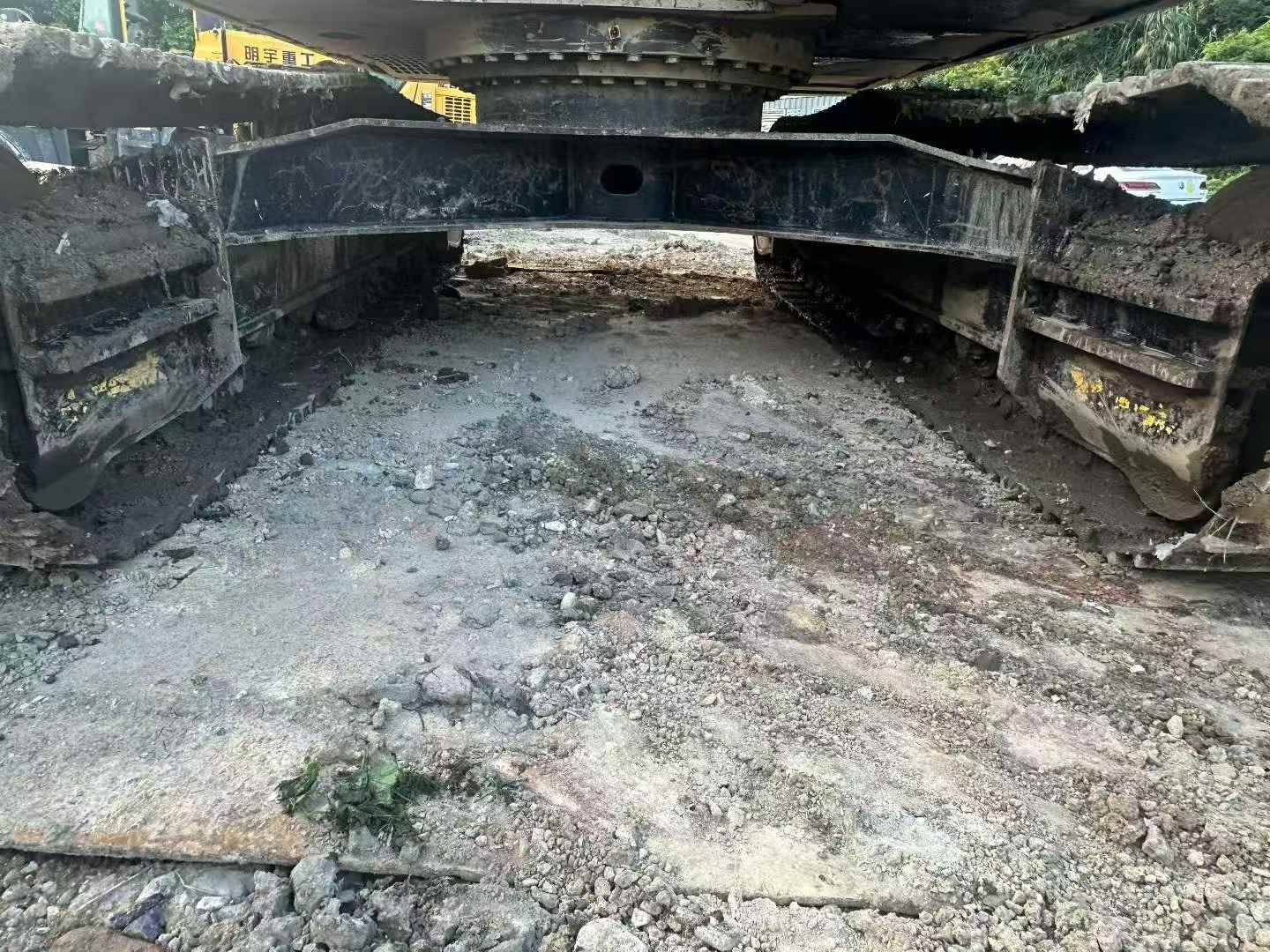

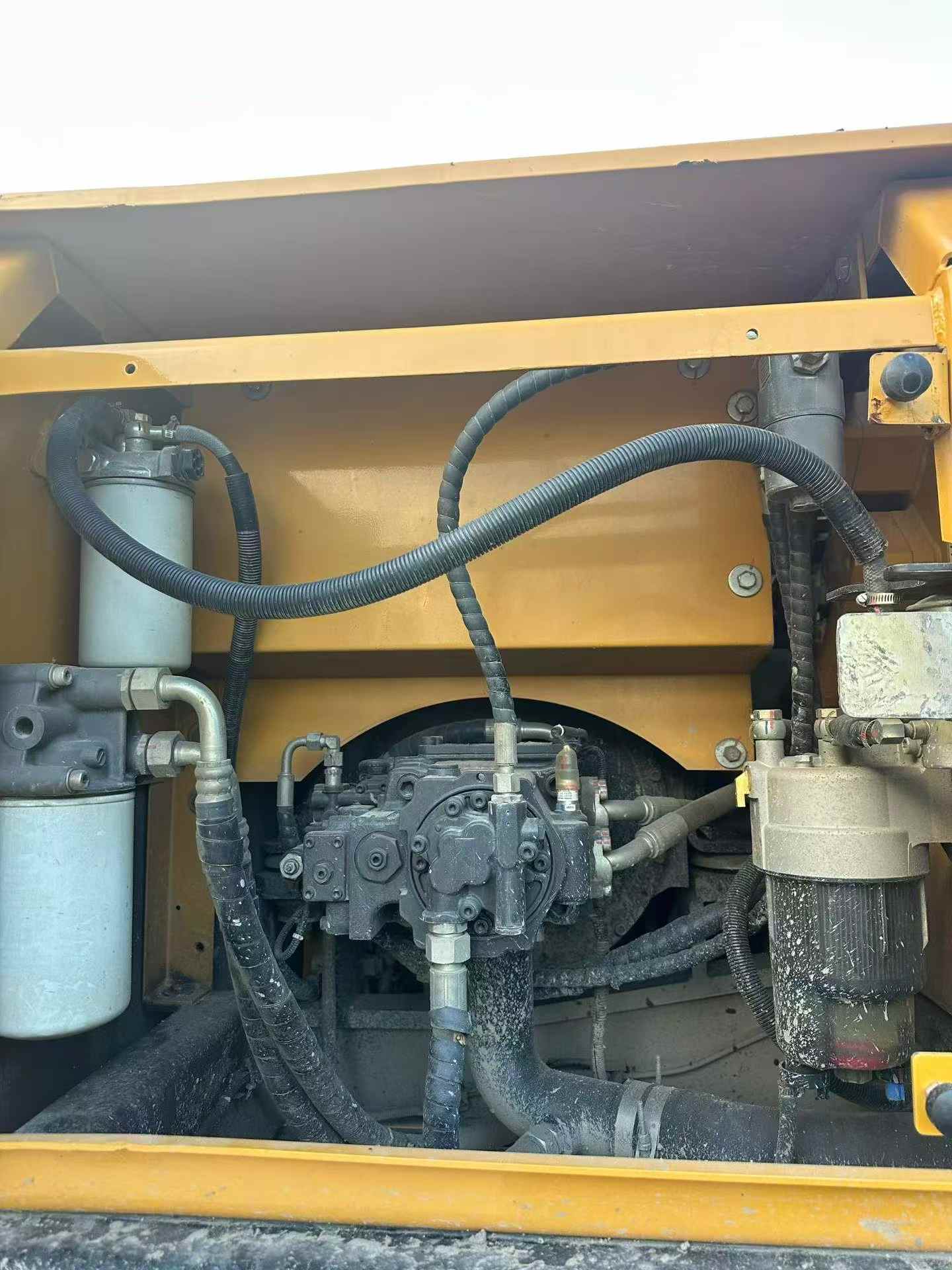

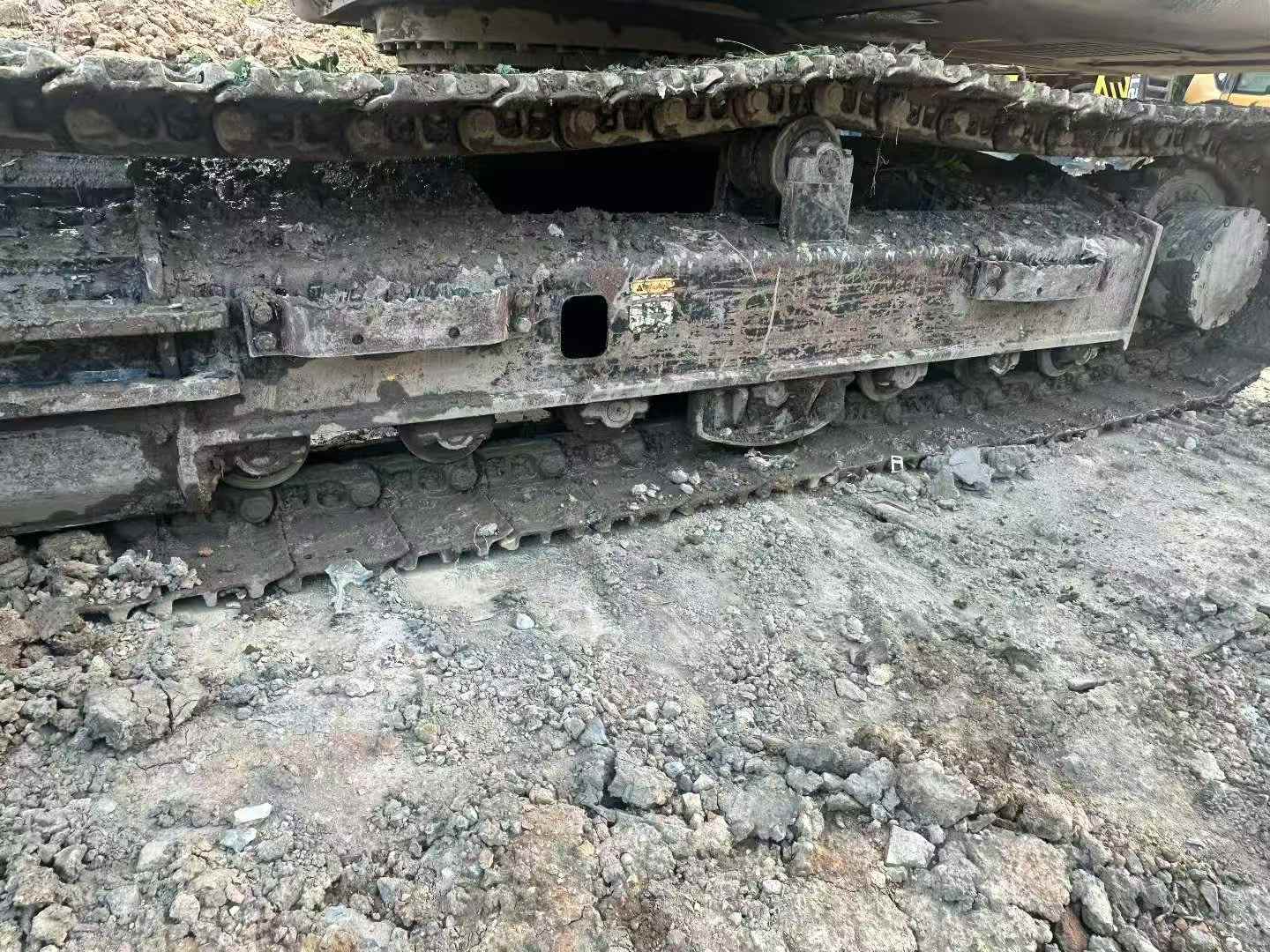

Discover the 2020 Sany SY135C, a robust and reliable excavator located in Zhejiang, China. With an authentic 4,200 hours of operation, this machine comes with all documentation, including certificates and invoices, ensuring its legitimacy and quality. This high-spec model features an unused original breaker line, enhancing its versatility for various tasks. The undercarriage and bucket are in near-mint condition, maintaining 99% of their original integrity. All major components, including the engine, hydraulic pumps, main control valve, and swing motor, are untouched, preserving the manufacturer's original standards. Equipped with a powerful original air conditioning system, it ensures operator comfort even in demanding conditions. Ideal for discerning business owners who value performance and reliability, this Sany SY135C is ready for immediate use.
| Specifications | Value |
|---|---|
| No. | 1111778 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 13500 |
| Bucket capacity (m³) | 0.22-0.7 (0.6) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Isuzu 4JJ1-XDJAG-01-C3 |
| Rated power (kw/rpm) | 73/2000 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 365/1600 |
| Displacement (L) | 2.999 |
| Ground specific pressure (Kpa) | 41.7 |
| Rotation speed (rpm) | 12 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 92.7 |
| Rod digging force (kN) | 66.13 |
| Travel speed (km/h) | 5.5/3.5 |
| Fuel Tank (L) | 240 |
| Hydraulic Tank (L) | 150 |
| Engine Oil changes (L) | 15 |
| Total transport length (mm) | 7700 |
| Total transport width (mm) | 2550 |
| Total transport height (mm) | 2815 |
| Full cab height (mm) | 2740 |
| Minimum ground clearance (mm) | 425 |
| Minimum turning radius of front working device (mm) | 2500 |
| Back end turning radius (mm) | 2240 |
| Onboard width (mm) | 2490 |
| Total track length (mm) | 3665 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Track ground length (mm) | 2930 |
| Maximum height at minimum turning radius (mm) | 6500 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 7 |
| Number of track plates (single side) (PCS) | 44 |
| Maximum digging radius (mm) | 8290 |
| Maximum digging depth (mm) | 5510 |
| Maximum excavation height (mm) | 8685 |
| Maximum unloading height (mm) | 6180 |
| Maximum vertical digging depth (mm) | 4890 |
