Product Description

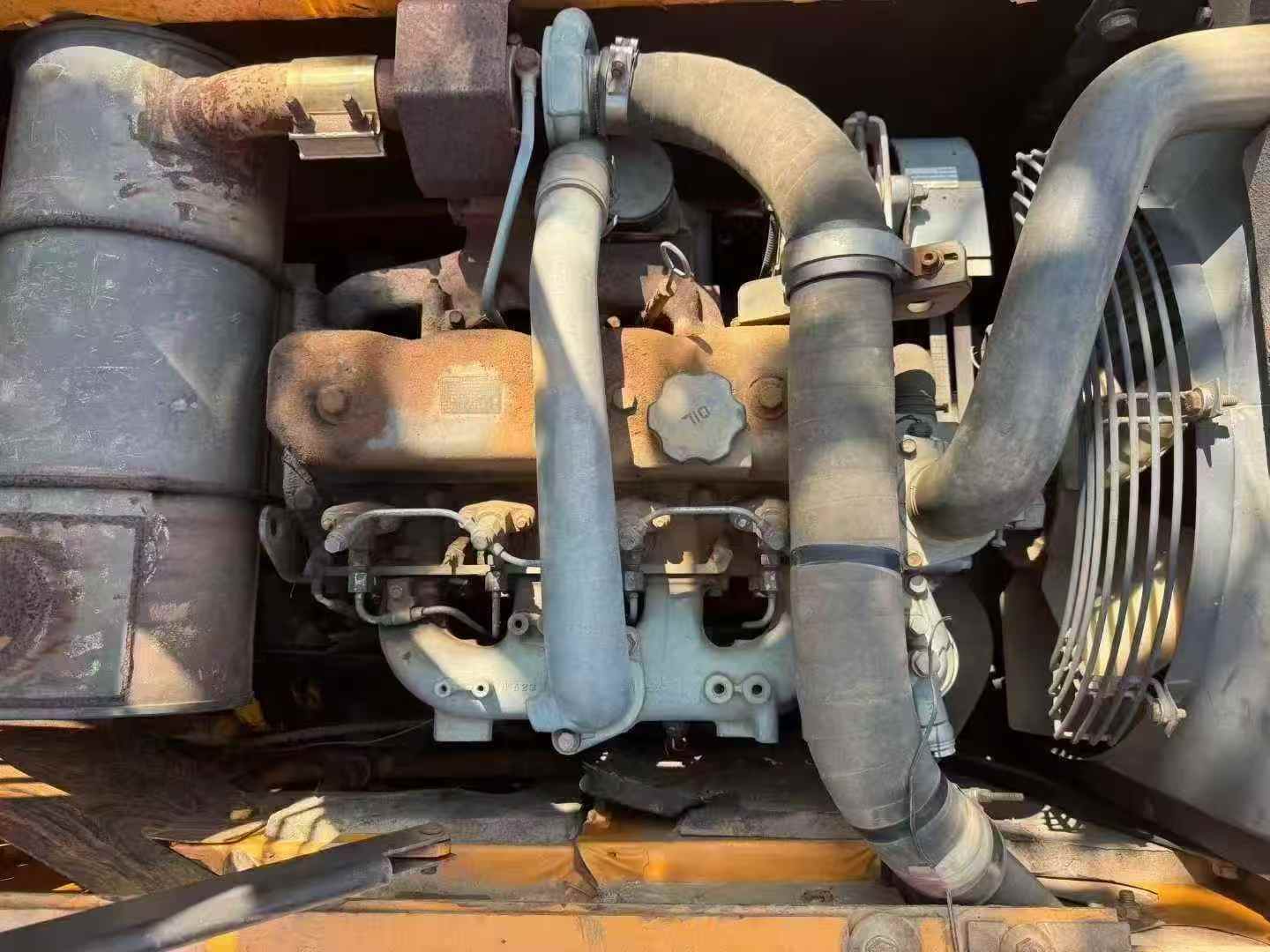

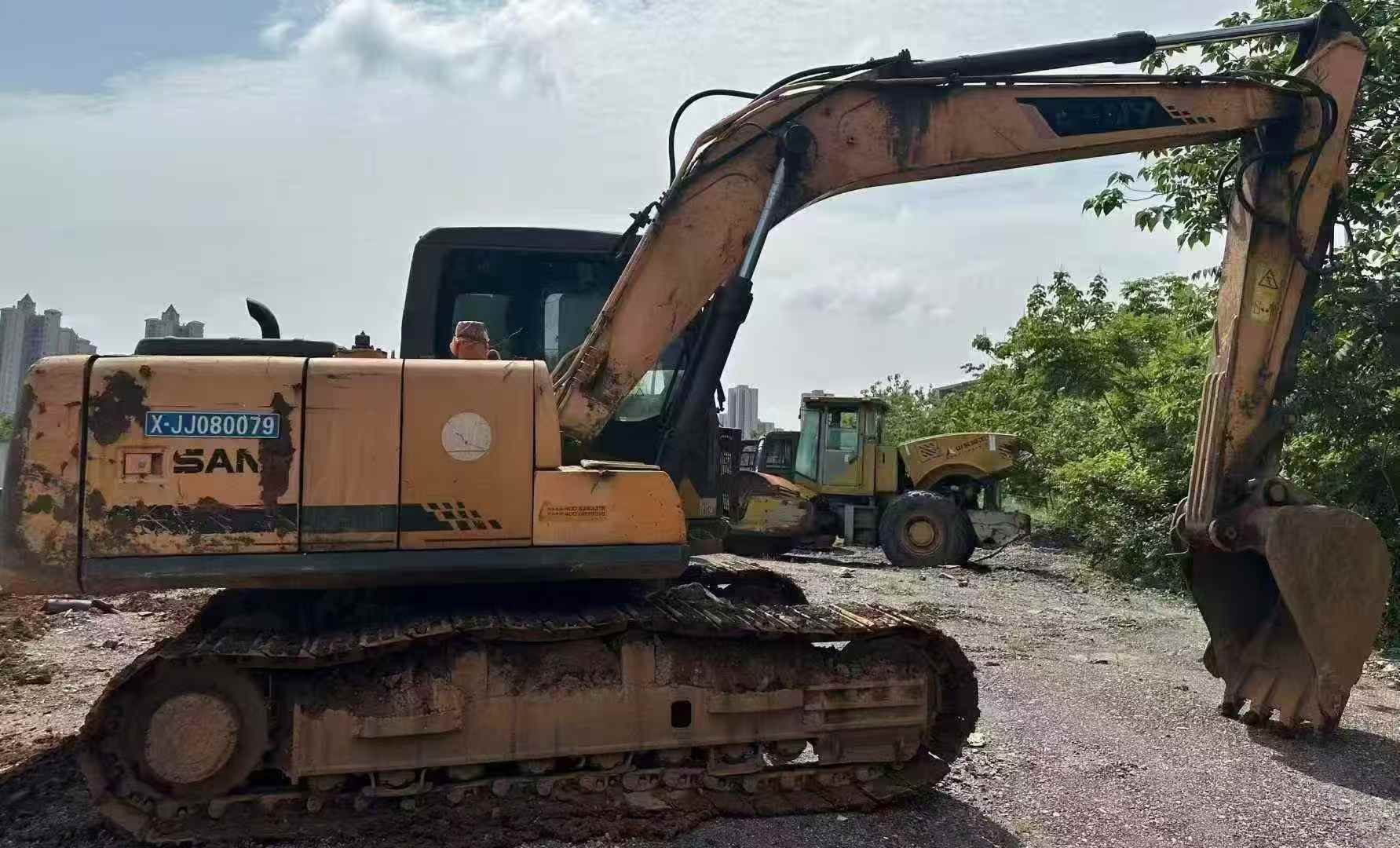

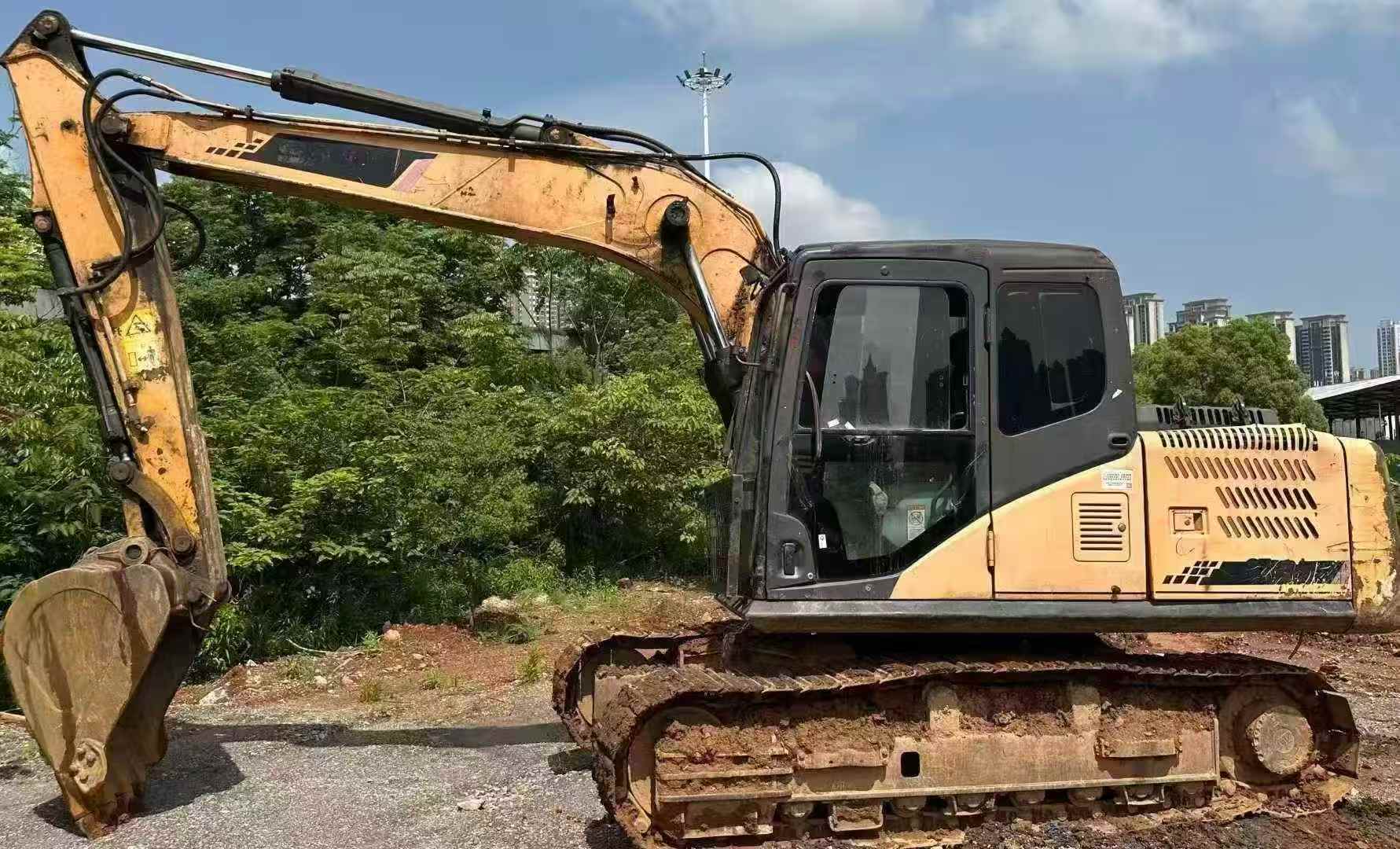

With a 15-ton working weight and a robust 0.55 m³ bucket capacity, the Sany SY155C is an ideal fleet addition for busy contractors. Made in China and equipped with a 4JJ1-XDJAG-01-C3 engine, this excavator delivers 73 kW of power at 2000 rpm, ensuring reliable performance on any job site. Its 92.7 kN bucket digging force and 66.13 kN rod digging force make it a powerful tool for various excavation tasks.
- Maximum torque: 365 N.m at 1600 rpm
- Fuel tank capacity: 240 L
- Hydraulic tank: 150 L
- Travel speed: 5.5/3.5 km/h
- Ground specific pressure: 43 Kpa
- Climbing ability: 70% (35°)

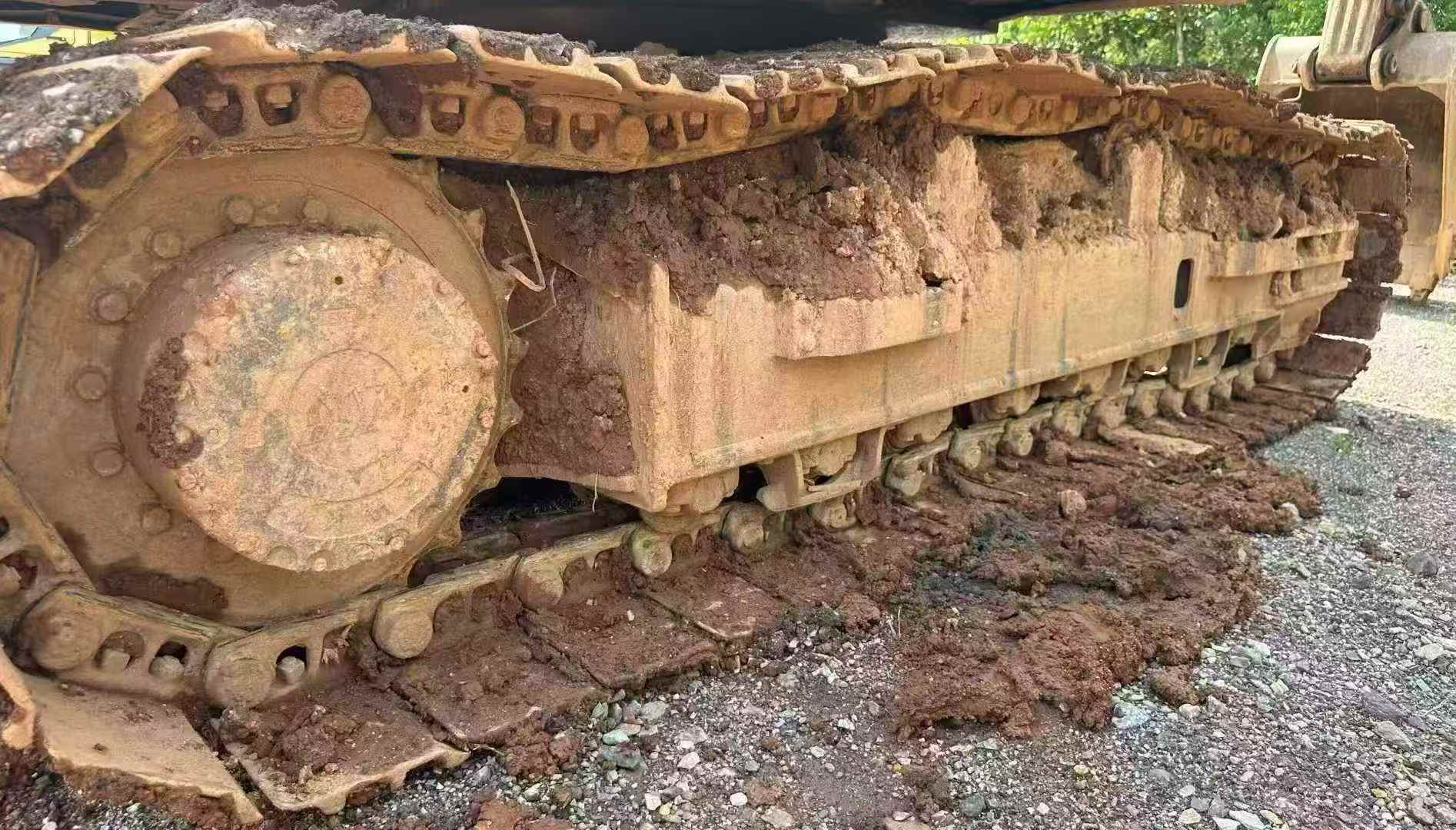

Featuring a 2.999 L displacement and a 12 rpm rotation speed, the SY155C is designed to handle tough conditions efficiently. With a total track length of 500 mm and 8 wheels per side, it offers excellent stability and maneuverability. Add this versatile machine to your fleet for enhanced productivity and reliability.
| Specifications | Value |
|---|---|
| No. | 1020742 |
| Tonnage (tons) | 15 |
| Working weight (kg) | 14100 |
| Bucket capacity (m³) | 0.55 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | 4JJ1-XDJAG-01-C3 |
| Rated power (kw/rpm) | 73/2000 |
| Maximum torque (N.m) | 365/160 |
| Displacement (L) | 2.999 |
| Ground specific pressure (Kpa) | 43 |
| Rotation speed (rpm) | 12 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 92.7 |
| Rod digging force (kN) | 66.13 |
| Travel speed (km/h) | 5.5/3.5 |
| Fuel Tank (L) | 240 |
| Hydraulic Tank (L) | 150 |
| Engine Oil changes (L) | 15 |
| Total track length (mm) | 500mm |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 8 |
| Number of track plates (single side) (PCS) | 44 |
