Product Description
Built for productivity, this 2016 Sany SY155C medium excavator delivers 15 tons of reliable performance on demanding jobsites. Powered by a robust 4JJ1-XDJAG-01-C3 engine producing 73kW at 2000 rpm, this China-manufactured machine handles digging, grading, and demolition with precision and power. The 0.55 m³ backhoe bucket generates an impressive 92.7 kN digging force, while the 66.13 kN rod force ensures consistent performance in tough materials.
Operating specifications include:
- 14,100 kg working weight with 43 kPa ground pressure for stability
- 5.5 km/h high-range travel speed for efficient site mobility
- 70% (35°) climbing ability tackles challenging terrain
- 240L fuel capacity supports extended operating shifts

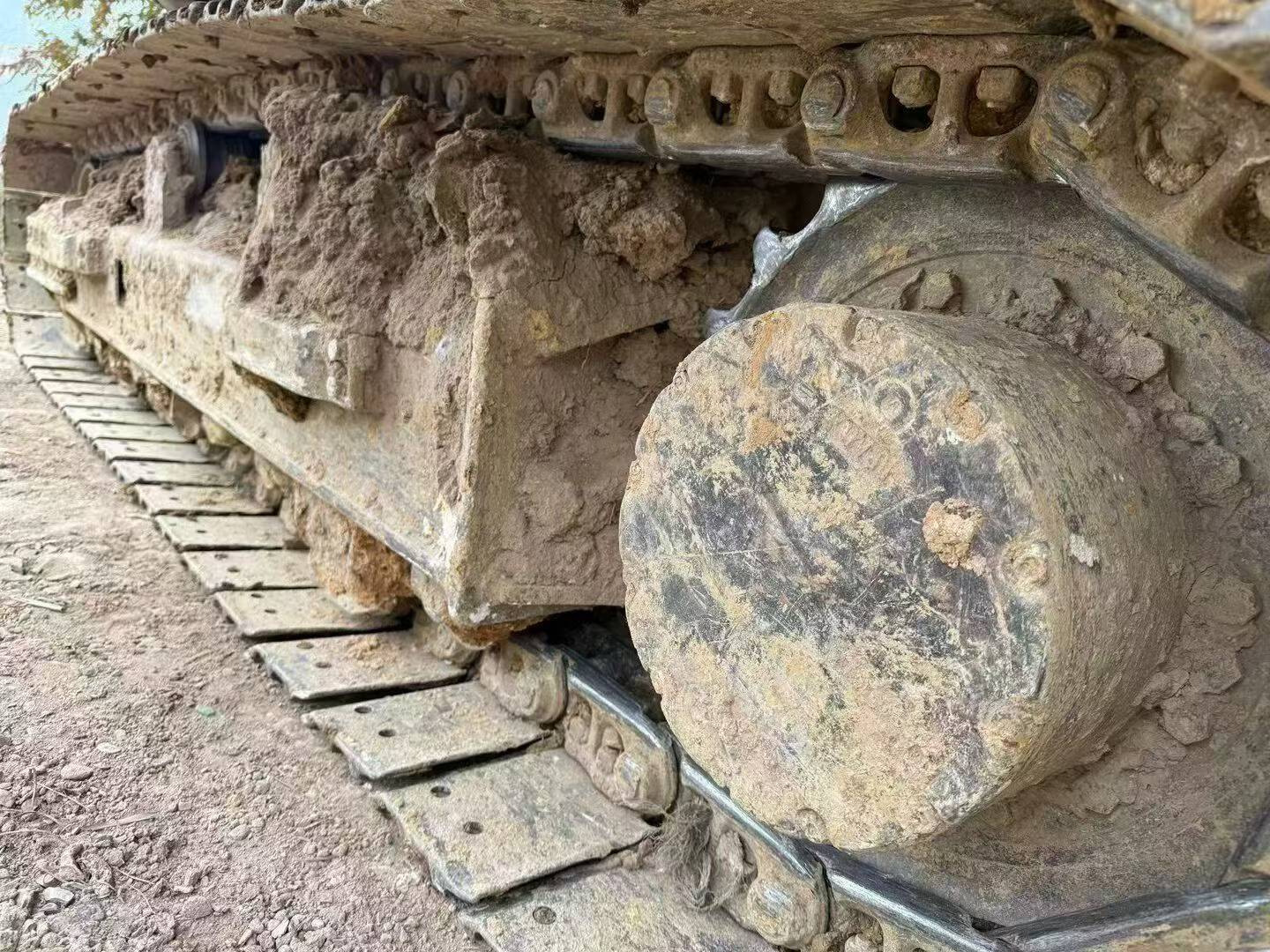

- 500mm track width with 8 rollers per side ensures durability
Currently located in Hunan, China, this SY155C arrives site-ready for immediate deployment. Proven reliability meets practical engineering in a machine designed for contractors who demand performance without downtime.
| Specifications | Value |
|---|---|
| No. | 1024641 |
| Tonnage (tons) | 15 |
| Working weight (kg) | 14100 |
| Bucket capacity (m³) | 0.55 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | 4JJ1-XDJAG-01-C3 |
| Rated power (kw/rpm) | 73/2000 |
| Maximum torque (N.m) | 365/160 |
| Displacement (L) | 2.999 |
| Ground specific pressure (Kpa) | 43 |
| Rotation speed (rpm) | 12 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 92.7 |
| Rod digging force (kN) | 66.13 |
| Travel speed (km/h) | 5.5/3.5 |
| Fuel Tank (L) | 240 |
| Hydraulic Tank (L) | 150 |
| Engine Oil changes (L) | 15 |
| Total track length (mm) | 500mm |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 8 |
| Number of track plates (single side) (PCS) | 44 |
